6N7-86110-00-00 Yamaha Solenoid 115HP | Genuine Used Part

🔧 Product Description

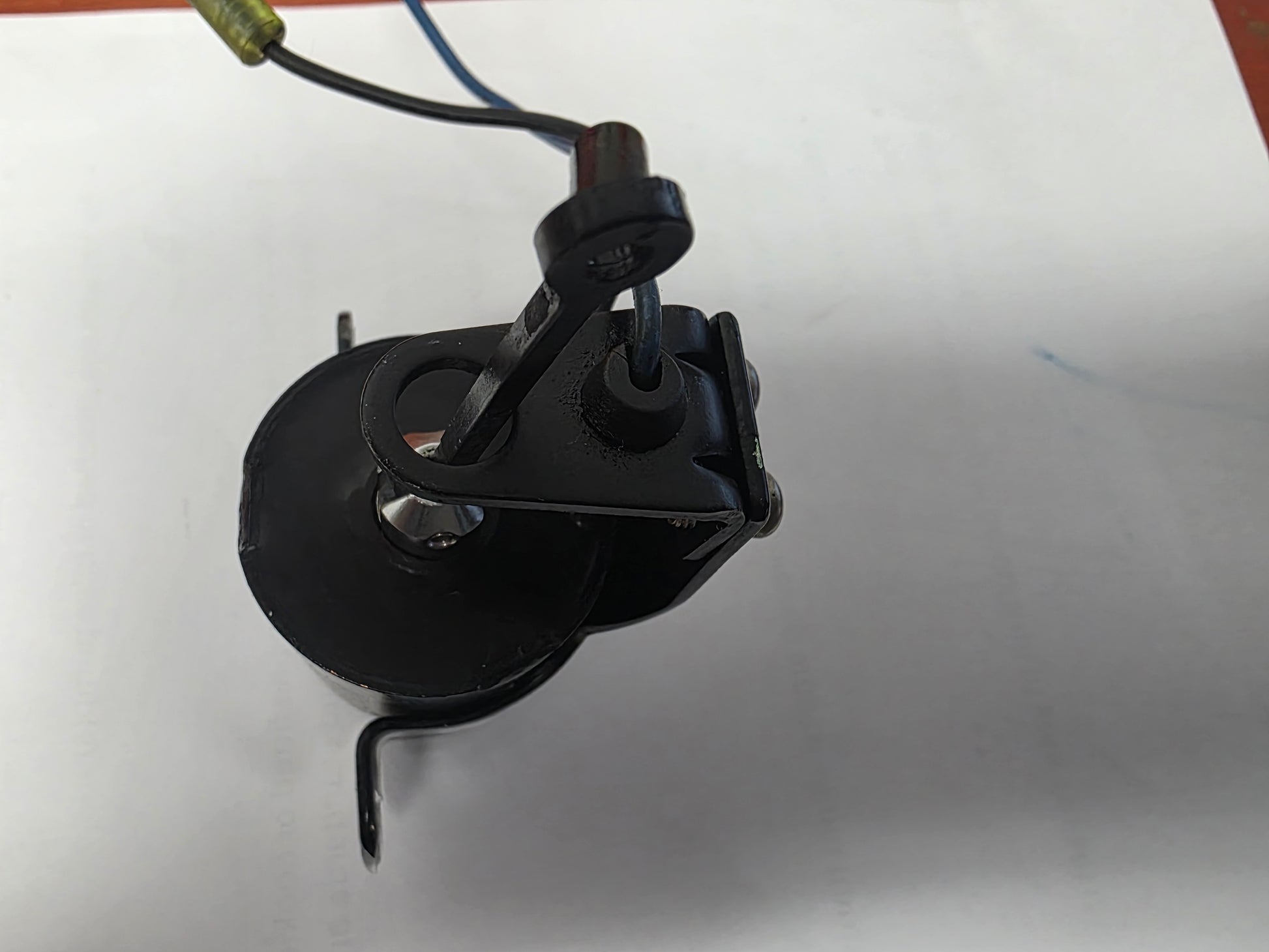

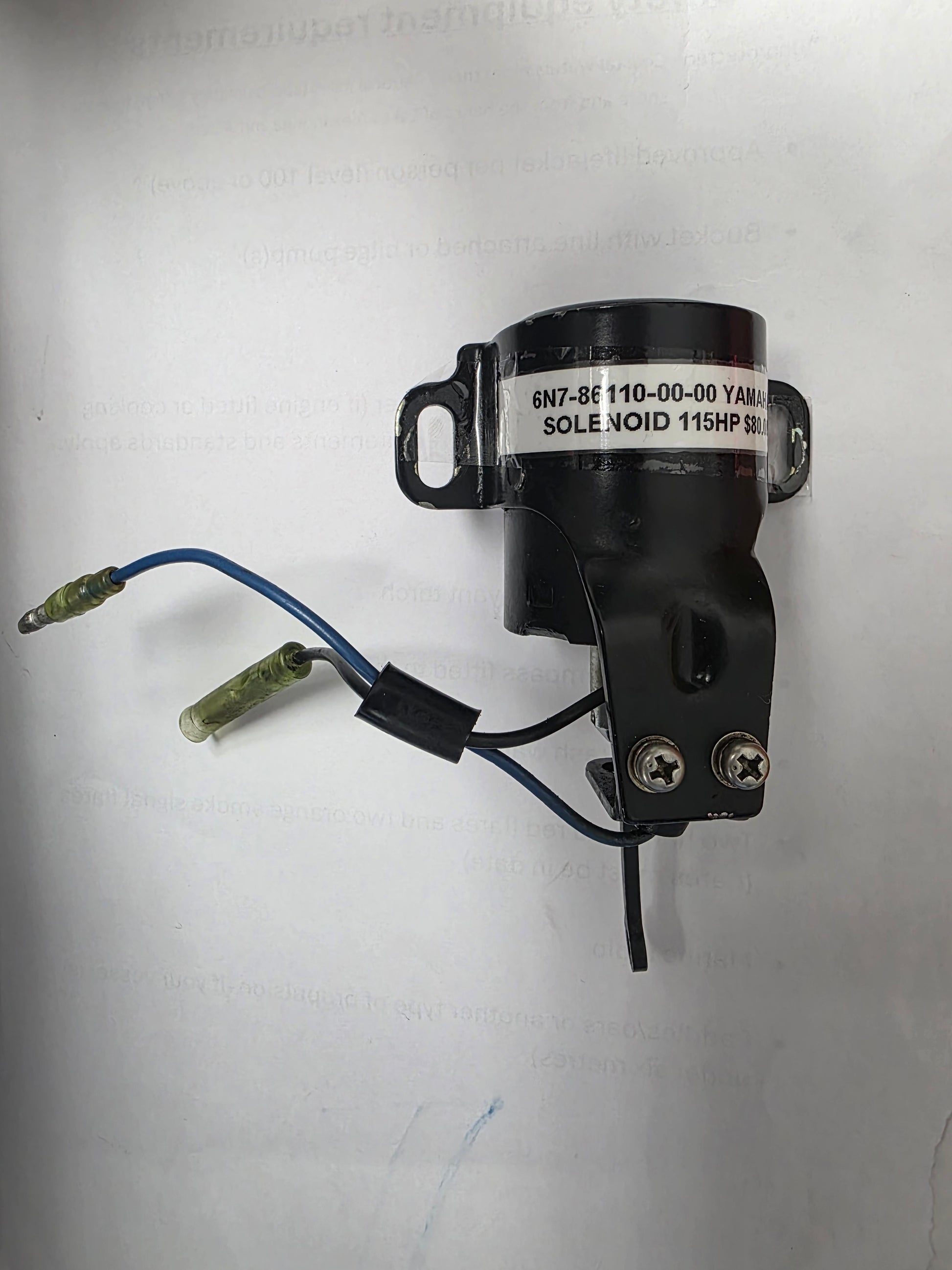

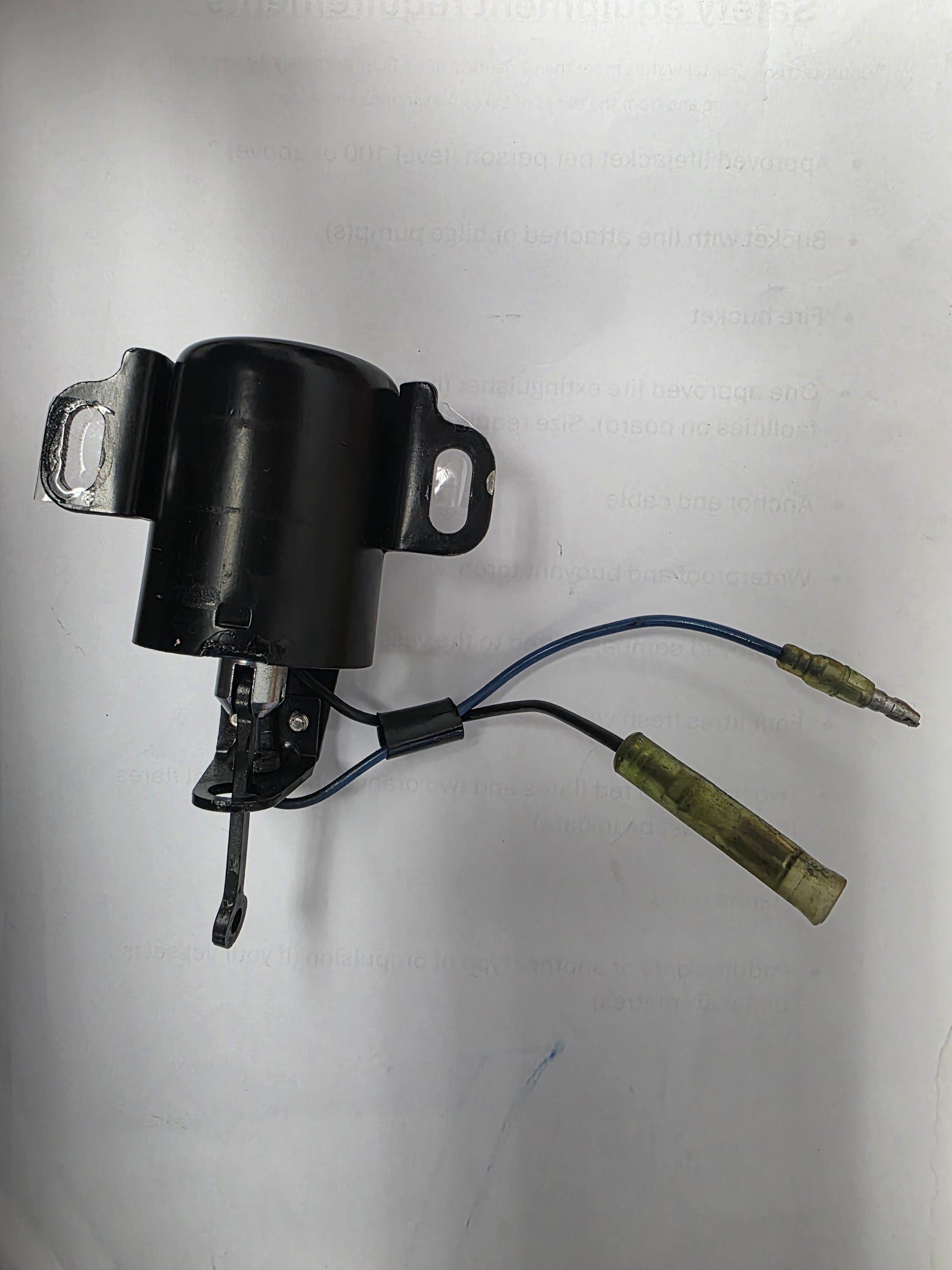

Genuine Yamaha 115HP / 130HP Choke Solenoid - Part Number: 6N7-86110-00-00

A genuine Yamaha magnetic choke solenoid for selected 115HP and 130HP V4 carburetted two-stroke outboards.

The solenoid is installed in the engine electrical and choke-linkage system. When the operator activates the choke circuit, the electromagnetic coil pulls its plunger and operates the carburettor choke linkage to enrich the mixture for cold starting.

⚙️ Key Features

• Genuine Yamaha OEM choke solenoid
• Correct part number 6N7-86110-00-00
• Used on selected 115HP and 130HP V4 two-stroke engines
• Electromagnetic pull-type choke actuator
• Original Yamaha mounting and connector configuration

🚤 Compatibility

Commonly used on

• Yamaha 115HP and 130HP V4 electrical systems
• Carburetted two-stroke engines with an electrically operated choke linkage

Typically suits

• Engine models:
• Yamaha 115ETD
• Yamaha 115ETLD
• Yamaha 115ETXD
• Yamaha 115TRP
• Yamaha 115TLR
• Yamaha 115TXR
• Yamaha 115C
• Yamaha 115CETOL
• Yamaha S115 model families
• Yamaha P115 model families
• Yamaha 130ETD
• Yamaha 130ETLD
• Yamaha 130ETXD
• Yamaha 130TRP
• Yamaha 130TLR
• Yamaha 130TXR
• Yamaha L130 counter-rotation model families
• Yamaha S130 model families
• Yamaha 115TLRC - 2004
• Yamaha 115TLR - 2007
• Yamaha 130BETOL - 2006
• Yamaha E115AETL and 115CETOL international applications through approximately 2011
• HP Range: 115HP - 130HP
• Engine Type: Yamaha V4 carburetted two-stroke outboard
• Year Range: Approximately 1990 - 2011, dependent on market and model code

🔌 Function

The solenoid converts electrical current from the choke circuit into movement of the carburettor choke linkage.

⚠️ Common Signs of Failure

• Engine is difficult to start when cold
• Choke linkage does not move when activated
• Solenoid clicks but cannot pull the linkage fully
• Coil becomes excessively hot
• Plunger is corroded or sticks in the housing
• Internal winding is open- or short-circuited
• Engine remains choked and runs excessively rich

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6N7-86110-00-00 current documented Yamaha solenoid reference
• No confirmed superseding service number

OEM / Related Numbers

• 6N7-86110-00-00
• 6N7861100000
• 6N7-86110-00
• 6N78611000
• 6N7-86112-00-00 related solenoid mounting stay
• 6N7-83557-00-00 related pressure or choke tube used on applicable assemblies
• Related choke linkage, plunger and carburettor components

Non-Equivalent Numbers

• 6E5-86110-03-00 is another Yamaha V4 choke-solenoid family but should not be treated as an automatic direct substitute
• 6K7-86110-00-00 is used on other Yamaha V6 applications
• Connector, mounting-stay and linkage configuration must match the engine parts catalogue

Aftermarket / Verified Equivalents

• No branded direct aftermarket equivalent confirmed
• Genuine Yamaha 6N7-86110-00-00 remains the verified replacement
• Universal choke solenoids are not verified as direct replacements

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
