6R1-45978-A0-00 6R1-45978-A1-00 Yamaha Saltwater Series 15 1/4 x 17 LH Stainless Steel Propeller – 15 Spline | Genuine Used Part

🔧 Product Description

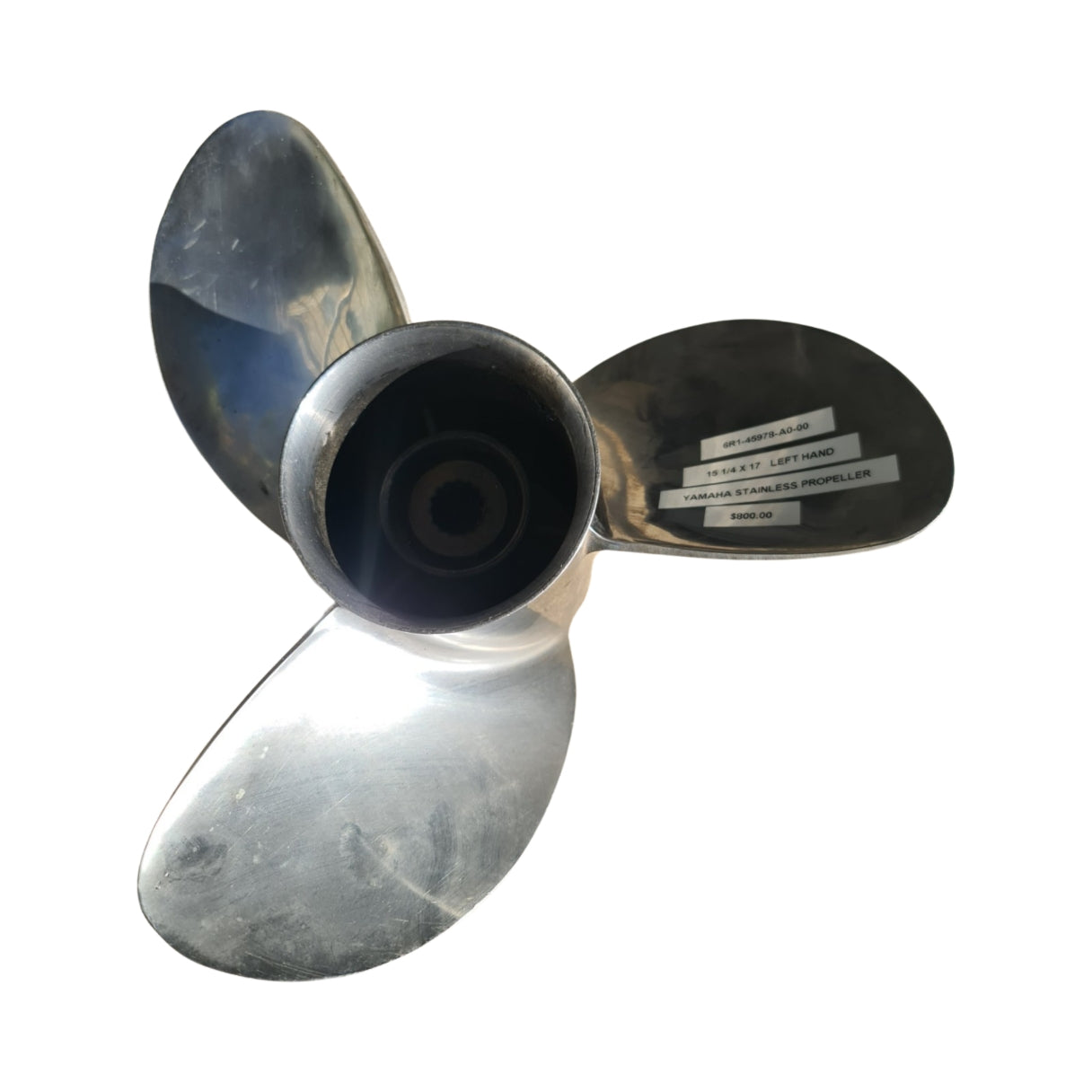

Genuine Yamaha Saltwater Series 15 1/4 x 17 Left-Hand Stainless Steel Propeller - Part Number: 6R1-45978-A0-00 / 6R1-45978-A1-00

A genuine used Yamaha Saltwater Series three-blade left-hand stainless-steel propeller for counter-rotation Yamaha large gearcases.

The 17-inch pitch provides stronger acceleration and load carrying than the 19-pitch version while retaining the large 15 1/4-inch blade diameter. It is intended for the port gearcase only.

⚙️ Key Features

• Genuine Yamaha Marine Saltwater Series propeller
• 15 1/4-inch diameter x 17-inch pitch
• Three-blade polished stainless-steel construction
• Left-hand / counter-clockwise rotation
• 15-spline large-gearcase application

🚤 Compatibility

Commonly used on

• Yamaha counter-rotation 4 3/4-inch large gearcases
• Offshore twin- and multi-engine installations requiring a large-diameter 17-pitch port propeller

Typically suits

• Engine models:
• Yamaha L150, L175, L200, L225, L250 and L300 counter-rotation two-stroke outboards
• Yamaha LZ150, LZ175, LZ200, LZ225 and LZ250 HPDI counter-rotation models
• Yamaha LF150, LF175, LF200, LF225, LF250 and LF300 counter-rotation four-strokes
• Twin- and multi-engine installations where the port gearcase is configured for left-hand rotation
• Not suitable for a standard right-hand gearcase
• HP Range: 150HP - 300HP
• Engine Type: Yamaha counter-rotation V6 two-stroke, HPDI or large four-stroke outboard
• Year Range: Approximately 1990s onward, gearcase and rotation controlled

🔌 Function

The propeller produces counter-clockwise thrust from the port gearcase. Its 17-inch pitch supports strong planing and load carrying on heavier boats.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6R1-45978-A1-00 → Supersedes 6R1-45978-A0-00
• 6R1-45978-A0-00 → Supersedes 6R1-45978-00-00

OEM / Related Numbers

• 6R1-45978-00-00
• 6R1-45978-A0-00
• 6R1-45978-A1-00
• 6R145978A000
• Yamaha Saltwater Series 15 1/4 x 17 LH

Aftermarket / Verified Equivalents

• Solas HR Titan / Rubex HR3: 15 to 15 1/4 x 17 left-hand stainless-steel alternative with Yamaha hub
• Michigan Wheel Apollo: 15-inch-class x 17 left-hand stainless-steel modular-hub alternative
• Yamaha Saltwater Series II / SDS 17-pitch left-hand propeller - later performance family
• PowerTech OFS3 / OFS4 17-pitch left-hand stainless-steel functional alternative

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
