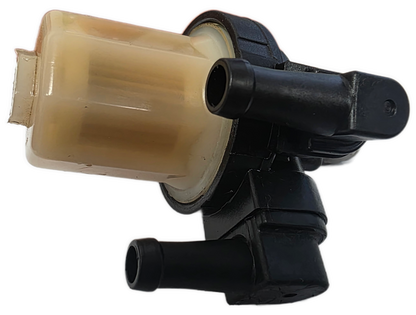

6R3-24560-00-00 Yamaha Filter Assy 115HP | Genuine Used Part

🔧 Product Description

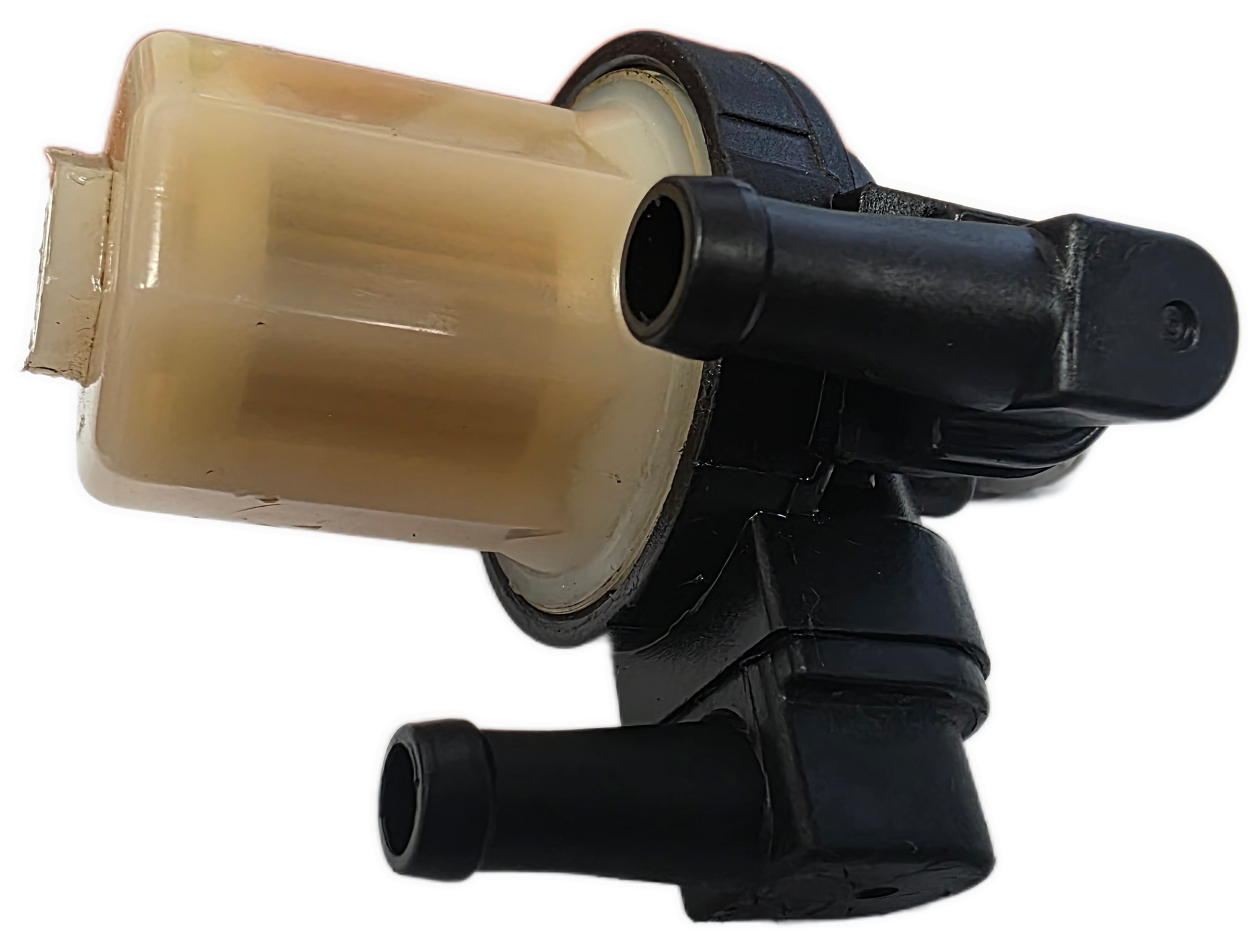

Genuine Yamaha 115HP-225HP Engine-Mounted Fuel Filter Assembly - Part Number: 6R3-24560-00-00

A genuine Yamaha complete engine-mounted low-pressure fuel-filter assembly used on numerous two-stroke and four-stroke outboards. The housing contains a replaceable strainer element and bowl and is installed upstream of the engine fuel pumps.

⚙️ Key Features

• Genuine Yamaha OEM filter assembly
• Correct part number 6R3-24560-00-00
• Used on selected 115HP-225HP outboards
• Complete housing, bowl and strainer arrangement
• Multiple aftermarket complete replacements available

🚤 Compatibility

• Selected Yamaha 115HP, 130HP and 150HP two-stroke outboards
• Selected Yamaha 175HP, 200HP and 225HP two-stroke outboards
• Selected Yamaha four-stroke models using the same filter assembly
• Commonly catalogued from approximately 1994 onward
• Standard- and counter-rotation applications where 6R3-24560-00 is specified
• Fitment is controlled by bracket, hose size and engine fuel-system diagram

🔌 Function

The assembly removes particulate contamination and water droplets from the low-pressure fuel supply before fuel reaches the engine pumps, carburettors or vapour separator.

⚠️ Common Signs of Failure

• Engine loses power because the element is restricted
• Bowl or housing leaks fuel
• O-ring draws air into the fuel system
• Water or debris accumulates in the bowl
• Hose nipples crack
• Primer bulb does not remain firm

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6R3-24560-00-00 is the documented complete filter assembly
• 6E5-24560-00-00 is a related Yamaha filter-assembly reference
• 61N-24563-10 is the related replaceable filter element
• 93210-32738 is the related bowl O-ring

OEM / Related Numbers

• 6R3-24560-00-00
• 6R3-24560-00
• 6E5-24560-00-00
• 61N-24563-10 filter element
• 93210-32738 O-ring
• Related bracket, fuel hoses and mounting hardware

Aftermarket / Verified Equivalents

• Recmar REC6R3-24560-00
• iFJF replacement filter assembly
• Other marine aftermarket housings cross-referenced to 6R3-24560-00
• Aftermarket replacement elements for 61N-24563-10

📦 Condition

• Genuine used part

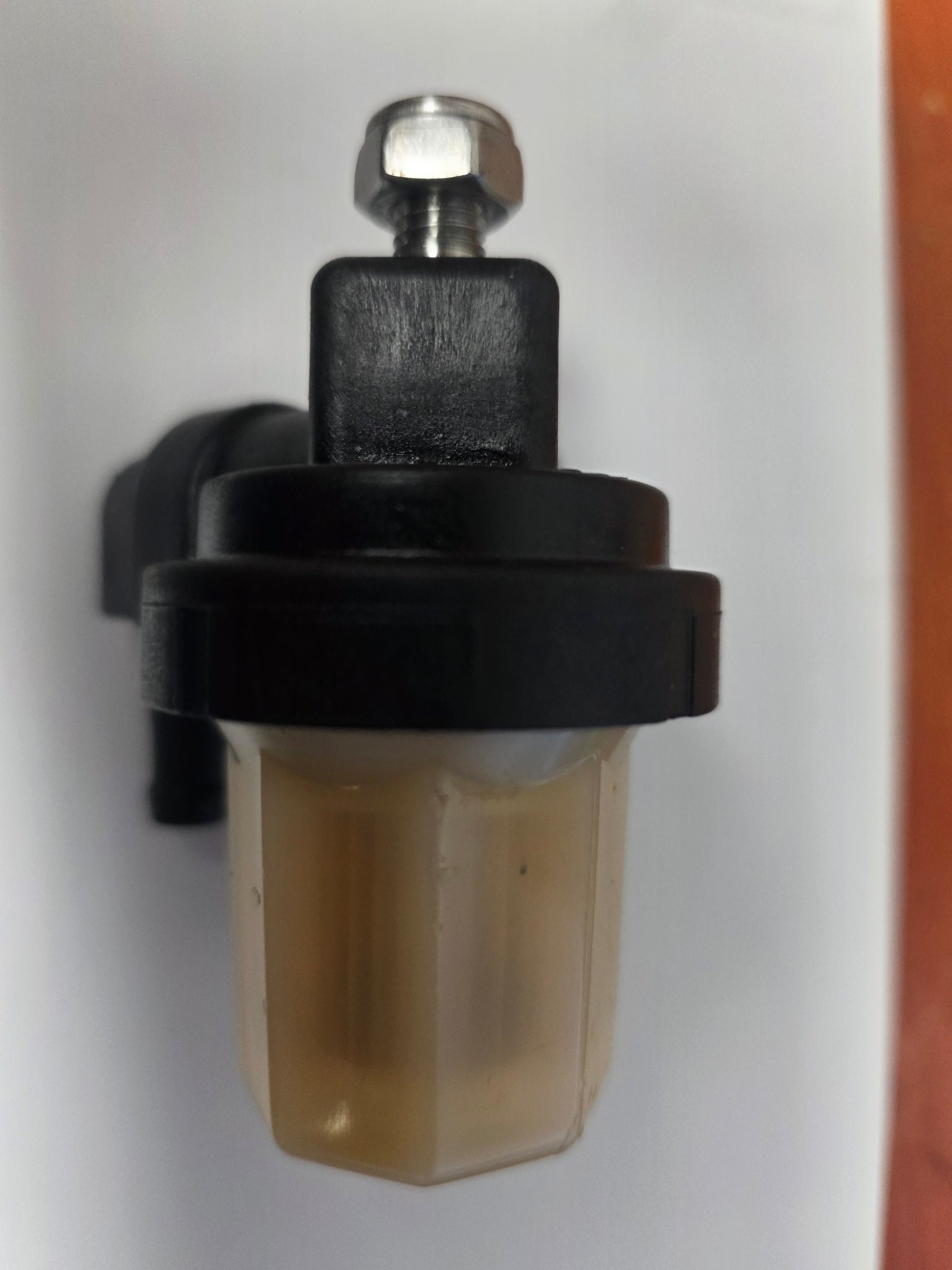

• Filter element and bowl condition are as shown
• In good working condition unless otherwise stated
