6R3-41241-00-00 Yamaha Link Rod 115HP | Genuine Used Part

🔧 Product Description

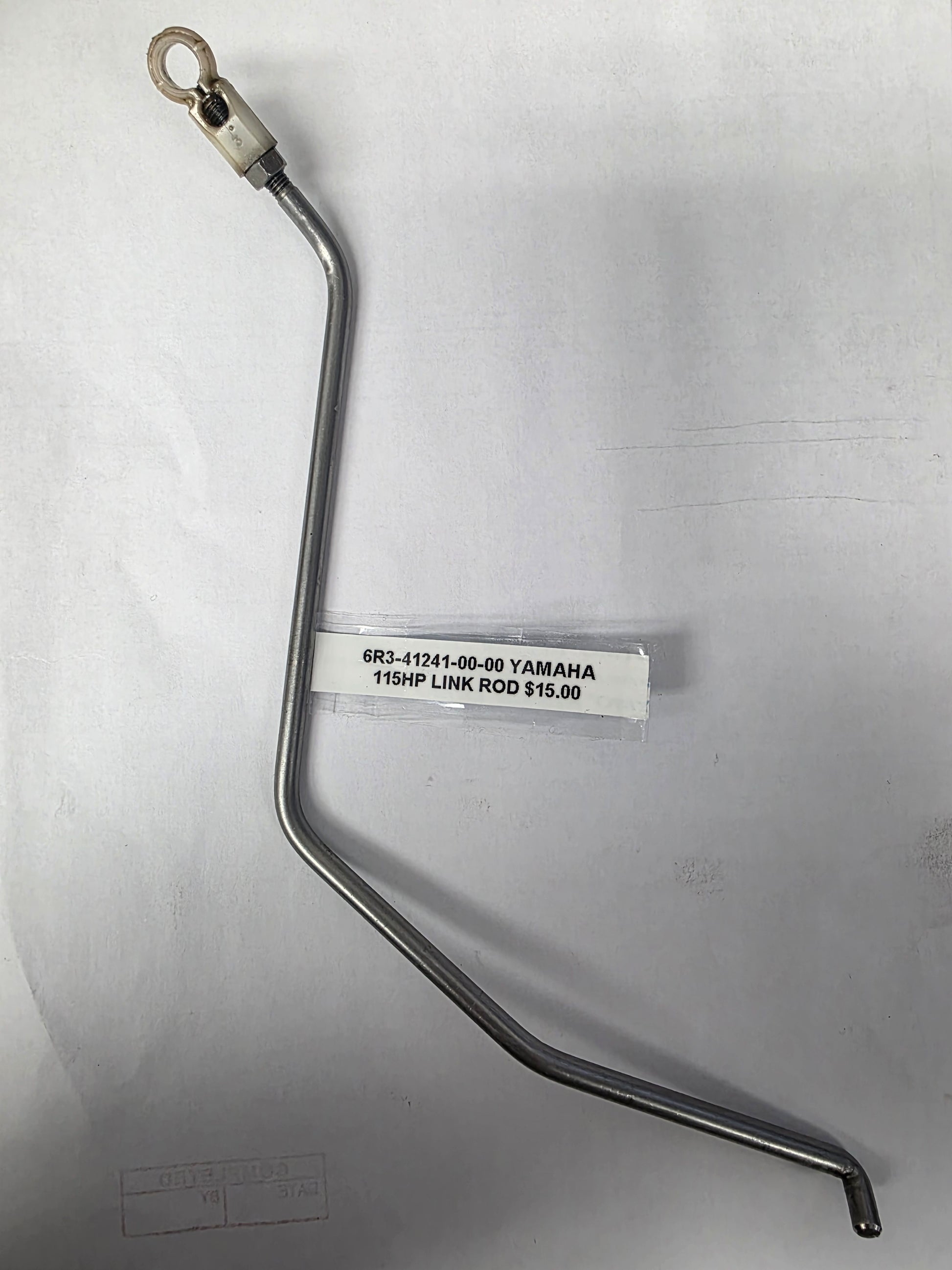

Genuine Yamaha Oil-Injection Pump Link Rod - Part Number: 6R3-41241-00-00

A genuine Yamaha link rod used within the precision-oil-injection pump linkage on selected V4 and V6 two-stroke outboards.

Although commonly associated with 115HP engines, this rod is used across a broader group of 115HP, 130HP, 150HP, 175HP and 200HP Yamaha two-strokes. It connects the oil-pump control lever to the throttle-related linkage so oil delivery increases in proportion to engine load.

⚙️ Key Features

• Genuine Yamaha oil-injection linkage component
• Correct part number 6R3-41241-00-00
• Factory rod length and formed ends
• Synchronises oil-pump movement with throttle position
• Used with Yamaha precision-lubrication systems
• Suitable for selected V4 and V6 two-stroke outboards

🚤 Compatibility

Documented on selected

• Yamaha 115HP V4 two-stroke outboards
• Yamaha 130HP V4 two-stroke outboards
• Yamaha 150HP V6 two-stroke outboards
• Yamaha 175HP V6 two-stroke outboards
• Yamaha 200HP V6 two-stroke outboards
• 1987 150HP, 175HP and 200HP oil-injection applications
• 1989 150ETXF
• 2001 150TRZ
• 2002 115TLRA, 115TXRA, 130TLRA, 130TXRA and 150TXRA
• Engine Type: Yamaha carburetted two-stroke outboard with precision oil injection
• Fitment Requirement: Confirm oil-pump number, throttle linkage and complete model code

🔌 Function

The rod transfers throttle-related movement to the oil-pump lever. Correct rod length and adjustment ensure the engine receives the required oil quantity from idle through full throttle.

⚠️ Common Signs of Failure

• Oil-pump lever does not move through its full travel
• Rod is bent, disconnected or incorrectly adjusted
• Retaining clip is missing
• Engine uses too much or too little oil
• Linkage binds or has excessive free play

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6R3-41241-00-00 current documented link-rod reference
• No direct supersession confirmed

OEM / Related Numbers

• 6R3-41241-00-00
• 6R3-13200-09-00 related oil-injection pump assembly
• 6R4-13200-09-00 related oil-injection pump assembly
• 6R3-13416-00-00 related oil pipe
• 6R3-13183-00-00 related check valve
• 6R3-11537-09-00 oil-pump driven gear
• 6H1-41237-00-00 related link joint
• 6R5-41237-00-00 related link joint
• 90468-05M03-00 retaining clip

Aftermarket / Verified Equivalents

• Specialist used Yamaha oil-pump linkage assemblies
• Used complete 6R3 / 6R4 oil-injection pump assemblies
• Generic linkage clips may replace 90468-05M03-00 only when dimensions match
• No verified direct aftermarket link rod

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Oil-pump synchronisation should be checked after installation
