6R3-42824-00-00 Yamaha Clamp Lever Base | Genuine Used Part

🔧 Product Description

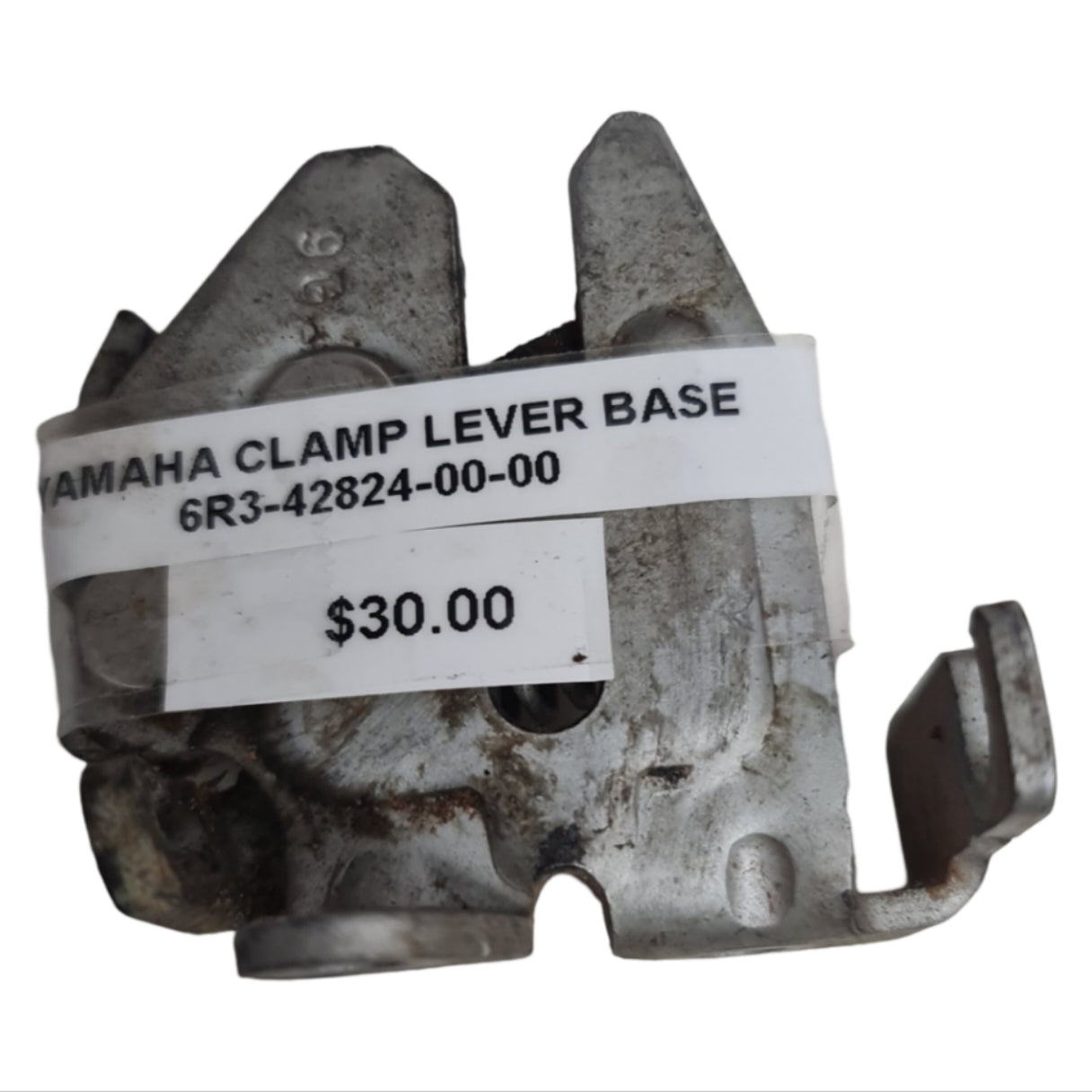

Genuine Yamaha Bottom Cowling Clamp Lever Base - Part Number: 6R3-42824-00-00

A genuine Yamaha base that supports the clamp lever in the lower-cowling latch assembly of selected V4 and V6 two-stroke outboards.

The base locates the lever pivot and spring at the correct angle so the cowling latch can tension and release smoothly.

⚙️ Key Features

• Genuine Yamaha clamp-lever base
• Correct part number 6R3-42824-00-00
• Supports the lower-cowling latch lever
• Maintains correct pivot and spring alignment
• Factory cast mounting dimensions
• Broad Yamaha V4 and V6 two-stroke application

🚤 Compatibility

Documented across selected

• Yamaha 100HP, 115HP, 130HP and 140HP outboards
• Yamaha 150HP, 175HP and 200HP outboards
• Yamaha 225HP and 250HP V6 outboards
• 1990 115HP applications
• 1993 130HP applications
• 1995 200HP applications
• 1996 P115
• 1998 V200
• 2001 115HP and 130HP
• 2002 VX200 and VX225
• 2003 115HP and 130HP
• Engine Type: Yamaha V4 or V6 two-stroke outboard
• Fitment Requirement: Confirm latch side, cowling design and lever configuration

🔌 Function

The base provides the pivot point for the cowling clamp lever. When the lever is closed, the assembly tensions the latch wire and secures the top cowling.

⚠️ Common Signs of Failure

• Lever has excessive side movement
• Pivot bore is worn
• Base is cracked around the mounting screws
• Cowling does not clamp tightly
• Lever or spring becomes misaligned

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6R3-42824-00-00 current widely documented service reference
• 6R3-42824-01-00 related supersession reference
• Supplier catalogues differ on supersession direction; verify the current Yamaha lookup for the exact engine

OEM / Related Numbers

• 6R3-42824-00-00
• 6R3-42824-01-00
• 6R3-42811-01-00 clamp stay
• 6R3-42815-00-8D clamp lever No. 1
• 6R3-42816-00-00 clamp lever No. 2
• 6R3-42813-00-00 torsion spring
• 6R3-42850-10-00 clamp wire assembly
• 6R3-42828-00-00 clamp plate

Aftermarket / Verified Equivalents

• Specialist used complete Yamaha cowling-clamp assembly
• Professionally repaired or fabricated base only where original pivot geometry is retained
• No verified direct aftermarket casting

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect the pivot pin and spring before installation
