6R3-81960-10-00 Yamaha Rectifier | Genuine Used Part

6R3-81960-10-00 Yamaha Rectifier | Genuine Used Part

$120.00 AUD
$120.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

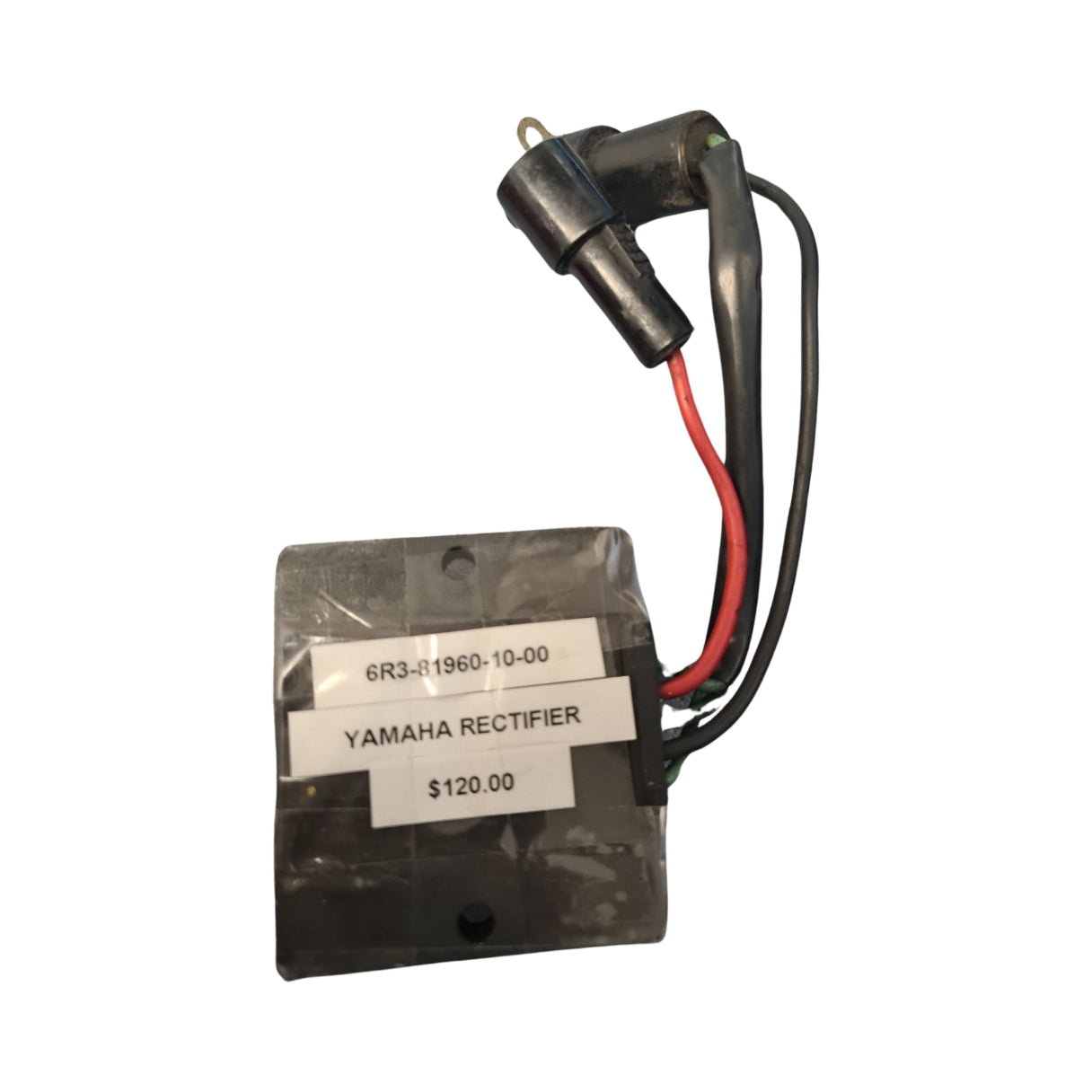

Genuine Yamaha Rectifier & Regulator Assembly - Part Number: 6R3-81960-10-00

A genuine Yamaha rectifier / regulator assembly used on selected Yamaha V4 and V6 two-stroke outboards. This charging-system component converts stator AC output into regulated DC voltage for battery charging and engine electrical supply.

⚙️ Key Features

  • Genuine Yamaha rectifier / regulator assembly
  • Correct Yamaha part number 6R3-81960-10-00
  • Replaces / relates to earlier 6R3-81960-00-00
  • Used on selected Yamaha 4-cylinder and 6-cylinder two-stroke charging systems
  • Cross-references with CDI, Sierra and Recmar replacement regulators

🚤 Compatibility

Commonly used on

  • Yamaha V4 and V6 two-stroke charging systems

Typically suits

  • Engine models:
  • Yamaha 115TLR - 1991-1998, 2000-2006
  • Yamaha 115TXR - 1991-1995, 2000-2006
  • Yamaha 115TJR - 1991-2001
  • Yamaha C115TLR
  • Yamaha 130TLR - 1991-2005
  • Yamaha 130TXR - 1991-1995, 2000-2004
  • Yamaha L130TXR - 1991-2001
  • Yamaha 150TLR - 1991-1998, 2000
  • Yamaha 150TXR - 1991-1994, 2000-2006
  • Yamaha L150TXR - 1991-1999
  • Yamaha V150TLR - 2000-2006
  • Yamaha D150
  • Yamaha 175HP V6 two-stroke - approximately 1990-2005
  • Yamaha 200TLR - 1991-1998
  • Yamaha L200TXR - 1991-1999
  • Yamaha P150TLR - 1991-1999
  • Yamaha P200TLR - 1991-1999
  • Yamaha 225TRV - 1997 electrical applications
  • HP Range: 115HP - 225HP
  • Engine Type: Yamaha V4 / V6 two-stroke outboard charging system
  • Year Range: approximately 1990 - 2006, with specific model-year ranges listed above
  • Serial Note: Match by Yamaha model code, original regulator number, connector style and wire count.

🔌 Function

The rectifier / regulator converts AC current from the stator into stable DC voltage for battery charging and engine electrical operation.

⚠️ Common Signs of Failure

  • Battery not charging
  • Overcharging or high battery voltage
  • Charging warning fault
  • Tachometer fault related to charging output
  • Burnt or melted regulator wiring
  • Battery goes flat while running
  • Incorrect charging voltage after stator and battery testing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6R3-81960-10-00 later Yamaha rectifier & regulator reference
  • 6R3-81960-00-00 earlier Yamaha rectifier & regulator reference

OEM / Related Numbers

  • 6R3-81960-10-00
  • 6R3819601000
  • 6R3-81960-10
  • 6R38196010
  • 6R3-81960-00-00
  • 6R3819600000
  • 6R3-81960-00
  • 6R38196000
  • Rectifier & regulator assembly
  • Voltage regulator rectifier

Aftermarket / Verified Equivalents

  • CDI Electronics: 197-0001
  • Sierra: 18-99451
  • Recmar: REC6R3-81960-10

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
