6R3-82563-01-00 6R3-82563-00-00 Yamaha z200 Trim & Tilt Switch Assy | Genuine Used Part
6R3-82563-01-00 6R3-82563-00-00 Yamaha z200 Trim & Tilt Switch Assy | Genuine Used Part
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

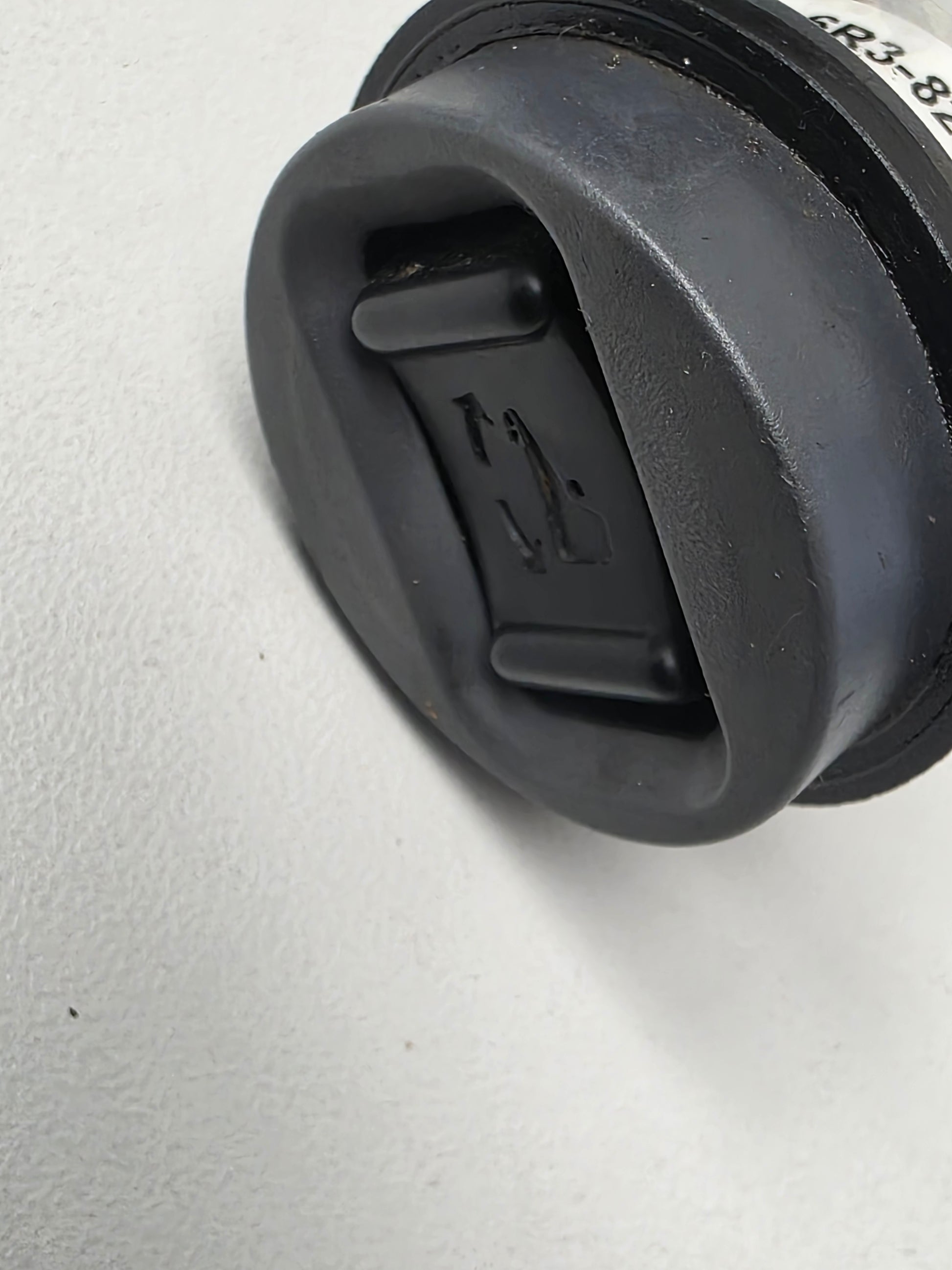

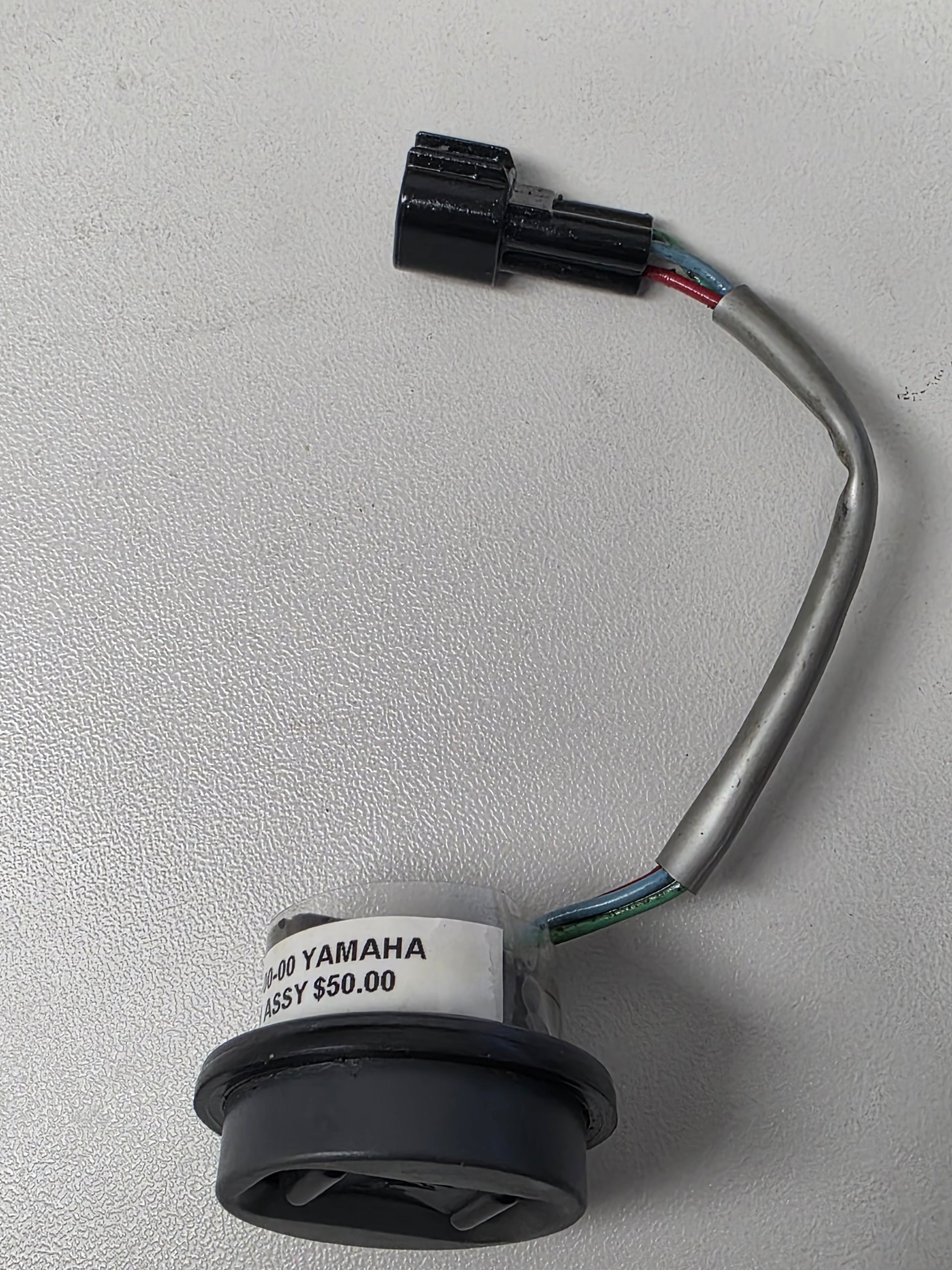

Genuine Yamaha Trim & Tilt Switch Assembly - Part Numbers: 6R3-82563-01-00 / 6R3-82563-00-00
A genuine Yamaha trim and tilt switch assembly used on Yamaha 115HP to 225HP two-stroke outboards, including Z200, VZ, V, VX, SX and S-series models. This switch provides local trim and tilt control from the engine cowling or trim switch mounting position.
⚙️ Key Features
- Genuine Yamaha trim and tilt switch assembly
- Correct Yamaha references 6R3-82563-01-00 and 6R3-82563-00-00
- 6R3-82563-01-00 supersedes earlier 6R3-82563-00-00
- Used on Yamaha 115HP to 225HP two-stroke trim and tilt systems
- Commonly used on Z200 / VZ200 / VX / V / SX Yamaha outboards
🚤 Compatibility
Commonly used on
- Yamaha two-stroke outboard power trim and tilt systems
- Yamaha V4 and V6 outboards using the 6R3 trim switch assembly
Typically suits
- Engine models:
- Yamaha 115HP two-stroke
- Yamaha 130HP two-stroke
- Yamaha 150HP two-stroke
- Yamaha 175HP two-stroke
- Yamaha 200HP two-stroke
- Yamaha 225HP two-stroke
- Yamaha S115 / S130 / S150 / S175 / S200
- Yamaha SX150 / SX200
- Yamaha V150 / VX150 / VX200
- Yamaha VZ150 / VZ175 / VZ200
- Yamaha Z150 / Z175 / Z200
- Yamaha VX150TLR / VX150TLRA electrical systems using 6R3-82563-01-00
- Yamaha Z200TXR / Z200TXRC electrical systems using 6R3-82563-01-00
- Yamaha LZ200TXR / LZ200TXRC electrical systems using 6R3-82563-01-00
- HP Range: commonly 115HP - 225HP
- Engine Type: Yamaha V4 / V6 two-stroke outboard with power trim and tilt
- Year Range: approximately mid-1990s to late-2000s depending on model
🔌 Function
The trim and tilt switch sends up / down control signals to the trim relay circuit, allowing the operator to raise or lower the outboard for trailering, shallow-water operation and trim adjustment.
⚠️ Common Signs of Failure
- Trim works from control box but not from engine switch
- Trim only works in one direction
- Intermittent up / down operation
- Water ingress or corrosion in switch body
- Broken switch rocker or damaged wiring
- Trim relay clicks but switch command is inconsistent
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6R3-82563-01-00 → Supersedes 6R3-82563-00-00
- 6R3-82563-00-00 earlier Yamaha trim and tilt switch assembly reference
OEM / Related Numbers
- 6R3-82563-01-00
- 6R3-82563-01
- 6R3825630100
- 6R3-82563-00-00
- 6R3-82563-00
- 6R3825630000
Aftermarket / Verified Equivalents
- Recmar: REC6R3-82563-01

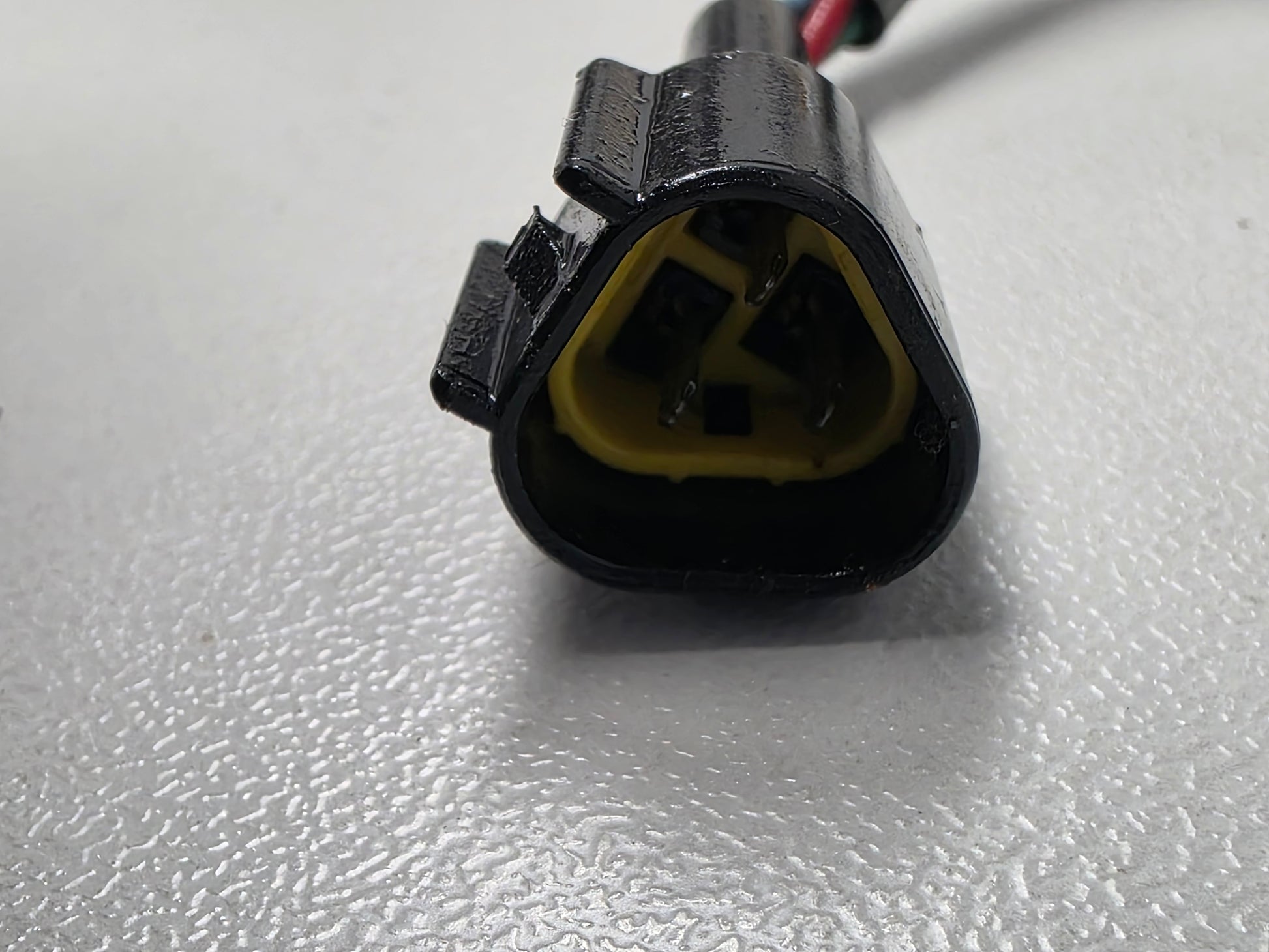

- Aftermarket 3-pin trim switch reference: 6R3-82563-00-00 / 6R3-82563-01-00
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
