6R3-82563-01-00 Yamaha Trim & Tilt Switch 115 HP | Genuine Used Part

🔧 Product Description

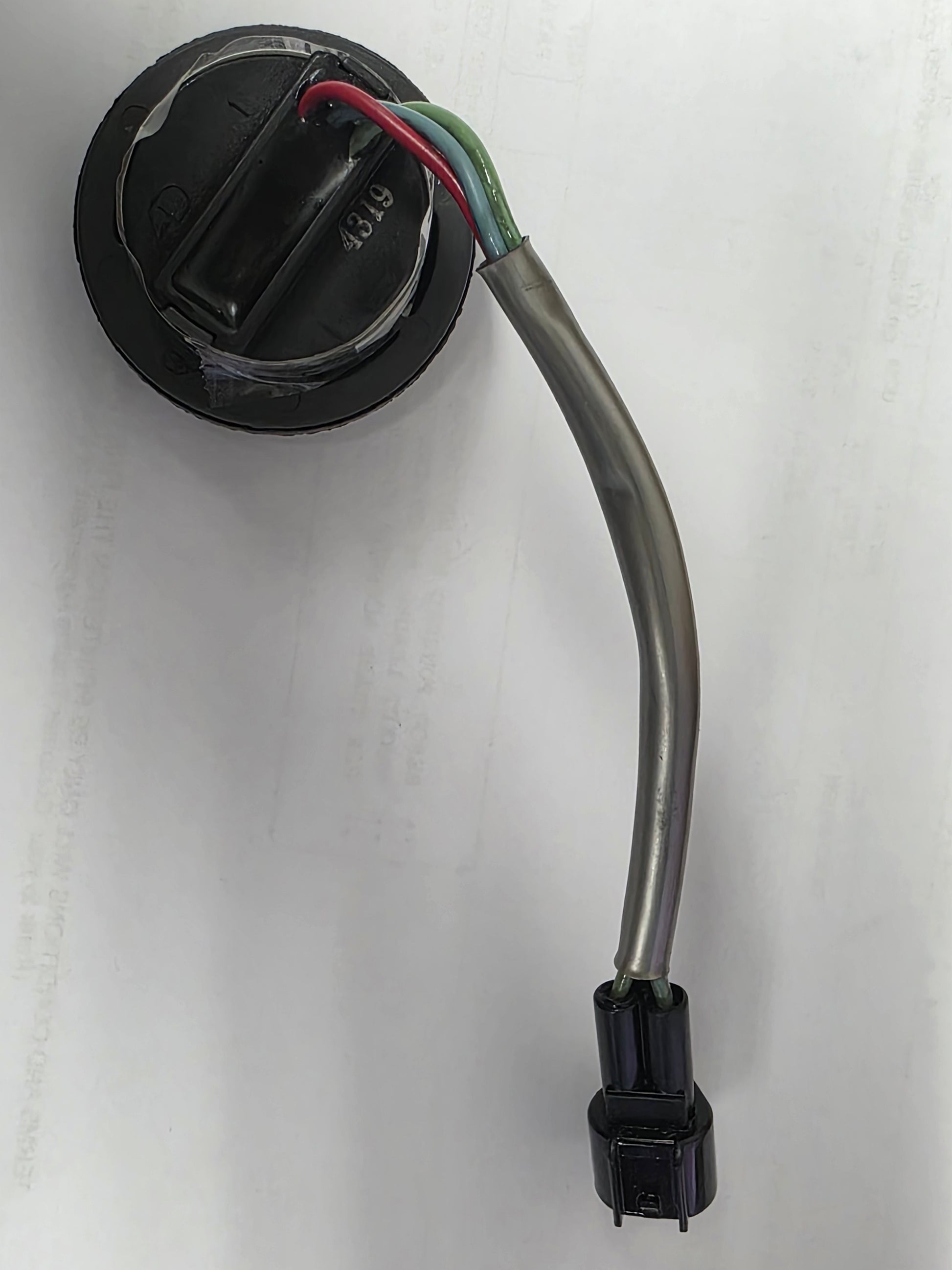

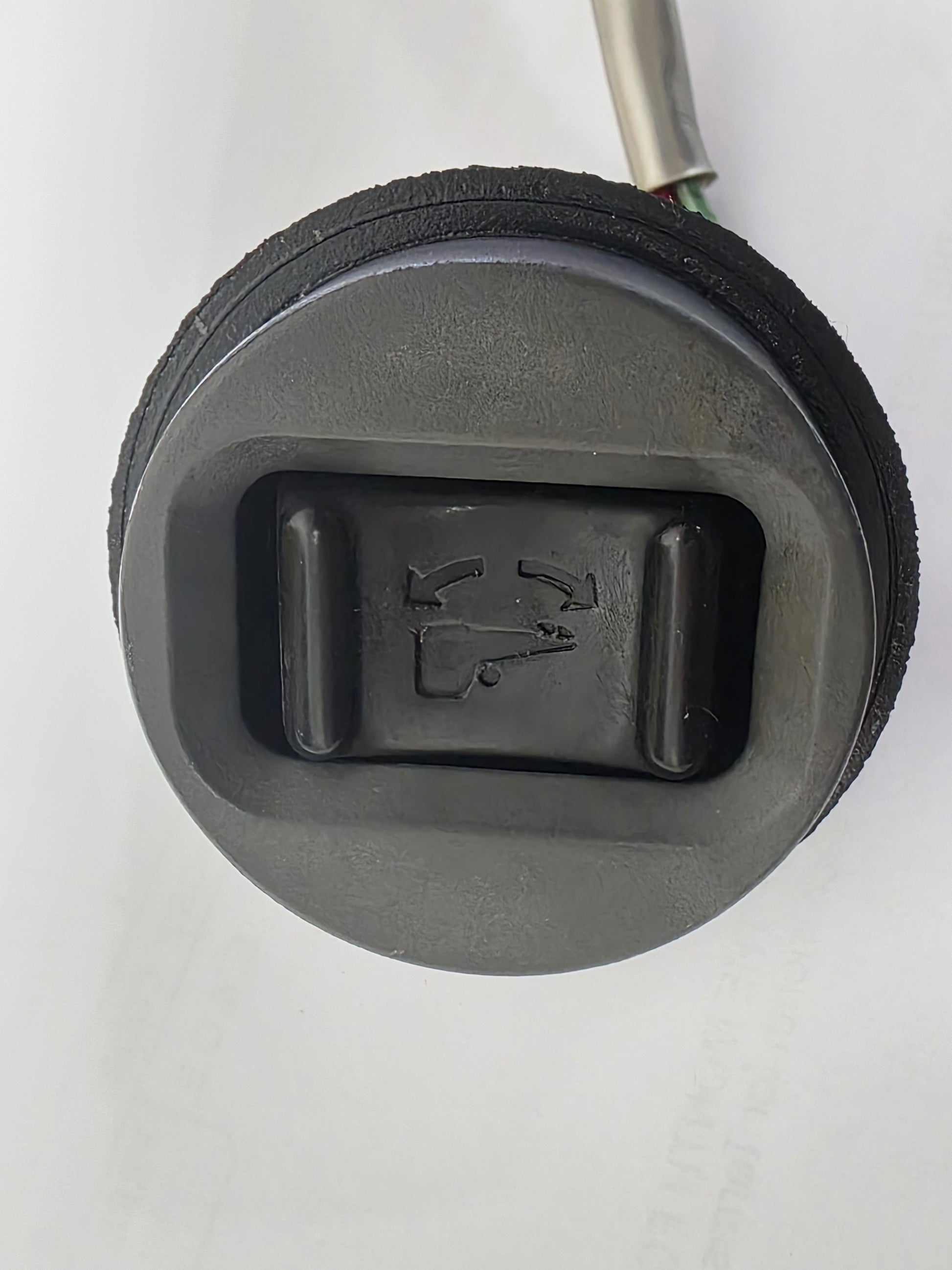

Genuine Yamaha Trim & Tilt Switch Assembly - Part Number: 6R3-82563-01-00

A genuine Yamaha trim and tilt switch assembly used on selected Yamaha two-stroke outboards, including 115HP applications. This switch controls the power trim and tilt circuit from the engine-mounted switch position and is used across the 6R3 switch family on supported Yamaha two-stroke models.

⚙️ Key Features

• Genuine Yamaha trim and tilt switch assembly

• Correct Yamaha part number 6R3-82563-01-00

• Supersedes / replaces earlier 6R3-82563-00-00 reference

• Used on selected Yamaha two-stroke outboards from 115HP upward

• Direct engine-mounted trim/tilt control switch

• Must be matched by exact model code, year and switch plug style

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6R3-82563-00-00 superseded by 6R3-82563-01-00

• 6R3-82563-01-00 current Yamaha trim and tilt switch reference

OEM / Related Numbers:

• 6R3-82563-01-00

• 6R3-82563-00-00

• 6R3825630100

• 6R3825630000

• Trim & tilt switch assembly

• Power trim switch

• Engine trim switch

Aftermarket / Verified Equivalents:

• Aftermarket replacement switches are available under 6R3-82563-01-00 / 6R3-82563-00-00 references

🚤 Compatibility

Commonly used on:

• Yamaha two-stroke outboards with engine-mounted trim and tilt switch

• 115HP Yamaha two-stroke applications

• S-series, V-series, VX-series, SX-series, VZ-series and Z-series Yamaha two-stroke models using the 6R3 switch layout

Typically suits:

• Engine models:

• Yamaha S115 - 1990 to 2005

• Yamaha S130 - 1990 to 2005

• Yamaha S150 - 1990 to 2005

• Yamaha S175 - 1990 to 2005

• Yamaha S200 - 1990 to 2005

• Yamaha SX150 - 1990 to 2005

• Yamaha SX200 - 1990 to 2005

• Yamaha V150 - 1990 to 2005

• Yamaha VX150 - 1990 to 2005

• Yamaha VZ150 - 1990 to 2005

• Yamaha VZ175 - 1990 to 2005

• Yamaha VZ200 - 1990 to 2005

• Yamaha Z150 - 1990 to 2005

• Yamaha Z175 - 1990 to 2005

• Yamaha Z200 - 1990 to 2005

• Yamaha 225HP two-stroke models using 6R3-82563-01-00 switch layout - model-code controlled

• HP Range: 115HP / 130HP / 150HP / 175HP / 200HP / selected 225HP

• Engine Type: Yamaha two-stroke outboard with power trim and tilt

• Year Range: commonly 1990 to 2005, model-code controlled

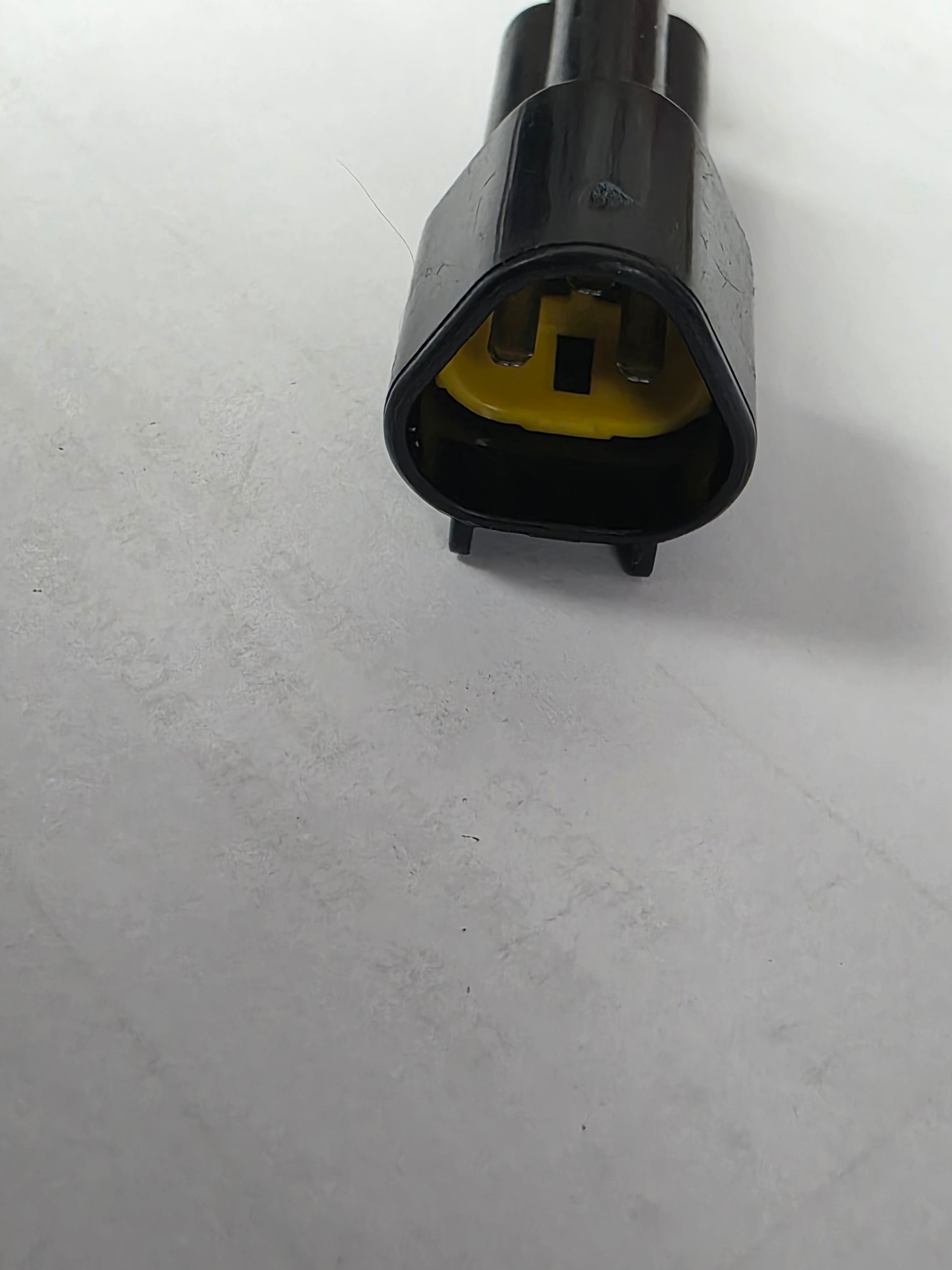

• Serial Note: Confirm the Yamaha model code, year and trim switch connector before installation. Do not rely on horsepower alone.

🔌 Function

The trim and tilt switch sends up/down commands to the trim relay and power trim/tilt motor circuit, allowing the operator to raise or lower the outboard from the engine-mounted switch location.

Common signs of failure:

• Trim does not operate from the engine switch

• Trim works from control box but not from engine switch

• Intermittent up/down trim operation

• Switch sticks or feels loose

• Corroded switch terminals

• Cracked switch body or damaged rubber cover

• Trim activates only when switch is pressed at a certain angle

• Water intrusion inside switch housing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
