6R3-83614-00-00 Yamaha Bracket 115HP | Genuine Used Part

🔧 Product Description

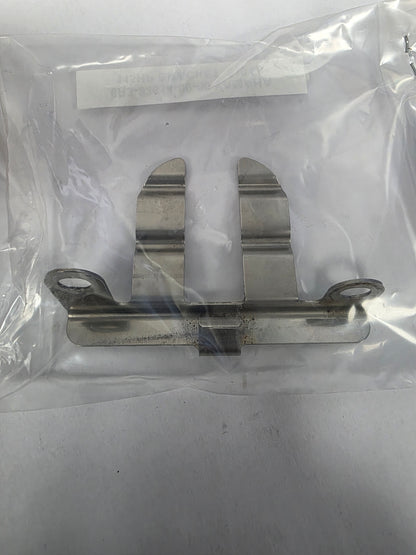

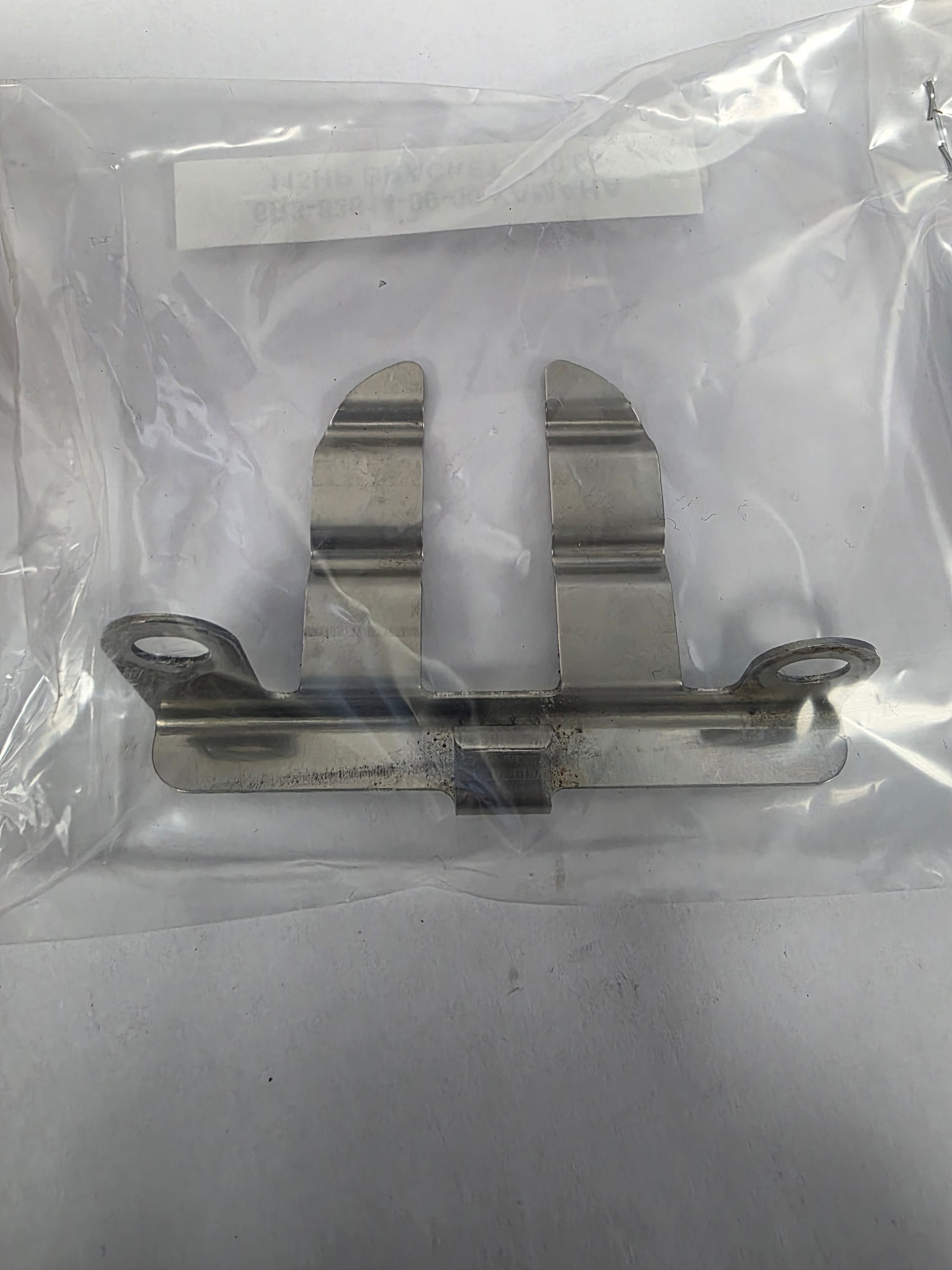

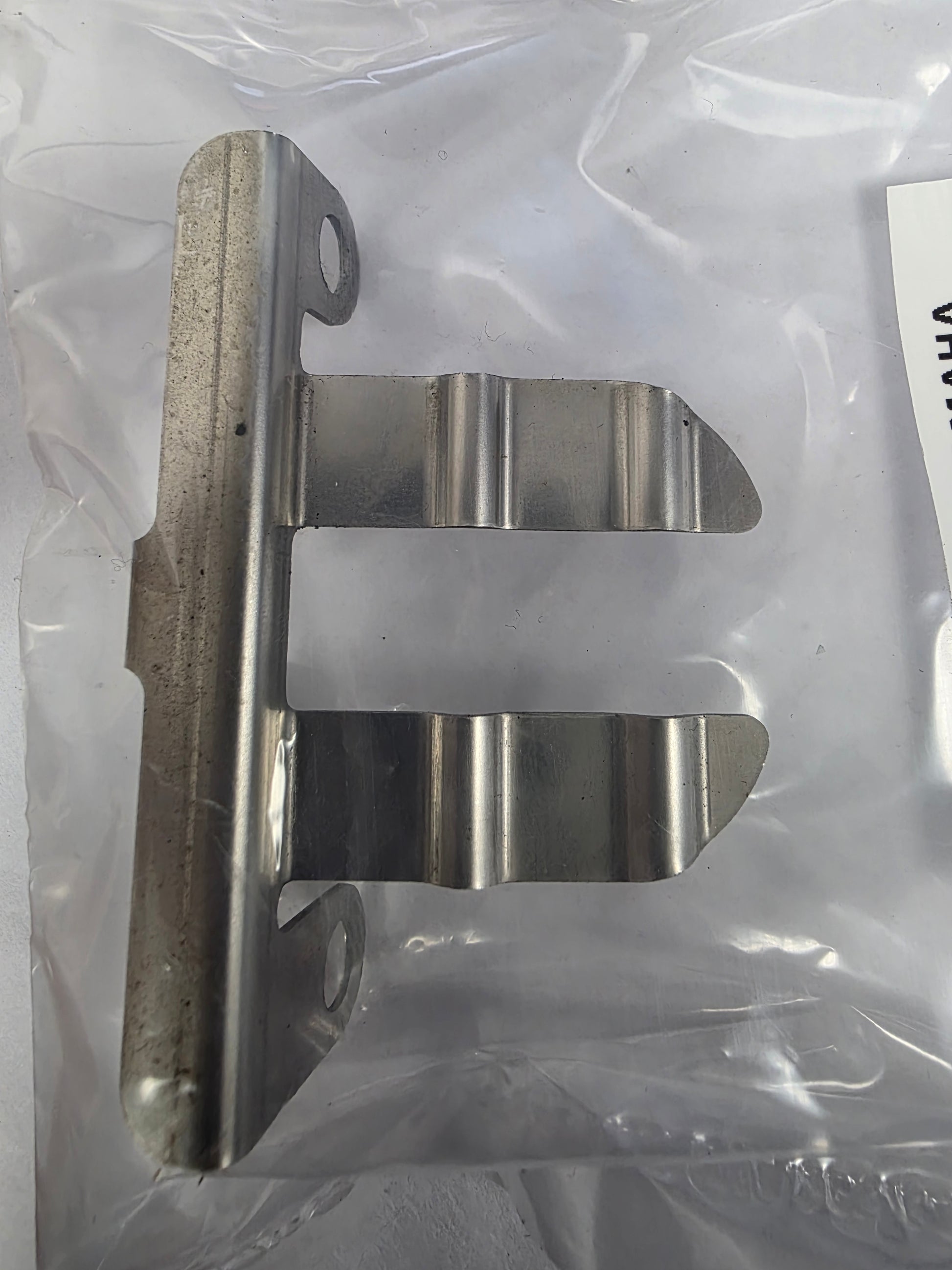

Genuine Yamaha Power Trim and Tilt Switch Mounting Bracket - Part Number: 6R3-83614-00-00

A genuine used Yamaha mounting bracket for the engine-mounted power trim and tilt switch on selected two-stroke outboard motors.

The bracket positions and supports the trim switch within the engine electrical assembly, allowing convenient engine raising and lowering during servicing, launching and trailering.

⚙️ Key Features

• Genuine used Yamaha OEM trim-switch bracket
• Correct part number 6R3-83614-00-00
• Supports the engine-mounted power trim and tilt switch
• Used across selected Yamaha 40HP to 200HP two-stroke engines
• Factory mounting geometry for correct switch and wiring alignment

🚤 Compatibility

Commonly used on

• Yamaha engine-mounted power trim and tilt switch assemblies
• Yamaha two-stroke electrical component mounting systems

Typically suits

• Engine models:
• Yamaha 40HP two-stroke
• Yamaha 50HP two-stroke
• Yamaha 90HP two-stroke applications using the 6R3 electrical bracket
• Yamaha 115HP two-stroke
• Yamaha C115 two-stroke
• Yamaha 130HP two-stroke
• Yamaha 150HP two-stroke
• Yamaha LX150 two-stroke
• Yamaha VZ150 HPDI
• Yamaha 175HP two-stroke
• Yamaha 200HP two-stroke
• Yamaha Z200 HPDI
• 1990 Yamaha 115HP and 130HP
• 1995 Yamaha 50TLHT
• 1996 Yamaha 40MLHU
• 1998 Yamaha 50EJRW
• 2000 Yamaha Z200TXRY
• 2001 Yamaha VZ150 and LX150
• 2002 Yamaha 150TXRA
• 2006 Yamaha 50TLR
• 2007 Yamaha 150TXR
• HP Range: 40HP - 200HP
• Engine Type: Yamaha carburetted and HPDI two-stroke outboard
• Year Range: Approximately 1990-2010

🔌 Function

The bracket supports the engine-mounted trim switch and keeps its wiring clear of the flywheel, throttle linkage and other moving engine components.

⚠️ Common Signs of Failure

• Trim switch is loose or misaligned
• Bracket is cracked, bent or corroded
• Switch wiring rubs against the engine
• Mounting holes are damaged
• Switch cannot be operated securely

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6R3-83614-00-00 current OEM bracket reference

OEM / Related Numbers

• 6R3-83614-00-00
• 6R3836140000
• 6R3-83614-00
• 6R38361400

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
