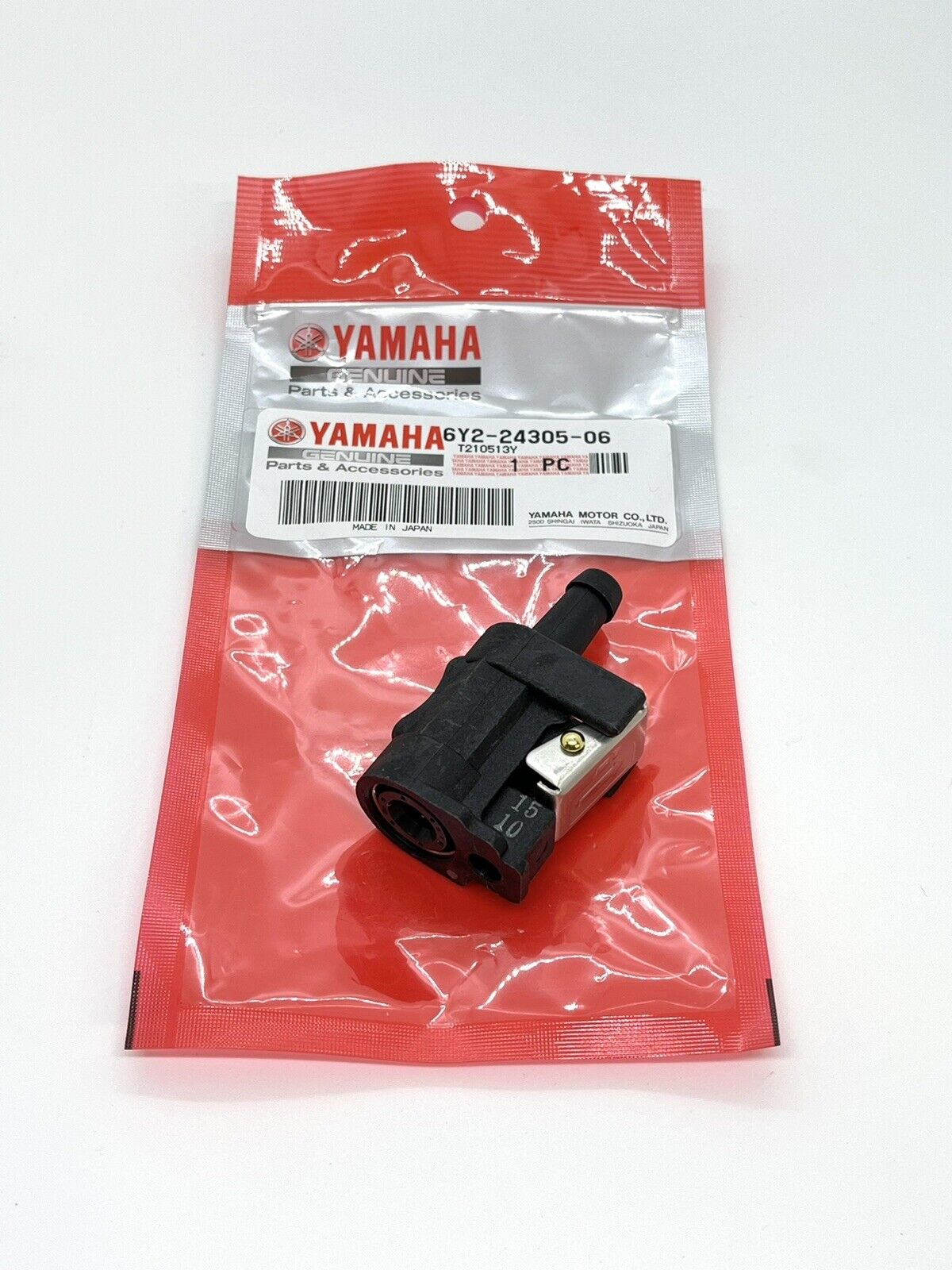

Genuine Yamaha Tank-Side 8mm Fuel Connector - Part Number: 6Y2-24305-06
A genuine Yamaha quick-connect fuel joint for the fuel-tank end of selected Yamaha outboard fuel hoses.
The approximately 8mm / 5/16-inch fitting connects the fuel hose to the portable-tank outlet. Its release catch is marked with a tank symbol to distinguish it from the engine-side connector.
⚙️ Key Features
- Genuine Yamaha OEM tank-side fuel connector
- Correct current Yamaha part number 6Y2-24305-06
- Approximately 8mm / 5/16-inch hose connection
- Quick-release locking design
- Direct aftermarket tank connectors available
🚤 Compatibility
Commonly used on
- Yamaha portable fuel tanks
- Detachable fuel-hose assemblies with the matching Yamaha tank fitting
Typically suits
- Engine applications:
- Yamaha portable-tank two-stroke outboards
- Yamaha portable-tank four-stroke outboards
- Yamaha 6HP through 90HP engines using an external removable fuel hose
- Larger Yamaha outboards supplied from an auxiliary portable tank using the same connector
- Fuel lines using an 8mm / 5/16-inch hose and Yamaha-pattern tank fitting
- Connection Position: Fuel-tank end
- Hose Size: Approximately 8mm / 5/16 inch
- Engine Type: Yamaha two-stroke and four-stroke outboard with detachable fuel hose.
🔌 Function
The joint forms a sealed, removable connection between the external fuel hose and portable fuel tank outlet.
⚠️ Common Signs of Failure
- Fuel leaks around the connection
- Connector will not lock securely
- Air enters the fuel line
- Internal valve restricts fuel flow
- Locking catch or sealing O-ring is damaged
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6Y2-24305-06 current OEM tank-side connector reference
- 6Y2-24305-05 earlier related service reference
- 6Y2-24305-01 → Supersedes 6Y2-24305-00
OEM / Related Numbers
- 6Y2-24305-06
- 6Y2-24305-06-00
- 6Y2-24305-05
- 6Y2-24305-01
- 6Y2-24305-00
- 6E5-24305-06 related engine-side connector
Aftermarket / Verified Equivalents
- Oversee Marine: 6Y2-24305-06 replacement connector
- SouthMarine: Yamaha tank-end 8mm fuel joint
- Aftermarket Yamaha 5/16-inch tank connector
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
