6Y5-8350T-83-00 Yamaha Tachometer | Genuine Used Part

🔧 Product Description

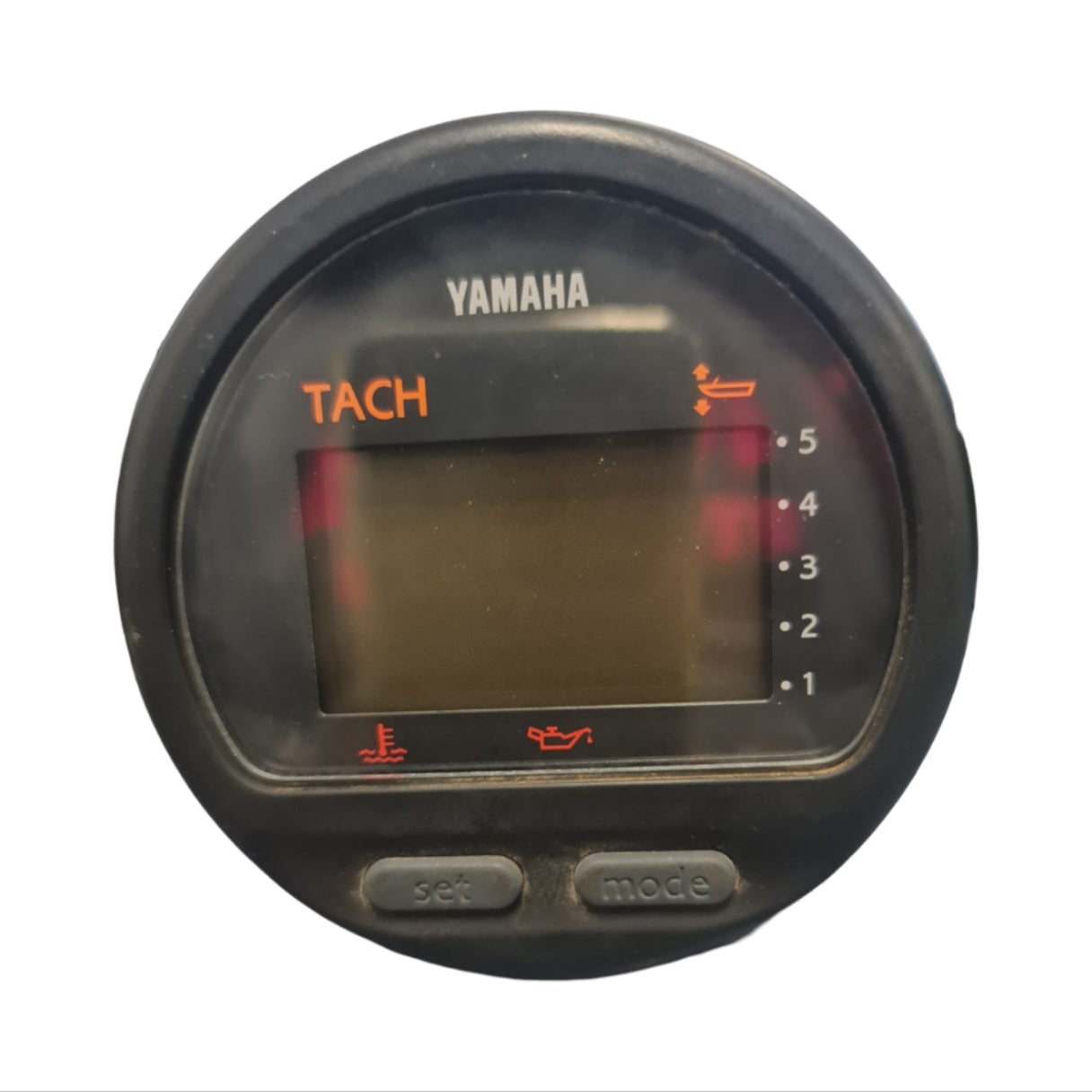

Genuine Yamaha 6Y5 Digital Multifunction Tachometer - Part Number: 6Y5-8350T-83-00

A genuine Yamaha 6Y5 multifunction LCD tachometer for conventional analogue-signal Yamaha outboard rigging.

The gauge displays engine RPM and additional operating information including trim position, warning indicators and operating hours when connected through the correct Yamaha harnesses. The -83 version is primarily associated with 2004-and-earlier rigging architecture, although later engines may use it only with the correct harness and configuration.

⚙️ Key Features

• Genuine Yamaha digital multifunction tachometer

• Part number 6Y5-8350T-83-00

• Digital RPM display

• Trim-position display

• Oil and overheat warning indicators

• Trip and total operating-hour functions

• Backlit LCD marine instrument

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6Y5-8350T-83-00 later version of earlier 6Y5-8350T-series gauges

• Later service generations include 6Y5-8350T-D0-00, D1-00 and D2-00

• Later versions may require different harnesses and are not automatically plug-and-play

OEM / Related Numbers:

• 6Y5-8350T-83-00

• 6YR-W0035-E1-00 related gauge kit

• 6Y5-83553-series power and fuse harnesses

• Related trim-and-oil harness selected by engine year

• 6Y5-83570-series matching multifunction speedometer

Aftermarket / Verified Equivalents:

• Yamaha 6Y5-8350T-D0-00 / D1-00 / D2-00 after confirming harness compatibility

• Aftermarket complete 6Y5 multifunction tachometers

• Replacement LCD screens and button-repair components

• Used tested 6Y5-8350T-83-00 gauges

🚤 Compatibility

Commonly used on:

• Yamaha 40HP-300HP two-stroke outboards with compatible analogue-signal rigging

• Yamaha four-stroke outboards using the correct 6Y5 harness system

• Mechanical-control Yamaha installations

• Primary Rigging Generation: Approximately 2004 and earlier

• Electrical System: 12V DC

• Fitment Requirement: Correct power, tach-signal, trim and warning harnesses

• Configuration: Rear DIP switches must be set for engine type and trim-sender system

🔌 Function

The gauge receives an engine-speed pulse and warning inputs from the outboard. It processes those signals to display RPM, trim position, operating time and visual warning information.

Common signs of failure:

• LCD segments are faded, missing or blackened

• Buttons no longer change the display

• RPM reads incorrectly because DIP switches are set incorrectly

• Trim or warning information is absent because the wrong harness is fitted

• Moisture has entered the display

📦 Condition

• Genuine used part

• Removed from running engine installation where applicable

• In good working condition unless otherwise stated

• Harnesses are not included unless specifically stated
