6Y5-83670-01-00 Yamaha Trim Gauge | Genuine Used Part

🔧 Product Description

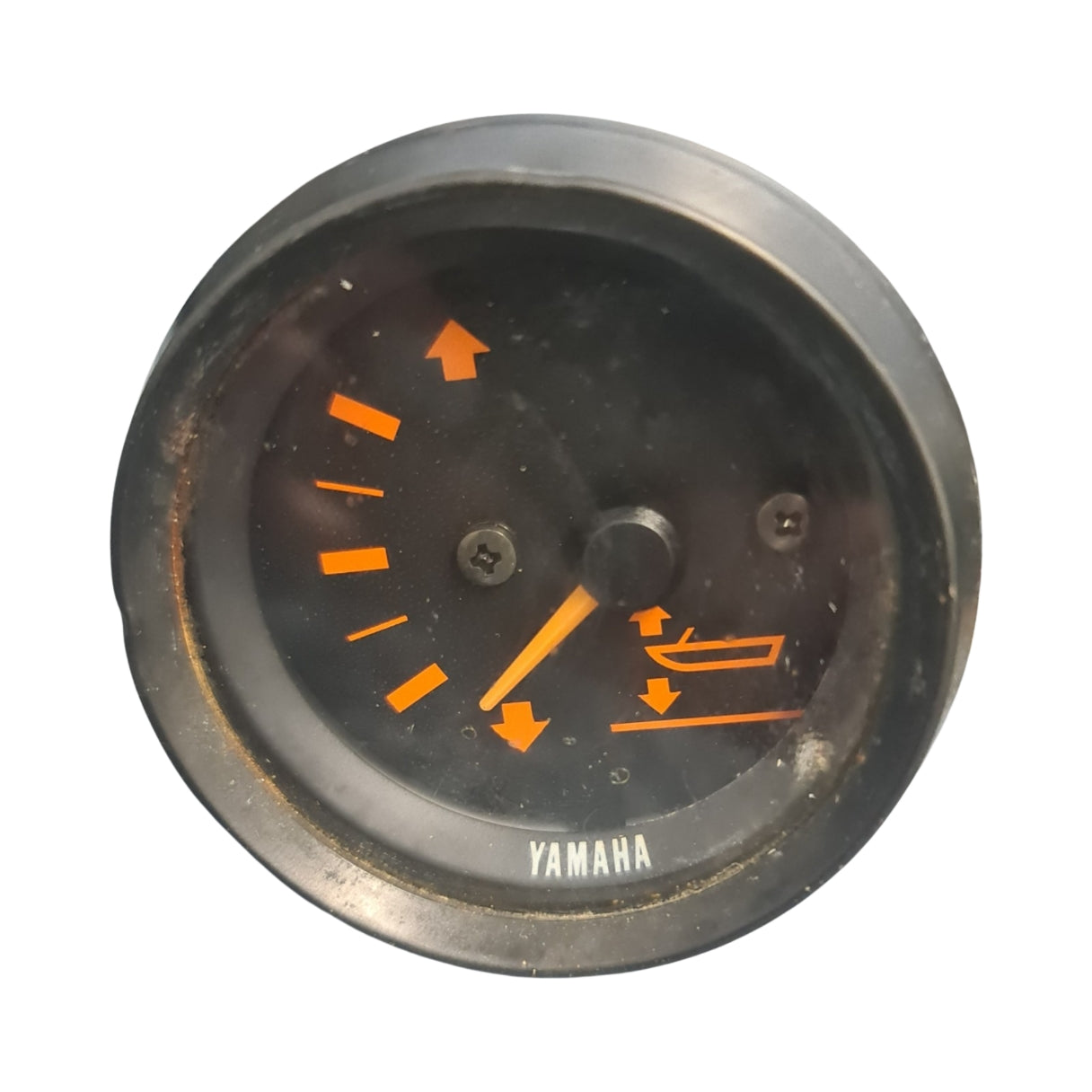

Genuine Yamaha Early Pro Series Trim Meter - Part Number: 6Y5-83670-01-00

A genuine Yamaha analogue trim-position gauge for selected mid-1980s and early-1990s power-trim outboards.

The gauge works with the applicable early Yamaha trim sender and lead harness. Sender wire count and resistance changed across Yamaha rigging generations, so this gauge must not be assumed compatible with later two-wire systems.

⚙️ Key Features

• Genuine Yamaha trim meter
• Correct part number 6Y5-83670-01-00
• Analogue DOWN-UP display
• Illuminated Yamaha instrument face
• Designed for early Yamaha trim-sender systems
• Used with compatible 6E5- or 6G5-series trim senders

🚤 Compatibility

Documented on

• Yamaha 50HP power-trim models
• Yamaha 70HP power-trim models
• Yamaha 115HP and 150HP models
• Yamaha 200HP V6 models
• Additional mid-1980s to early-1990s engines whose parts catalogue specifies 6Y5-83670-01-00
• Electrical System: 12V DC
• Fitment Requirement: Confirm sender number, wire count and connector style
• Important: Pre-1995, post-1995 and 2001-on trim systems may use different harnesses or senders

🔌 Function

The trim sender acts as a variable resistor. The gauge converts the changing resistance into a visual indication of the outboard's trim angle.

⚠️ Common Signs of Failure

• Gauge remains at one end of the scale
• Reading moves in the wrong direction
• Needle is unstable
• Incorrect sender or harness produces an inaccurate reading
• Internal bulb or gauge movement has failed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 6Y5-83670-01-00 → Replaces 6E5-83671-00-00 in documented applications
• Later Yamaha trim meters include 6Y5-83670-12-00 and 6Y5-83670-13-00 for different sender systems
• Later versions are not automatically electrically interchangeable

OEM / Related Numbers

• 6Y5-83670-01-00
• 6E5-83671-00-00
• 6E5-83672-01-00 related trim sender
• 6G5-83672-00-00 related V6 trim sender
• 6E5-82553-10-00 related extension harness
• 688-83664-00-00 gauge damper

Aftermarket / Verified Equivalents

• Specialist used Yamaha 6Y5-83670-01-00 trim meter
• Later Yamaha gauge only after confirming sender resistance and wire arrangement
• Universal trim gauge calibrated for the exact sender
• No universal plug-in equivalent across all Yamaha trim generations

📦 Condition

• Genuine used part
• Removed from running engine installation where applicable
• In good working condition unless otherwise stated
• Sender and harness are not included unless specifically stated
