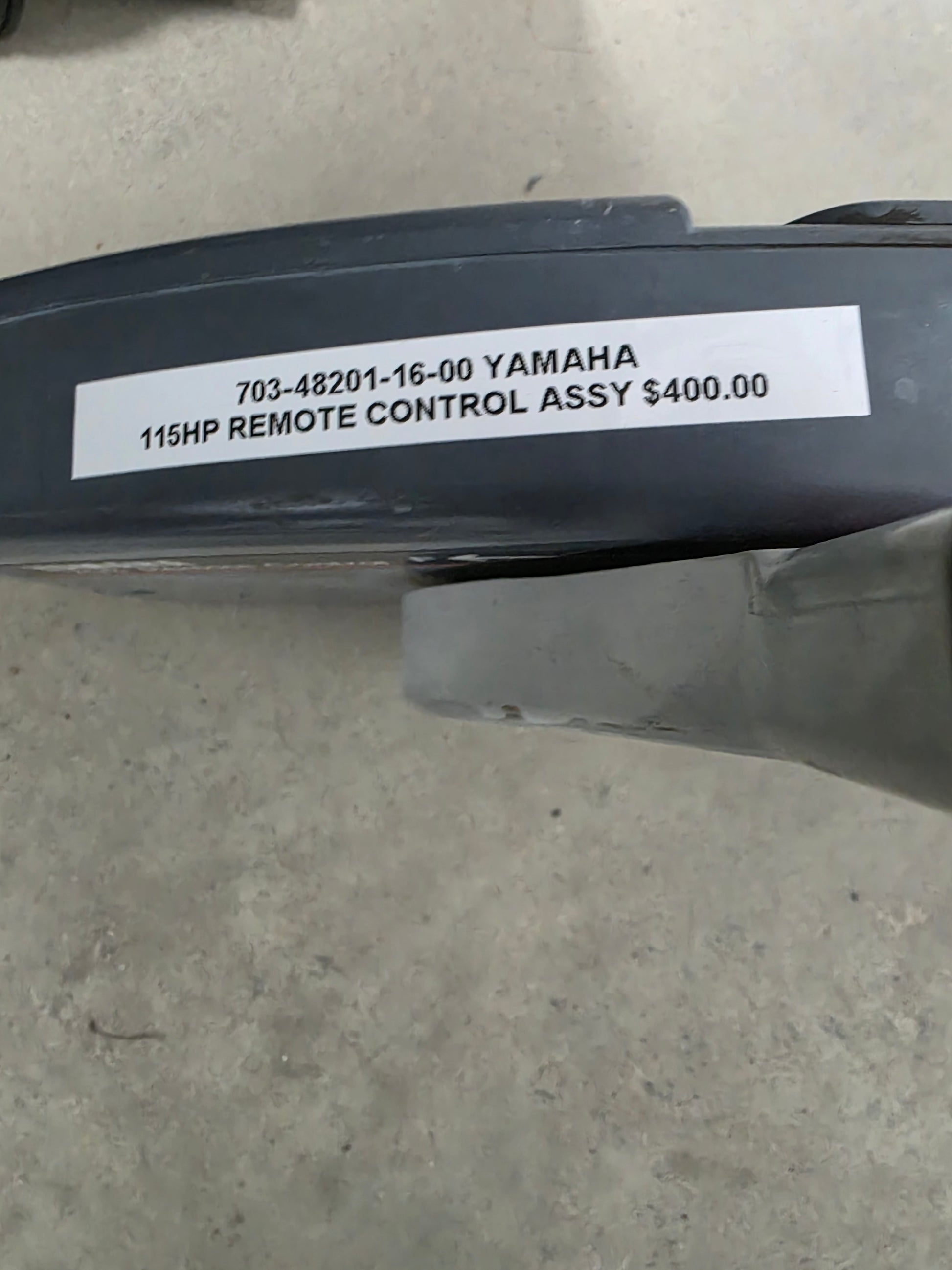

703-48201-16-00 Yamaha Remote Control Assy 115HP | Genuine Used Part

🔧 Product Description

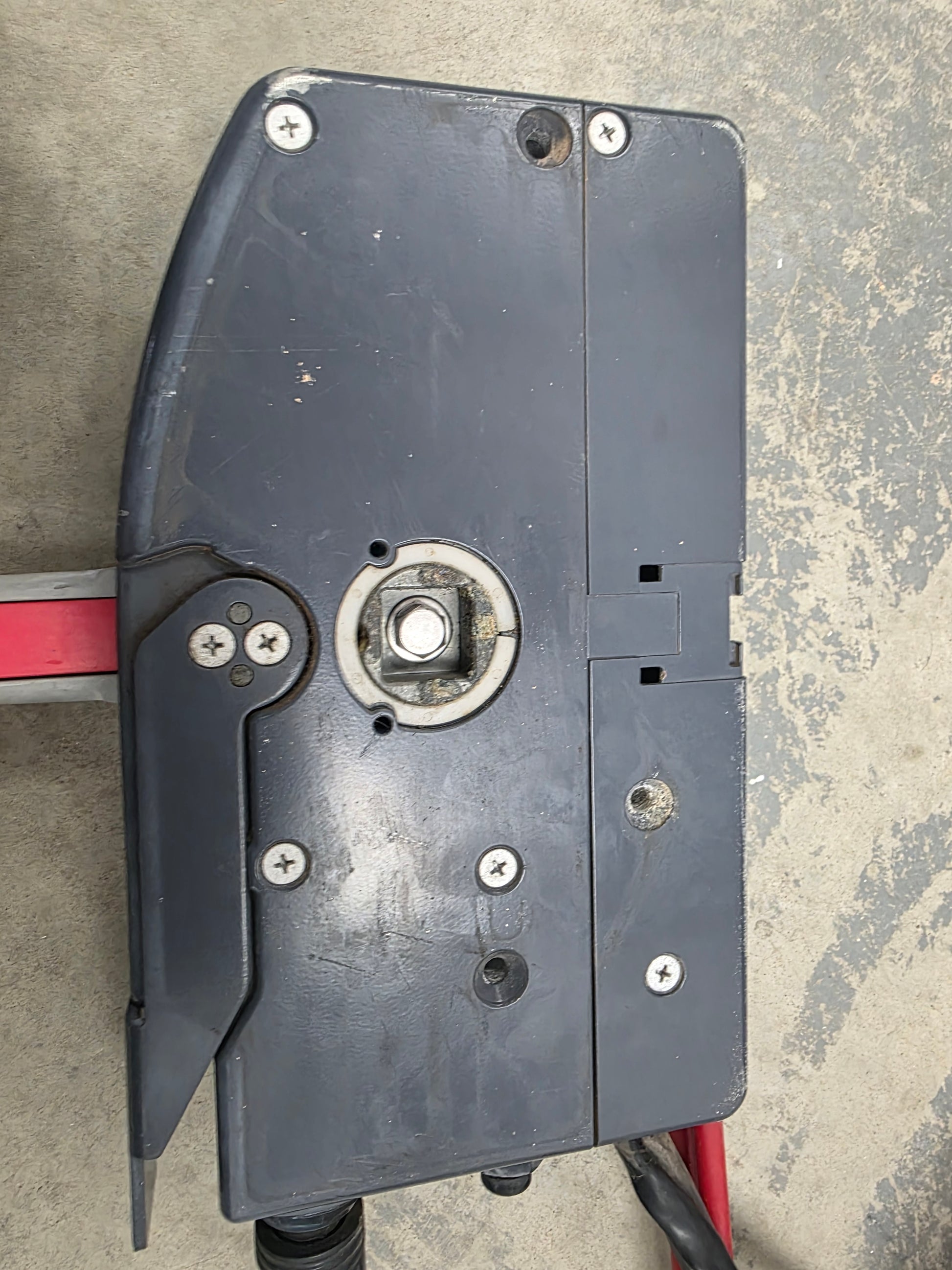

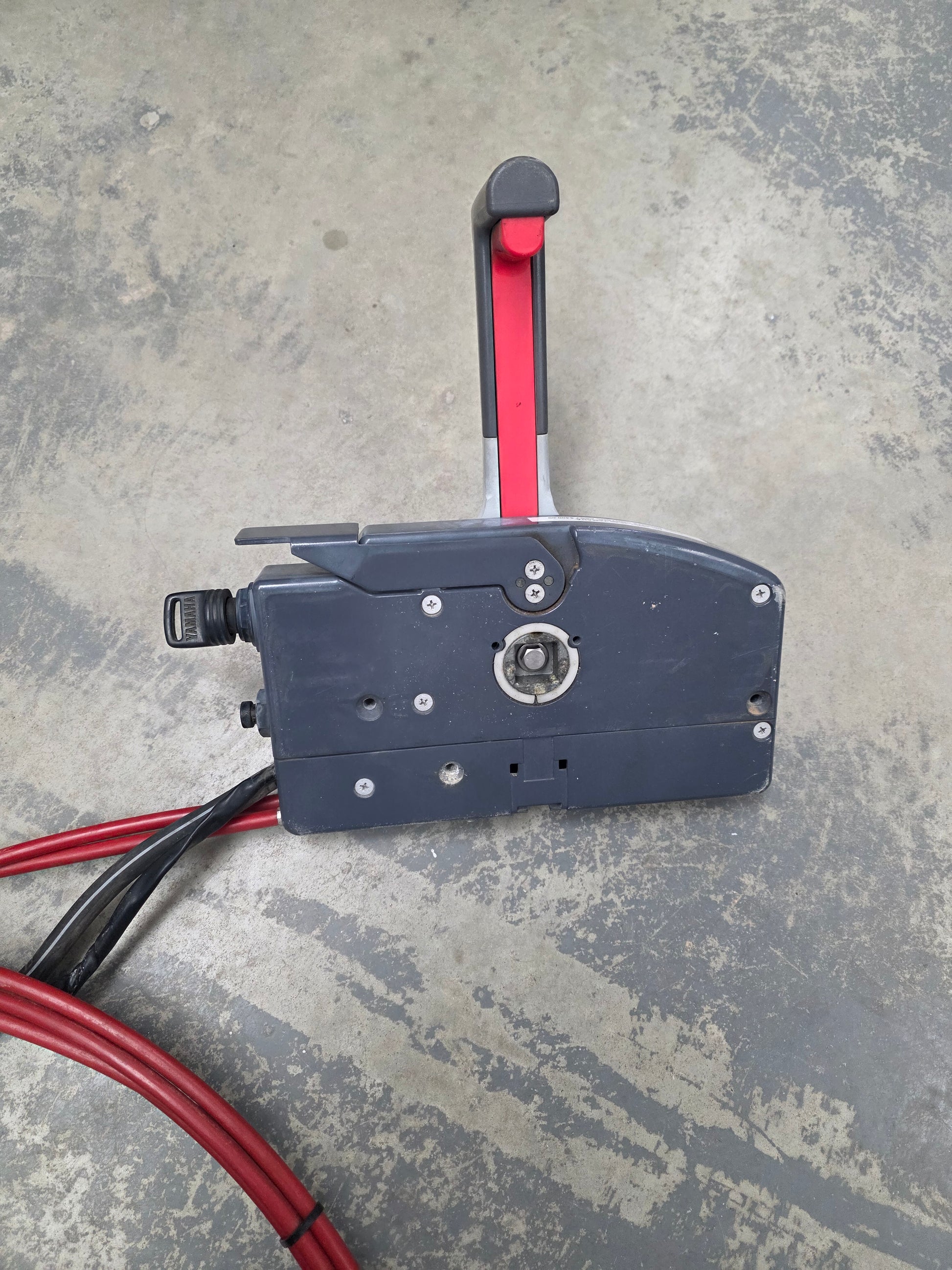

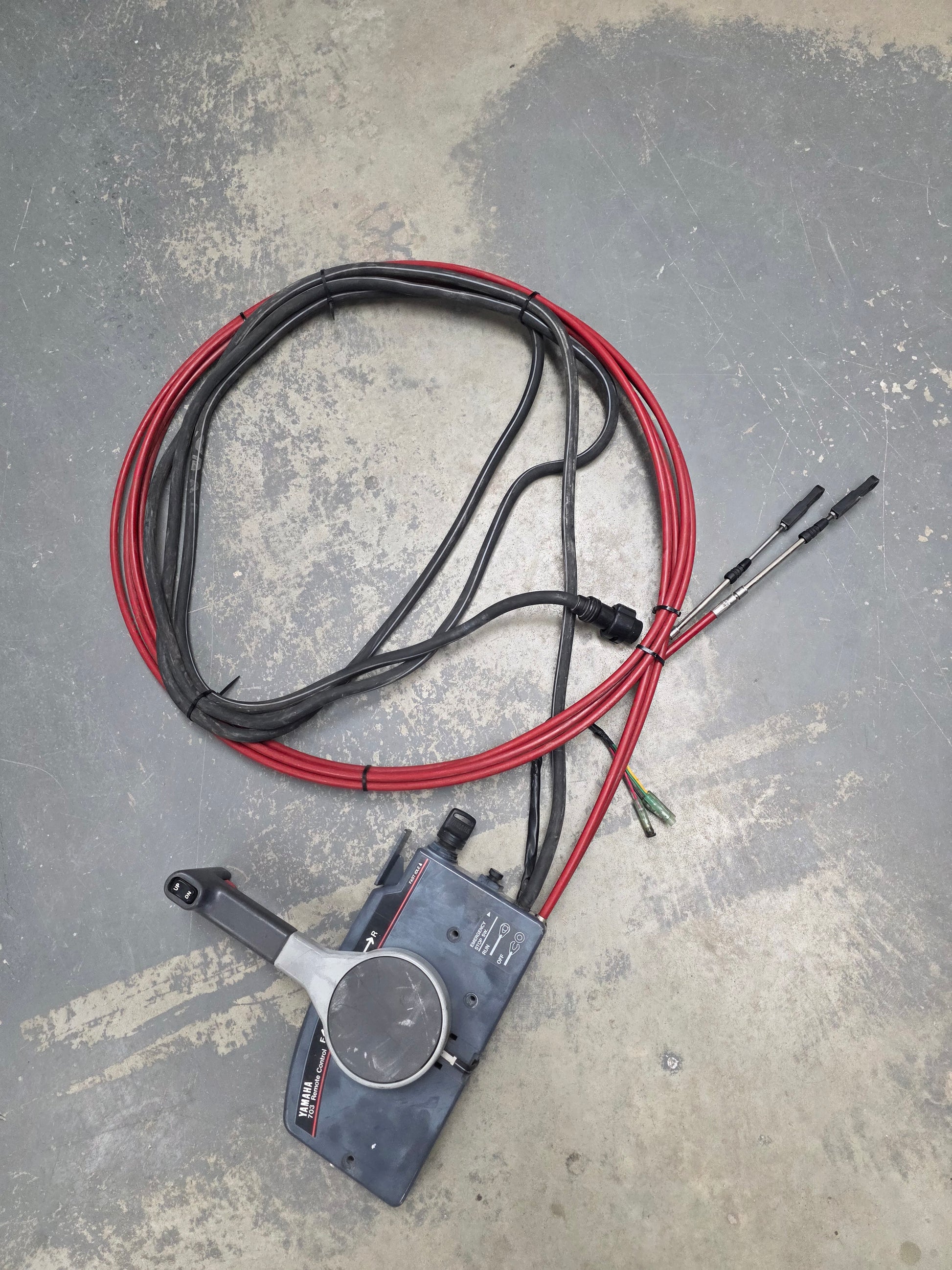

Genuine Yamaha 703 Ten-Pin Side-Mount Remote Control Assembly - Part Number: 703-48201-16-00

A genuine used Yamaha 703 mechanical side-mount control assembly with a ten-pin electrical connection and power trim and tilt operation.

The control combines mechanical throttle and shift-cable movement with ignition, neutral-safety, emergency-stop and trim functions.

⚙️ Key Features

• Genuine used Yamaha 703 remote-control assembly
• Correct part number 703-48201-16-00

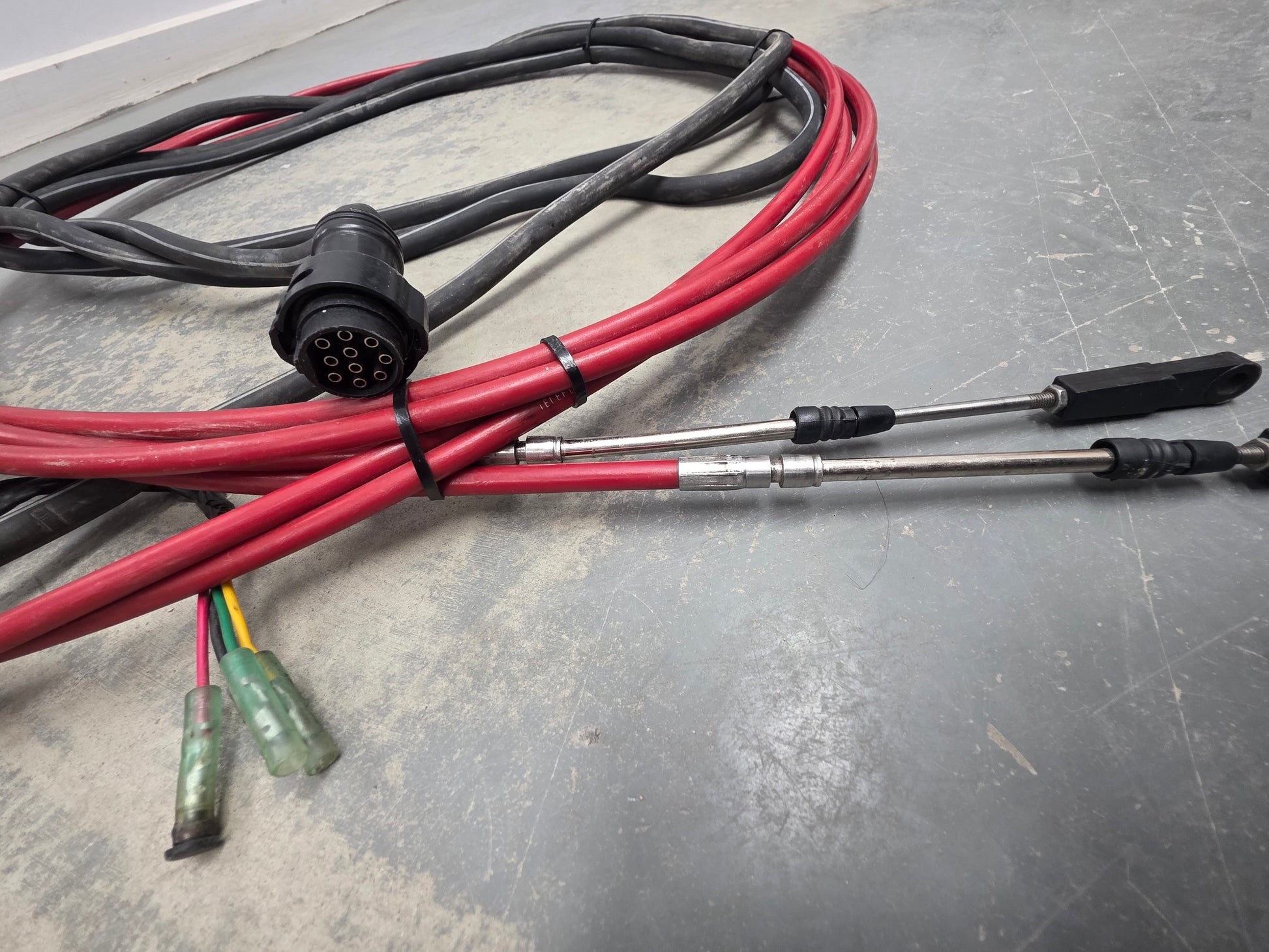

• Ten-pin electrical harness configuration
• Mechanical throttle-and-shift operation

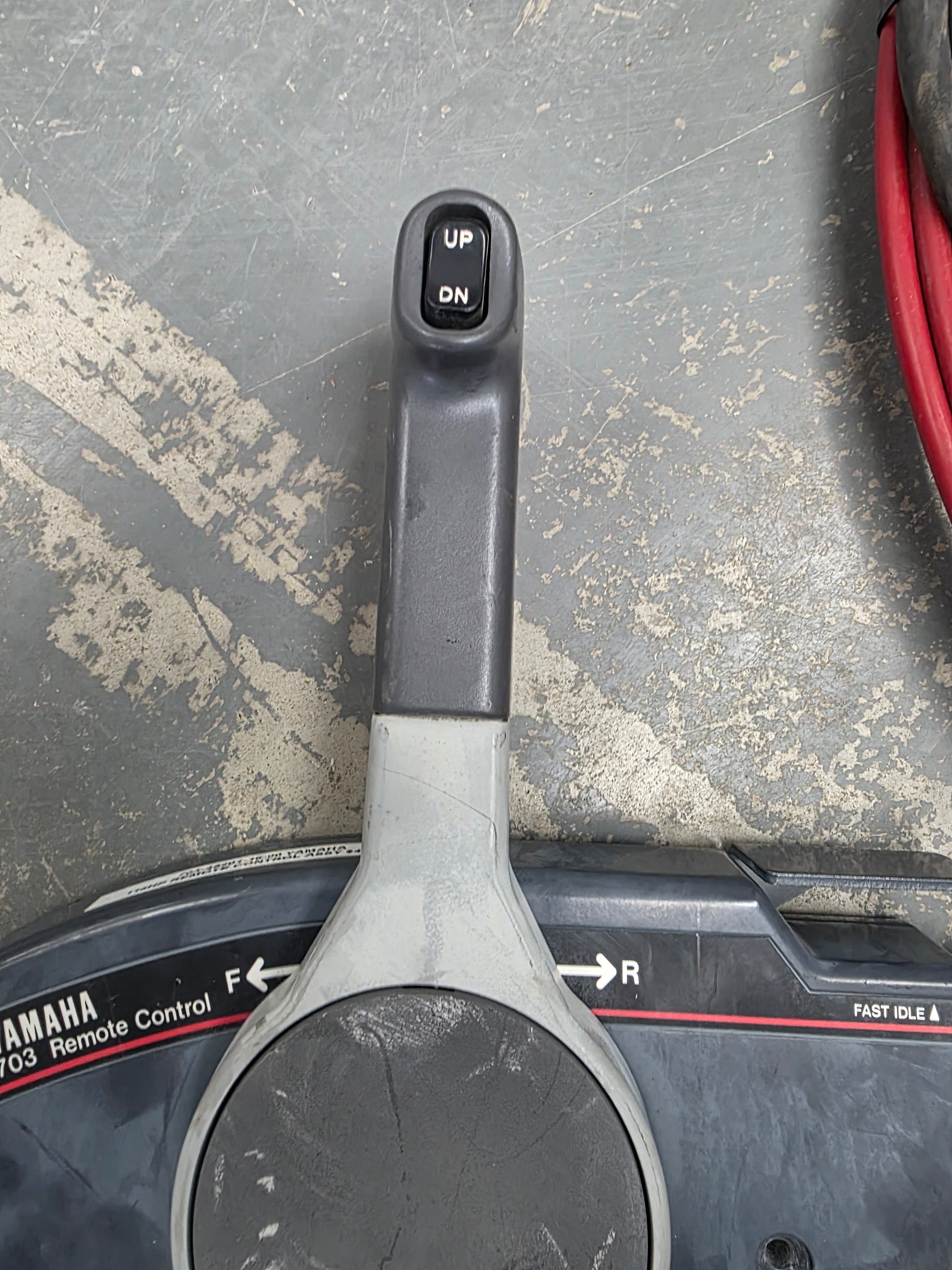

• Integrated ignition and power trim and tilt functions

🚤 Compatibility

Commonly used on

• Yamaha mechanically controlled outboards using a ten-pin main harness
• Push-to-open throttle-and-shift installations
• Yamaha electric-start engines with power trim and tilt

Typically suits

• Engine models:
• Yamaha FT8D High Thrust - including 2003 FT8DEHPL
• Yamaha F20 mechanical-control models
• Yamaha F25 and T25 mechanical-control models
• Yamaha F30 and F40 mechanical-control models
• Yamaha F50 and T50 mechanical-control models
• Yamaha F60 and T60 mechanical-control models
• Yamaha 70HP and F70 mechanical-control models
• Yamaha 75HP and 90HP mechanically controlled outboards
• Yamaha 100HP four-stroke
• Yamaha 115HP two-stroke and four-stroke models using the ten-pin control harness
• Yamaha C115, 115TLR and F115 applications using compatible push-to-open cables
• HP Range: Approximately 8HP - 115HP
• Engine Type: Yamaha mechanically controlled two-stroke and four-stroke outboard
• Year Range: Approximately 1990s-2000s

🔌 Function

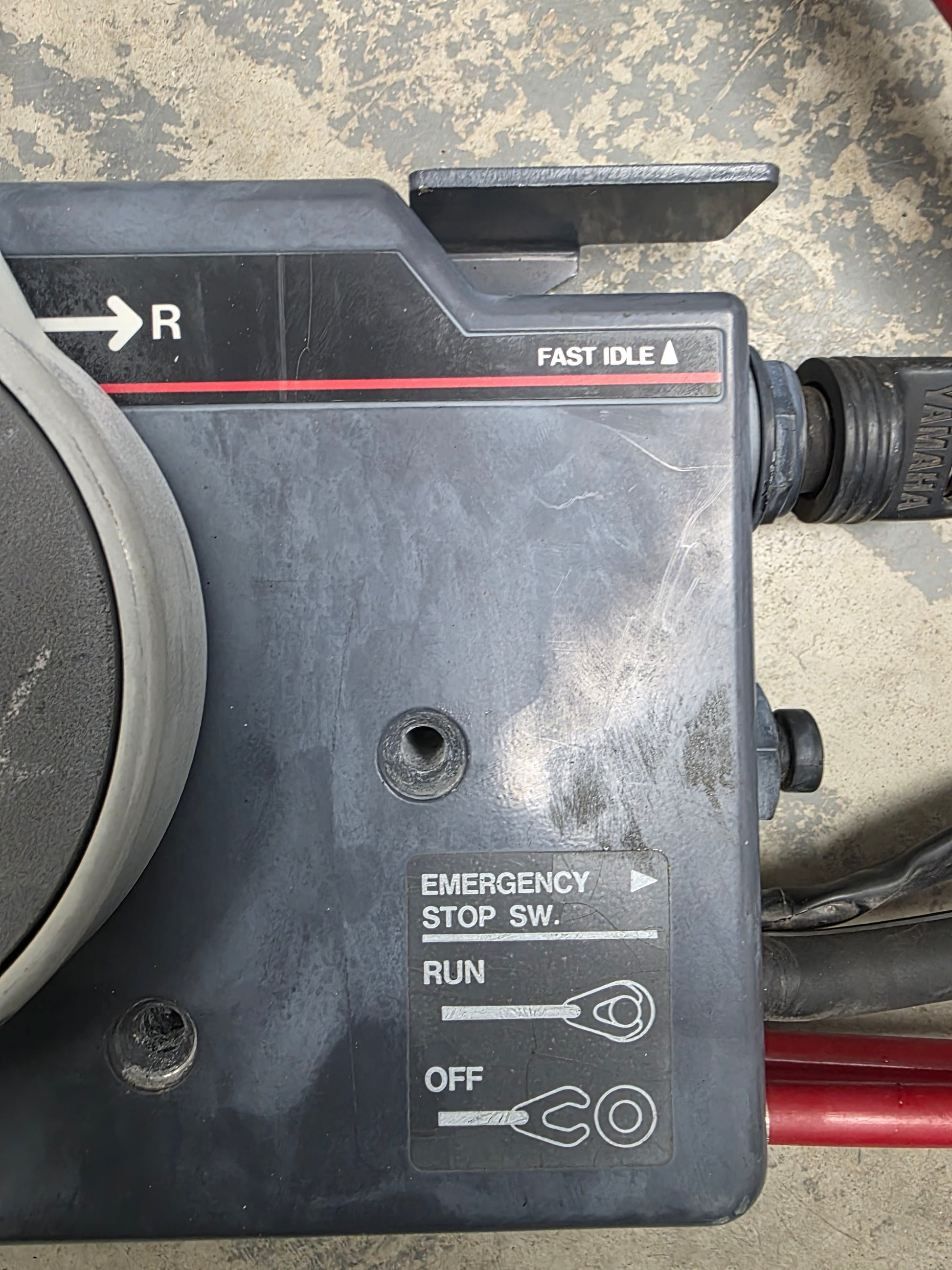

The control box operates throttle and gear selection while carrying the electrical circuits for engine starting, emergency stop, neutral safety, warning signals and power trim.

⚠️ Common Signs of Failure

• Control lever becomes stiff or loose
• Engine does not fully engage gear
• Trim switch is intermittent
• Neutral-safety switch prevents starting
• Ten-pin connector has damaged terminals
• Throttle-only function will not engage or release
• Control cables have excessive free play

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 703-48201-16-00 original ten-pin Yamaha remote-control reference

OEM / Related Numbers

• 703-48201-16-00
• 703482011600
• 703-48201-16
• 703-48205-25 related later 703 push-to-open control
• 703-48207-25 related ten-pin 703 control
• 703-48230-24 related pull-to-open seven-pin control

Aftermarket / Verified Equivalents

• Aftermarket Yamaha 703 ten-pin side-mount control box
• Yamaha-compatible mechanical control with power trim and tilt

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
