703-48205-25 Yamaha 703 Control Box Side Mount Mechanism | Genuine Used Part

🔧 Product Description

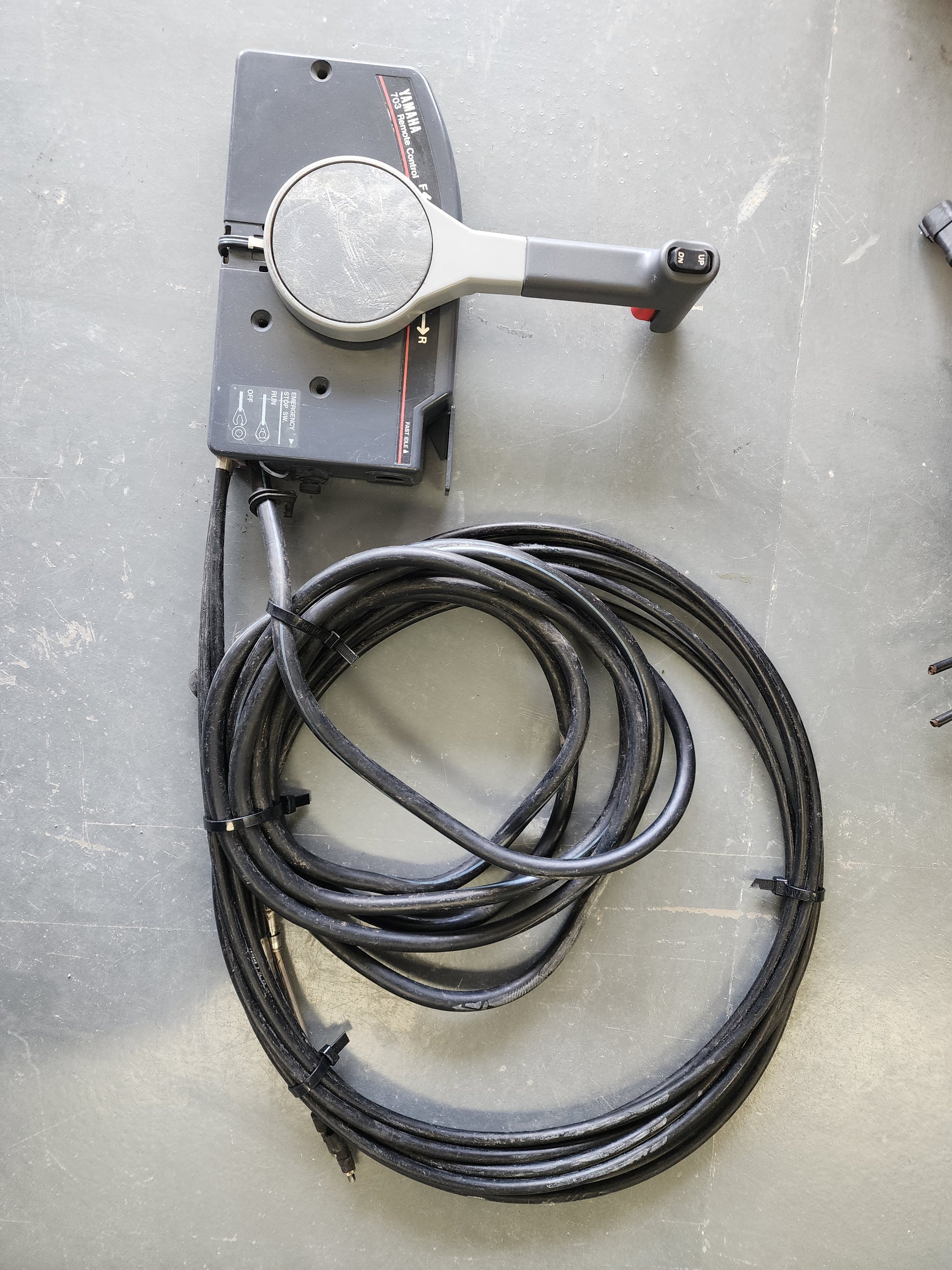

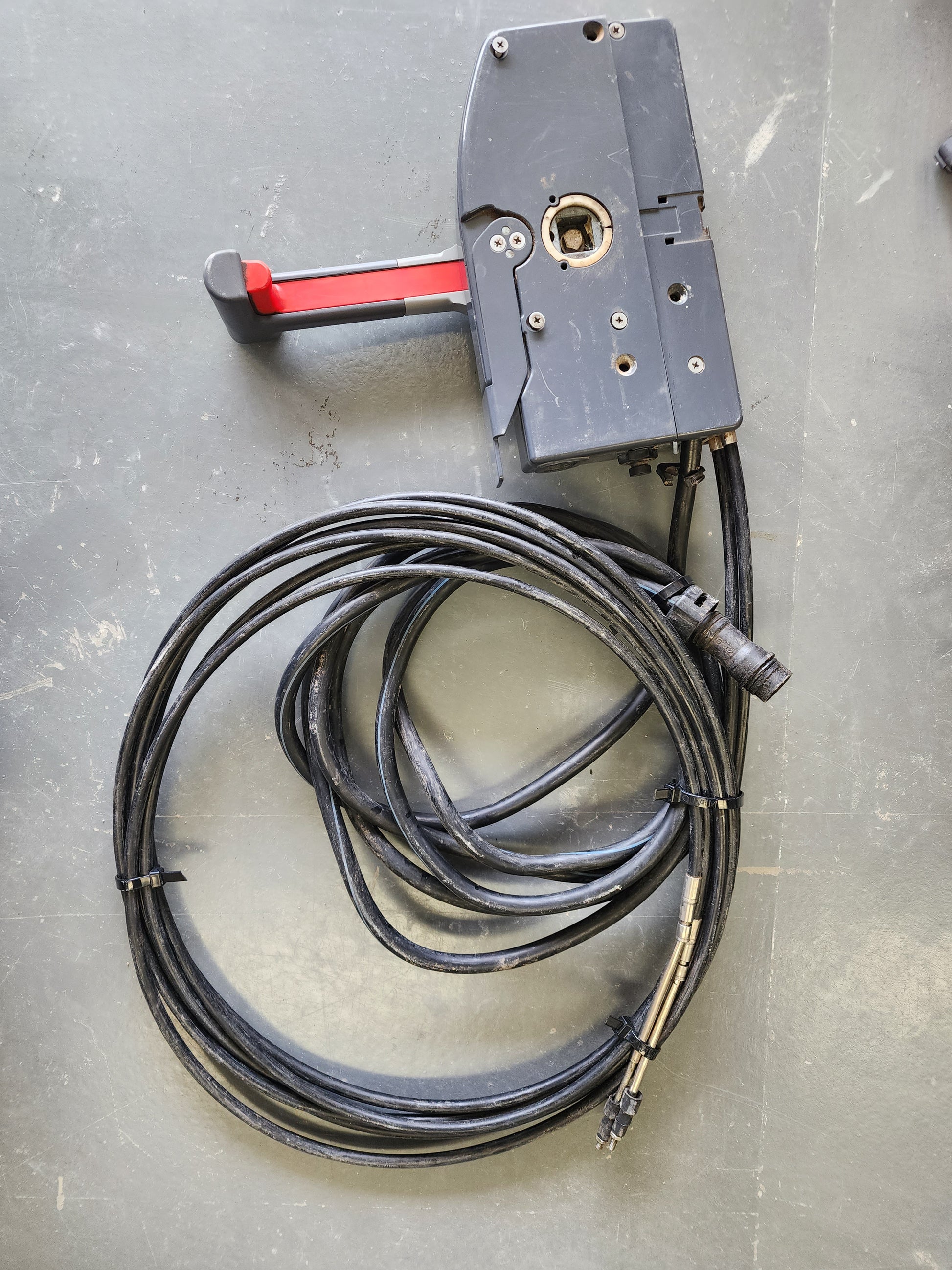

Genuine Yamaha 703 Mechanical Side-Mount Control Box - Part Number: 703-48205-25

A genuine used Yamaha 703 side-mount mechanical control assembly for single-engine outboard installations.

This ten-pin, push-to-open control combines throttle, shift, ignition, emergency stop, neutral safety and power trim and tilt functions in one reversible side-mounted unit.

⚙️ Key Features

• Genuine used Yamaha 703 mechanical control
• Correct part number 703-48205-25
• Push-to-open throttle configuration
• Ten-pin electrical harness
• Reversible right-hand or left-hand mounting

🚤 Compatibility

Commonly used on

• Yamaha mechanically controlled two-stroke and four-stroke outboards
• Single-engine installations using ten-pin electrical harnesses
• Push-to-open control-cable arrangements

Typically suits

• Engine models:
• Yamaha F20 mechanical-control models
• Yamaha F25 and T25
• Yamaha F30 and F40
• Yamaha F50 and T50
• Yamaha F60 and T60
• Yamaha F70
• Yamaha 70HP, 75HP and 90HP two-stroke models
• Yamaha F75 and F90
• Yamaha F100
• Yamaha 115HP and F115
• Yamaha 130HP two-stroke
• Yamaha F130 and F150 mechanical-control models
• Yamaha 150HP, 175HP and 200HP mechanical-control outboards
• Yamaha outboards from F20 through F200 using the applicable ten-pin push-to-open system
• HP Range: 20HP - 200HP
• Engine Type: Yamaha mechanically controlled two-stroke and four-stroke outboard
• Year Range: Model-family dependent

🔌 Function

The 703 control operates the engine throttle and gearbox while integrating ignition, emergency stop, neutral safety and power-trim control.

⚠️ Common Signs of Failure

• Lever movement is stiff or inconsistent
• Neutral detent is worn
• Engine does not reach full throttle
• Gear engagement is incomplete
• Trim switch or ignition circuit is intermittent
• Throttle-only button does not release
• Internal cable anchors or pivots are worn

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 703-48205-25 current Yamaha mechanical 703 control reference

OEM / Related Numbers

• 703-48205-25
• 703-48205-25-00
• 7034820525
• 703482052500
• 703-48207-25 related ten-pin control
• 703-48205-B3 related 703 remote-control configuration
• 703-48230-24 related pull-to-open seven-pin control
• 703-48206-23 related two-pin push-to-open control

Aftermarket / Verified Equivalents

• Aftermarket Yamaha 703 ten-pin control box
• Yamaha-compatible push-to-open side-mount control with trim

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
