703-82563-02 Yamaha Tilt Switch Assembly | Genuine OEM Yamaha Outboard Part

🔧 Product Description

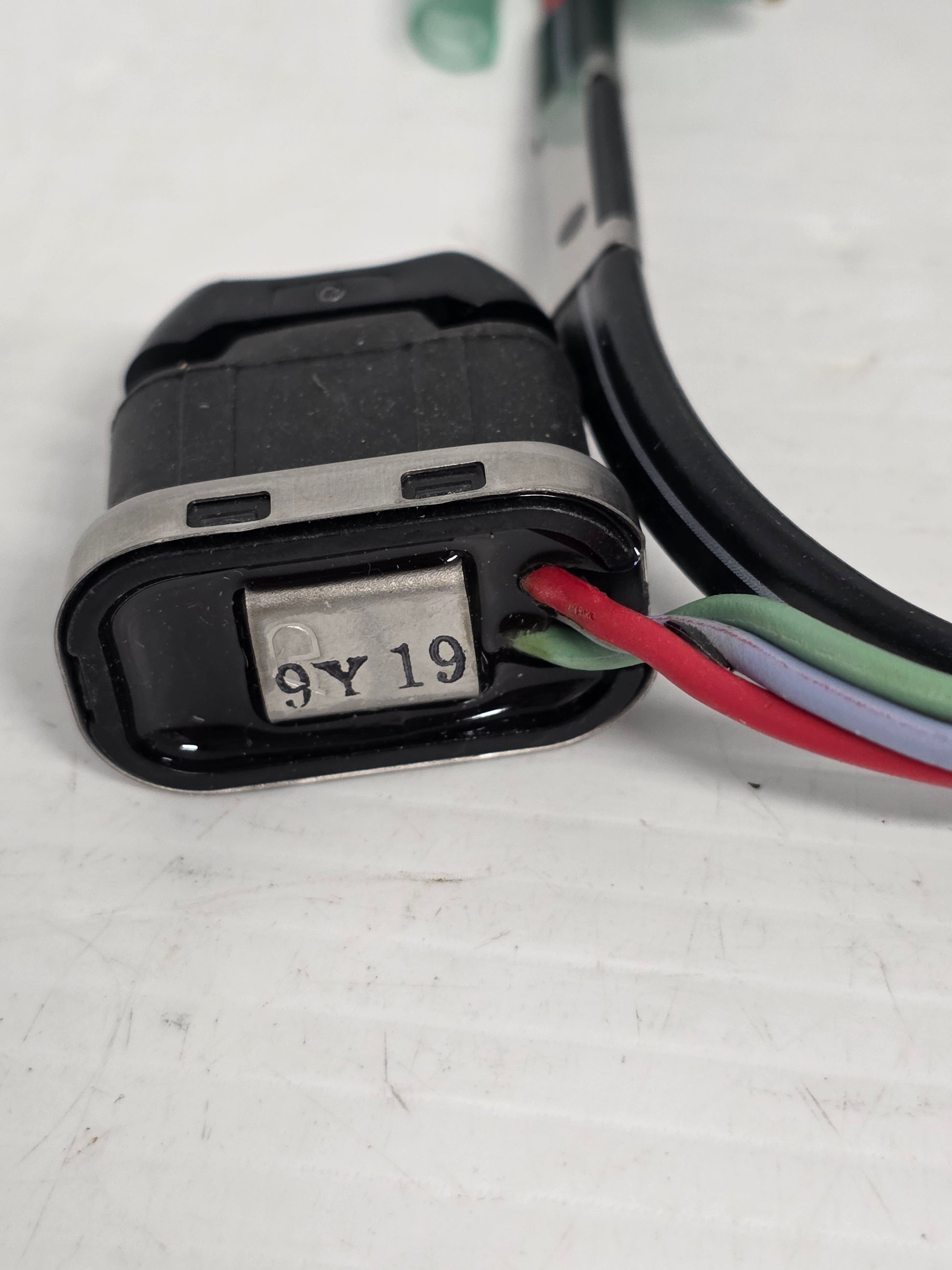

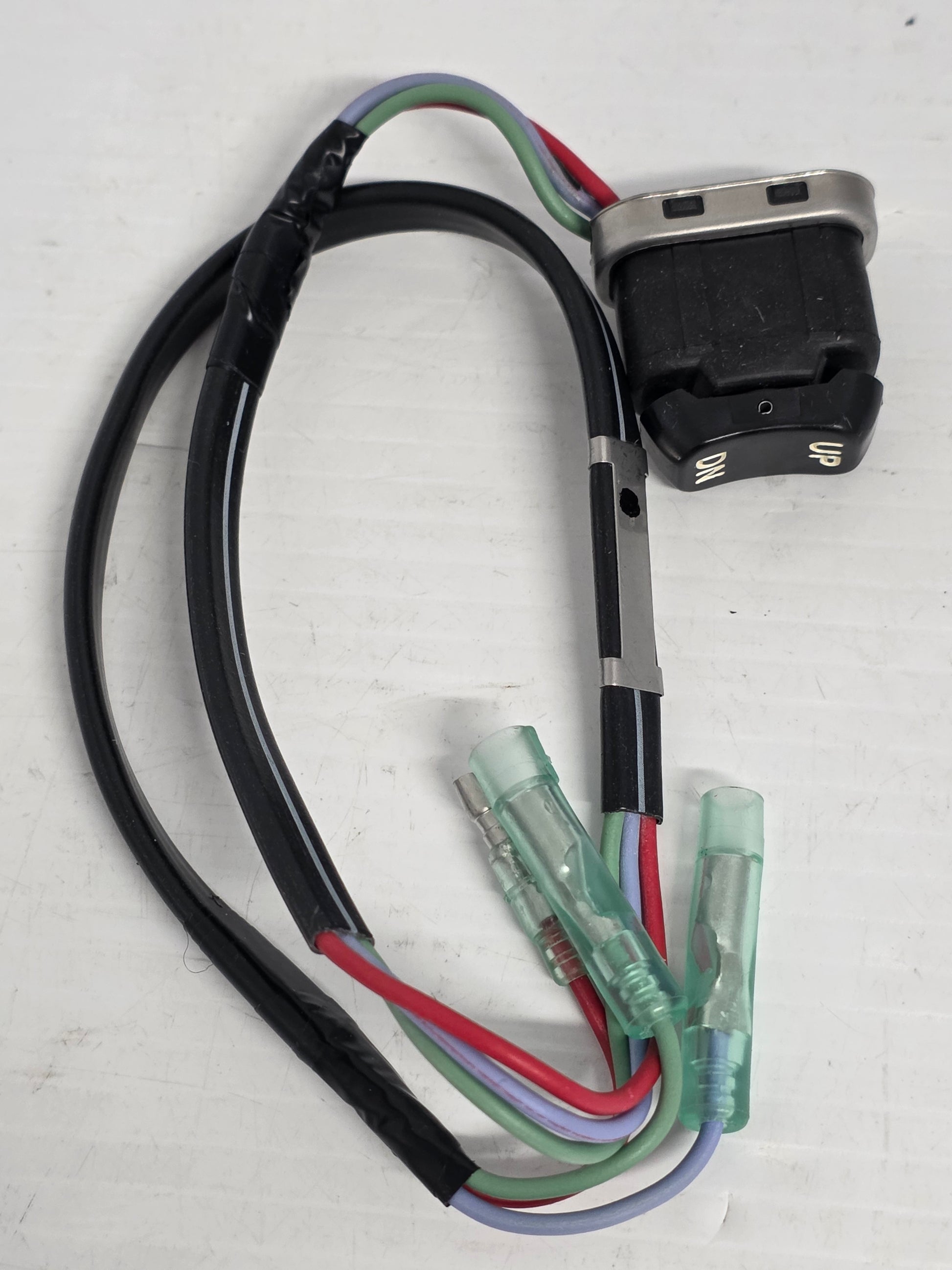

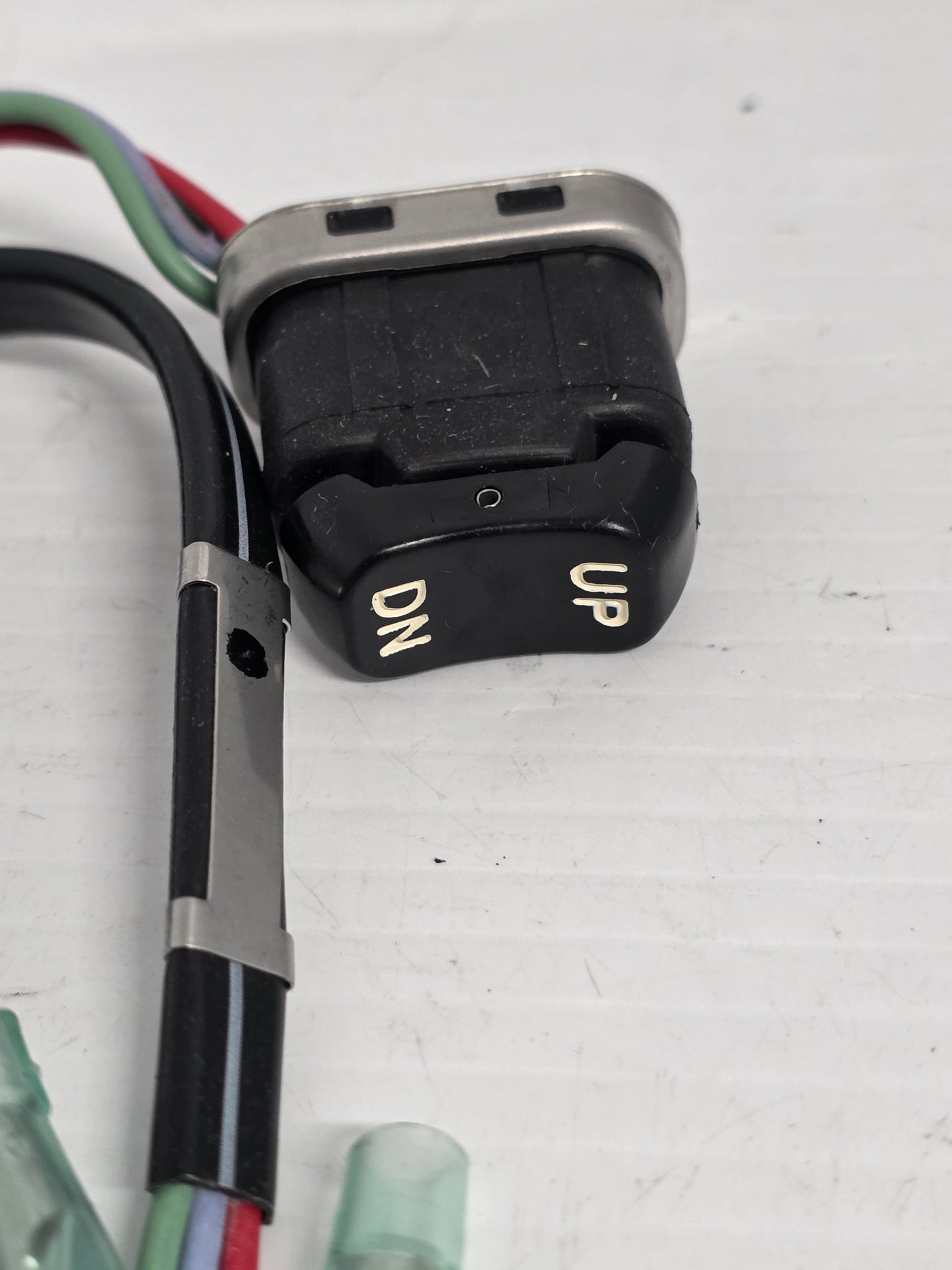

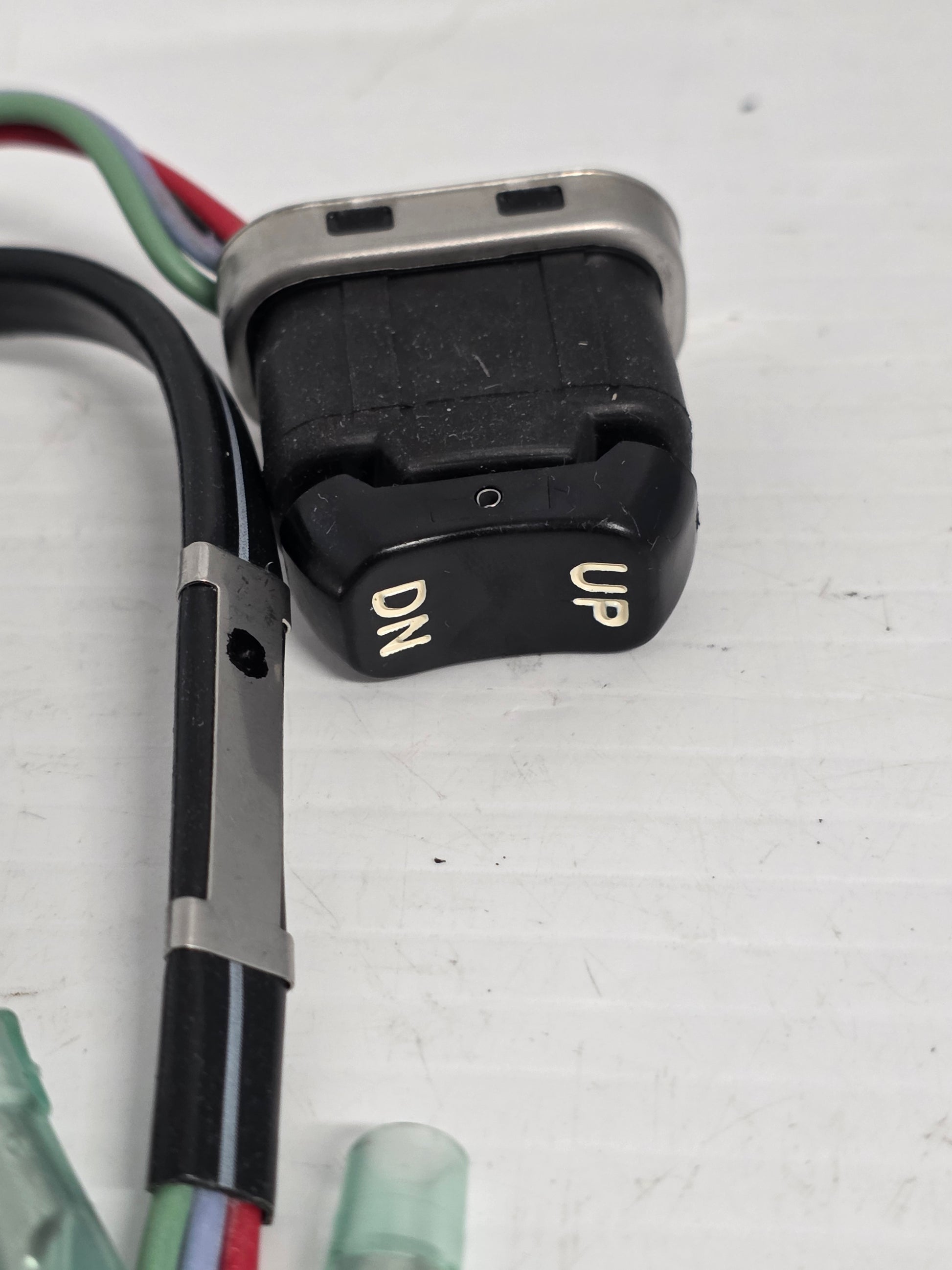

Genuine Yamaha 703 Remote Control Power Trim Switch - Part Number: 703-82563-02

A genuine Yamaha trim-and-tilt rocker switch for selected 703-series side-mount remote control boxes.

The switch is mounted in the throttle and shift handle and sends low-current up or down commands to the engine trim-relay circuit.

⚙️ Key Features

• Genuine Yamaha OEM trim-and-tilt switch

• Correct current Yamaha part number 703-82563-02

• Supersedes earlier 703-82563 switch assemblies

• Fits the throttle handle of compatible 703 control boxes

• FridayParts and aftermarket switches available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 703-82563-02 → Supersedes 703-82563-01

• 703-82563-01 → Supersedes 703-82563-00

OEM / Related Numbers:

• 703-82563-02

• 703-82563-02-00

• 703-82563-01

• 703-82563-00

• Yamaha 703 trim switch

• Handle-mounted power-trim rocker switch

Aftermarket / Verified Equivalents:

• FridayParts: HHP60141WIN

• Victory Parts: 703-82563-02 replacement switch

• NorthBoat: Yamaha 703 trim-switch assembly

• Aftermarket Yamaha 703 power-trim switch

🚤 Compatibility

Commonly used on:

• Yamaha 703 side-mount mechanical remote-control boxes

• Outboards equipped with electric power trim and tilt

Typically suits:

• Engine applications:

• Yamaha 6HP through 25HP power-trim models using a 703 box

• Yamaha 30HP through 90HP mechanical-control outboards

• Yamaha 100HP through 150HP mechanical-control outboards

• Yamaha 175HP through 225HP mechanical-control outboards

• Yamaha two-stroke and four-stroke engines fitted with the matching 703 handle and wiring connector

• Control Type: Yamaha 703 side-mount remote control

• Electrical System: 12-volt trim-relay command circuit

• Year Range: Dependent on control-box and connector design.

🔌 Function

The switch completes the trim-up or trim-down control circuit, commanding the trim relays to operate the hydraulic pump.

Common signs of failure:

• Trim operates from the engine switch but not the control handle

• Trim works in only one direction

• Switch operation is intermittent

• Rocker feels loose or sticks

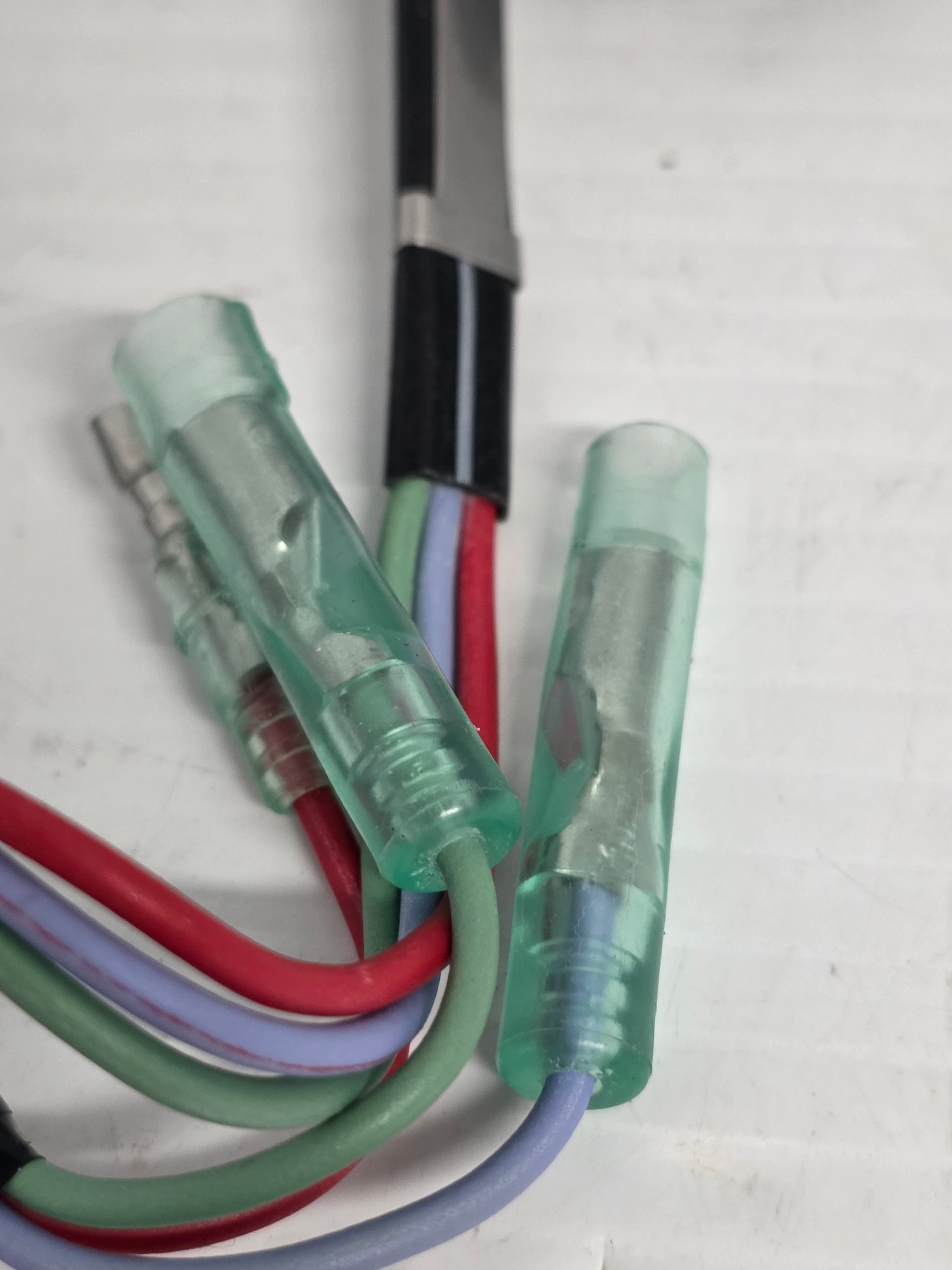

• Wiring or connector is corroded or broken

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
