768008 BRP Tacho Gauge | Genuine Used Part

🔧 Product Description

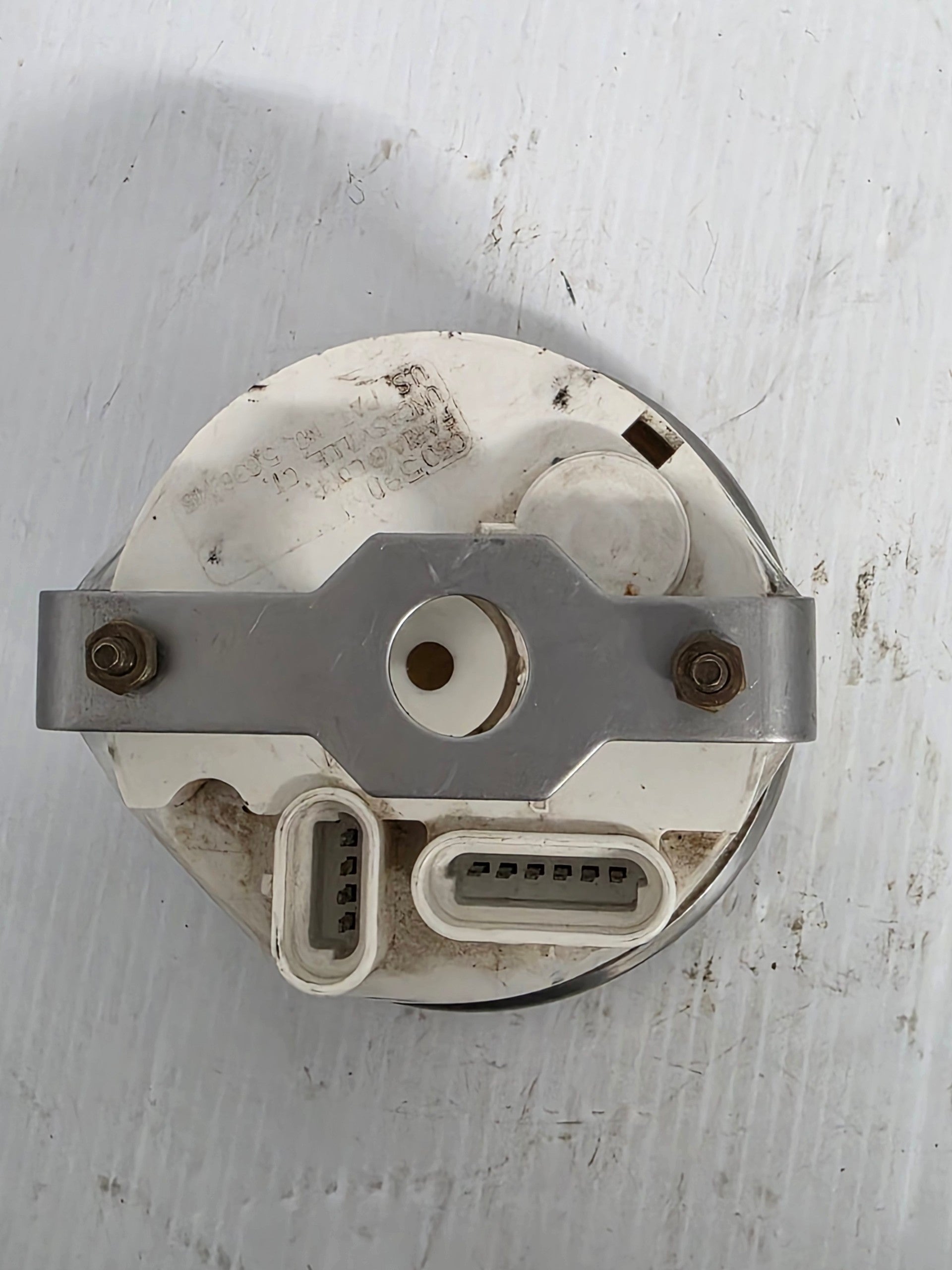

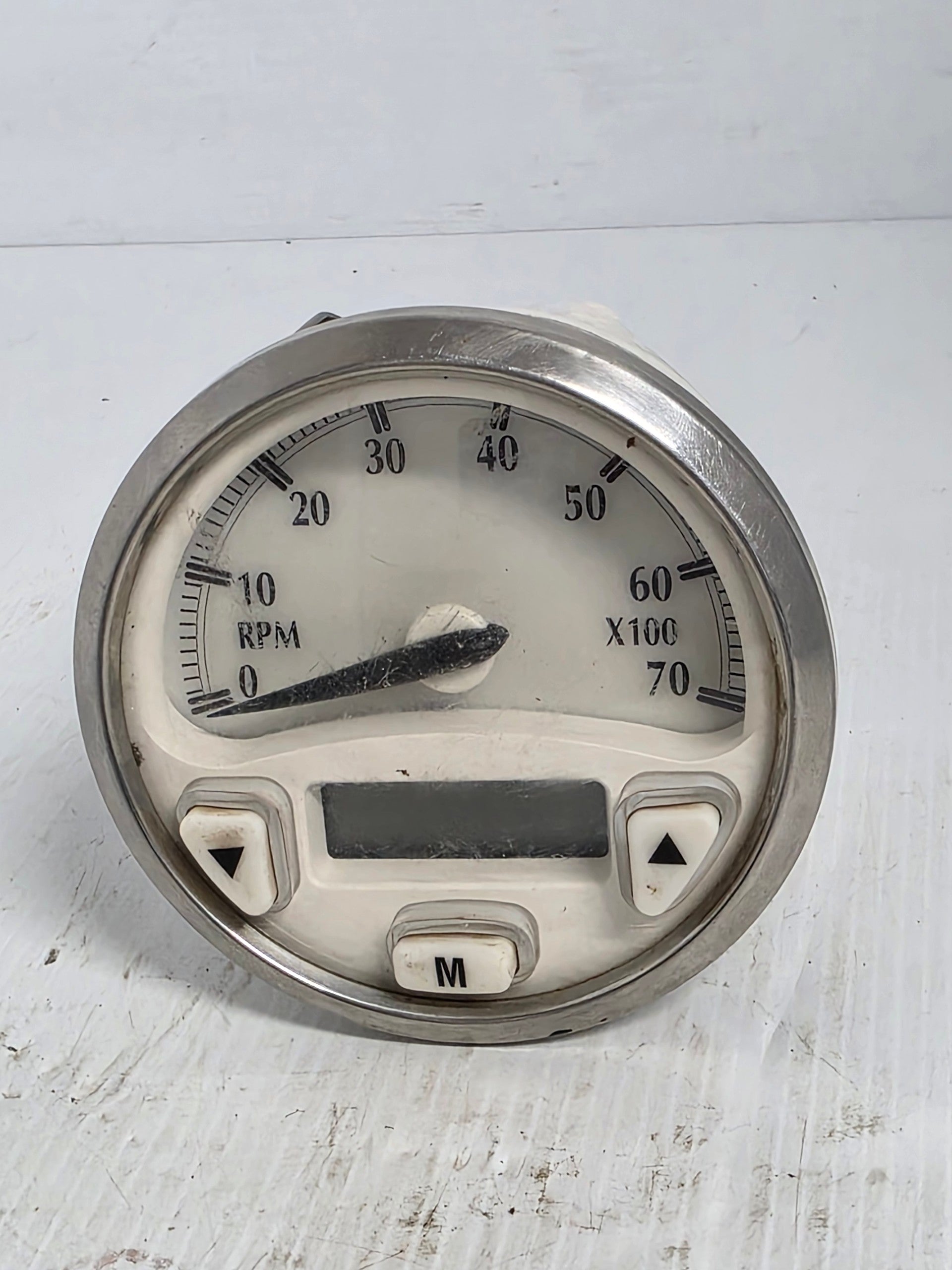

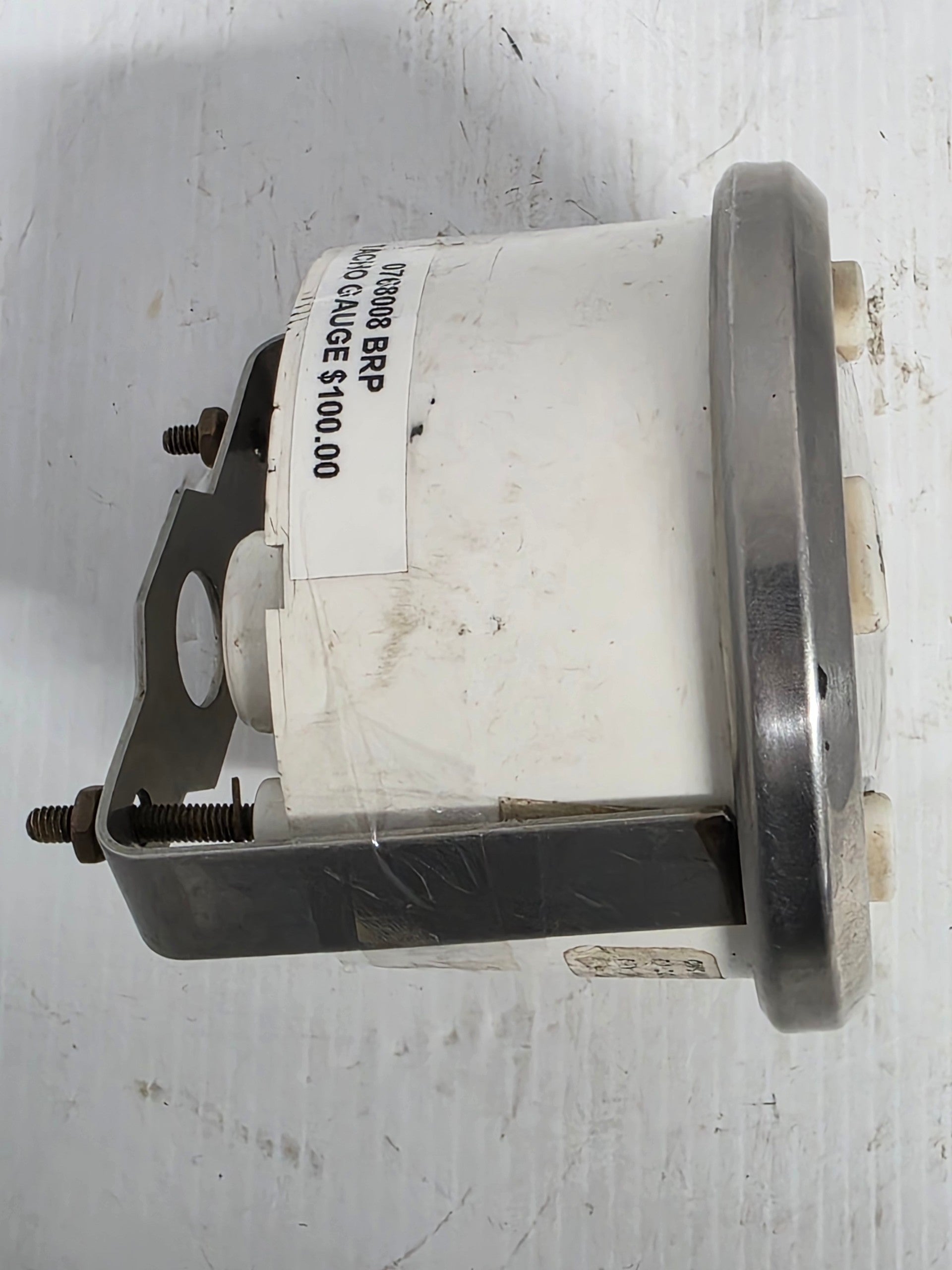

Genuine BRP Evinrude ICON Pro Multifunction Tachometer - Part Number: 0768008

A genuine used BRP Evinrude ICON Pro white-face multifunction tachometer for Evinrude E-TEC outboards connected to a compatible NMEA 2000 instrument network.

The instrument combines a 0-7000 RPM analog-style tachometer with an integrated digital display for engine and vessel information. It supports single- and multi-engine installations and can display available E-TEC operating data and warning information.

⚙️ Key Features

• Genuine BRP / Evinrude OEM ICON Pro tachometer

• 0-7000 RPM analog-style display with digital information screen

• Compatible with Evinrude NMEA 2000 engine networks

• Supports installations with up to four engines

• White-face instrument from the ICON Pro gauge family

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0768008 → Supersedes 0766184

• 0766184 → Supersedes 0766182

• 0766182 earlier BRP ICON Pro tachometer reference

OEM / Related Numbers:

• 0768008

• 768008

• 0766184

• 0766182

• 0768007 related black-face ICON Pro tachometer

• BRP ICON Pro white multifunction tachometer kit

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Evinrude E-TEC and E-TEC G2 NMEA 2000 instrumentation

• Single, twin, triple and quadruple Evinrude outboard installations

Typically suits:

• Engine models:

• Evinrude E-TEC 40HP, 50HP, 55HP, 60HP, 75HP and 90HP engines with a compatible NMEA 2000 network

• Evinrude E-TEC 115HP, 130HP, 135HP, 150HP, 175HP and 200HP engines with compatible network data

• Evinrude E-TEC 225HP, 250HP and 300HP engines with compatible network data

• Evinrude E-TEC G2 installations where ICON Pro fault and engine-data support is enabled

• Up to four networked Evinrude engines using the supported BRP display configuration

• HP Range: 40HP - 300HP

• Engine Type: Evinrude E-TEC and E-TEC G2 direct-injection outboard

• Year Range: Approximately 2007 - 2020, dependent on network and engine configuration

🔌 Function

The tachometer displays engine speed and receives digital engine information through the NMEA 2000 network. Depending on the connected engine and network devices, the LCD can present operating data, alerts and diagnostic information in addition to RPM.

Common signs of failure:

• No RPM indication despite the engine running

• LCD display is blank, incomplete or difficult to read

• Gauge reports network or communication faults

• RPM needle freezes or responds intermittently

• Backlighting or push-button functions do not operate correctly

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
