77194A2 Mercury Steering Handle Assy | Genuine Used Part

🔧 Product Description

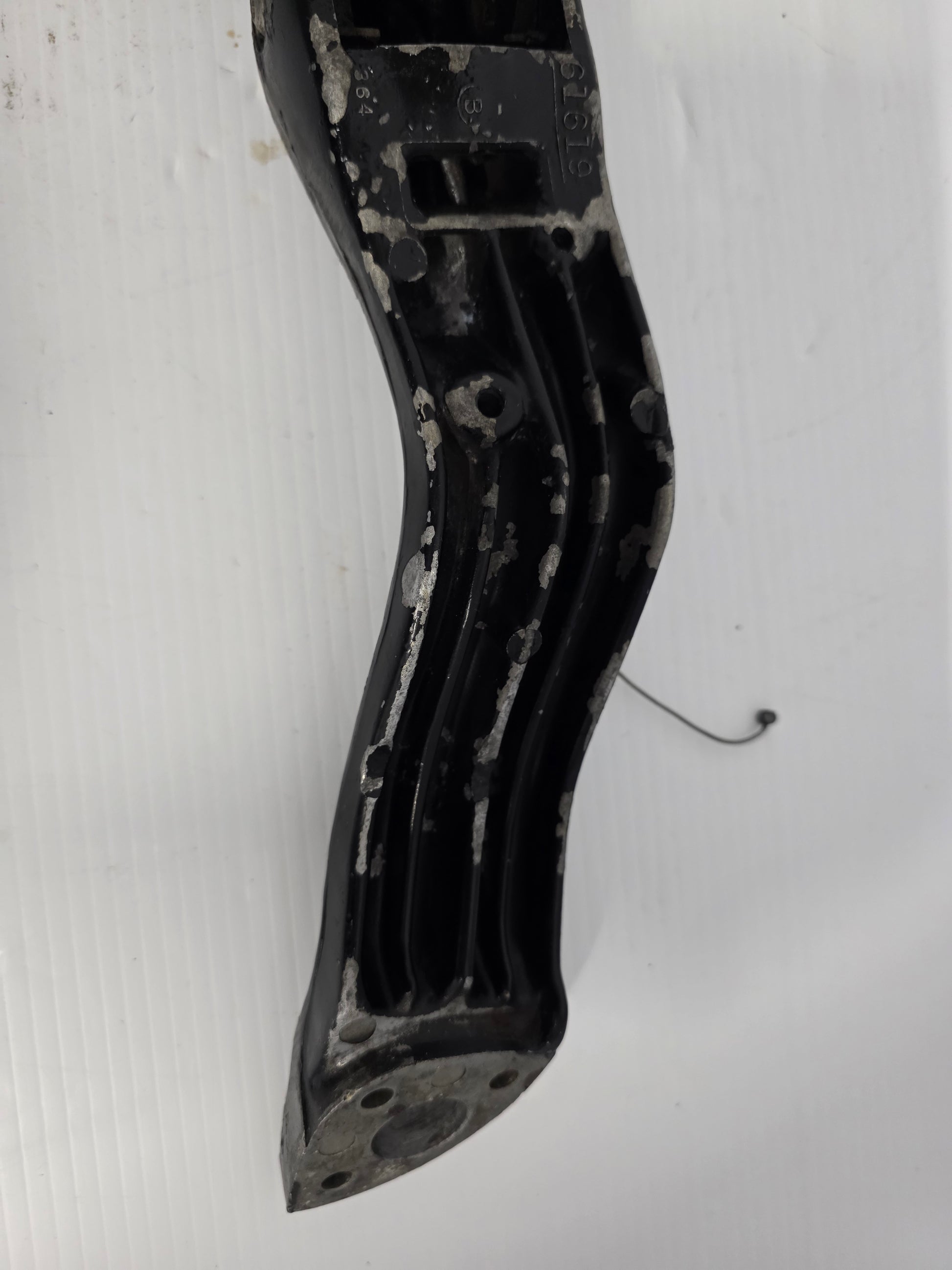

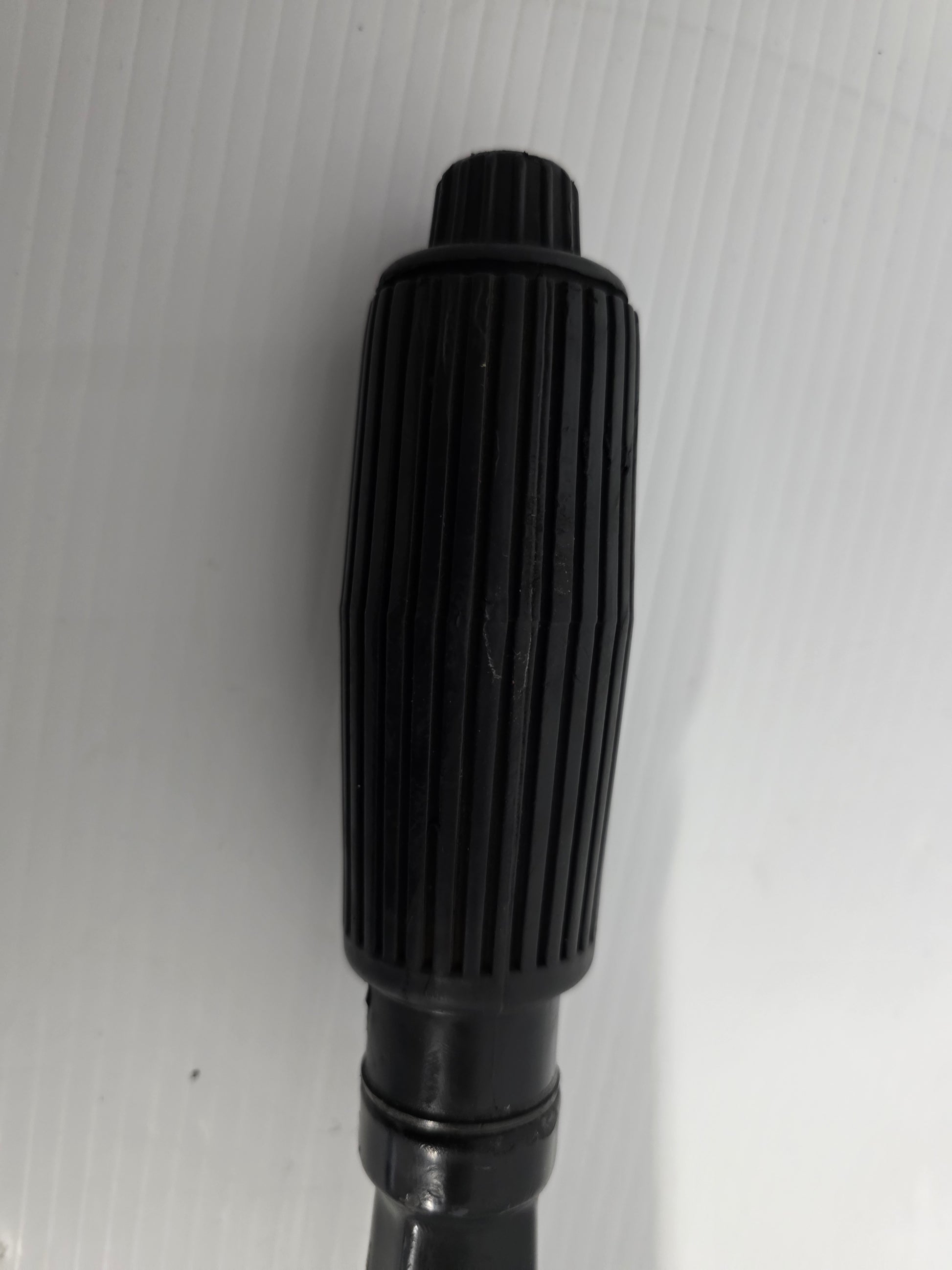

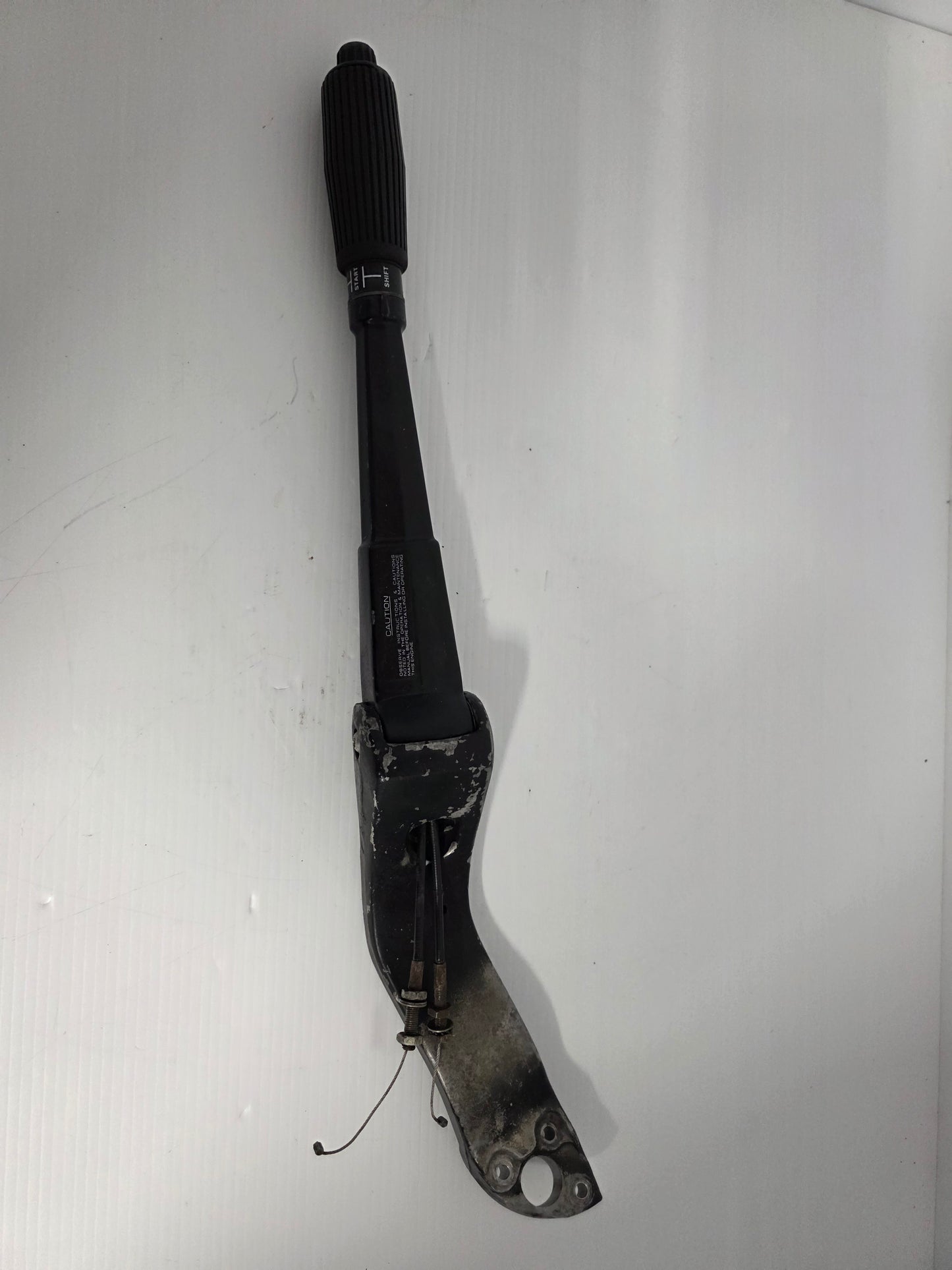

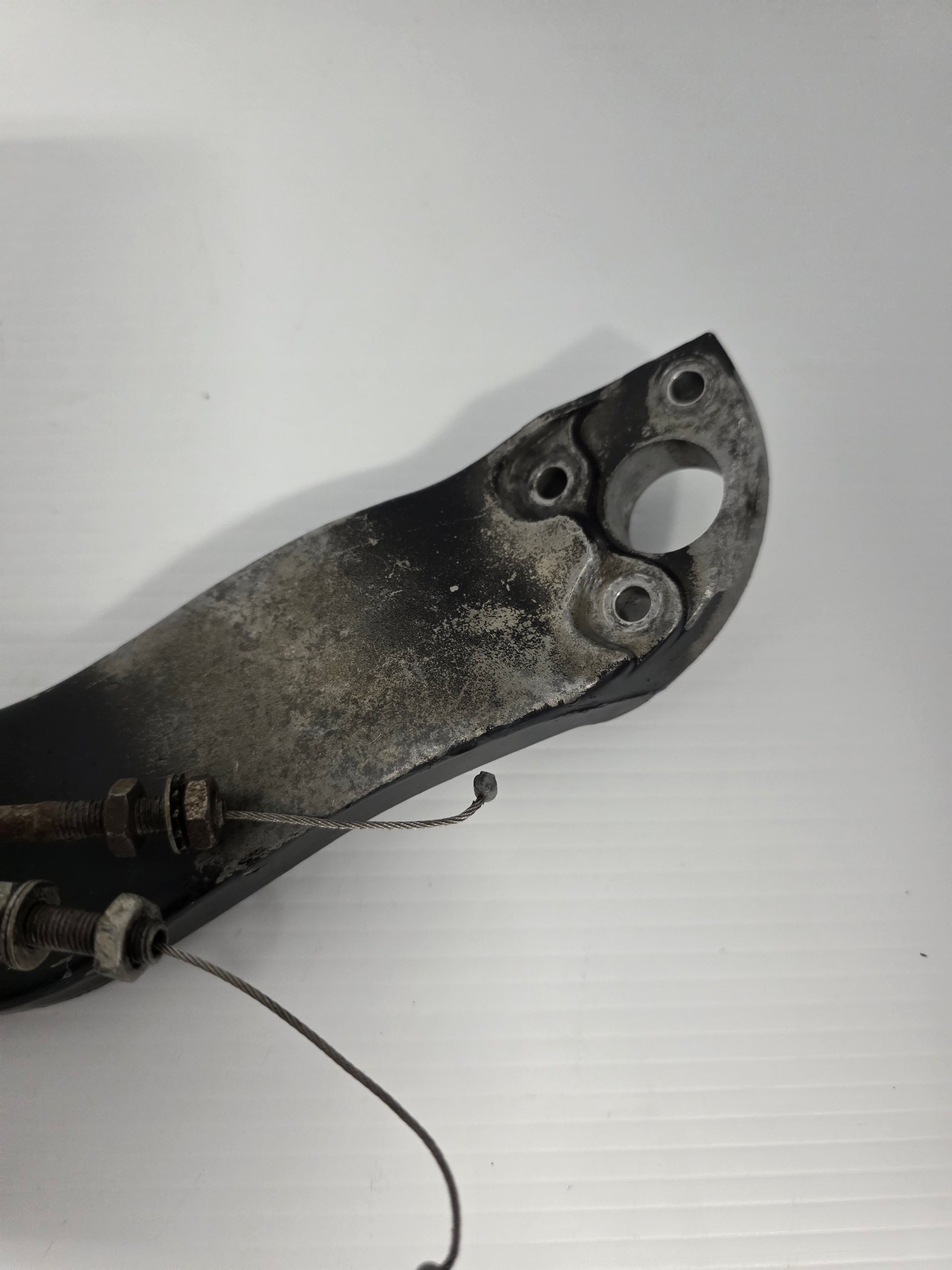

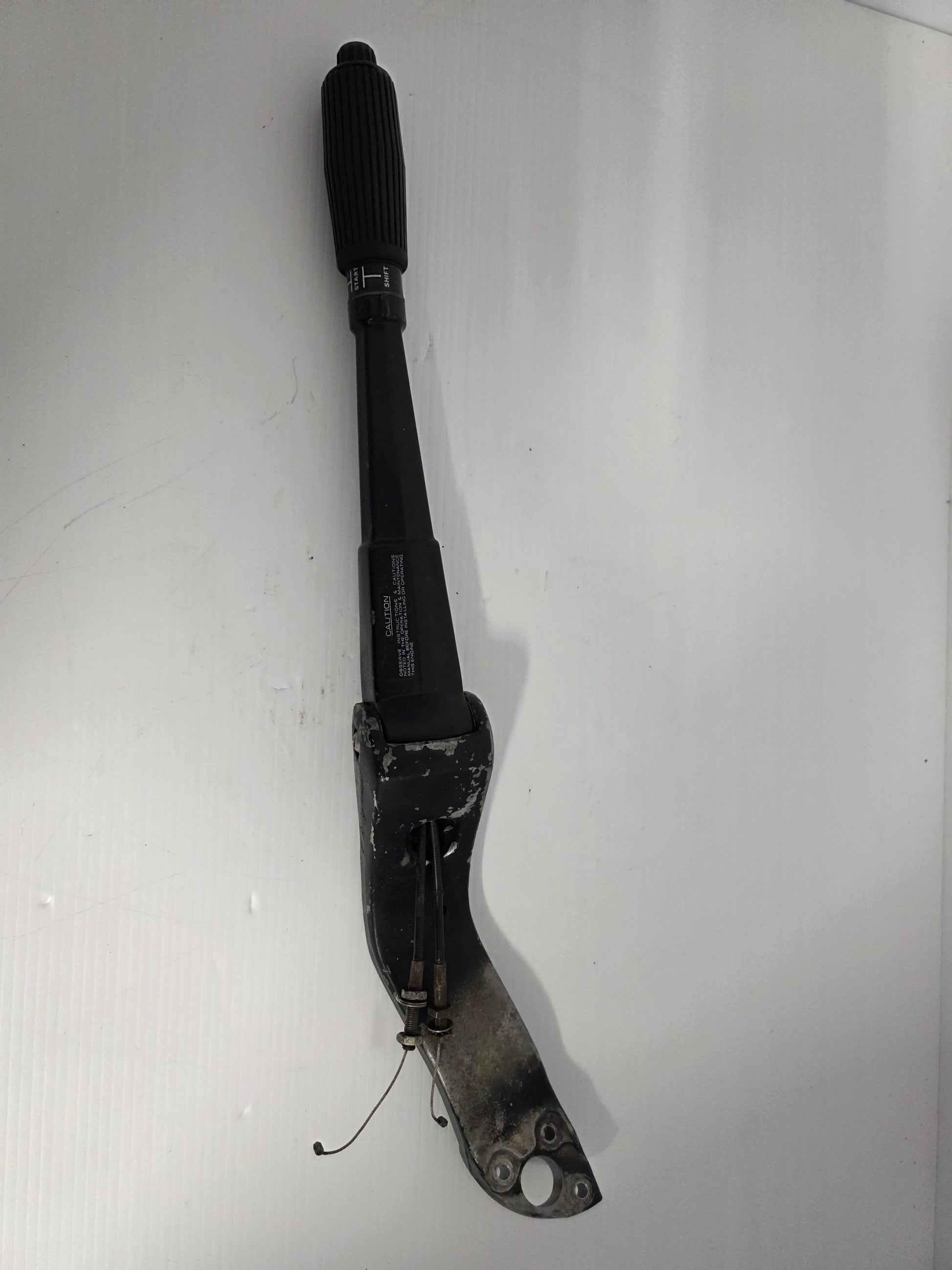

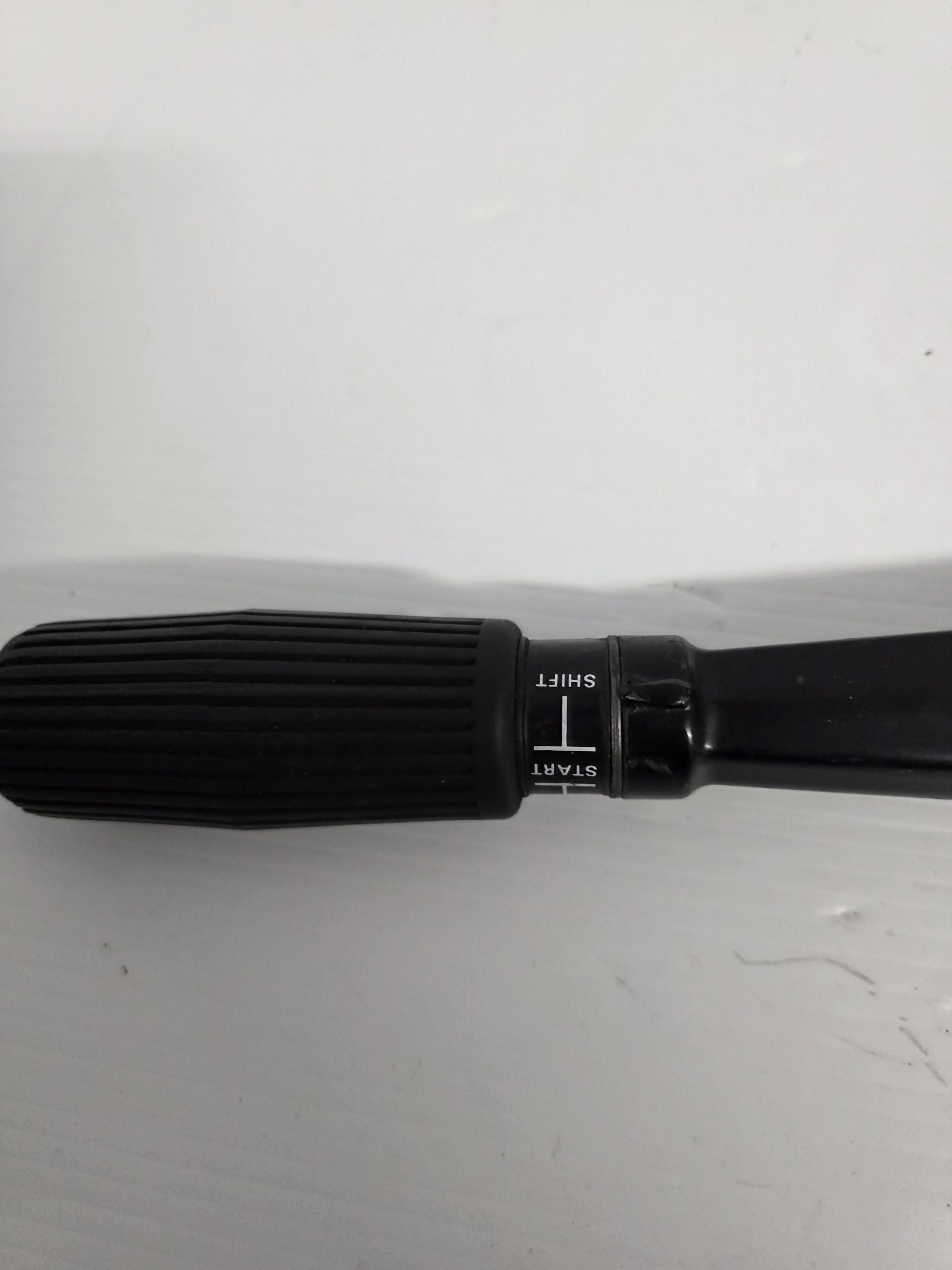

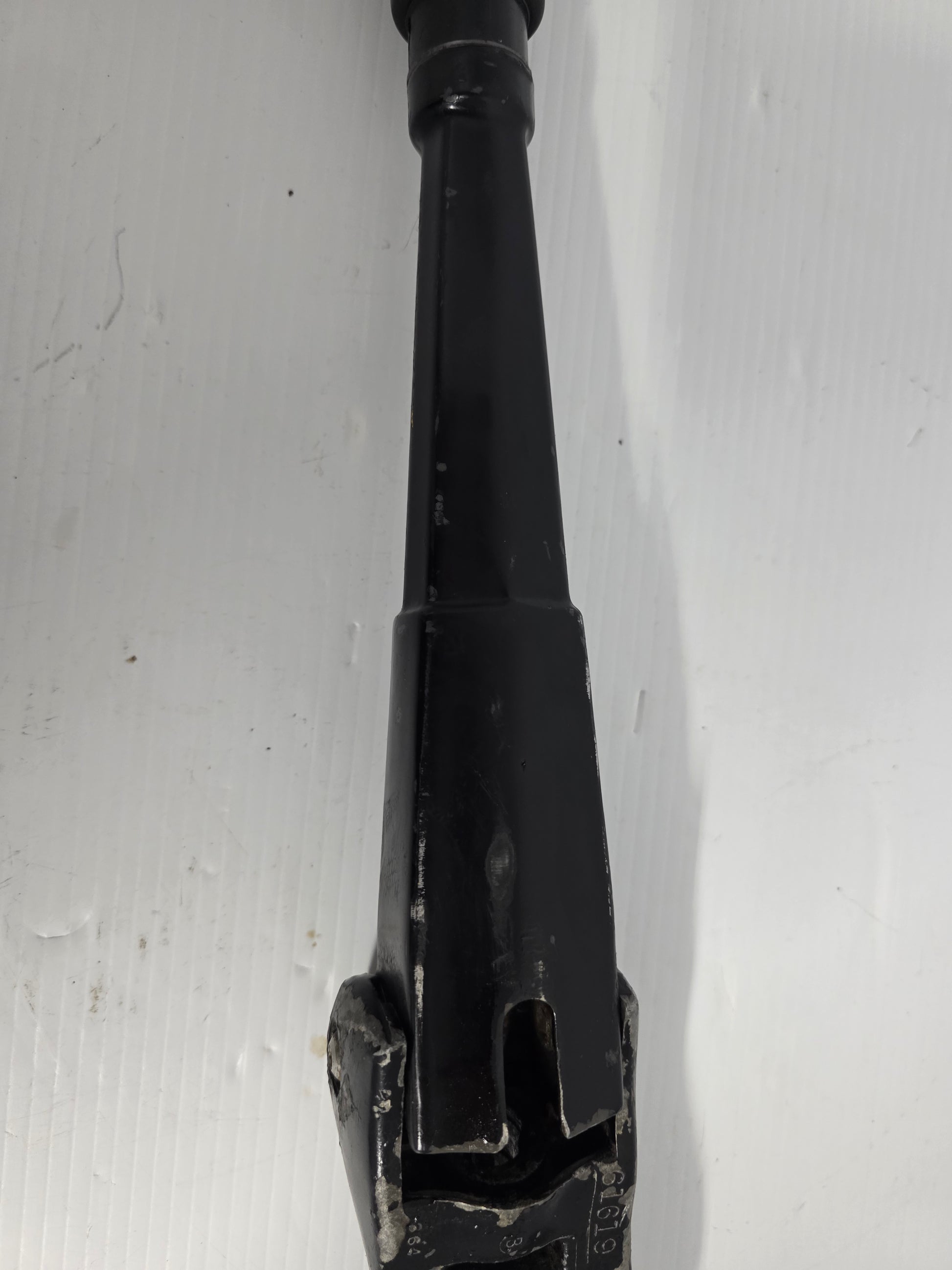

Genuine Mercury Tiller Steering Handle Assembly - Part Number: 77194A2

A genuine Mercury complete tiller steering-handle assembly for selected 7.5HP and 9.8HP two-cylinder outboards. The assembly combines the steering arm, twist-throttle shaft, grip and supporting hardware used to steer the engine and control throttle opening.

⚙️ Key Features

• Genuine Mercury OEM steering-handle assembly
• Correct assembly number 77194A2
• Used on selected 7.5HP and 9.8HP two-cylinder outboards
• Includes the primary handle structure and throttle-shaft arrangement where supplied complete
• Original NLA Mercury component suitable for restoration and repair

🚤 Compatibility

Commonly used on

• Mercury small two-cylinder tiller-steer outboards
• Steering-handle and throttle-linkage assemblies

Typically suits

• Engine models:
• Mercury 7.5HP two-cylinder
• Mercury 9.8HP two-cylinder
• Mercury model 75
• Mercury model 110
• Mercury tiller-steer engines produced approximately 1979-1985
• 7.5HP and 9.8HP assemblies whose steering-handle diagram specifies 77194A2
• HP Range: 7.5HP - 9.8HP
• Engine Type: Mercury carburetted two-cylinder two-stroke outboard
• Year Range: Approximately 1979-1985

🔌 Function

The handle allows the operator to steer the outboard manually while using the twist grip to control engine speed. Its internal shaft and linkage transfer grip rotation to the carburettor throttle mechanism.

⚠️ Common Signs of Failure

• Cracked or bent handle
• Twist throttle binds or does not return smoothly
• Excessive steering-handle play
• Worn throttle shaft or grip
• Missing cap, pin or internal linkage components

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 77194A2 final Mercury steering-handle assembly
• 77194 original assembly base reference

OEM / Related Numbers

• 77194A2
• 77194
• 96432F1 related Force / Mercury tiller-handle and bracket reference
• 60854 handle grip
• 77237 handle cap
• 77238A1 throttle-shaft handle assembly
• 31656 steering-handle roll pin

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
