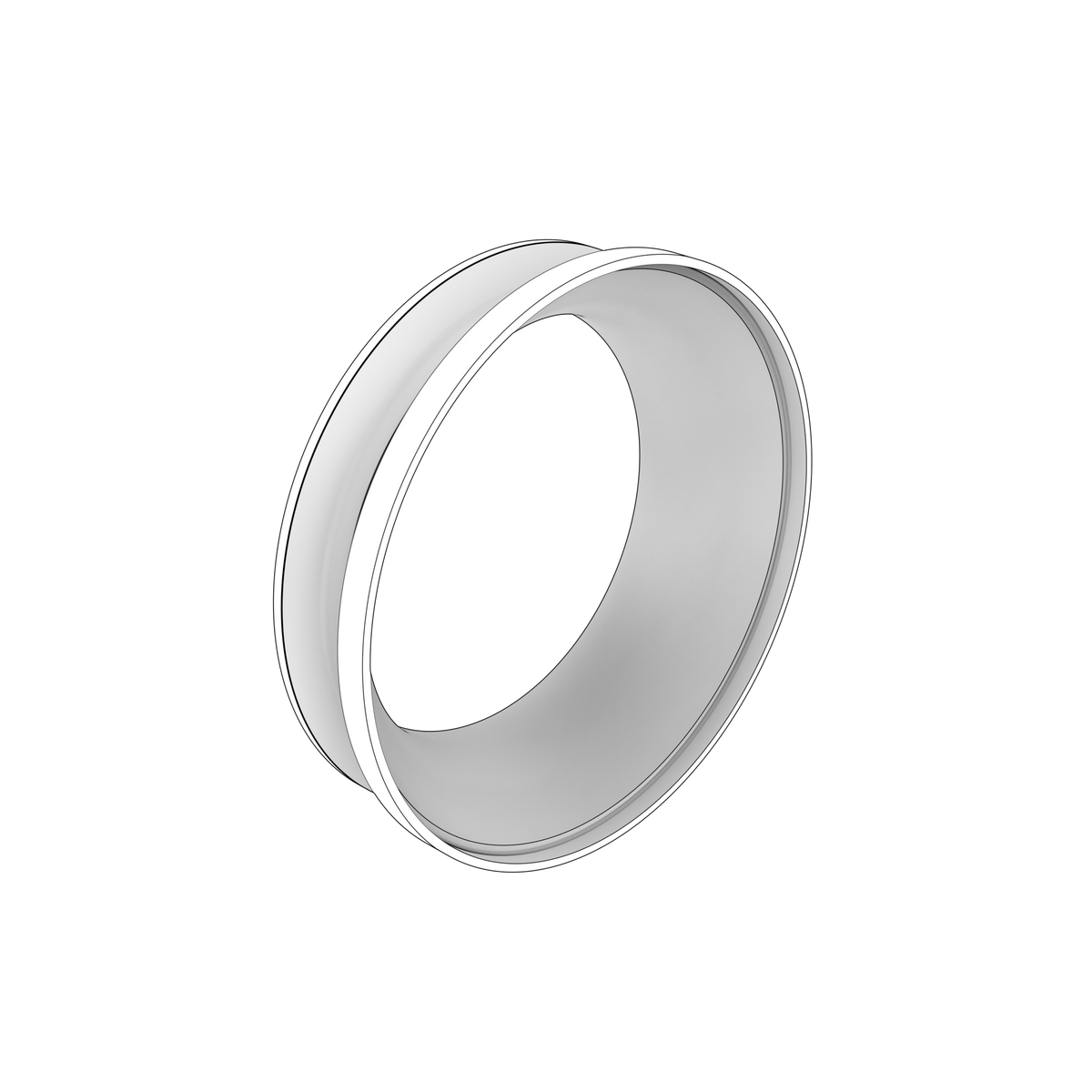

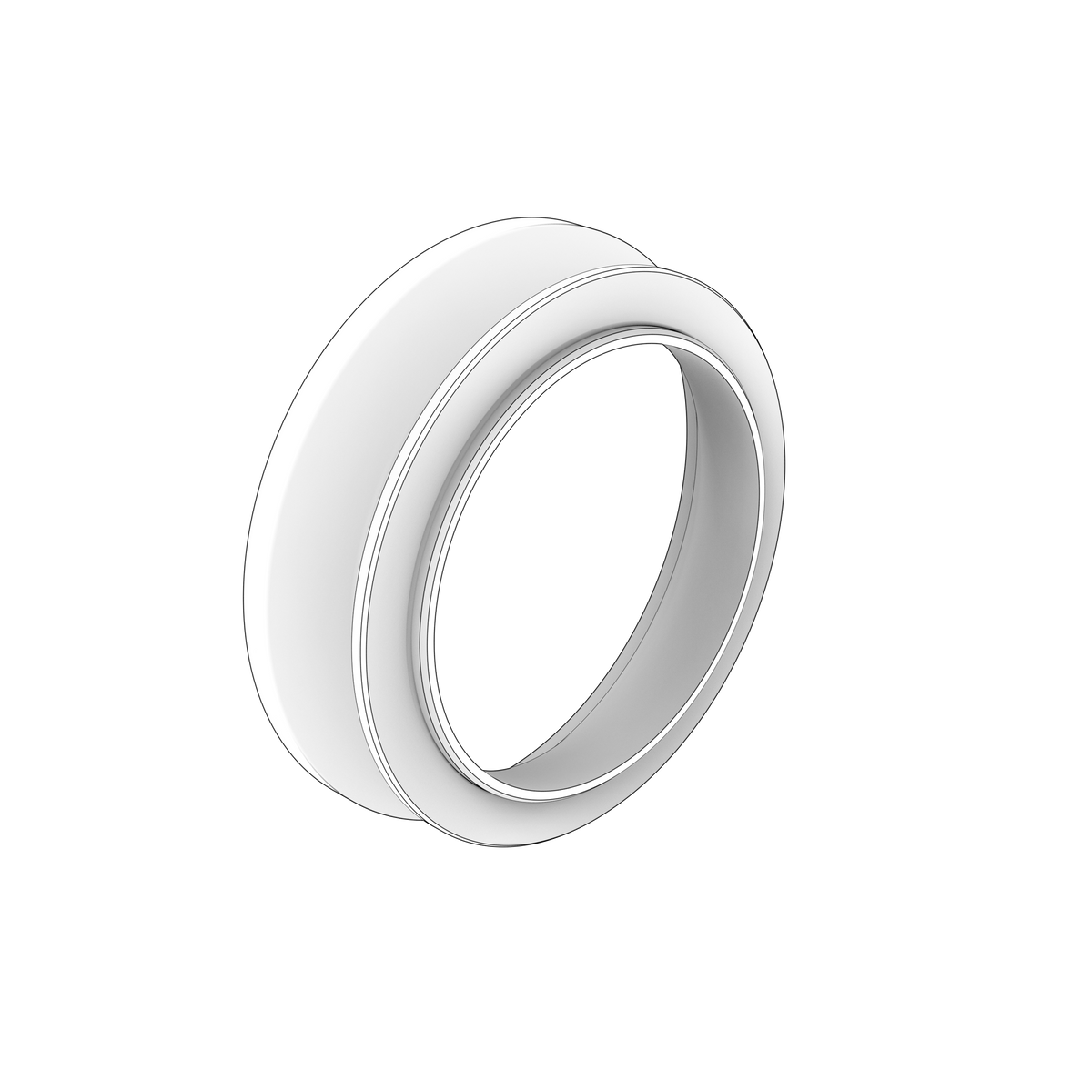

78490602 Flange | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta weld flange for 5 inch pipe, from the Inlet and Exhaust System group, weighing 0.606 kg and listed for 4 applications in the TAD series. The 5 inch pipe size is what separates it from weld flange 78490714, which is for 4 inch pipe.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP

• Engine Family: TAD

⚙️ Key Features

• Weld flange for 5 inch pipe
• 0.606 kg
• 4 TAD series applications
• Paired with the 4 inch flange 78490714

🔌 Function

Provides the bolted joint face that is welded onto the end of the exhaust pipe.

⚠️ Common Signs of Failure

• Exhaust leak at the flange joint or along the weld
• Soot tracking out from under the joint
• Weld cracked where the flange meets the pipe
• Face distorted by welding heat so the joint will not seal
• Bolt holes pulled or elongated

🛠️ Service Notes

• Measure the pipe before ordering, as 78490714 is the 4 inch version of the same flange
• It is a weld-on fitting, so it needs a competent welder and the face checked for flatness after welding
• Renew the joint gasket and fasteners when the flange is fitted

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
