79-825282A1 895283A06 Mercury Tachometer | Genuine Used Part

🔧 Product Description

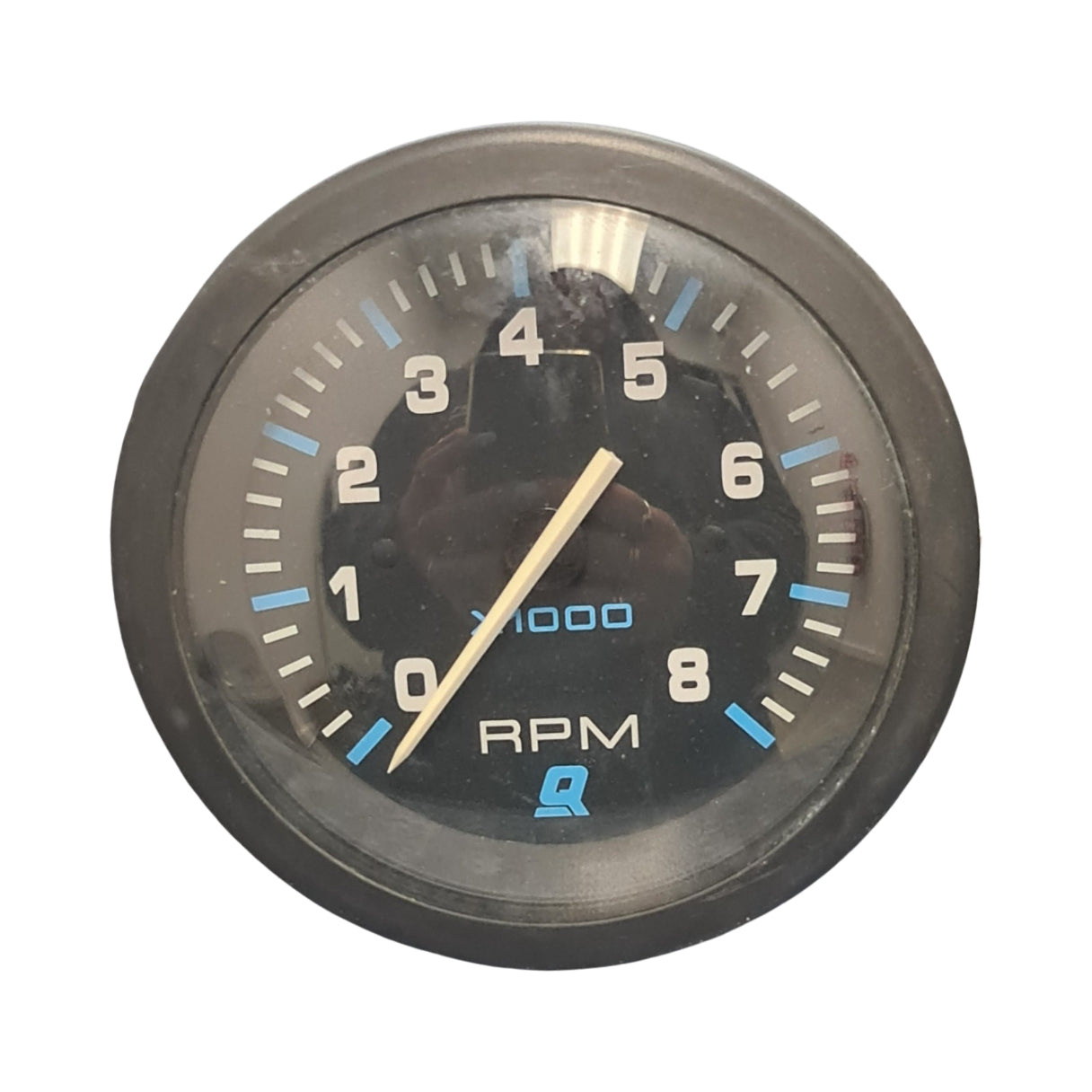

Genuine Mercury Quicksilver Flagship 0-8000 RPM Tachometer - Part Number: 79-825282A1

A genuine used Mercury Quicksilver Flagship analog tachometer with a 0-8000 RPM scale for compatible Mercury, Mariner and MerCruiser petrol ignition systems.

This black-face instrument receives a pulse signal from the outboard charging system or petrol-engine ignition circuit. The rear calibration setting must match the engine's pole or pulse configuration.

⚙️ Key Features

• Genuine Mercury Quicksilver OEM Flagship tachometer
• Original part number 79-825282A1
• 0-8000 RPM scale for higher-revving petrol engines
• Black face, blue graduations and black bezel
• Complete three-number OEM supersession chain

🚤 Compatibility

Commonly used on

• Mercury and Mariner analog outboard tachometer systems
• MerCruiser petrol sterndrive and inboard ignition systems

Typically suits

• Engine models:
• Mercury and Mariner two-stroke outboards using a compatible alternator or stator tachometer pulse
• Mercury and Mariner four-stroke outboards using a compatible analog tachometer output
• MerCruiser 4-cylinder, V6 and V8 petrol engines using conventional analog tachometer signalling
• Performance outboard installations requiring an instrument scale extending to 8000 RPM
• HP Range: Not restricted by horsepower; pulse setting and RPM range controlled
• Engine Type: Mercury / Mariner outboard and MerCruiser petrol marine engine
• Year Range: Approximately 1990s - 2000s

🔌 Function

The tachometer counts ignition or charging-system pulses and converts them into engine revolutions per minute. Correct pole or cylinder calibration is required to prevent an RPM reading that is proportionally too high or too low.

⚠️ Common Signs of Failure

• No RPM reading while the engine is running
• Reading is incorrect because the selector setting is wrong
• Needle bounces because the signal or ground connection is unstable
• Gauge operates intermittently as engine speed changes
• Illumination or internal needle movement fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 79-895283A06 → Supersedes 79-859675A1
• 79-859675A1 → Supersedes 79-825282A1
• 79-825282A1 earlier OEM tachometer reference

OEM / Related Numbers

• 79-825282A1
• 825282A1
• 79825282A1
• 79-859675A1
• 859675A1
• 79-895283A06
• 895283A06

Aftermarket / Verified Equivalents

• Stewart-Warner: 82181 - 0-8000 RPM petrol tachometer
• Veethree: 84293FE - 0-7000 RPM functional alternative

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
