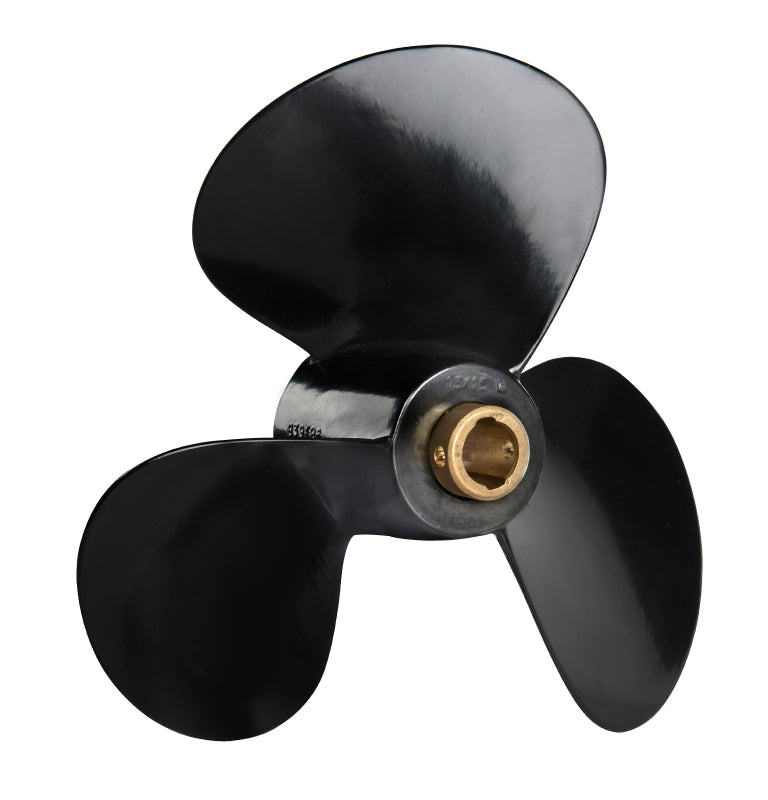

804449 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta aluminium single propeller for 100 series Aquamatic drives with a 13/16 inch splined propeller shaft. Standard and High-speed propellers are made from a special, durable aluminium alloy developed to withstand salt water and cavitation damage, and are painted black with a special epoxy powder which is extremely hard and resistant to abrasion. This propeller is the 14 x 11 size, left hand rotation.

🚤 Compatibility

Typically suits:

• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta AQD2B

• Engine Family: MD, AQD

⚙️ Key Features

• 14 inch diameter by 11 inch pitch
• Left hand rotation
• Splined bore, 13/16 inch
• Cylindrical shaft alternative in the same size is 813227
• 2.268 kg
• Aluminium alloy
• Fits Volvo Penta 100-series drives
• Left-hand rotation.
• Special durable aluminium alloy developed to withstand salt water and cavitation damage.
• Painted black with a special epoxy powder, extremely hard and resistant to abrasion.
• For 100 drives with 13/16 inch splines.
• Material: aluminium
• Dimensions: 14 in diameter x 11 in pitch (folder prints '14 x 11')
• Fits: 100 drives with splines (13/16 in)

🔌 Function

Converts engine torque into thrust, driving the boat forward or astern.

⚠️ Common Signs of Failure

• Vibration through the hull at cruise
• Blade tips bent, curled or chipped from grounding or debris
• Leading edges eroded or cavitation burn on the blade backs
• Engine over-revving or unable to reach rated speed
• Splines worn or rounded in the bore

🛠️ Service Notes

• Check the shaft first - this is the 13/16 inch splined version, and 813227 is the same size for the cylindrical shaft with locking pin
• Check rotation too, since a left hand propeller fitted to a right hand shaft will drive the boat astern
• Grease the splines on assembly, and only reuse a repaired propeller once it has been checked for pitch and balance

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
