805320A03 Mercury MerCruiser Sender Kit Alpha/Bravo | Genuine Quicksilver OEM Part

🔧 Product Description

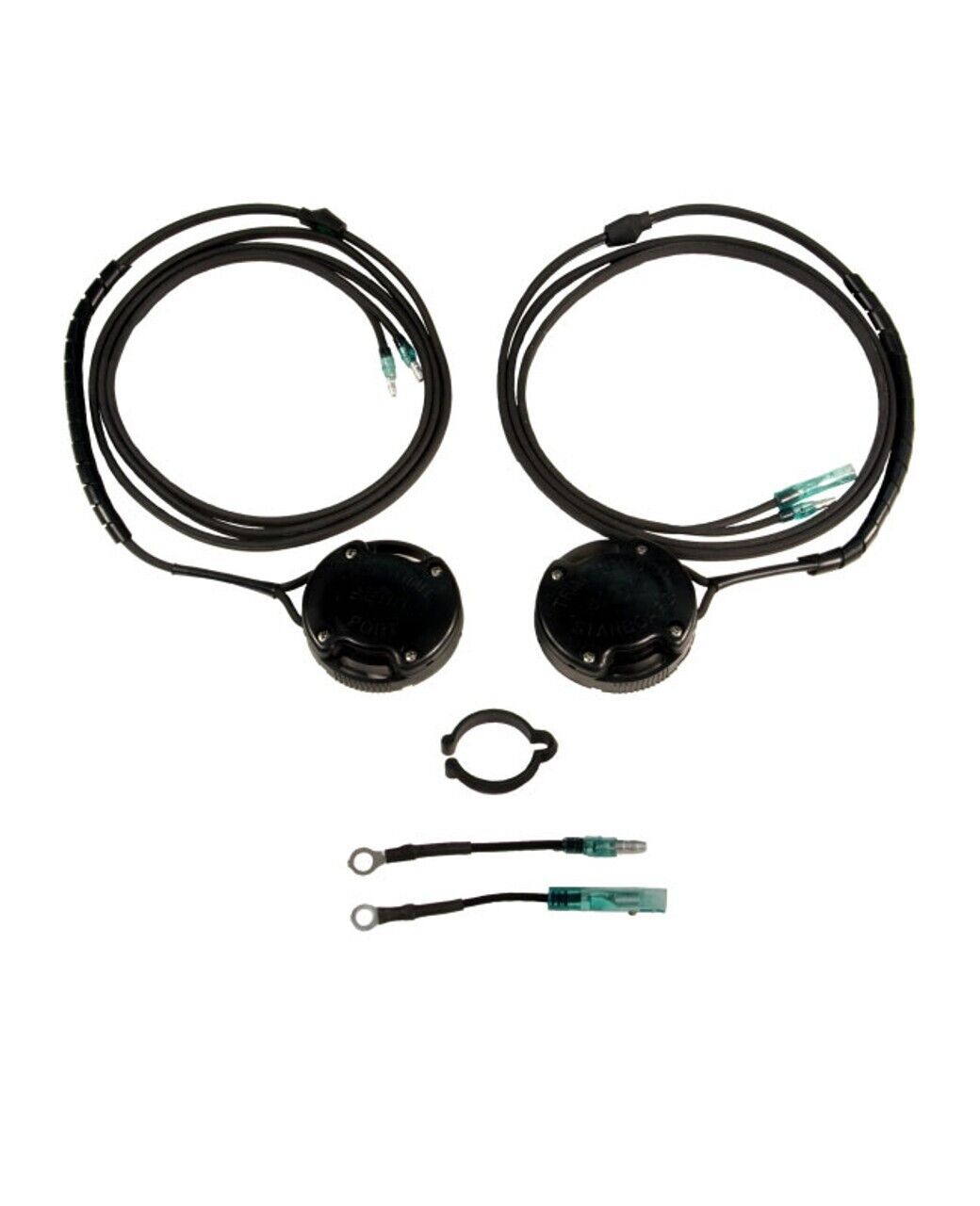

Genuine Quicksilver Alpha / Bravo Trim Sender Kit - Part Number: 805320A03

Genuine Quicksilver/MerCruiser analogue trim sender and trim limit switch kit for compatible MerCruiser MC-I, R, MR, Alpha One, Alpha One Gen II and Bravo sterndrive transom assemblies. This OEM kit includes the trim position sender and trim limit switch used to restore accurate trim gauge operation and correct trim limit function.

⚙️ Key Features

• Genuine Quicksilver/MerCruiser OEM trim sender and trim limit kit

• Includes both trim sender and trim limit switch assemblies

• Designed for analogue MerCruiser trim gauge systems

• Suits MC-I, R, MR, Alpha One, Alpha One Gen II and Bravo drive families

• Direct replacement for earlier MerCruiser trim sender kit references

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 805320A03 → Supersedes 805320A1

• 805320A1 → Supersedes 96863A15

• 96863A15 → Supersedes 88678A5

• 88678A5 → Supersedes 88678A4

• 88678A4 → Supersedes 63115A12

• 63115A12 → Supersedes 17693A2

• 17693A2 earlier OEM reference

OEM / Related Numbers:

• 805320A03

• 805320A3

• 805320A1

• 805129A3 related trim sender reference

• 805130A2 related trim limit reference

• 96863A15

• 88678A5

• 88678A4

• 63115A12

• 17693A2

Aftermarket / Verified Equivalents:

• Sierra: 18-7633

🚤 Compatibility

Commonly used on:

• MerCruiser analogue trim sender systems

• MerCruiser Alpha and Bravo transom assemblies

• Gimbal ring trim sender and trim limit switch mounting applications

Typically suits:

• Engine models:

• MerCruiser MC-I sterndrive analogue trim sender applications

• MerCruiser R sterndrive analogue trim sender applications

• MerCruiser MR sterndrive analogue trim sender applications

• MerCruiser Alpha One Gen I sterndrive, 1983-1990, serial 6225577 - 0D469858, analogue trim sender applications

• MerCruiser Alpha One Gen II sterndrive, 1991-1995, serial 0D469859 - 0F679999, analogue trim sender applications

• MerCruiser Alpha One Gen II sterndrive, 1996-1997, serial 0F680000 - 0K999999, analogue trim sender applications

• MerCruiser Alpha One Gen II sterndrive, 1998 and newer, serial 0L100040 and up, analogue trim sender applications

• MerCruiser Bravo One sterndrive, 1988 and newer, serial 0B664190 and up, analogue trim sender applications

• MerCruiser Bravo Two sterndrive, 1988 and newer, serial 0B664190 and up, analogue trim sender applications

• MerCruiser Bravo Three sterndrive, serial 0B664190 - 0F729999, analogue trim sender applications

• MerCruiser Bravo Three sterndrive, serial 0F730000 - 0M100000, analogue trim sender applications

• MerCruiser Bravo Three sterndrive, serial 0M100001 - 0W249999, analogue trim sender applications

• MerCruiser Bravo Three sterndrive, serial 0W250000 and up, analogue trim sender applications

• MerCruiser Alpha / Bravo transom assemblies with analogue trim gauge configuration

• MerCruiser gimbal ring sender mounting applications using 805320A03 sender kit

• HP Range: Not applicable - sterndrive trim sender and trim limit electrical kit

• Engine Type: MerCruiser MC-I / R / MR / Alpha / Bravo sterndrive trim sender and trim limit system

• Year Range: MC-I / R / MR / Alpha / Bravo analogue trim applications, including Alpha One Gen I 1983-1990, Alpha One Gen II 1991 and newer, and Bravo 1988 and newer where analogue trim sender system is fitted

🔌 Function

The trim sender reports sterndrive trim position to the dashboard gauge, while the trim limit switch controls normal upward trim travel. Replacing the kit helps restore accurate gauge indication, correct trim limit operation and reliable trim system feedback.

Common signs of failure:

• Trim gauge stuck fully up or fully down

• Trim gauge reading incorrectly or intermittently

• Trim limit not stopping upward trim travel

• Trim sender wiring damaged at the gimbal ring

• Water-damaged or corroded sender housings

• Trim reading changes while steering

• Sender kit damaged during bellows or transom service

📦 Condition

• Genuine Quicksilver part

• Brand new

• Supplied in original or equivalent packaging
