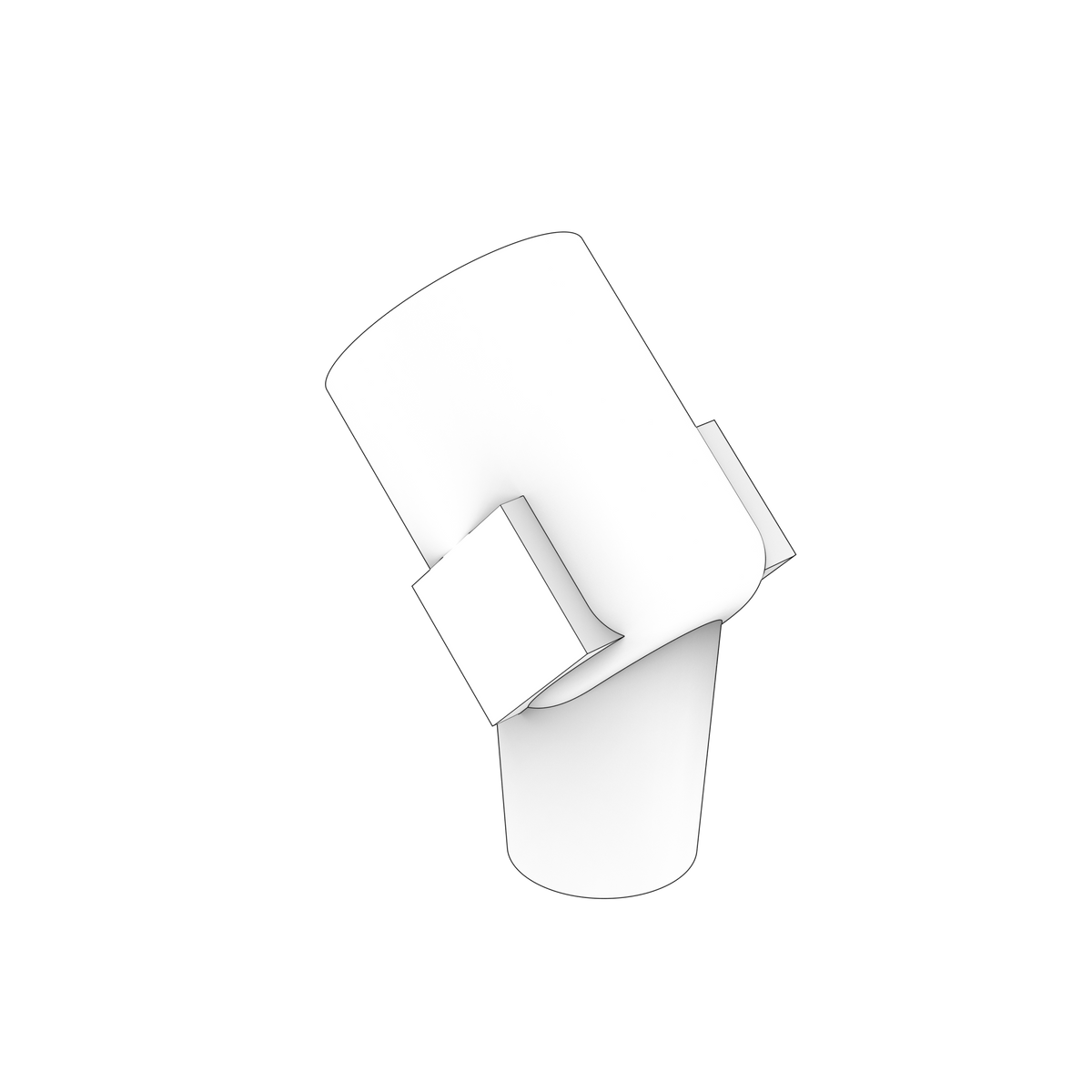

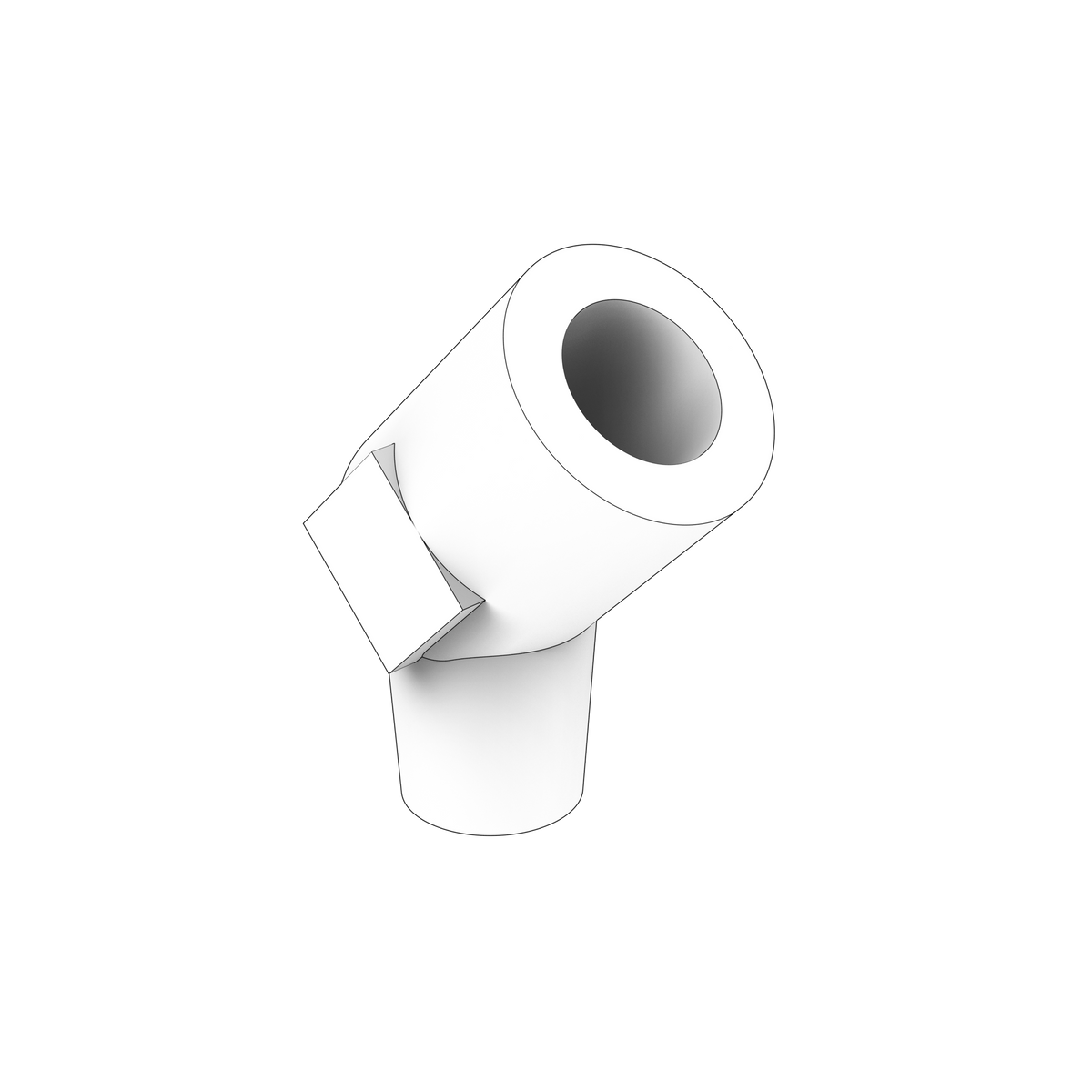

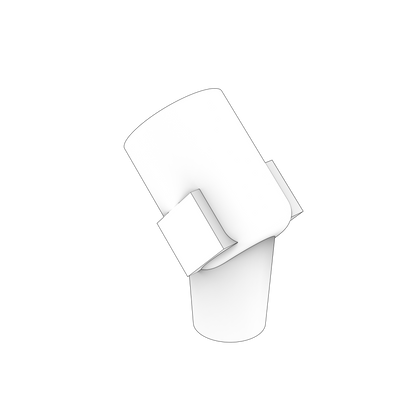

809109 Elbow Nipple | Genuine Volvo Penta Part

809109 Elbow Nipple | Genuine Volvo Penta Part

$120.44 AUD
$120.44 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine Volvo Penta elbow nipple from the Instruments group, listed as an alternative fitment, weighing 0.023 kg and covering 122 applications across the D, AQ, TAD, TWD, TID and TMD series. It supersedes part number 807124. Because it is catalogued as an alternative, check it against the fitting actually on your engine.

🚤 Compatibility

  • Engine Family: D, AQ, TAD, TWD, TID, TMD, TAMD, TD, BB, S, MB, MD

Full model list at the end of this description.

⚙️ Key Features

  • Listed as an alternative fitment
  • 0.023 kg
  • 122 applications across six engine series
  • Supersedes 807124

🔌 Function

Turns a pipe or hose run through an angle while providing the threaded joint at each end.

⚠️ Common Signs of Failure

  • Weeping or dripping at either end of the elbow
  • Thread or sealing face damaged from previous fitting
  • Elbow cracked at the bend from vibration or over-tightening
  • Restricted flow from internal debris or scale

🛠️ Service Notes

  • This is an alternative fitment, so compare it against the existing fitting before ordering
  • Use fresh sealant or a new sealing washer as the joint requires, and do not overtighten a brass elbow

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 809109 → Supersedes 807124

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta 500A, 501A, 501B, 570A, 572A, 740A, 430A, 430B, 431A, 431B, 432A, 434A, 500B, 571A
  • Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
  • Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
  • Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
  • Volvo Penta TWD610G, TWD610P, TWD610PB, TWD610V
  • Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
  • Volvo Penta AQ170B, AQ170C, AQ170A
  • Volvo Penta AQ225D, AQ225E, AQ225F
  • Volvo Penta BB170B, BB170C, BB170A
  • Volvo Penta D11C3-A MP, D11B3-A MP, D11B4-A MP
  • Volvo Penta D5A-B TA, D5A-T, D5A-TA
  • Volvo Penta D7A-B TA, D7A-T, D7A-TA
  • Volvo Penta MD22A, MD22L, MD22P
  • Volvo Penta TAD1030P, TAD1030V, TAD1030VE
  • Volvo Penta TAD730G, TAD730P, TAD730V
  • Volvo Penta TMD22A, TMD22B, TMD22P-C
  • Volvo Penta AQ130C, AQ130D
  • Volvo Penta AQ200D, AQ200F
  • Volvo Penta AQ231A, AQ231B
  • Volvo Penta AQ260A, AQ260B
  • Volvo Penta AQ311A, AQ311B
  • Volvo Penta MD2010, MD2010B
  • Volvo Penta TAD1630G, TAD1630GE
  • Volvo Penta TAD1631GE, TAD1631G
  • Volvo Penta TD610G, TD610V
  • Volvo Penta TD730ME, TD730VE
  • Volvo Penta TWD630ME, TWD630VE
  • Volvo Penta AQ120B
  • Volvo Penta AQ125A
  • Volvo Penta AQ175A
  • Volvo Penta AQ205A
  • Volvo Penta AQ211A
  • Volvo Penta AQ290A
  • Volvo Penta BB740A
  • Volvo Penta MB20A
  • Volvo Penta Shield for 740A
  • Volvo Penta TAD740GE
  • Volvo Penta TAD741GE
  • Volvo Penta TAMD22P-B
  • Volvo Penta TAMD71B
  • Volvo Penta TD100G
  • Volvo Penta TD1030VE
  • Volvo Penta TD164KAE
  • Volvo Penta TD630VE
  • Volvo Penta TD640VE
  • Volvo Penta TD71A
  • Volvo Penta TD710G
  • Volvo Penta TID71A
  • Volvo Penta TWD1030ME
  • Volvo Penta TWD1031VE
  • Volvo Penta TWD1620G
  • Volvo Penta TWD1630G
  • Volvo Penta TWD730ME
  • Volvo Penta TWD731VE
  • Volvo Penta TWD740GE
