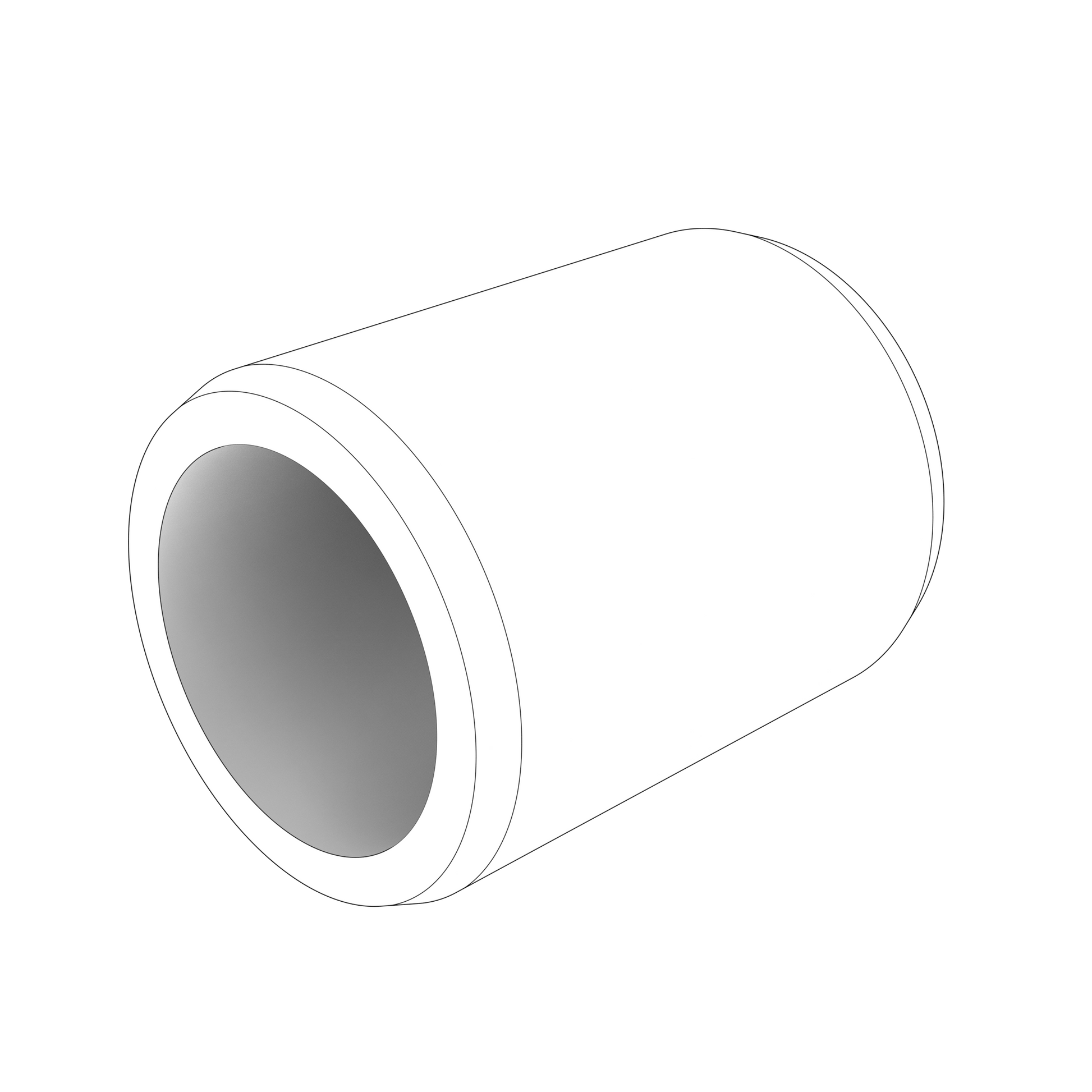

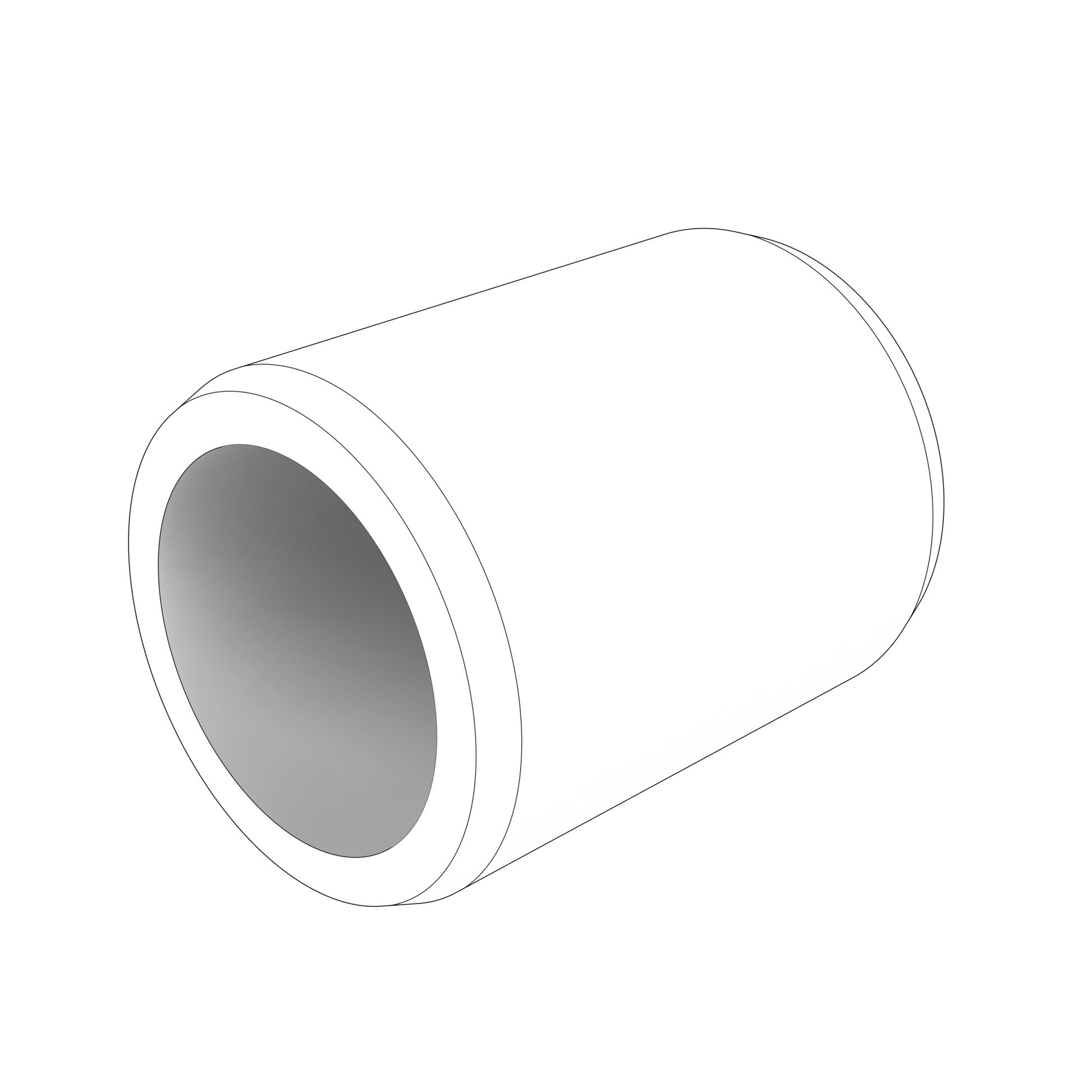

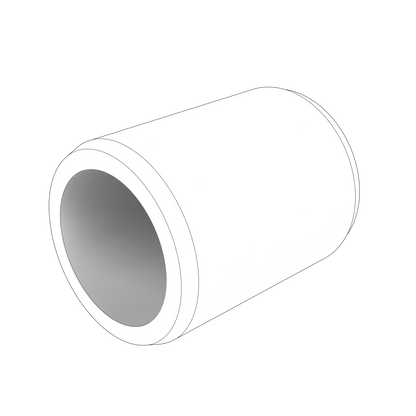

8131145 Guide Sleeve | Genuine Volvo Penta Part

8131145 Guide Sleeve | Genuine Volvo Penta Part

$21.66 AUD
$21.66 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine Volvo Penta guide sleeve weighing 0.045 kg and listed for 78 applications across the TAD, D and TWD series.

🚤 Compatibility

  • Engine Family: TAD, D, TWD

Full model list at the end of this description.

⚙️ Key Features

  • 0.045 kg
  • 78 applications across TAD, D and TWD series engines
  • Alignment guide sleeve
  • Wide fitment across the turbocharged range
  • Quantity varies by assembly, most commonly two

🔌 Function

Guides a shaft, pin or fastener into position and holds it aligned as it moves.

⚠️ Common Signs of Failure

  • Component running off line or binding in operation
  • Sleeve bore worn oval, scored or bellmouthed
  • Sleeve loose or turning in its housing
  • Bright fretting marks on the sleeve's outer face

🛠️ Service Notes

  • Check the shaft or pin that runs in the sleeve for matching wear before fitting new
  • Fit square and to the correct depth so the guide does not sit proud

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
  • Volvo Penta D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS), D11B1-A MP
  • Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
  • Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
  • Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
  • Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
  • Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
  • Volvo Penta TAD1643VE-B, TAD1643VE
  • Volvo Penta TAD940GE, TAD940VE
  • Volvo Penta TAD941VE, TAD941GE
  • Volvo Penta TAD1140-42VE
  • Volvo Penta TAD1150-52VE
  • Volvo Penta TAD1170-72VE
  • Volvo Penta TAD1180-83VE
  • Volvo Penta TAD1651GE
  • Volvo Penta TAD1660-62VE
  • Volvo Penta TAD1662VE EU5
  • Volvo Penta TAD1670-72VE
  • Volvo Penta TAD942VE
  • Volvo Penta TAD943VE
  • Volvo Penta TAD950VE
  • Volvo Penta TAD951VE
  • Volvo Penta TAD952VE
  • Volvo Penta TWD1643GE
  • Volvo Penta TWD1644-45GE
  • Volvo Penta TWD1652GE
  • Volvo Penta TWD1653GE
  • Volvo Penta TWD1663GE
  • Volvo Penta TWD1672-1673GE
  • Volvo Penta TWD1682-83GE
  • Volvo Penta TWD1683VE
  • Volvo Penta TWD1744GE
