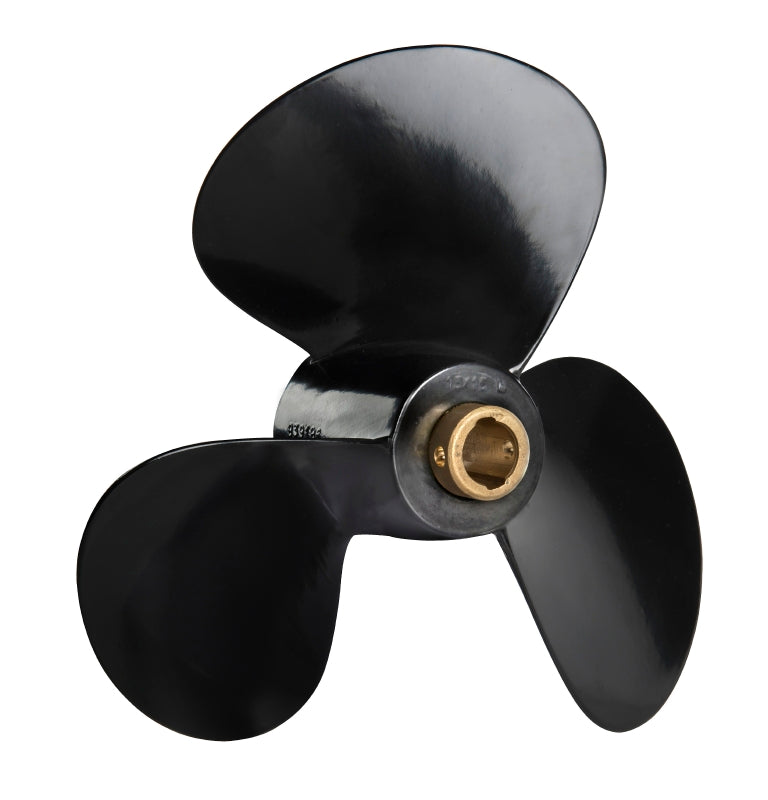

813224 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta aluminium single propeller for 100 series Aquamatic drives with a cylindrical shaft and locking pin. Standard and High-speed propellers are made from a special, durable aluminium alloy developed to withstand salt water and cavitation damage, and are painted black with a special epoxy powder which is extremely hard and resistant to abrasion. The High-speed propeller features more blade area for increased performance. This propeller is the 13 x 13 size, left hand rotation. The folder marks it STD, the standard series.

🚤 Compatibility

Typically suits:

• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta AQD2B

• Engine Family: MD, AQD

⚙️ Key Features

• 13 inch diameter by 13 inch pitch
• Left hand rotation
• For the 100 drive's cylindrical shaft with locking pin
• Right hand version in the same size is 813233
• 2.313 kg
• 3-blade
• Aluminium alloy
• Left-hand rotation.
• Marked STD - Standard series.
• Special durable aluminium alloy developed to withstand salt water and cavitation damage.
• Painted black with a special epoxy powder, extremely hard and resistant to abrasion.
• For 100 drives with a cylindrical shaft and locking pin.
• Material: aluminium
• Dimensions: 13 in diameter x 13 in pitch (folder prints '13 x 13')
• Fits: 100 drives with cylindrical shaft and locking pin
• Type: STD

🔌 Function

Converts the drive's shaft torque into thrust to move the boat.

⚠️ Common Signs of Failure

• Vibration through the hull that rises with engine speed
• Blade edges chipped, curled or bent after a strike
• Pitting and white corrosion bloom over the blade faces
• Engine revs climbing without a matching gain in boat speed
• Shear pin broken, leaving the propeller loose on the shaft

🛠️ Service Notes

• The right hand equivalent in the same size is 813233, so check hand as well as size before ordering
• The splined version of the 100 drive propeller is a separate listing - 804449 is the 13/16 inch splined wheel - so confirm which shaft your drive has
• Renew the locking pin whenever the propeller is removed, and grease the shaft on refitting
• Installation hardware, 100 drives with cylindrical shaft and locking pin: split pin 907881, propeller cone 806660 and shear pin 806661.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 813224 → Supersedes 813332

OEM / Related Numbers

• 813332 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Michigan Wheel: 992503

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
