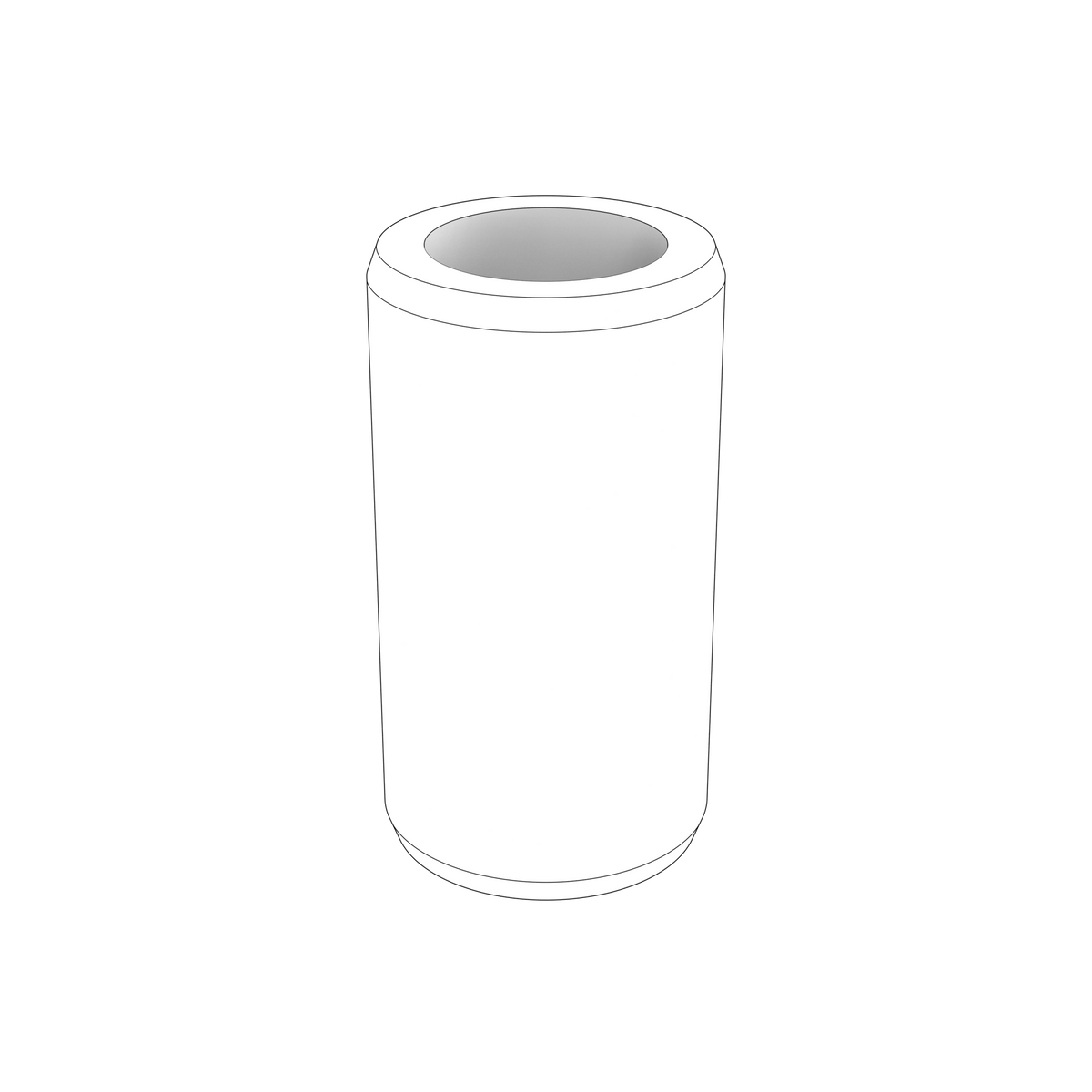

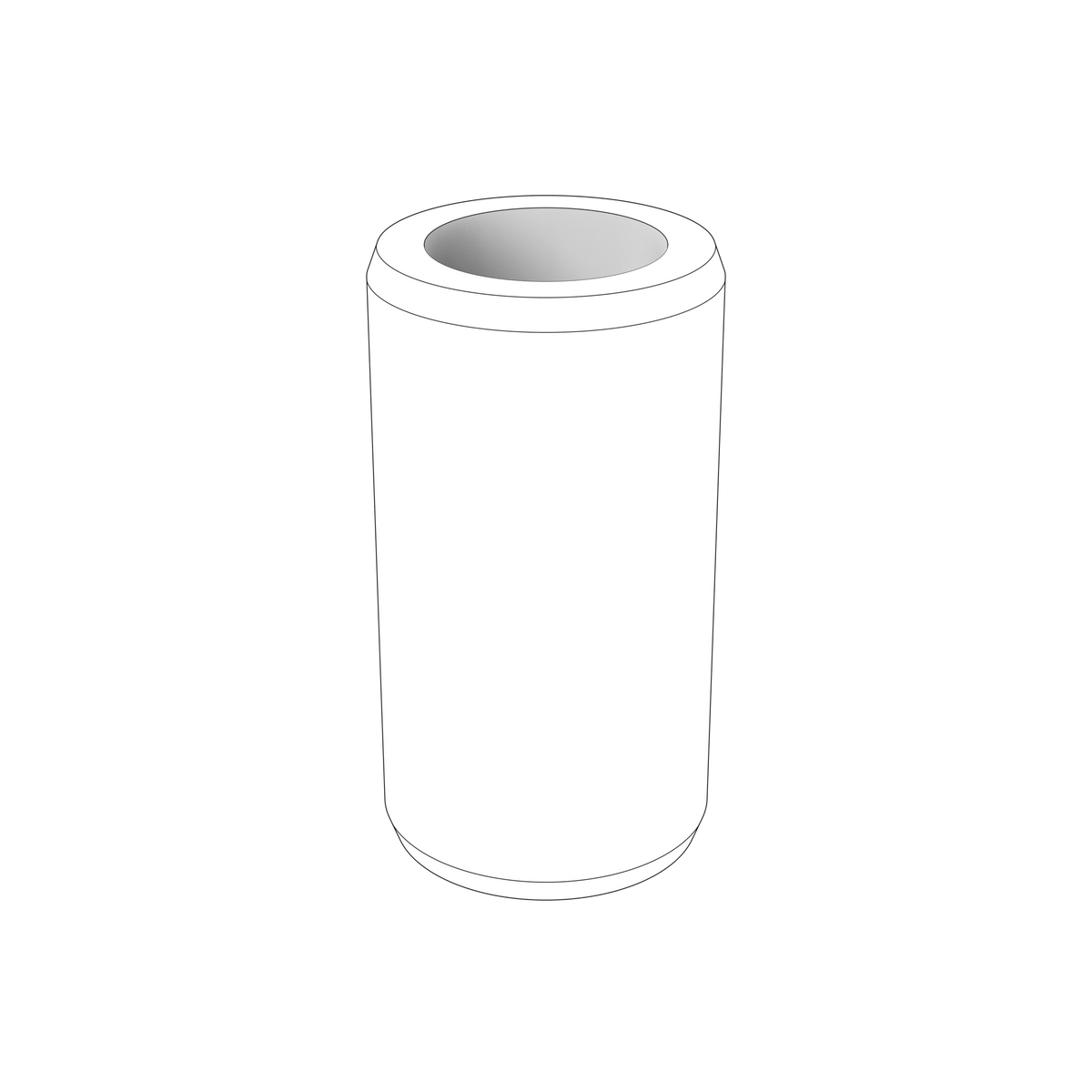

8170389 Guide Sleeve | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta guide sleeve from the Engine group, weighing 0.036 kg and listed for 27 applications across D, TWD and TAD series engines.

🚤 Compatibility

• Engine Family: D, TWD, TAD

Full model list at the end of this description.

⚙️ Key Features

• 0.036 kg
• 27 applications across D, TWD and TAD series engines
• Engine group locating component
• 2 used per assembly

🔌 Function

Locates two components accurately to each other during assembly and holds that alignment in service.

⚠️ Common Signs of Failure

• Joint that will not line up on assembly
• Sleeve seized in its bore or damaged on removal
• Bore worn oval so alignment is lost
• Fretting or scoring around the sleeve seat

🛠️ Service Notes

• Fit new rather than reusing a sleeve that had to be driven out
• Clean and check both bores before assembly so the sleeve enters square

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TWD1240VE
