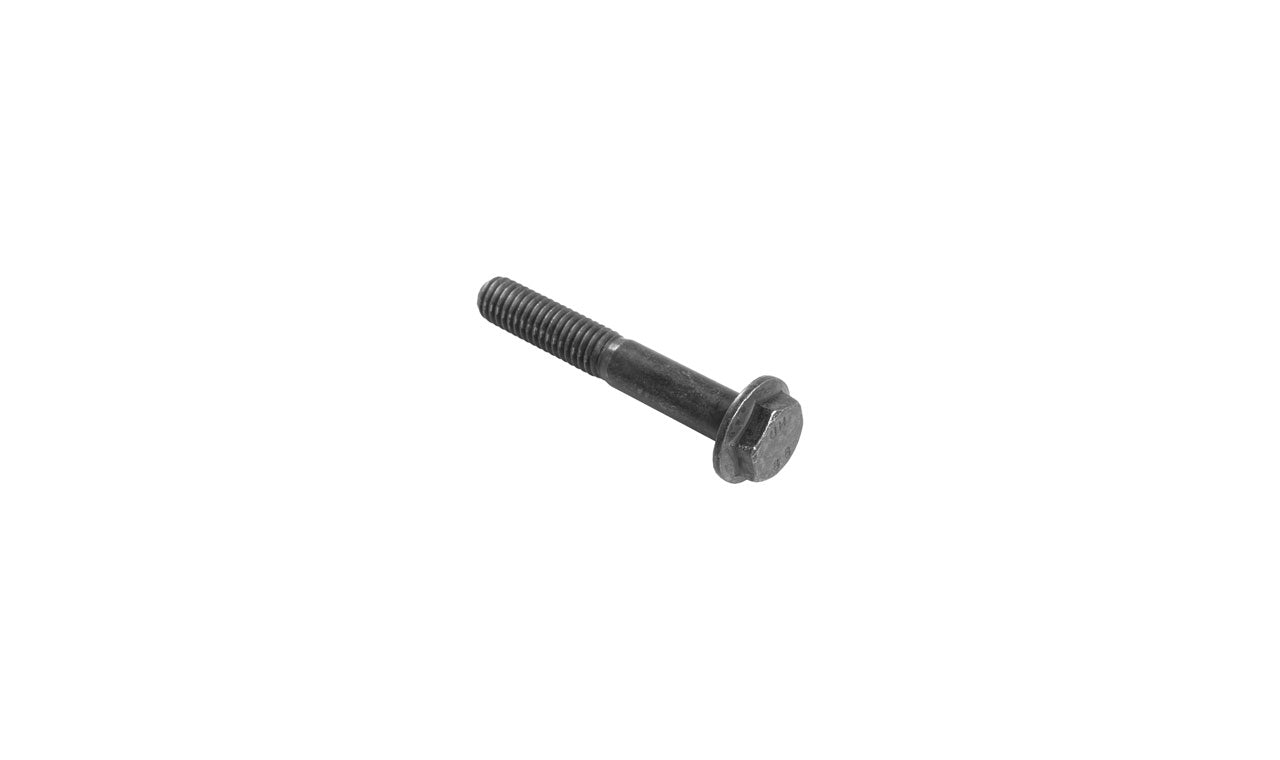

8194513 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta flange screw for use with exhaust manifold 8194521, from the Inlet and Exhaust System group, weighing 0.041 kg and listed for 1 application on a TD series engine. It supersedes part number 479277, which earlier records list as an exhaust manifold and an exhaust collector pipe.

🚤 Compatibility

Typically suits:

• Volvo Penta TD1030VE

• Engine Family: TD

⚙️ Key Features

• For exhaust manifold 8194521
• 0.041 kg
• Supersedes 479277
• 1 TD series application
• 12 used per assembly

🔌 Function

Clamps the exhaust manifold to its mounting with an integral flange head that spreads the load without a separate washer.

⚠️ Common Signs of Failure

• Screw found slack, or the joint blowing at the manifold
• Thread seized or the screw snapped off in the port
• Head corroded and the flange face fretted
• Soot streaks around the manifold flange

🛠️ Service Notes

• Spacer sleeve 8194514 at 0.036 kg is the companion part for the same manifold, so order the two together
• Exhaust fasteners seize - work the screw out with heat and penetrating oil rather than force, and fit new ones
• The number 479277 is also listed against spacer sleeve 8194514 and exhaust manifold 8194521, so the old number alone will not identify which part you need

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 8194513 → Supersedes 479277 → Supersedes 1545323

OEM / Related Numbers

• 479277 earlier number superseded by this part
• 1545323 earlier number superseded by this part

Aftermarket / Verified Equivalents

• SLP: SKR-4513
• SRP: FS-94513

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
