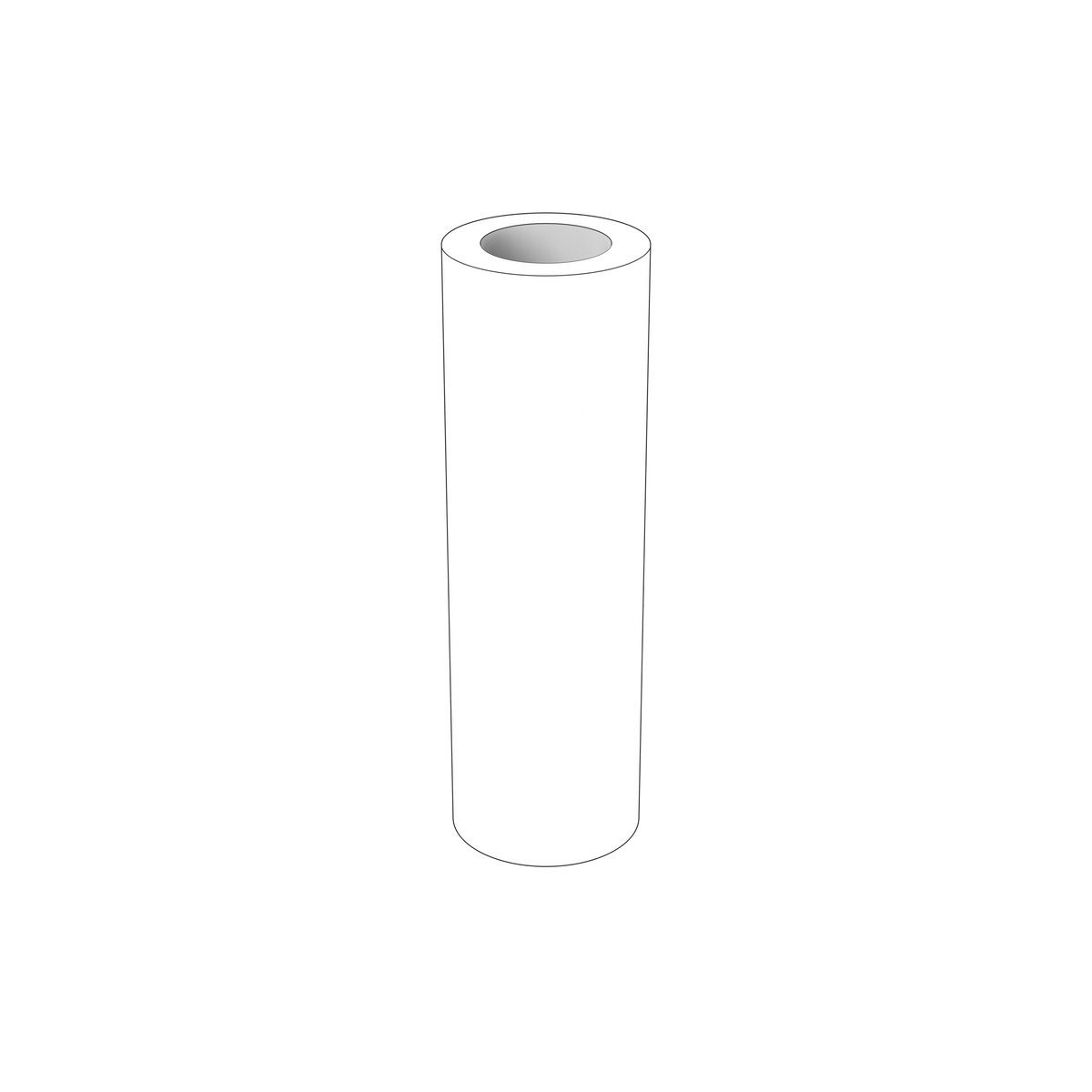

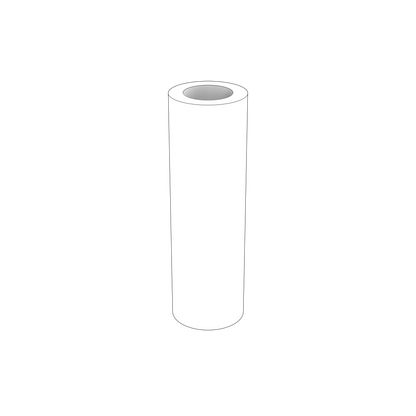

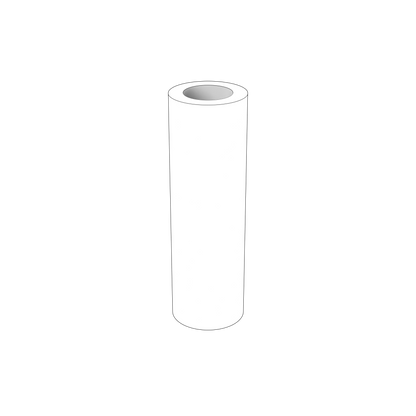

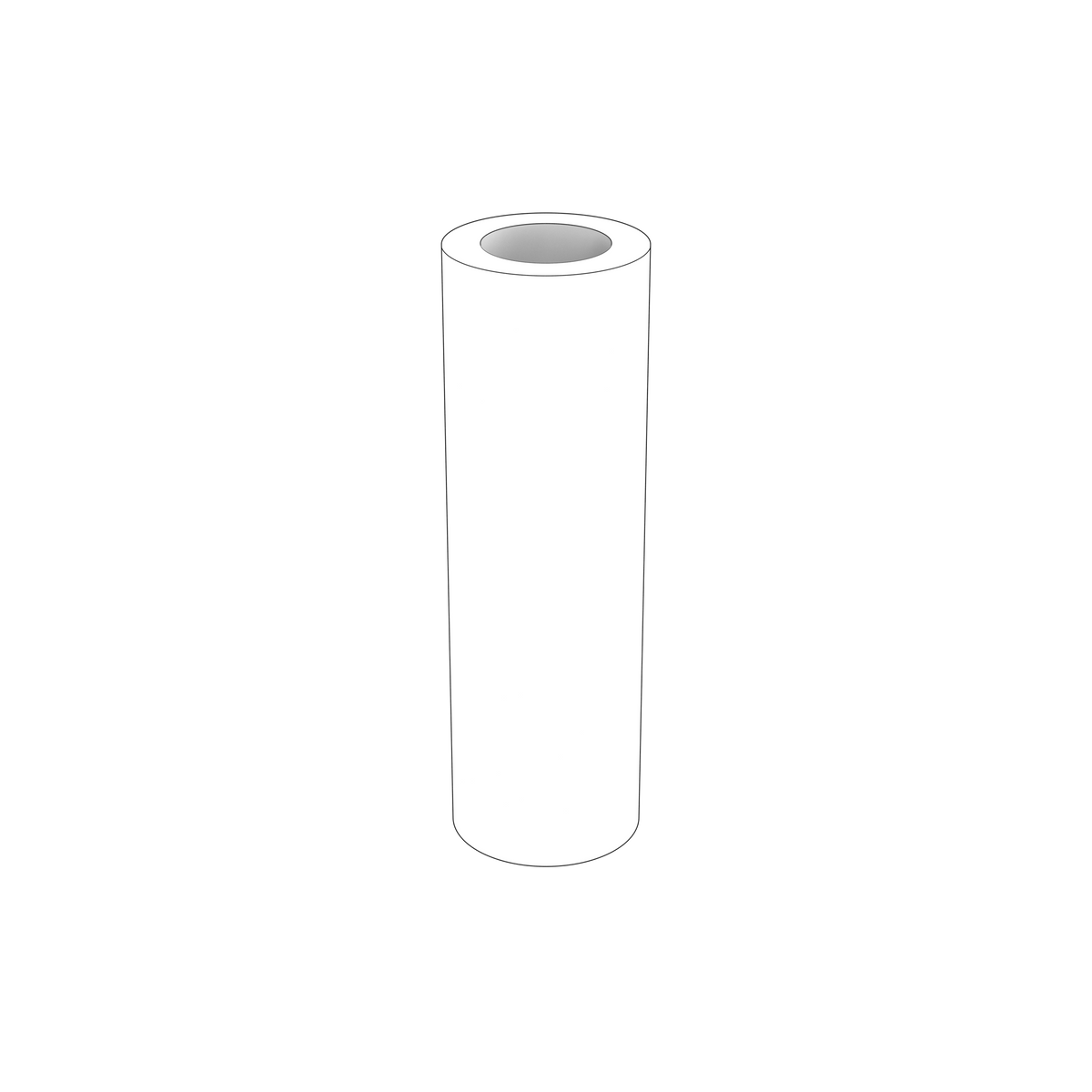

821542 Spacer Sleeve | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta spacer sleeve 51 mm long, from the Inlet and Exhaust System group, weighing 0.052 kg and listed for 85 applications across the D, MD, TMD, TWD, TID and TD series.

🚤 Compatibility

• Engine Family: D, MD, TMD, TWD, TID, TD, MS, TAD

Full model list at the end of this description.

⚙️ Key Features

• 51 mm long
• 0.052 kg
• 85 applications across six engine series
• Inlet and exhaust spacer sleeve
• L=51mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly one

🔌 Function

Holds two clamped faces a fixed distance apart so the fastener can be brought up to full torque.

⚠️ Common Signs of Failure

• Fastener that keeps loosening
• Sleeve ends burred or dished
• Rattle from the joint as it moves on the bolt
• Sleeve bowed, crushed or split

🛠️ Service Notes

• Sleeve 823497 is 52 mm long but weighs twice as much at 0.102 kg, so the two are not interchangeable despite being 1 mm apart - check diameter as well as length
• Measure the sleeve you are replacing rather than ordering on weight

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 120S-B, 2003TB, 2003TB SOLAS, 120SC, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-D MP, D11B1-A MP
• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta MS2B-A, MS2B, MS2V
• Volvo Penta TD60D-83, TD60B, TD60D
• Volvo Penta TD610G, TD610M, TD610V
• Volvo Penta D70CHC, D70CRC
• Volvo Penta MD70B, MD70C
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta D2002AG
• Volvo Penta D2003AG
• Volvo Penta TAD520GE
• Volvo Penta TAD720GE
• Volvo Penta TAD721GE
• Volvo Penta TAD722GE
• Volvo Penta TD164KAE
• Volvo Penta TD520GE
• Volvo Penta TD640VE
• Volvo Penta TD70G-83
• Volvo Penta TD720GE
• Volvo Penta TID60DG
• Volvo Penta TID70G
• Volvo Penta TMD100A
• Volvo Penta TMD70C
• Volvo Penta TWD1630G
