822344T14 Mercury Trim Assembly 206014 CFI 0316A61 | Genuine Used Part

🔧 Product Description

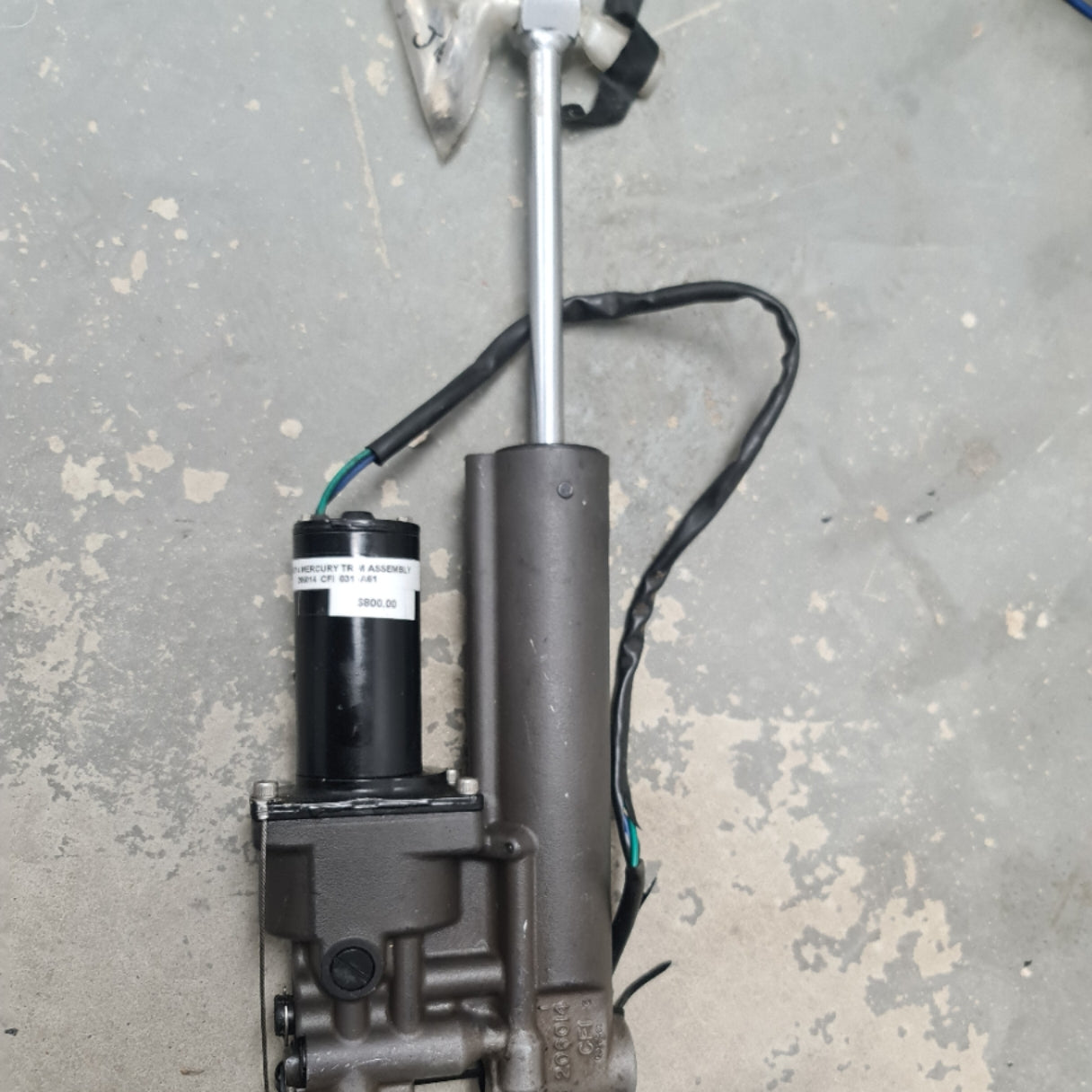

Genuine Mercury / Force Single-Ram Power Trim Assembly - Part Number: 822344T14

A genuine Mercury single-ram power tilt and trim assembly used on selected Mercury, Mariner and Force 25HP to 60HP outboards. The assembly combines the hydraulic cylinder, electric pump motor, valve body and mounting structure in a compact single-ram unit.

The supplied 206014, CFI and 0316A61 markings are casting or manufacturer identifiers associated with the used assembly rather than later Mercury service supersession numbers.

⚙️ Key Features

• Genuine Mercury / Force OEM single-ram trim assembly
• Correct service number 822344T14
• Replaces earlier 822344T10 and 822344T5 units
• Compact hydraulic tilt and running-trim system
• Used on selected Mercury, Mariner and Force 25HP to 60HP engines

🚤 Compatibility

Commonly used on

• Mercury, Mariner and Force single-ram outboard power-trim systems
• Clamp-bracket assemblies designed for the 822344-series hydraulic unit

Typically suits

• Engine models:
• Mercury / Mariner 25HP four-stroke - serial 0P017000 to 0P153499
• Mercury / Mariner 25HP two-stroke applications using the 822344 assembly
• Mercury / Mariner 30HP applications using the single-ram 822344 unit
• Mercury / Mariner 35HP applications using the single-ram 822344 unit
• Mercury / Mariner 40HP applications using the single-ram 822344 unit
• Mercury / Mariner 50HP applications using the single-ram 822344 unit
• Mercury / Mariner 60HP applications using the single-ram 822344 unit
• Force 40HP - representative 1995 single-ram application
• Force 50HP - representative 1995 single-ram application
• Mercury / Force transom assemblies whose parts diagram specifies 822344T14 or 822344A13
• HP Range: 25HP - 60HP
• Engine Type: Mercury / Mariner / Force two-stroke and selected four-stroke outboard
• Year Range: Approximately 1995-2006, dependent on engine family

🔌 Function

The electric motor drives a hydraulic pump that extends or retracts the single ram. The ram raises the engine through the tilt range and controls running trim under load.

⚠️ Common Signs of Failure

• Motor runs but the ram does not move
• Unit will not hold the selected trim position
• Hydraulic fluid leakage around the ram or reservoir
• Slow or uneven movement
• Trim operates in only one direction
• Corroded motor housing or electrical leads
• Pitted ram rod damaging the hydraulic seals

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 822344T14 → Supersedes 822344T10
• 822344T10 → Supersedes 822344T5
• 822344T5 earlier OEM trim-unit reference
• 822344A13 related complete power-trim kit
• 822344A13 → Supersedes 822344A8
• 822344A8 → Supersedes 822344A5
• 822344A5 → Supersedes 822344A3
• 822344A3 earlier complete kit reference

OEM / Related Numbers

• 822344T14
• 822344T10
• 822344T5
• 822344A13
• 822344A8
• 822344A5
• 822344A3
• 206014 casting / production marking
• CFI 0316A61 production marking
• FSM037 related replacement reservoir end cap

Aftermarket / Verified Equivalents

• Five Star Marine: remanufactured 822344A13 / 822344T14 trim unit
• Marine hydraulic rebuilders: complete rebuild service for 822344-series single-ram units
• Five Star Marine: FSM037 replacement reservoir end cap for the corresponding unit

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
