824854T10 824854T19 Mercury Carburettor | Genuine Used Part

824854T10 824854T19 Mercury Carburettor | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$80.00 AUD
$160.00 AUD $80.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

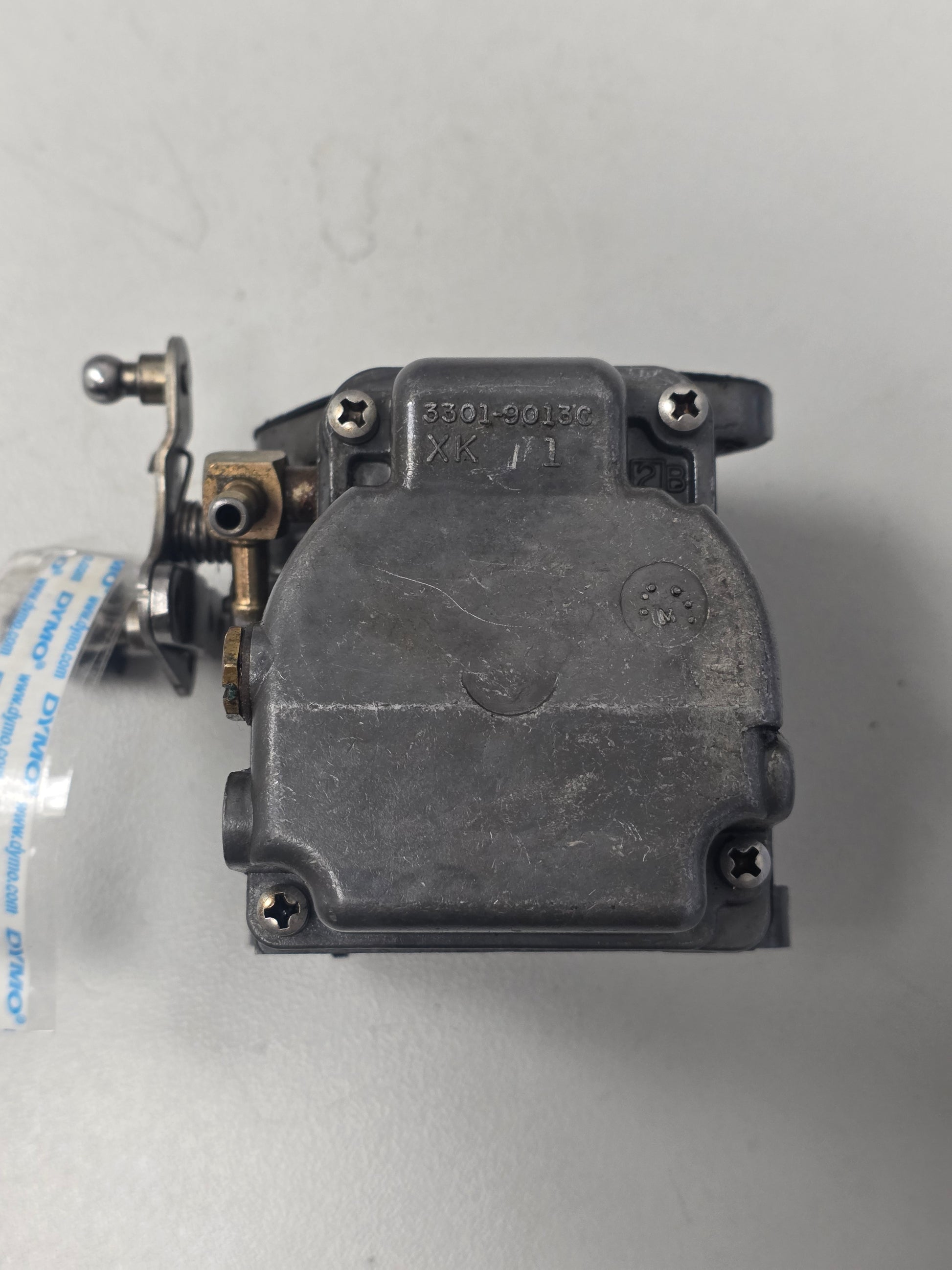

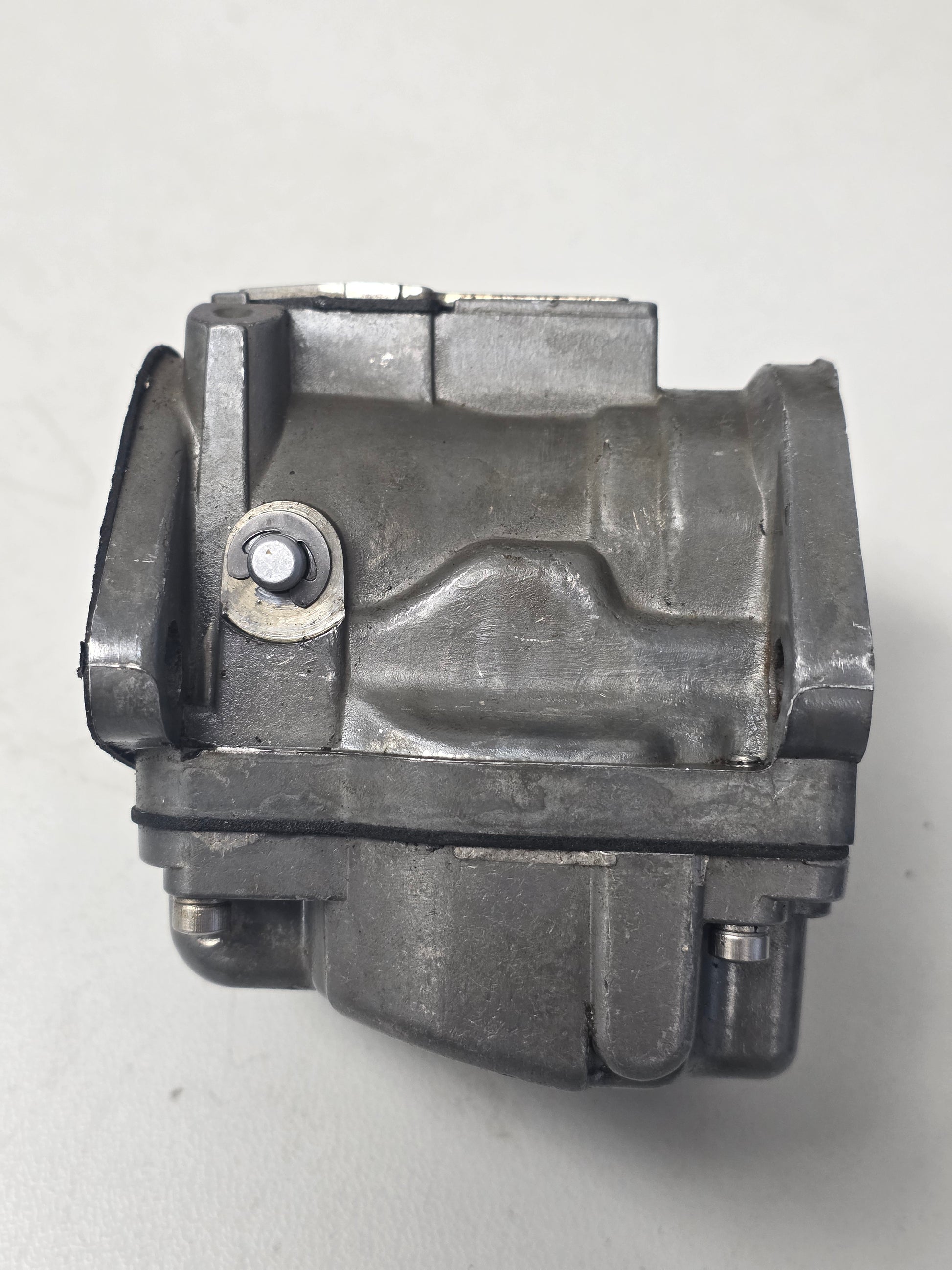

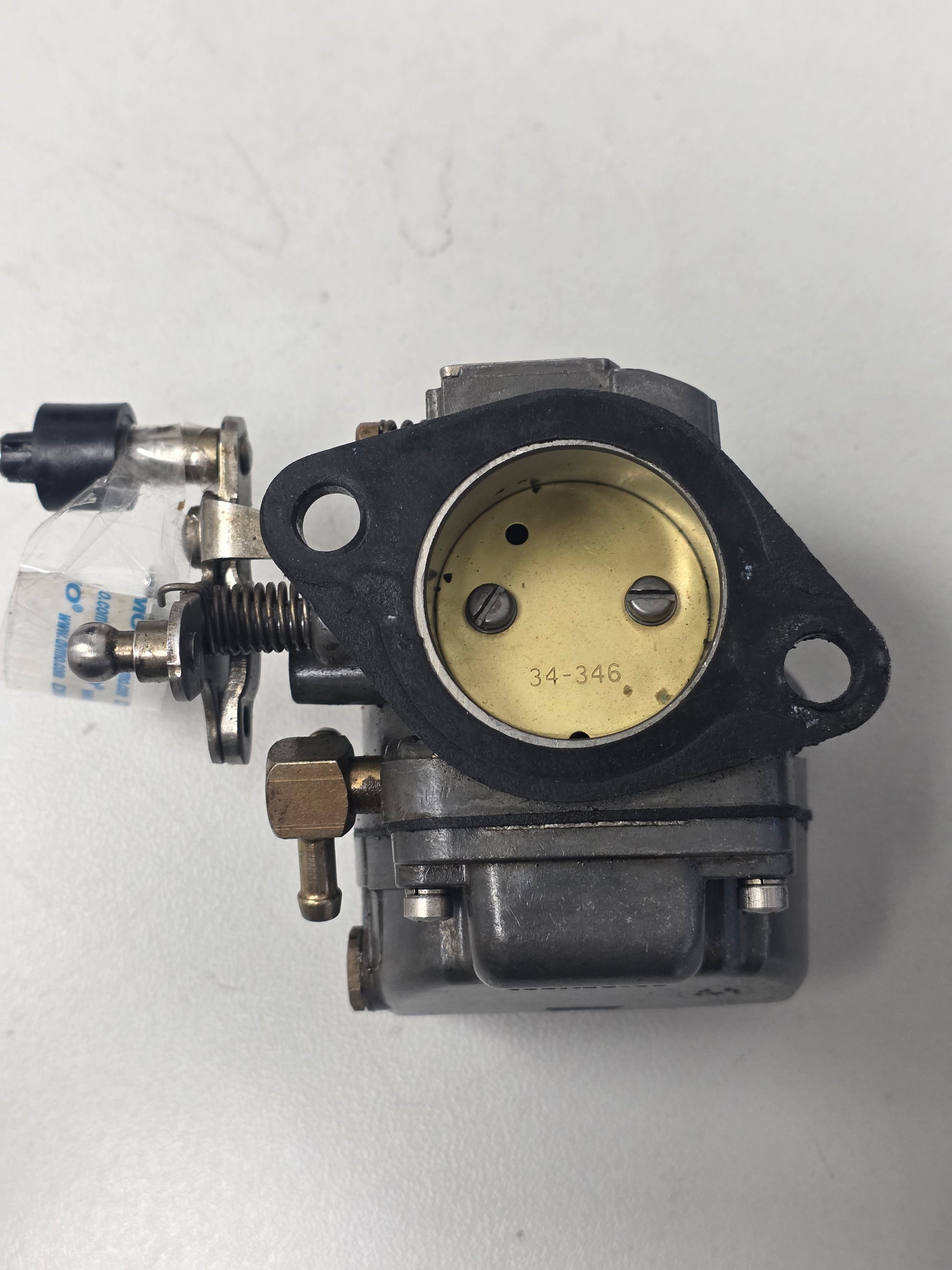

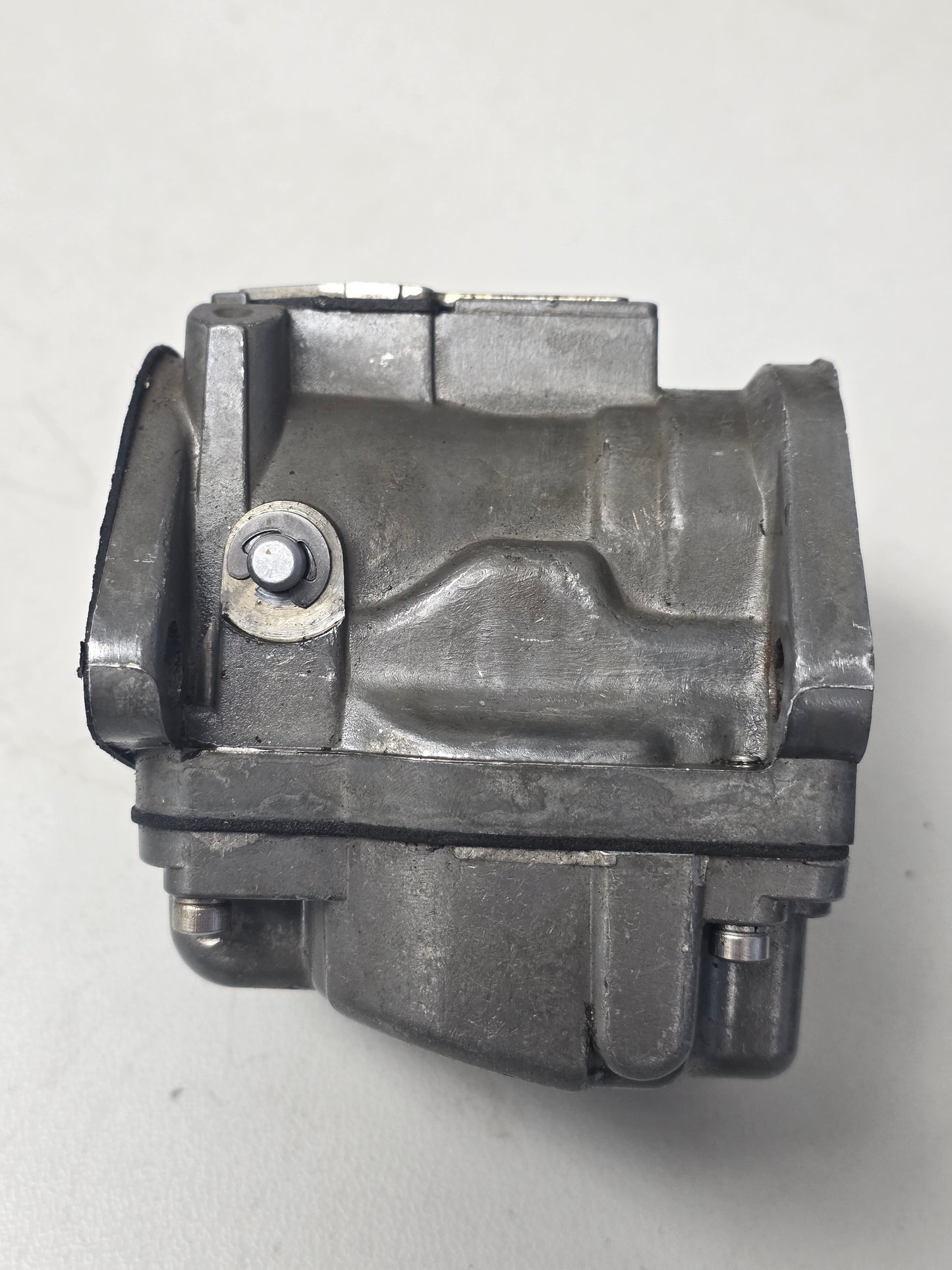

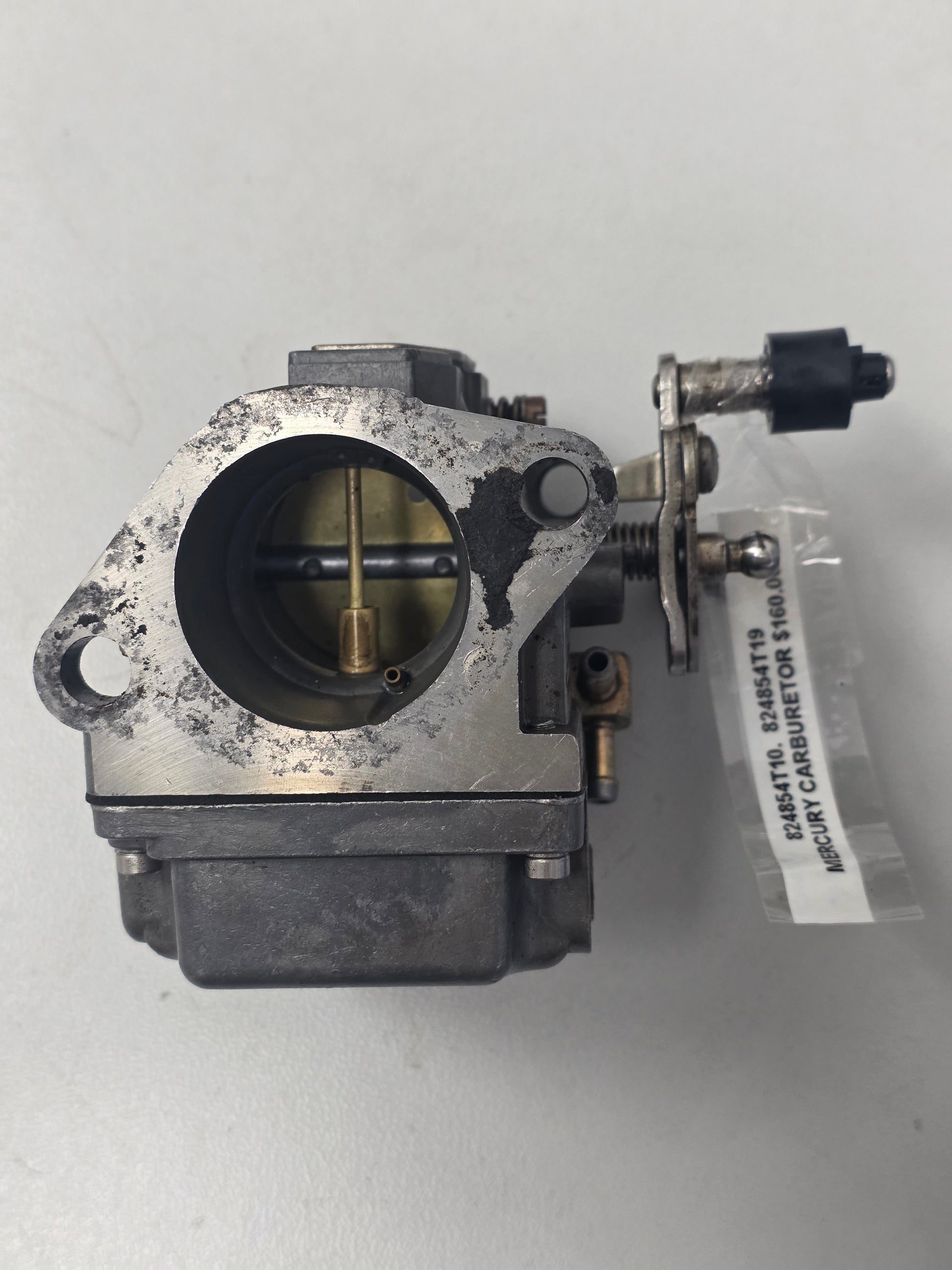

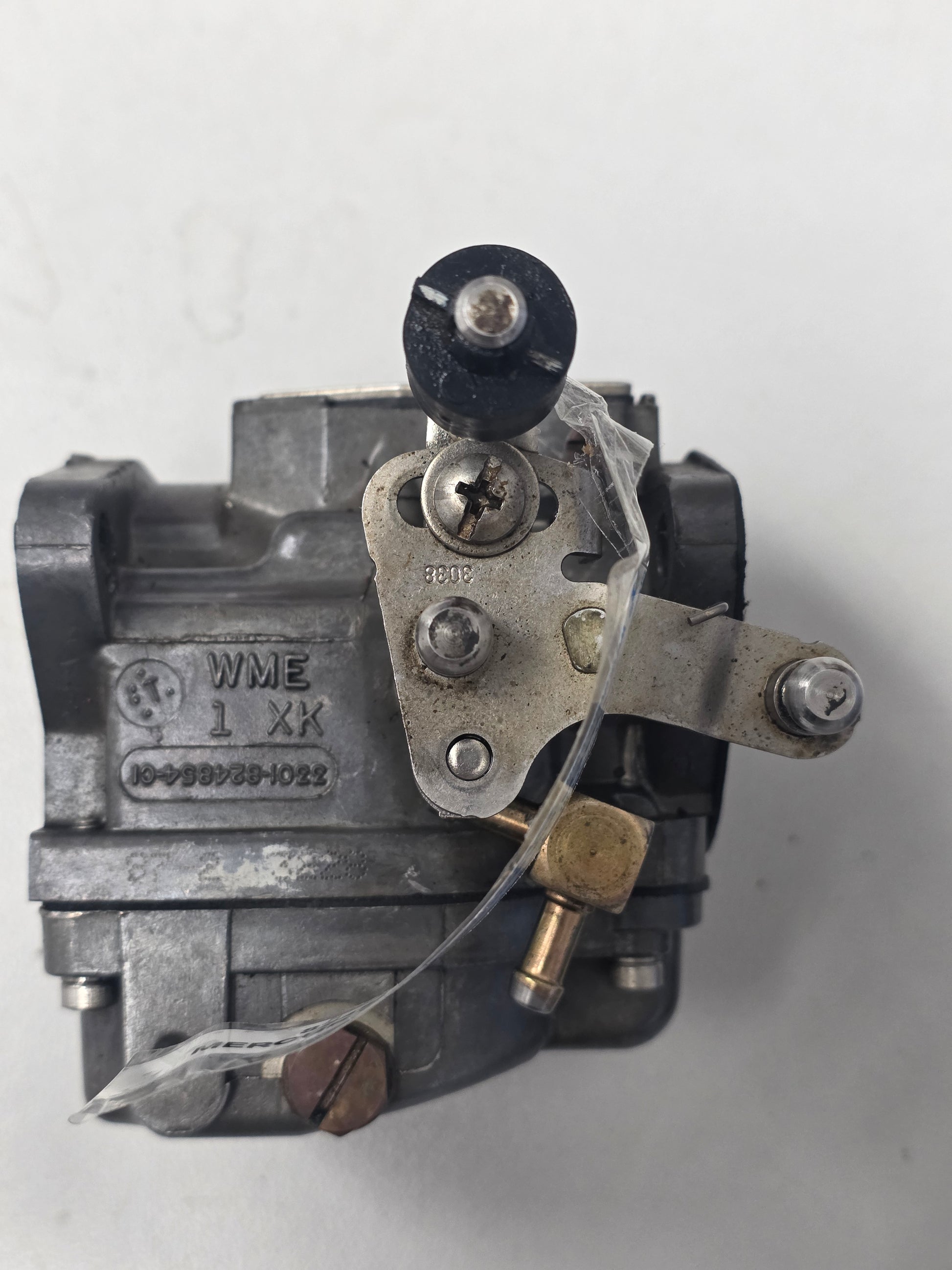

Genuine Mercury WME 87-2 Middle Carburettor - Part Number: 3301-824854T19

A genuine Mercury and Mariner middle carburettor for selected 65 Jet, 75HP and 90HP three-cylinder two-stroke outboards.

Part number 824854T19 supersedes original middle carburettor 824854T10. The assembly is identified as WME 87-2 and is installed between the upper and lower carburettors.

⚙️ Key Features

  • Genuine Mercury WME 87-2 carburettor
  • Current OEM part number 3301-824854T19
  • Supersedes middle carburettor 824854T10
  • Used in a three-carburettor intake assembly
  • Calibrated for selected 65 Jet, 75HP and 90HP engines

🚤 Compatibility

Commonly used on

  • Mercury and Mariner three-cylinder WME carburettor assemblies

Typically suits

  • Engine models:
  • Mercury 65 Jet three-cylinder two-stroke
  • Mercury / Mariner 75HP three-cylinder two-stroke
  • Mercury / Mariner 90HP three-cylinder two-stroke
  • Mercury 90HP international - serial 0P017000 to 0P325499
  • 1999-2004 three-carburettor engines using WME 87-2 middle carburettor
  • HP Range: 65 Jet / 75HP - 90HP
  • Engine Type: Mercury / Mariner three-cylinder carburetted two-stroke outboard
  • Year Range: Approximately 1999-2004

🔌 Function

The middle carburettor meters fuel and air for the centre cylinder. Its throttle movement and fuel calibration must match the upper and lower carburettors.

⚠️ Common Signs of Failure

  • Centre cylinder runs lean, rich or misfires
  • Fuel leaks from the bowl or needle-and-seat assembly
  • Engine has a flat spot during acceleration
  • Blocked idle or main jets reduce performance
  • Linkage wear prevents equal throttle opening across all three carburettors

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 824854T19 → Supersedes 824854T10
  • 824854T10 earlier WME 87-2 middle carburettor

OEM / Related Numbers

  • 3301-824854T19
  • 824854T19
  • 3301-824854T10
  • 824854T10
  • WME 87-2
  • 824854T9 matching upper carburettor
  • 824854T11 matching lower carburettor

Aftermarket / Verified Equivalents

  • BH-Motor: replacement three-carburettor set
  • GKPSSURV: replacement carburettor set for 824854T9 / T10 / T11
  • JingTuo: P38X-1 replacement carburettor assembly

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
