827675A1 Aftermarket Mercruiser Trim/Tilt Motor | Sawley's Select Marine Parts

🔧 Product Description

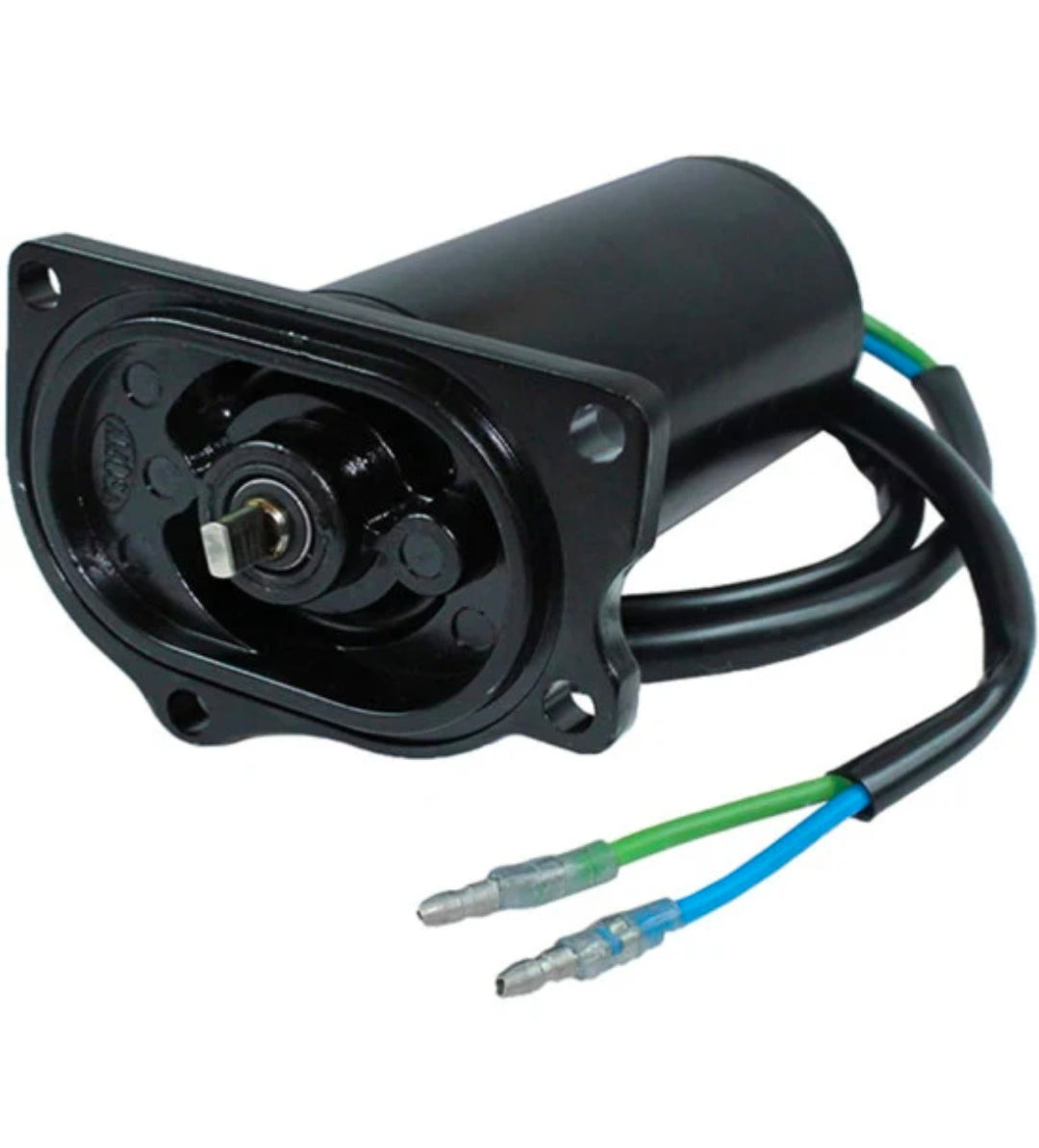

Aftermarket replacement Small-Outboard Trim & Tilt Motor - Replaces Part Number: 827675A1

New aftermarket reversible trim motor replacing Mercury 827675A1 for selected Mercury, Mariner and Force small-outboard hydraulic units.

⚙️ Key Features

• Direct replacement for Mercury 827675A1

• Two-wire motor with bullet-style connectors

• Compact small-outboard mounting pattern

• Supports Mercury/Mariner/Force applications

• Motor-only replacement

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 827675A1

• 1 × Integrated two-wire lead set

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 827675A1 (Mercury OEM motor reference)

OEM / Related Numbers:

• 827675

• Mercury small-outboard trim motor family

Aftermarket / Verified Equivalents:

• Recmar: REC827675A1

• Aftermarket Mercury/Force trim motor

🚤 Compatibility

Commonly used on:

• Mercury, Mariner and Force small-outboard power trim systems

Typically suits:

• Engine / Drive models:

• 25HP, 30HP, 40HP and 50HP applications using 827675A1

• Selected 75HP systems matched by OEM number

• HP / Drive Range: 25HP - 75HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Approximately 1994-2010; model-serial dependent

• Serial / Component Identification: Corrected from the supplied MerCruiser title; confirm bullet connectors and motor flange.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
