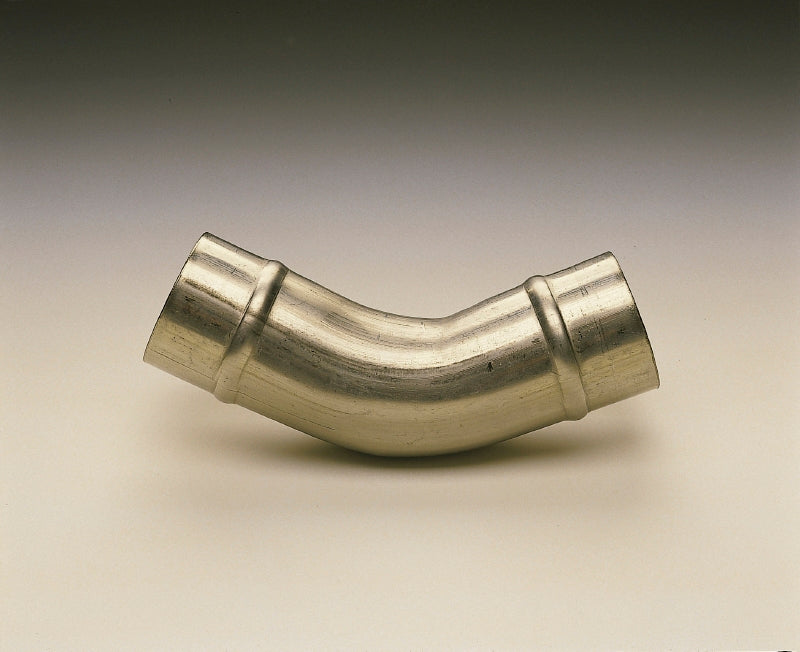

828256 Pipe Elbow | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta elbow coupling for wet exhaust systems, at 45 degrees with a 45 mm external diameter - the smallest of the five listed. It is made of stainless steel with a pre-formed collar for the hose connection, weighs 0.295 kg and is listed for 61 applications across MD, D, MS and AQD series engines. The coupling is there to improve the installation and reduce the risk of a kink forming in the exhaust hose. It shares its fitment with silencer 828064, and the 57 mm version of the same 45 degree elbow is 828255, only 34 grams apart, so measure rather than weigh.

🚤 Compatibility

• Engine Family: MD, D, MS, AQD

Full model list at the end of this description.

⚙️ Key Features

• 45 degree angle
• 45 mm external diameter
• Stainless steel with a pre-formed collar for the hose connection
• 0.295 kg
• 61 applications across MD, D, MS and AQD series
• Reduces the risk of a kink forming in the exhaust hose
• Angle: 45 degrees
• External diameter: 45 mm
• Material: stainless steel
• Fits: Marine wet exhaust systems

🔌 Function

Carries the wet exhaust through a 45 degree turn without separating the gas from the cooling water, and holds the hose run to a shape it cannot kink in.

⚠️ Common Signs of Failure

• Water or soot trace at the hose joints
• Smell of exhaust in the engine compartment
• Spigot wall corroded thin or perforated
• Crack at the bend, often hidden under a clip
• Hose no longer sealing on a pitted spigot

🛠️ Service Notes

• The four 45 degree elbows differ only by external diameter - 45 mm here, then 828255 at 57 mm, 843287 at 89 mm and 872017 at 100 mm
• Renew both hoses and use two clips per joint, checking the run cannot form a water trap

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 120S-B, 2003TB, 2003TB SOLAS, 120SC, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD5A, MD5B, MD5C
• Volvo Penta MS2B-A, MS2B, MS2V
• Volvo Penta MD11C, MD11D
• Volvo Penta MD17C, MD17D
• Volvo Penta MD6A, MD6B
• Volvo Penta MD7B, MD7A
• Volvo Penta AQD2B
• Volvo Penta D2002AG
• Volvo Penta D2003AG
• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta MD67C
