828333T01 828334T02 Mercury Bracket Assy Pair (Port & Stbd) | Genuine Used Part

🔧 Product Description

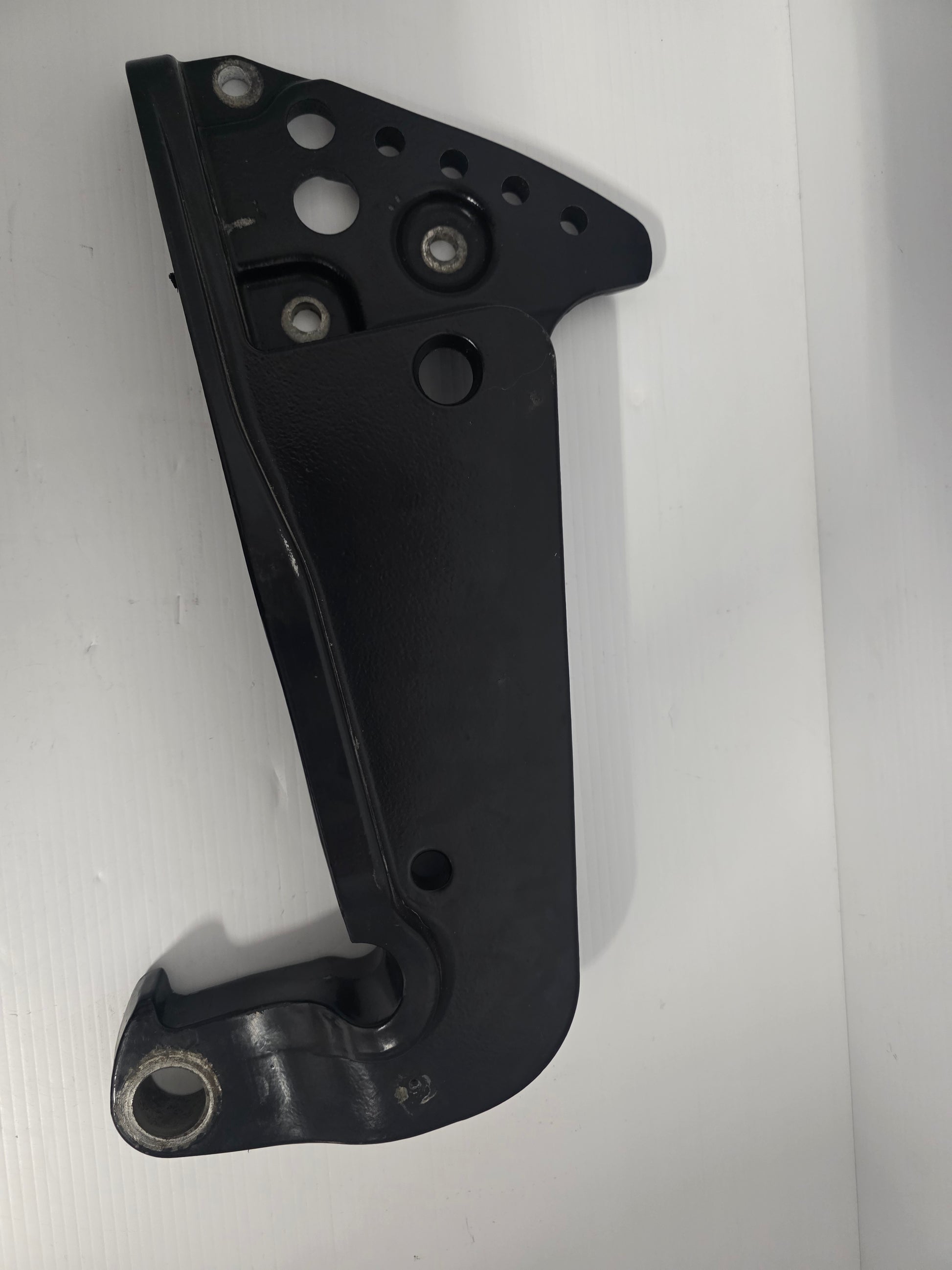

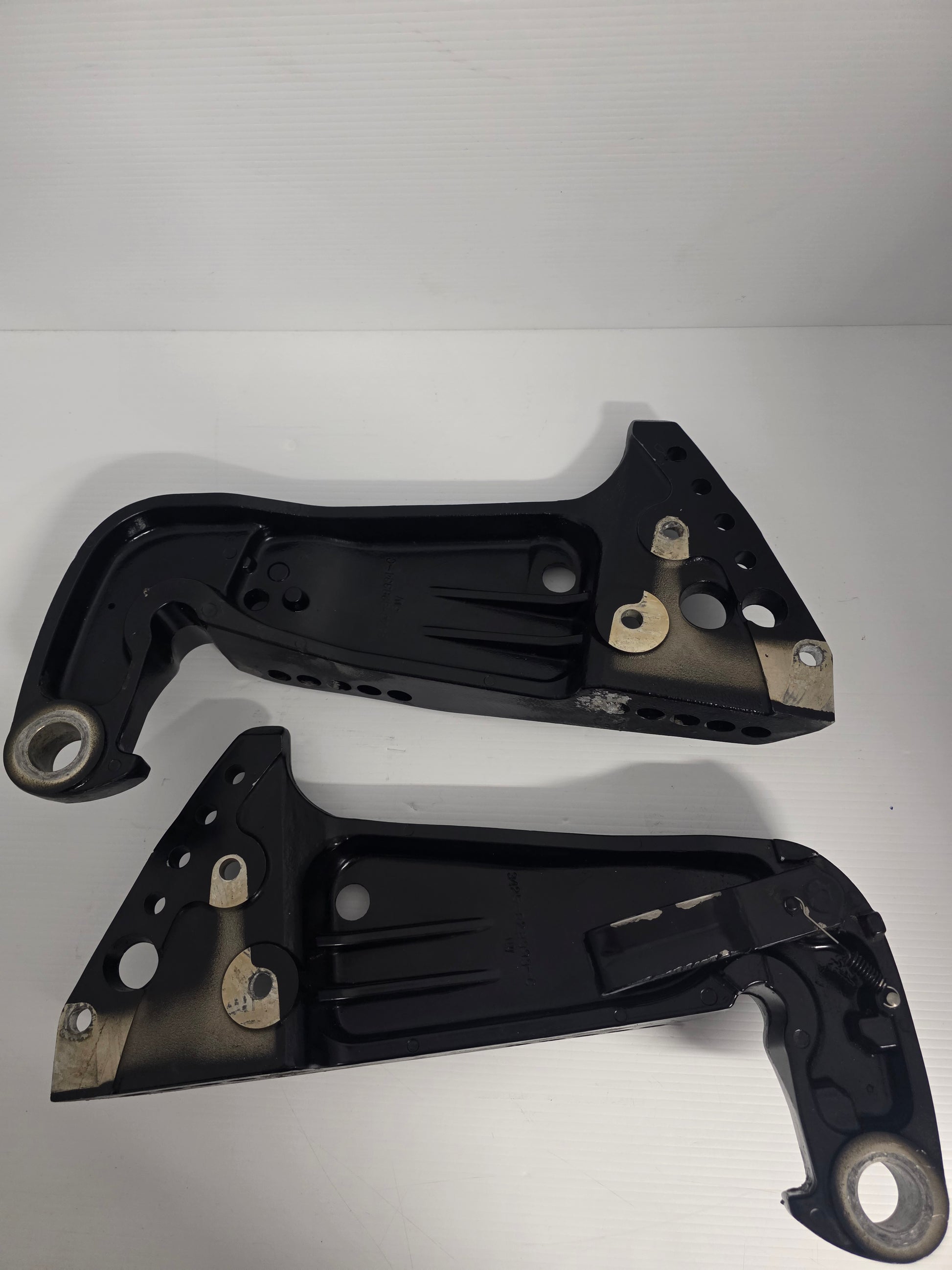

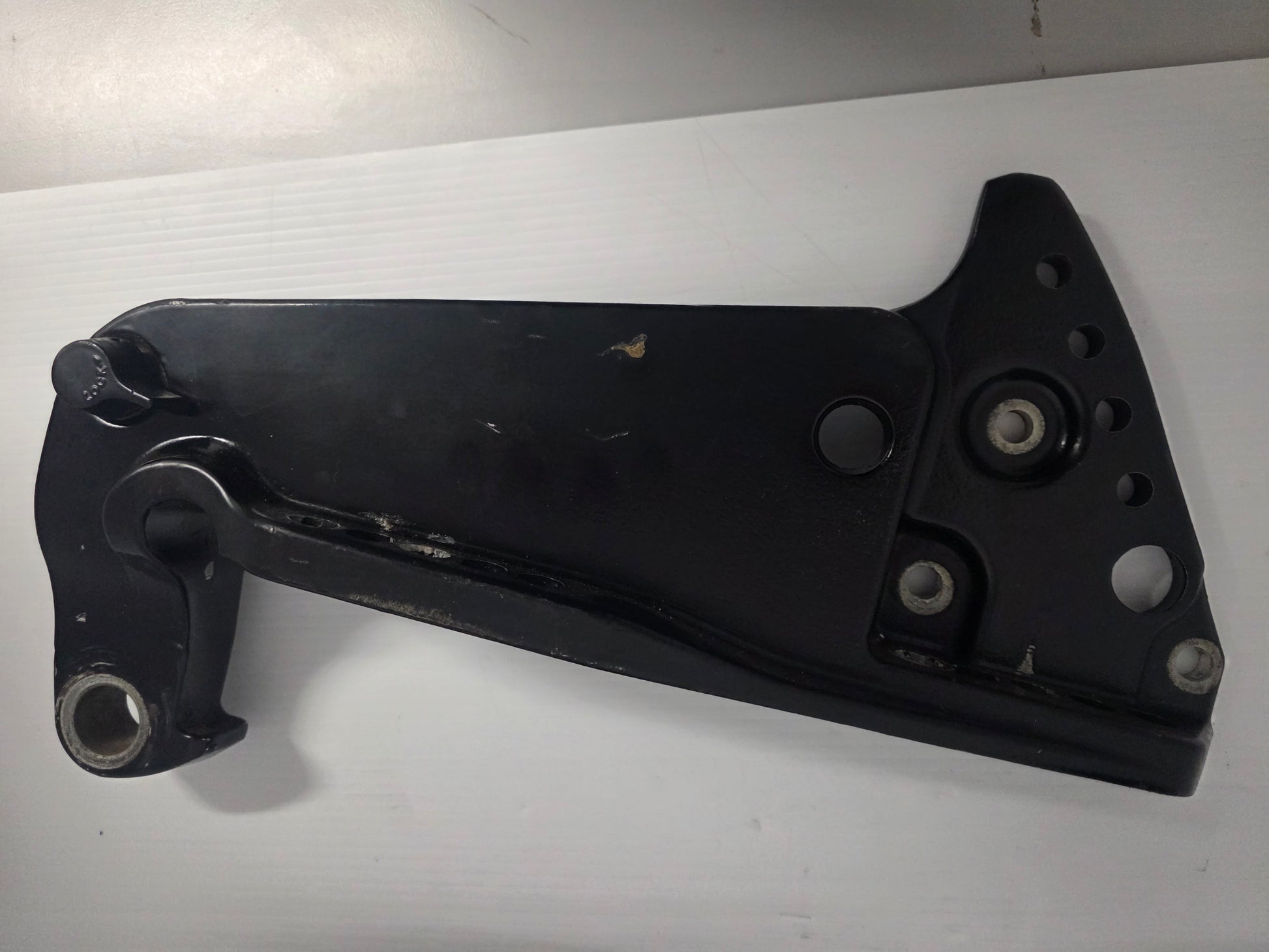

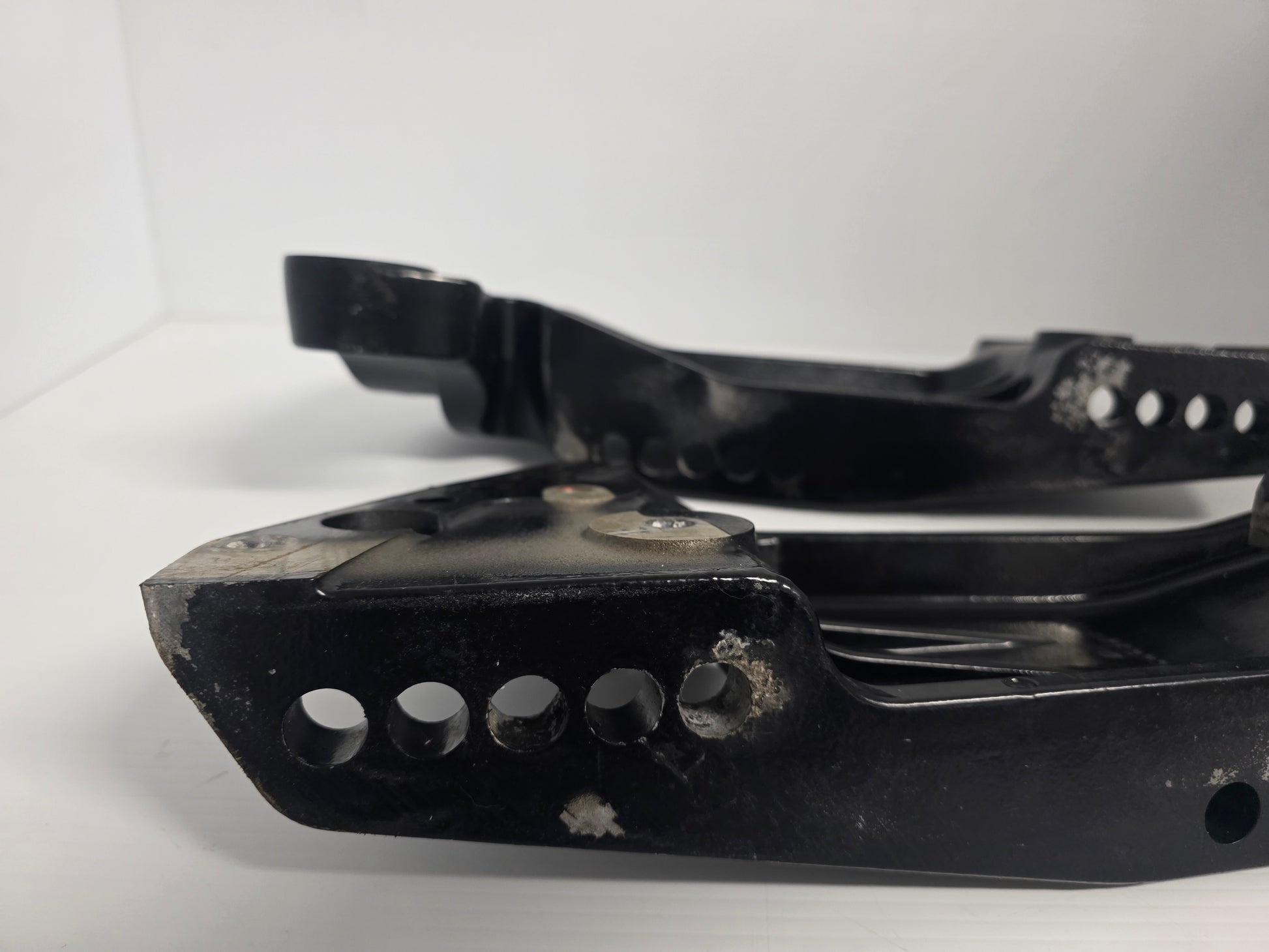

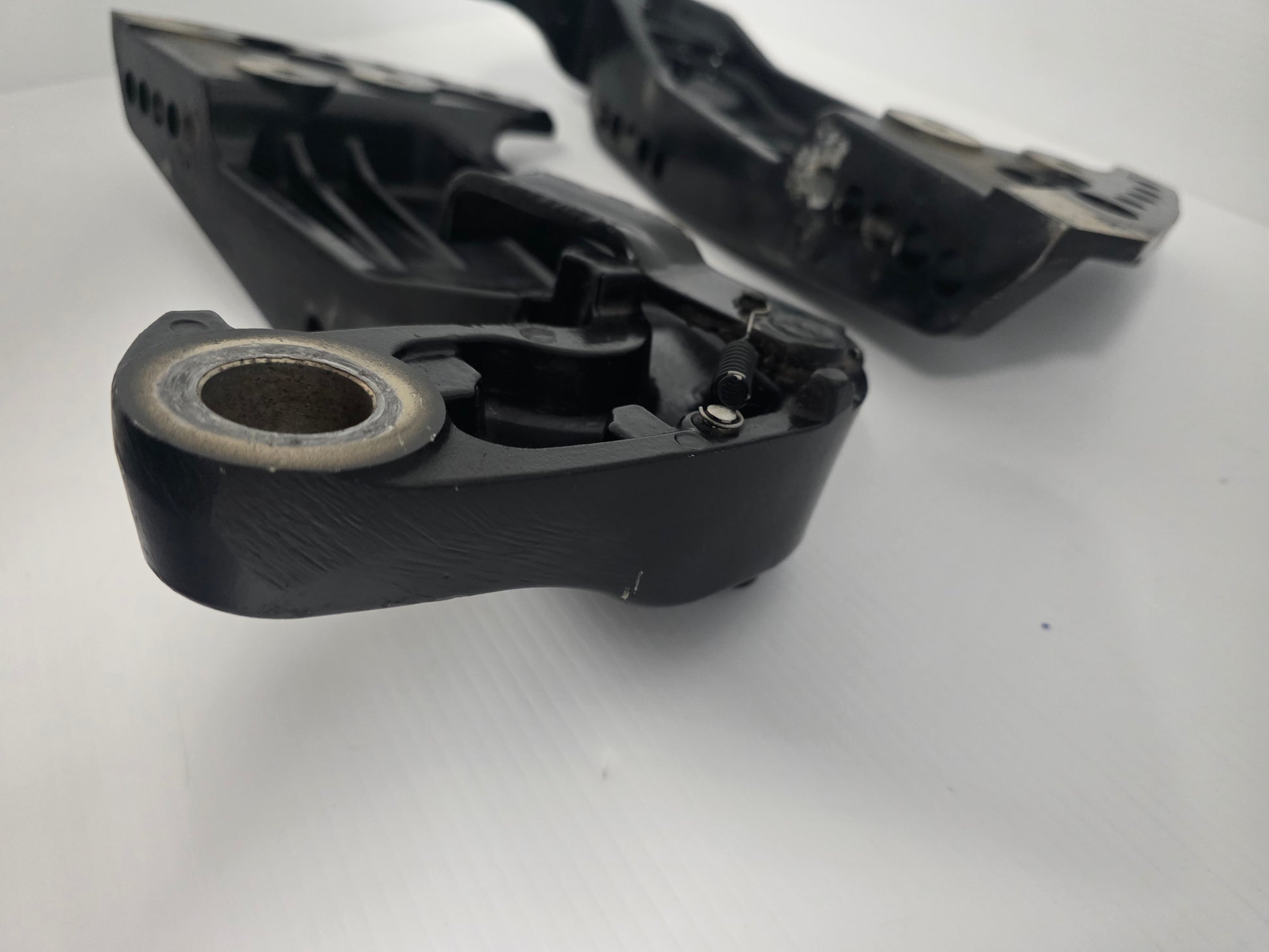

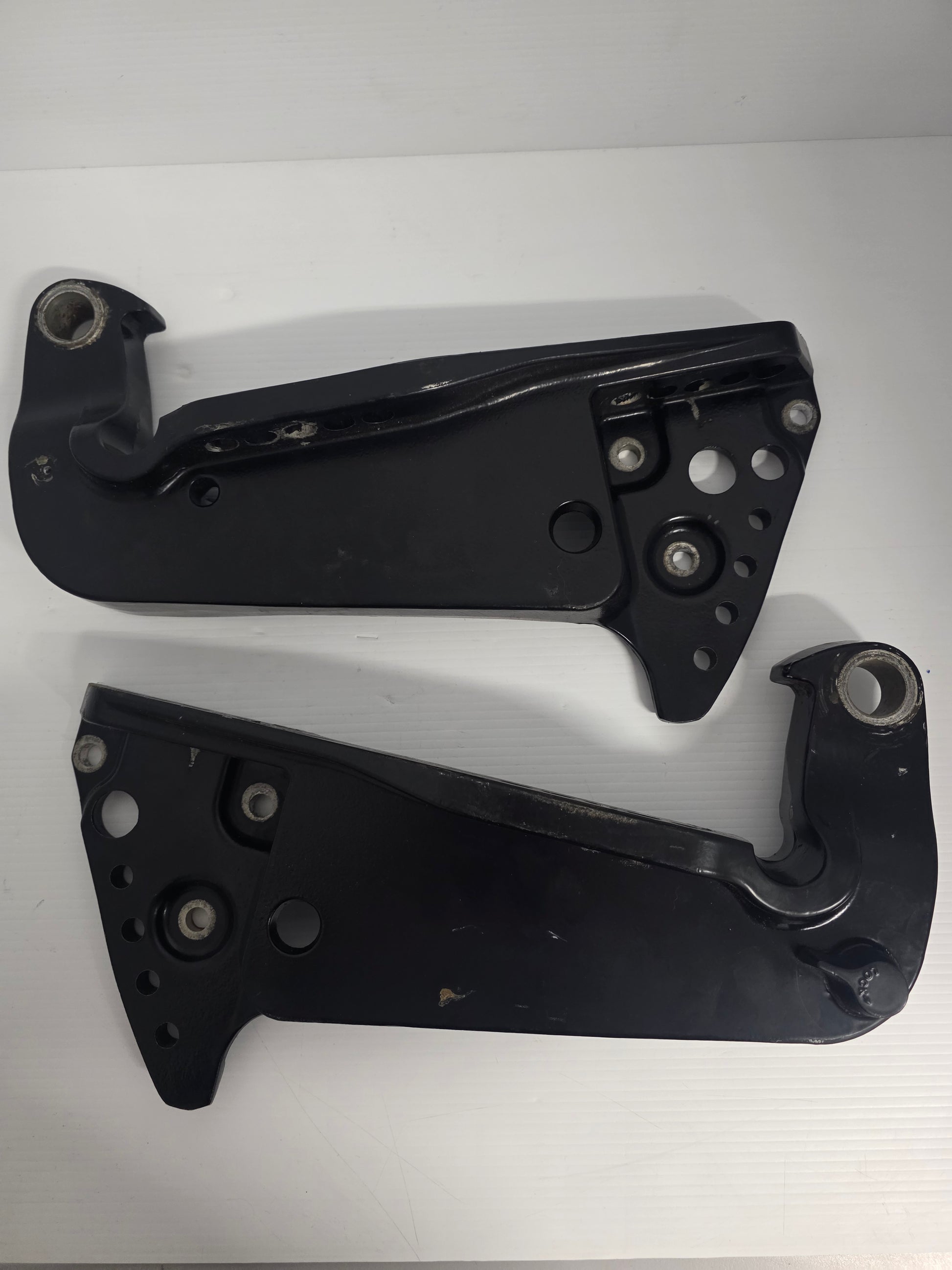

Genuine Mercury Port and Starboard Transom Bracket Assembly Pair - Part Numbers: 3425-828333T01 / 3426-828334T02

A matched genuine used pair of Mercury transom brackets comprising the port and starboard cast bracket assemblies. These brackets bolt the outboard to the boat transom and support the tilt tube, swivel bracket, trim system and steering loads.

The port 828333-series and starboard 828334-series brackets were used across selected 75HP to 125HP Mercury and Mariner 3-cylinder, 4-cylinder, EFI and OptiMax / DFI outboards.

⚙️ Key Features

• Genuine Mercury matched port and starboard transom-bracket pair
• Port bracket from the 828333-series and starboard bracket 828334T02
• Heavy cast-aluminium construction for primary outboard mounting loads
• Supports the tilt tube, steering system, swivel bracket and trim movement
• Suitable for selected 75HP to 125HP Mercury / Mariner outboard transoms

🚤 Compatibility

Commonly used on

• Mercury and Mariner transom-bracket assemblies
• Selected 75HP to 125HP 3-cylinder, 4-cylinder, EFI and OptiMax / DFI outboards
• Transom systems using port 828333-series and starboard 828334-series brackets

Typically suits

• Engine models:
• Mercury / Mariner 75HP 3-cylinder - international serial 0P325500 and above
• Mercury / Mariner 75HP DFI 1.5L 3-cylinder - serial 1B417702 to 1B736885
• Mercury / Mariner 75HP DFI 1.5L 3-cylinder - serial 1B736885 and above
• Mercury / Mariner 75HP EFI four-stroke - serial 1B366823 to 2B094995
• Mercury / Mariner 80 Jet DFI 1.5L 3-cylinder - serial 1B586067 to 1B736885
• Mercury / Mariner 80 Jet DFI 1.5L 3-cylinder - serial 1B736885 and above
• Mercury / Mariner 80HP EFI four-stroke - international serial 0P459572 to 2B094995
• Mercury / Mariner 80HP EFI four-stroke - serial 1B366823 to 2B094995
• Mercury / Mariner 90HP DFI 1.5L 3-cylinder - serial 1B417702 to 1B736885
• Mercury / Mariner 90HP DFI 1.5L 3-cylinder - serial 1B736885 and above
• Mercury / Mariner 90HP EFI four-stroke - serial 1B366823 to 2B094995
• Mercury / Mariner 100HP EFI four-stroke - international serial 0P459572 to 2B094995
• Mercury / Mariner 100HP EFI four-stroke - serial 1B366823 to 2B094995
• Mercury / Mariner 115HP DFI 1.5L 3-cylinder - serial 1B417702 to 1B736885
• Mercury / Mariner 115HP DFI 1.5L 3-cylinder - serial 1B736885 and above
• Mercury / Mariner 115HP EFI four-stroke - serial 1B366823 to 2B094995
• Mercury 115 Pro XS 1.5L 3-cylinder - serial 1B751825 and above
• Mercury / Mariner 125HP DFI 1.5L 3-cylinder - serial 1B736885 and above
• HP Range: 75HP - 125HP
• Engine Type: Mercury / Mariner carburetted, EFI four-stroke and OptiMax / DFI outboard
• Year Range: Approximately 2004 - 2018, dependent on model and serial number

🔌 Function

The port and starboard brackets form the main structural attachment between the outboard and the boat transom. Together they carry engine weight and thrust while locating the tilt tube, swivel bracket, steering linkages and trim system.

⚠️ Common Signs of Failure

• Cracks around transom-bolt or tilt-tube locations
• Severe corrosion, pitting or loss of casting material
• Elongated mounting holes or damaged threads
• Port and starboard brackets no longer align with the tilt tube
• Bent castings causing uneven trim or steering movement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3425-828333T07 → Supersedes 3425-828333A3 - Port
• 3425-828333T01 and 3425-828333 earlier port-bracket references
• 3426-828334T02 → Supersedes 3426-828334F1 - Starboard
• 3425-8M0045064 current service-replacement reference used for obsolete transom-bracket assemblies

OEM / Related Numbers

• 3425-828333T01 - Port
• 828333T01
• 3425-828333T07 - Later port reference
• 828333T07
• 3425-828333A3 - Earlier port reference
• 828333A3
• 3426-828334T02 - Starboard
• 828334T02
• 3426-828334F1 - Earlier starboard reference
• 828334F1
• 3425-8M0045064 - Current service-replacement reference
• 8M0045064
• 8M0034791 / 3425-828333-C - Related port casting references
• 8M0034788 / 3426-828334-C - Related starboard casting references
• 99170A2 - Related carbon-steel tilt-tube kit
• 826125A1 - Related stainless-steel tilt tube

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
