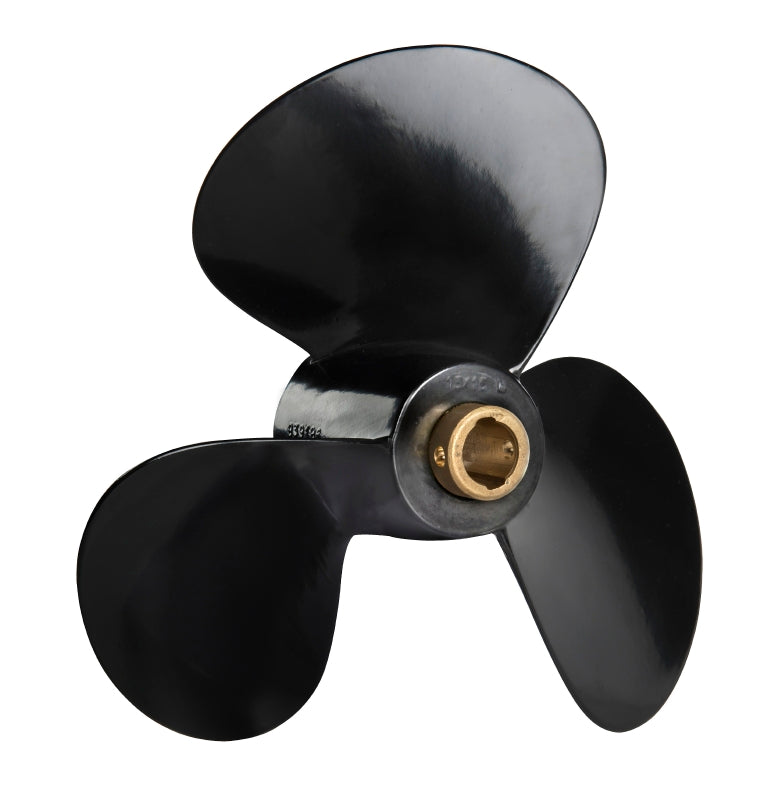

832992 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta aluminium single propeller for 100 series Aquamatic drives with a cylindrical shaft and locking pin. Standard and High-speed propellers are made from a special, durable aluminium alloy developed to withstand salt water and cavitation damage, and are painted black with a special epoxy powder which is extremely hard and resistant to abrasion. The High-speed propeller features more blade area for increased performance. This propeller is the 14 x 15 size, left hand rotation. The folder marks it STD, the standard series.

🚤 Compatibility

Typically suits:

• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta AQD2B

• Engine Family: MD, AQD

⚙️ Key Features

• 14 inch diameter by 15 inch pitch
• Coarsest pitch of the 100 drive propellers listed
• Left hand rotation
• For the 100 drive's cylindrical shaft with locking pin
• 2.382 kg
• 3-blade
• Aluminium alloy
• Left-hand rotation.
• Marked STD - Standard series.
• Special durable aluminium alloy developed to withstand salt water and cavitation damage.
• Painted black with a special epoxy powder, extremely hard and resistant to abrasion.
• For 100 drives with a cylindrical shaft and locking pin.
• Material: aluminium
• Dimensions: 14 in diameter x 15 in pitch (folder prints '14 x 15')
• Fits: 100 drives with cylindrical shaft and locking pin
• Type: STD

🔌 Function

Converts the drive's rotation into thrust, with the diameter and pitch matched to the engine's power and the boat's load.

⚠️ Common Signs of Failure

• Vibration that changes with engine speed
• Blade edges chipped, curled or a tip broken off
• Blade faces pitted and eroded by cavitation
• Engine over-revving or unable to reach its rated speed
• Shear pin broken, so the propeller spins on the shaft without driving

🛠️ Service Notes

• Diameter, pitch and hand are what identify this propeller, so check all three - the finer pitches in the same diameter are 813229 at 14 x 13 and 813227 at 14 x 11
• This is a cylindrical shaft with a locking pin, so carry a spare pin and check it whenever the propeller is off
• Have a damaged propeller reconditioned and balanced rather than filing the blades, since an unbalanced propeller wears the shaft seal and bearings
• Installation hardware, 100 drives with cylindrical shaft and locking pin: split pin 907881, propeller cone 806660 and shear pin 806661.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
