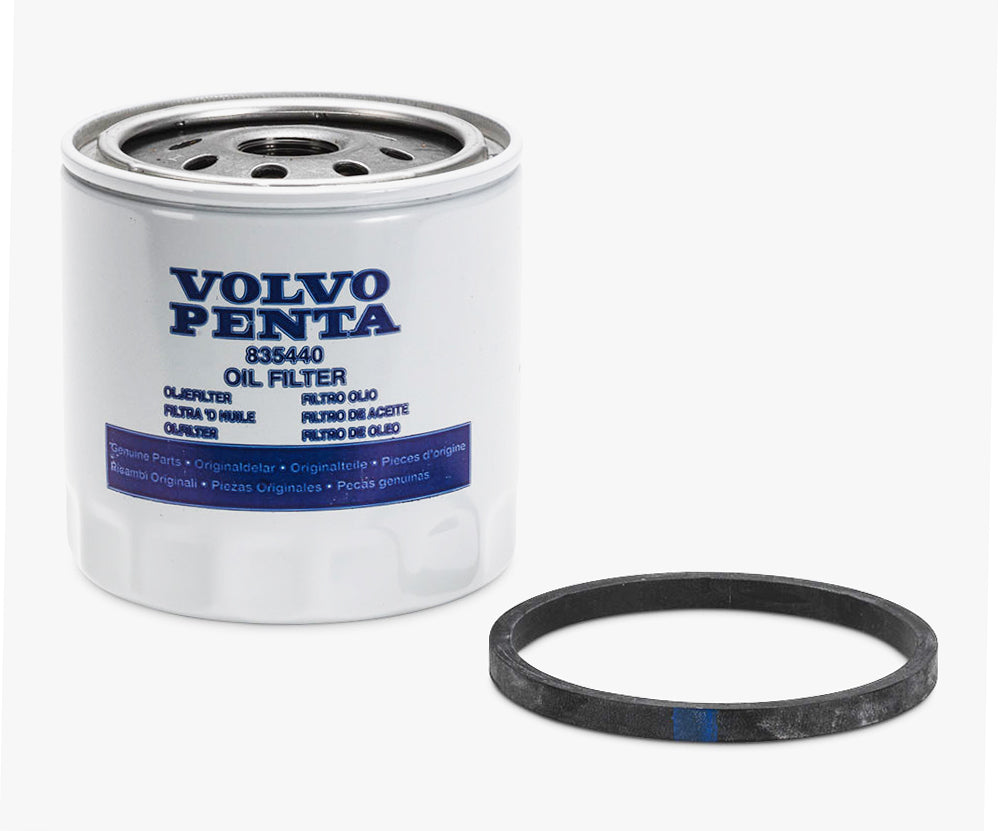

835440 Oil Filter | Genuine Volvo Penta Part

🔧 Product Description

Spin-on engine oil filter 107 mm tall, weighing 0.408 kg, and one of the most widely listed filters in the petrol range at 275 applications. In the maintenance parts schedule it is the oil filter for the 3.0GLP-C, D, E and J, the 3.0GXi-J and GXiC-J, the 4.3GXi-G and OSi-G, the 5.0GXi-G and OSi-G, the 5.7Gi-F, GXi-G and OSi-E, and the 8.1Gi-H, GXi-G and OSi-D. It supersedes part numbers 3852412 and 3852030.

🚤 Compatibility

• Engine Family: DPX, AQ, BB, MS, DP, SP

Full model list at the end of this description.

⚙️ Key Features

• Oil filter across the 3.0, 4.3, 5.0, 5.7 and 8.1 petrol engines in the generations listed
• 107 mm tall
• 0.408 kg
• Replaces 3852412 and 3852030
• 275 applications across DPX, AQ, BB, MS, DP and SP series engines
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Oil filter
• Fits: 3.0GLP-C/D/E/J; 3.0GXi-J, 3.0GXiC-J (spin on); 4.3GXi-G/GF, OSi-G/GF; 5.0GXi-G/GF, OSi-G/GF; 5.7Gi-F/FF, GXi-G/GF, OSi-E/EF; 8.1Gi-H/HF, 8.1GXi-G/GF, 8.1OSi-D/DF; AQ225, AQ255, AQ260, BB225, BB260, BB261; AQ231, AQ271, AQ280, AQ290, AQ311, BB231; 500, 501, 570, 571, 572, 740

🔌 Function

Traps wear metal and carbon out of the circulating oil so it does not reach the bearings.

⚠️ Common Signs of Failure

• Oil pressure low or slow to build after a start
• Oil weeping from the filter seal or seam
• Filter body dented, distorted or bulging
• Dark, gritty or metallic oil at the change interval
• Filter difficult to remove because it has been overtightened

🛠️ Service Notes

• The J-generation 4.3, 5.0 and 5.7 engines take an oil filter insert rather than this spin-on, so check the generation letter
• Oil the new seal, fit by hand and tighten only the specified amount, then check for leaks with the engine running
• Change the filter with the oil, not between changes
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 835440 → Supersedes 3852412

OEM / Related Numbers

• 3852030 earlier number superseded by this part
• 3852412 earlier number superseded by this part

Other-Brand OEM Numbers

• Donaldson: P550025
• Fleetguard: LF583
• Fleetguard: LF651
• Hengst: H16W
• Knecht: OC114
• Knecht: OC117
• Baldwin: B27
• Baldwin: B8

Aftermarket / Verified Equivalents

• ALCO: SP805
• HIFI-FILTER: SO651
• FRAM: PH30

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 740B, 8.1Gi-C, 8.1Gi-CF, 8.1Gi-D, 8.1Gi-DF, 8.1Gi-E, 8.1Gi-EF, 8.1Gi-F, 8.1Gi-FF, 8.1Gi-G, 8.1Gi-GF, 8.1Gi-H, 8.1Gi-HF, 8.1GiI-C, 8.1GiI-D, 8.1GiI-E, 8.1GiI-F, 8.1GiI-G, 8.1GiI-H, 8.1GXi-B, 8.1GXi-BF, 8.1GXi-C, 8.1GXi-CF, 8.1GXi-D, 8.1GXi-DF, 8.1GXi-E, 8.1GXi-EF, 8.1GXi-F, 8.1GXi-FF, 8.1GXi-G, 8.1GXi-GF, 8.1GXiI-B, 8.1GXiI-C, 8.1GXiI-D, 8.1GXiI-E, 8.1GXiI-F, 8.1GXiI-G, 8.1OSi-A, 8.1OSi-AF, 8.1OSi-B, 8.1OSi-BF, 8.1OSi-C, 8.1OSi-CF, 8.1OSi-D, 8.1OSi-DF, 8.2GLIMDM, 500A, 501A, 501B, 570A, 572A, 7.4GiINCCCE, 7.4GiINCSCE, 7.4GiPLKDCE, 7.4GiPLKECE, 7.4GiPNCACE, 7.4GiPNCSCE, 7.4GiPNCBCE, 7.4GiPNCMCE, 7.4GLIMDM, 7.4GLINCS, 7.4GLPLKD, 7.4GLPLKE, 7.4GLPMDA, 7.4GLPMDM, 7.4GLPNCA, 7.4GLPNCB, 7.4GLPNCM, 7.4GLPNCS, 7.4GSiXNCB, 7.4GSiXNCM, 740A, 5.7GLPMDA, 5.7GSiPWTR, 5.7GSiCPLKD, 5.7GSiPBYCCE, 5.7GSiPLKD, 5.7GSiPLKE, 5.7GSPBYC, 5.7GSPWTR, 5.7GXi-F, 5.7GXi-FF, 5.7OSXi-D, 5.7OSXi-DF, 5.7GXi-G, 5.7GXi-GF, 5.7GXi-H, 5.7GXi-HF, 5.7GXiI-F, 5.7GXiI-G, 5.7GXiI-H, 5.7OSi-E, 5.7OSi-EF, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-E, 5.7OSXi-EF, 5.7OSXi-G, 5.7OSXi-GF, 5.0OSi-E, 5.0OSi-EF, 5.0OSi-F, 5.0OSi-FF, 5.0OSi-G, 5.0OSi-GF, 5.7Gi-E, 5.7Gi-EF, 5.7OSi-D, 5.7OSi-DF, 5.7Gi-F, 5.7Gi-FF, 5.7Gi-G, 5.7Gi-GF, 5.7GiI-E, 5.7GiI-F, 5.7GiI-G, 5.7GLPNCS, 5.7GiPLKDCE, 5.7GiPLKECE, 5.7GiIMDA, 5.7GiINCCCE, 5.7GiPHUS, 5.7GiPMDA, 5.7GiPMDACE, 5.7GiPNCACE, 5.7GiPNCSCE, 5.7GiPNCBCE, 5.7GIPNCMCE, 5.7GL-C, 5.7GL-D, 5.7GL-E, 5.7GLIMDA, 5.7GLiPLKDCE, 5.7GSPLKD, 5.7GSPLKE, 5.7GLPLKR, 5.7GLPLKA, 5.7GLPLKD, 5.7GLPLKE, 4.3OSi-GF, 430A, 430B, 431A, 431B, 432A, 434A, 5.0GiPBYCCE, 5.0GiPWTR, 5.0GL-C, 5.0GXi-E, 5.0GXi-EF, 5.0GL-D, 5.0GL-E, 5.0GL-F, 5.0GL-FF, 5.0GL-HF, 5.0GLPBYC, 5.0GLPWTR, 5.0GL-H, 5.0GXi-F, 5.0GXi-FF, 5.0GXi-G, 5.0GXi-GF, 4.3GL-E, 4.3GL-EF, 4.3GL-G, 4.3GL-GF, 4.3GXi-B, 4.3GXi-BF, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3GXi-F, 4.3GXi-FF, 4.3GXi-G, 4.3GXi-GF, 4.3OSi-F, 4.3OSi-FF, 4.3OSi-G, 280B, 290DP, 3.0GLM-A, 3.0GLM-B, 3.0GLM-C, 3.0GLMMDA, 3.0GLP-A, 3.0GLP-B, 3.0GLP-C, 3.0GLP-D, 3.0GLP-E, 3.0GLP-J, 3.0GLP-N, 3.0GSM-A, 3.0GSM-B, 3.0GSMBYMCE, 3.0GSM-C, 3.0GSMLKD, 3.0GSMNCS, 3.0GSMWTR, 3.0GSP-A, 3.0GSP-B, 3.0GSPBYMCE, 3.0GSP-C, 3.0GSPEFS, 3.0GSPLKD, 3.0GSPMDA, 3.0GSPNCS, 3.0GSPWTR, 3.0GXiC-J, 3.0GXi-J, 570, 500B, 8.2GLPMDA, 8.2GLPMDM, 8.2GSiXNCB, 571A, 7.4GIIHUBCE, 7.4GLIHUB, 7.4GLINCC, 7.4GSIINCS, 7.4GSIINCC, 430
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-A, DP-A2
• Volvo Penta AQ225D, AQ225E, AQ225B, AQ225C, AQ225F
• Volvo Penta AQ200D, AQ200C, AQ200B, AQ200F
• Volvo Penta AQ271A, AQ271C, AQ271B, AQ271D
• Volvo Penta BB225A, BB225AV, BB225B, BB225C
• Volvo Penta BB260AV, BB260B, BB260C
• Volvo Penta SP-C, SP-A2, SP-C1
• Volvo Penta AQ231A, AQ231B
• Volvo Penta AQ255A, AQ255B
• Volvo Penta AQ260A, AQ260B
• Volvo Penta AQ311A, AQ311B
• Volvo Penta MS3B, MS3C
• Volvo Penta MS4B, MS4A
• Volvo Penta AQ211A
• Volvo Penta AQ290A
• Volvo Penta BB231A
• Volvo Penta BB261A
• Volvo Penta BB740A
• Volvo Penta DPX375-CF
• Volvo Penta DPX385XLKE
• Volvo Penta DPX415XLKE
• Volvo Penta DPX420-CF
