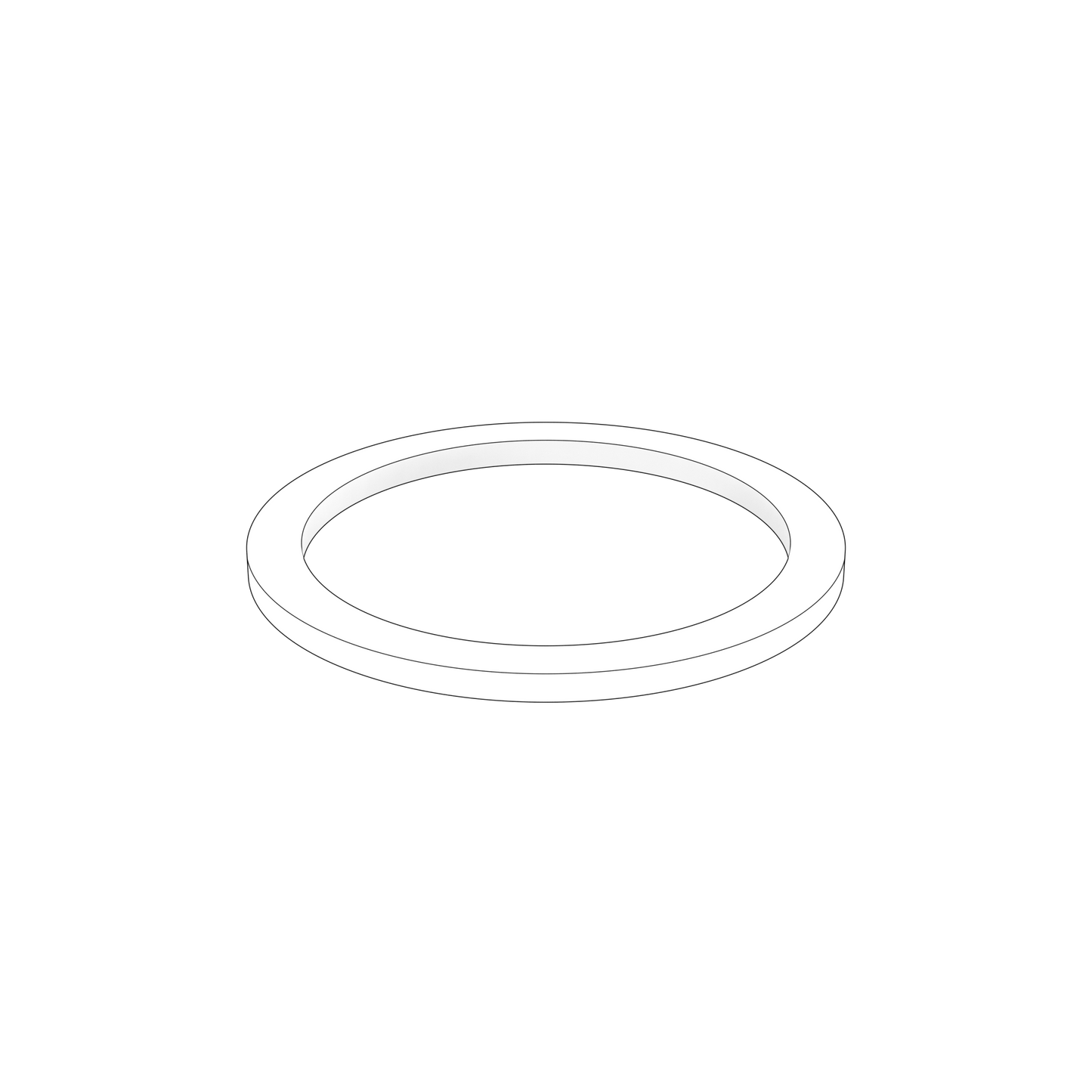

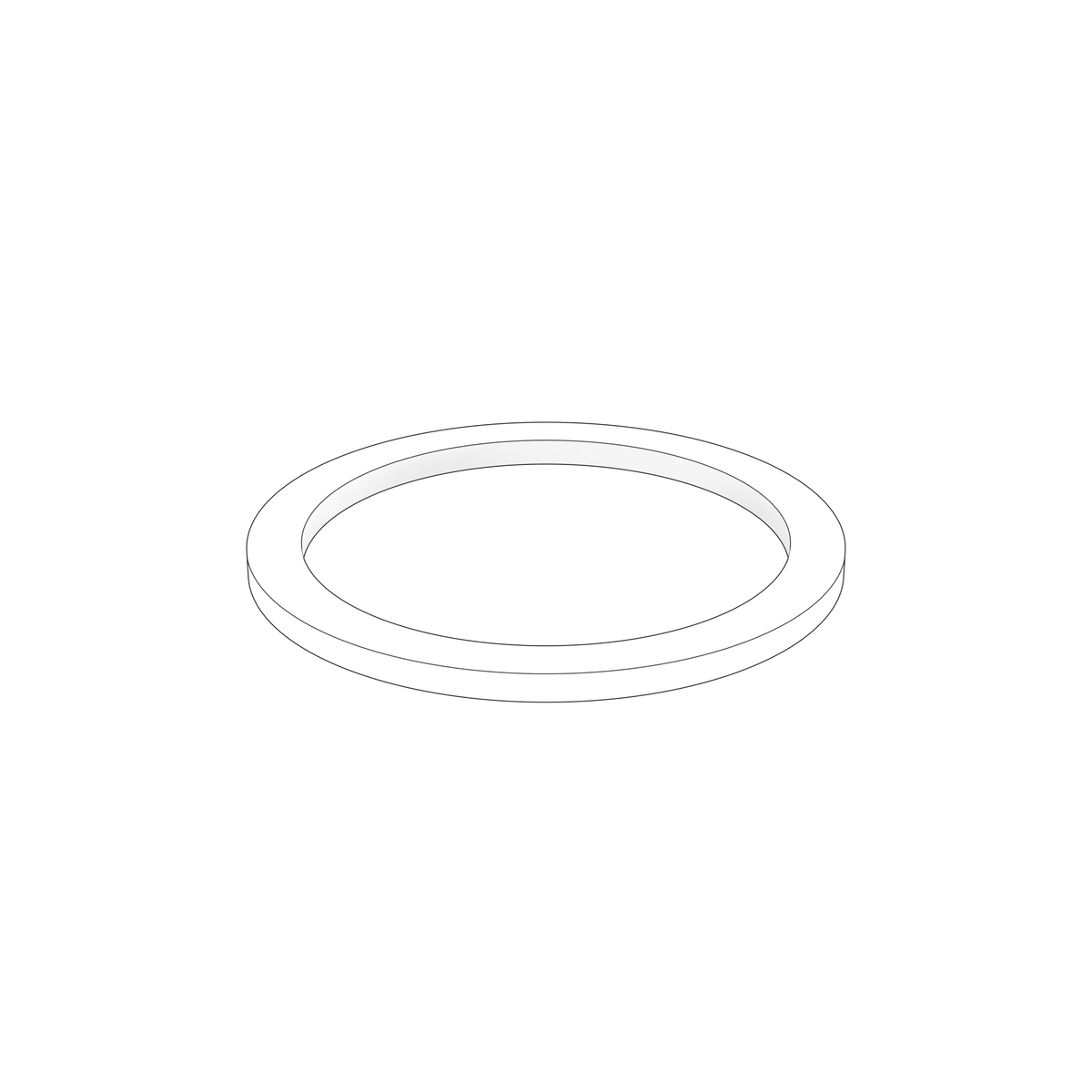

836169 Gasket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta heat exchanger gasket from the Cooling System group, listed for 148 applications across D, MD, TMD, TD, AQD and TAMD series engines. It consolidates six earlier numbers - 402234, 805989, 805988, 809220, 836976 and 907139 - two of which were catalogued only as spare parts, so an order raised on any of those numbers now brings this one gasket.

🚤 Compatibility

• Engine Family: D, MD, TMD, TD, AQD, TAMD, THAMD, TAD

Full model list at the end of this description.

⚙️ Key Features

• Heat exchanger gasket
• Replaces 402234, 805989, 805988, 809220, 836976 and 907139
• 148 applications across D, MD, TMD, TD, AQD and TAMD series engines
• Cooling System group
• Quantity varies by assembly, most commonly one

🔌 Function

Seals the heat exchanger joint so coolant and raw water stay in their own circuits.

⚠️ Common Signs of Failure

• Coolant loss with no external drip, or oily water in the header tank
• Weeping or salt crust at the heat exchanger end cover
• Overheating as the two circuits mix or the flow drops
• Gasket blown through, hardened or crushed unevenly on removal
• Corrosion pitting on the end cover face

🛠️ Service Notes

• Renew both end cover gaskets and any o-rings when the exchanger is opened, since one side rarely fails alone
• Clean and pressure test the tube stack while it is out, and check the end cover faces for pitting
• Fit the anode, where the installation has one, at the same time

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 836169 → Supersedes 402234

OEM / Related Numbers

• 805989 earlier number superseded by this part
• 907139 earlier number superseded by this part
• 402234 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C3-A MP, D13C4-A MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C8-B MP
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TD100AHC, TD100ARC, TD100A, TD100AG, TD100CHC, TD100CRC
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A3-A MP
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta D100A, D100BHC, D100BRC, D100B
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta MD100A, MD100B, MD100B-CC
• Volvo Penta TAD120AHC, TAD120BHC, TAD120CHC
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAMD60A, TAMD60B, TAMD60C
• Volvo Penta TD120AHC, TD120BHC, TD120BRC
• Volvo Penta MD11C, MD11D
• Volvo Penta MD17C, MD17D
• Volvo Penta MD70B, MD70C
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD120A, TAMD120B
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TMD100A, TMD100C
• Volvo Penta TMD120A, TMD120B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta D70CHC
• Volvo Penta MD120A
• Volvo Penta MD2B
• Volvo Penta TAD121CHC
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TD121CHC
• Volvo Penta TD70CHC
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
