838327 Muffler | Genuine Volvo Penta Part

🔧 Product Description

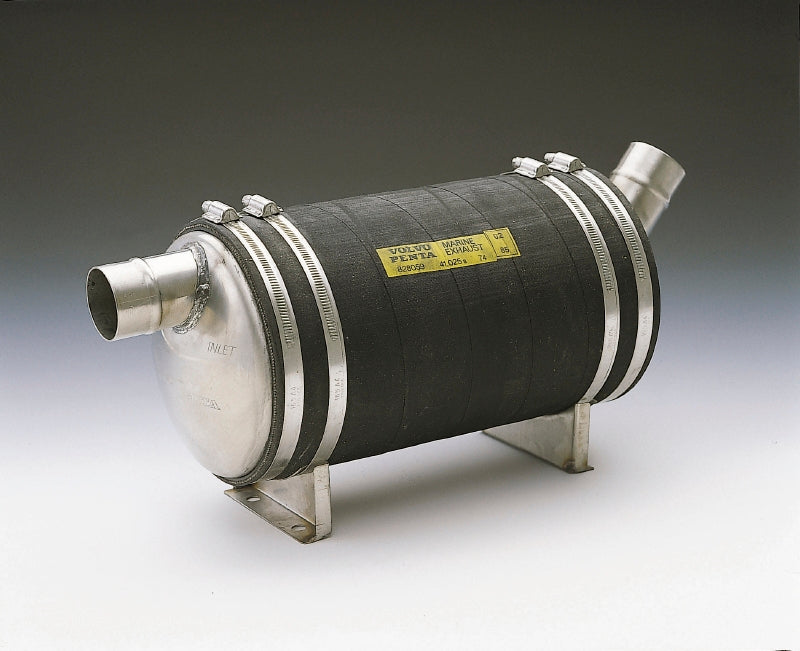

Genuine Volvo Penta silencer for wet exhaust systems for 57 mm hose, listed for the 2003T and 2003TB. It weighs 3.583 kg, covers 47 applications across the D, TMD, MS, TAMD and MD series and supersedes 828065, catalogued earlier as a muffler. The silencer is built from reinforced rubber with acid resistant stainless steel end pieces, quietens the exhaust with a minimum of back pressure and doubles as a water-lock whose cooling water capacity stops water siphoning back into the engine when it is stopped. Adjustable mounting brackets make it easy to install.

🚤 Compatibility

• Engine Family: D, TMD, MS, TAMD, MD
• HP Range: 50-75 HP

Full model list at the end of this description.

⚙️ Key Features

• 57 mm hose connection
• For 2003T and 2003TB
• Reinforced rubber with acid resistant stainless steel end pieces
• Doubles as a water-lock with large cooling water capacity
• 3.583 kg
• Supersedes 828065, previously listed as a muffler
• Silences exhaust noise with a minimum of back pressure
• Doubles as an effective water-lock
• Adjustable mounting brackets
• B1: 60 mm
• B2: 112 mm
• H: 30 mm
• L1: 408 mm
• L2: 535 mm
• L3: 645 mm
• Diameter a: 57 mm
• Diameter d: 165 mm
• Hose diameter: 57 mm
• Material: reinforced rubber with acid resistant stainless steel end pieces
• Fits: Marine wet exhaust systems, 57 mm hose

🔌 Function

Damps exhaust noise in a wet exhaust system and acts as a water-lock, carrying the gas and cooling water together through its chambers to the outlet.

⚠️ Common Signs of Failure

• Exhaust noticeably louder or with a changed note
• Sooty water traces or drips from the silencer body
• Water or exhaust leaking at the hose connections
• Body corroded through or the internal baffles rattling
• Exhaust fumes detectable in the engine space

🛠️ Service Notes

• Order on the 57 mm hose size and the engine designation - the silencer range is sized 45, 57, 89 and 100 mm
• A leaking wet exhaust can put exhaust gas into the engine space, so treat any fume smell as urgent
• Renew the exhaust hoses and double-clamp the joints when the silencer is changed
• The acid resistant stainless steel end pieces are chosen for a wet exhaust duty, where the silencer carries seawater as well as exhaust gas

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 838327 → Supersedes 828065

OEM / Related Numbers

• 828065 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003R SOLAS, 120S-B, 2003TB, 2003TB SOLAS, 120SC, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2003T, 2003TR, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2003B SOLAS, 2003 SOLAS, 2001, 2002, 2001R
• Volvo Penta D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta MS2B-A, MS2B, MS2V
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D2002AG
• Volvo Penta D2003AG
• Volvo Penta MD31A
• Volvo Penta TAMD22P-B
