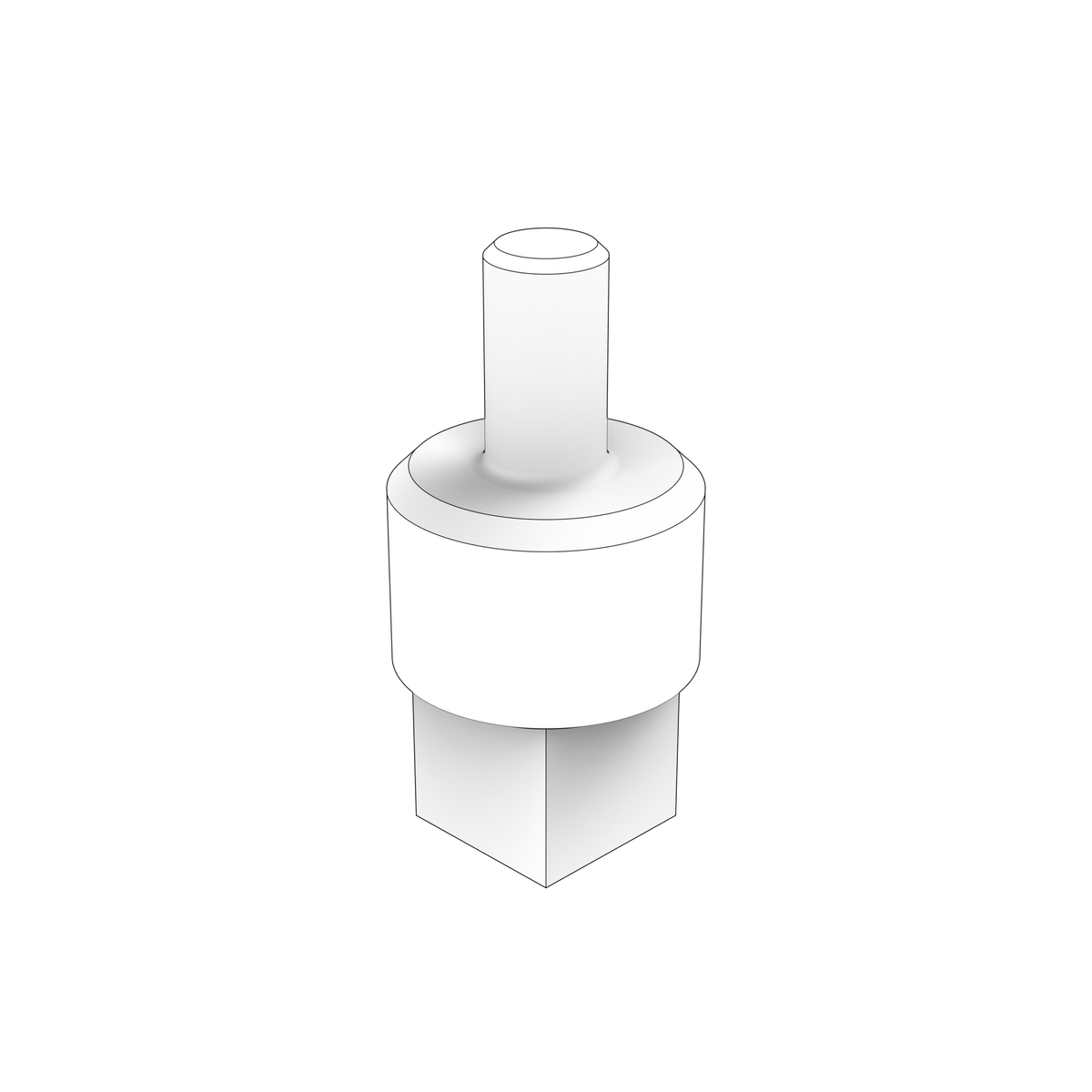

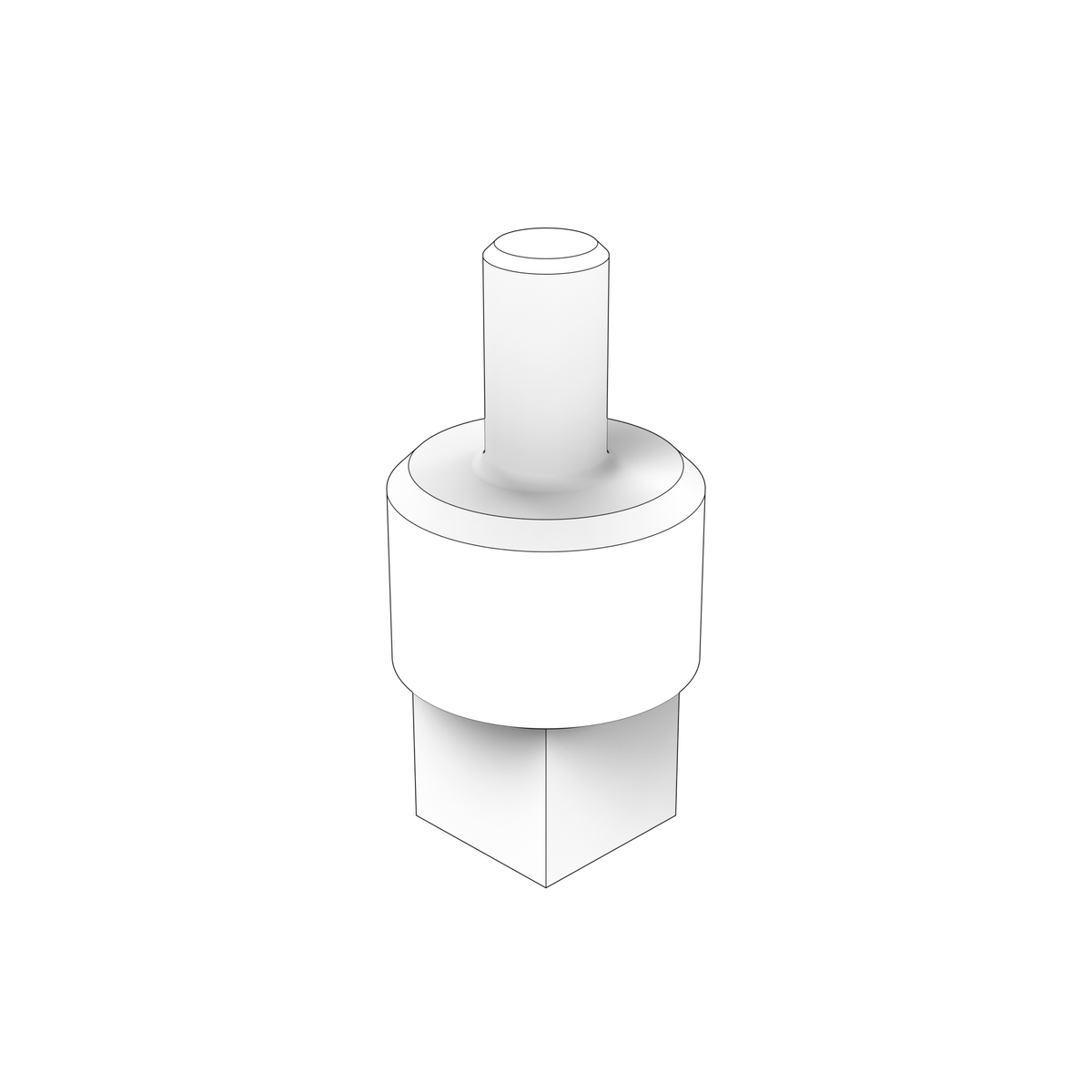

838928 Plug | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta plug from the Cooling System group, listed for 22116247, weighing 0.07 kg and covering 281 applications across D, TD, AQD, TMD, MD and AD series engines. It consolidates part numbers 3838500, 800475, 837083, 840336 and 861546, one of which was catalogued earlier as a cylinder head, so check the supersession applies to the plug you need rather than to a larger assembly.

🚤 Compatibility

• Engine Family: D, TD, AQD, TMD, MD, AD, TAMD, AQAD, AQ, BB, THAMD, MS, TAD
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Listed for 22116247
• 0.07 kg
• 281 applications across D, TD, AQD, TMD, MD and AD engines
• Consolidates five earlier part numbers
• Quantity varies by assembly, most commonly one
• Also supersedes Volvo part number 858754

🔌 Function

Closes a drilling or aperture in the cooling circuit, sealing it against coolant pressure and providing the seat that the anode screws into where one is fitted.

⚠️ Common Signs of Failure

• Coolant weeping or crusting around the plug
• Plug thread corroded, seized or wasted thin
• Head rounded off by previous attempts to remove it
• Plug found badly eaten away when the anode is serviced
• Coolant loss with no other leak visible

🛠️ Service Notes

• Anode 838929 is listed for the same 22116247, so inspect and renew both together
• Two of the numbers this plug consolidates, 837083 and 840336, also appear in the anode's chain — confirm which item you actually need before ordering
• Clean the thread and use a fresh seal or sealant to your manual's specification

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 838928 → Supersedes 3838500

OEM / Related Numbers

• 800475 earlier number superseded by this part
• 840336 earlier number superseded by this part
• 861546 earlier number superseded by this part
• 3838500 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta 2003, 2003R, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2001, 2002, 2001R
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122AF, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta D12C-A MP, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta BB260AV, BB260B, BB260C
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta MD70B, MD70BK, MD70C
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta AD31, AD31B
• Volvo Penta AD41B, AD41A
• Volvo Penta AQ260A, AQ260B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta MD2010, MD2010B
• Volvo Penta MS3B, MS3C
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD31A, TAMD31B
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD41B, TAMD41A
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TMD31A, TMD31B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AD30A
• Volvo Penta AD40B
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta D41B
• Volvo Penta D70CHC
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAD121CHC
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD30A
• Volvo Penta TAMD60C
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD100CHC
• Volvo Penta TD121CHC
• Volvo Penta TD70CHC
• Volvo Penta TMD100C
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD30A
• Volvo Penta TMD41B
