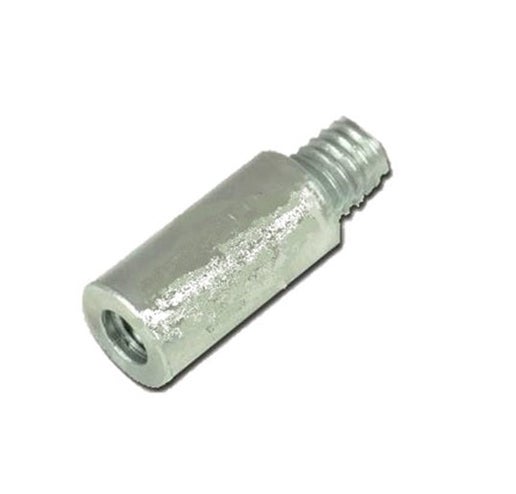

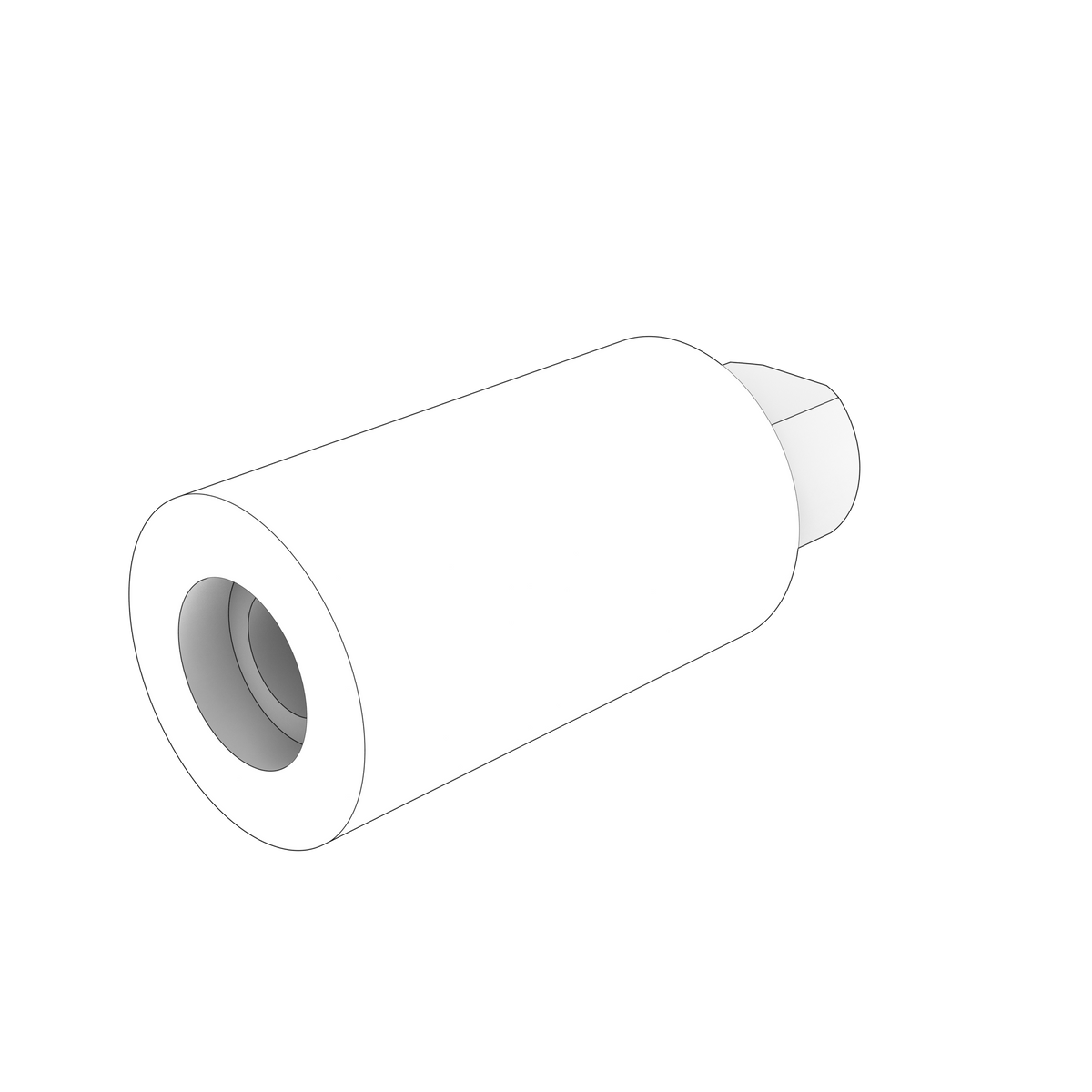

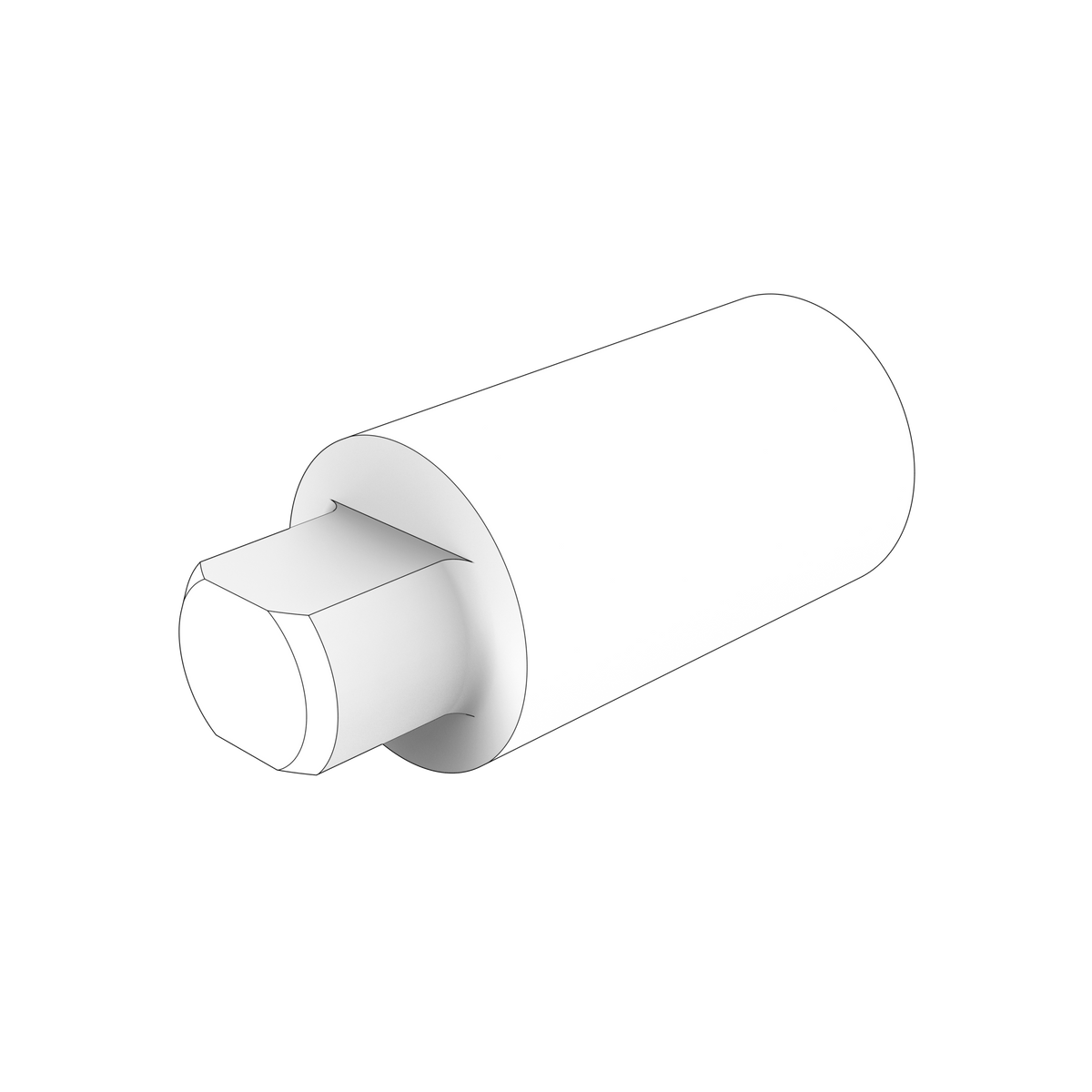

838929 Anode | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta engine zinc anode weighing 0.045 kg and covering 296 applications across the D, TD, AQD, TMD, MD and AD series. It is the engine zinc anode listed for the 2001, 2002, 2003 and 2003T, and the same number appears again as the engine anode on the MD30, TMD30, TAMD30 and AQAD30 range, the MD40, TMD40, TAMD40, AQD40 and AQAD40 range, and on early MD31, TMD31, TAMD31, AQAD31 and KAD32 engines. It consolidates part numbers 3838499, 800476, 804107, 837083, 840336 and 858501, several of which were catalogued earlier as zinc electrodes.

🚤 Compatibility

• Engine Family: D, TD, AQD, TMD, MD, AD, TAMD, AQAD, AQ, BB, THAMD, MS, TAD, KAD, KAMD
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Engine zinc anode
• 0.045 kg
• Listed for the 2001, 2002, 2003 and 2003T
• Also the engine anode for the MD30, MD40 and early MD31 ranges
• Consolidates six earlier numbers, previously listed as zinc electrodes
• Quantity varies by assembly, most commonly one
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Listed in more than one role: Engine zinc anode, Anode
• Role: Engine zinc anode
• Fits: 2001, 2002, 2003, 2003T; MD30, TAMD30, TMD30, AQAD30; MD31, TMD31, TAMD31, AQAD31, KAD32 (early models); MD40, TMD40, TAMD40, AQD40, AQAD40; TMD41, TAMD41, AQD41, AQAD41 (early models); D4, D6 A-F (up to model year 2019) (heat exchanger, up to SN 407905)
• Also supersedes Volvo part numbers 844888 and 844936

🔌 Function

Corrodes in place of the surrounding metal, giving up its own material to protect the engine's raw-water side from galvanic attack.

⚠️ Common Signs of Failure

• Anode wasted away to a stub or gone entirely at service
• Anode still full size after a season, which suggests it is not making contact
• Corrosion appearing on the metal the anode should be protecting
• Thread or seat corroded so the anode cannot make a clean bond
• Coolant or raw water weeping at the anode joint

🛠️ Service Notes

• Check the anode at every service and renew it once around half consumed rather than waiting for it to disappear
• Good contact between the anode and the surface it screws into is what makes it work - fit metal to metal, with no sealant or paint on the mating face
• Plug 838928 is usually renewed alongside it
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 838929 → Supersedes 3838499

OEM / Related Numbers

• 800476 earlier number superseded by this part
• 804107 earlier number superseded by this part
• 858501 earlier number superseded by this part
• 3838499 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Recmar: REC838929
• Sierra: 18-6001
• Tecnoseal: 00714
• Cathodic Anodes Australasia: CDZ9-011

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta 2003, 2003R, 2001AG, 2001B, 2001BG, 2001D, 2003D, 2002AG, 2002B, 2002BG, 2002D, 2003B, 2001, 2002, 2001R
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11B1-A MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122AF, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D, AQD70C
• Volvo Penta D12C-A MP, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta AD41B, AD41A, AD41BJ
• Volvo Penta BB260AV, BB260B, BB260C
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta MD70B, MD70BK, MD70C
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TMD40A, TMD40B, TMD40C
• Volvo Penta AD31, AD31B
• Volvo Penta AQ260A, AQ260B
• Volvo Penta AQAD40B, AQAD40A
• Volvo Penta D41, D41B
• Volvo Penta MD2010, MD2010B
• Volvo Penta MS3B, MS3C
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD31A, TAMD31B
• Volvo Penta TAMD40A, TAMD40B
• Volvo Penta TAMD41B, TAMD41A
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TMD31A, TMD31B
• Volvo Penta TMD41A, TMD41B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AD30A
• Volvo Penta AD40B
• Volvo Penta AQ145A
• Volvo Penta AQAD30A
• Volvo Penta AQD40A
• Volvo Penta BB145A
• Volvo Penta D70CHC
• Volvo Penta KAD42A
• Volvo Penta KAMD42A
• Volvo Penta MD30A
• Volvo Penta MD31A
• Volvo Penta MD40A
• Volvo Penta TAD121CHC
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD30A
• Volvo Penta TAMD60C
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD100CHC
• Volvo Penta TD121CHC
• Volvo Penta TD70CHC
• Volvo Penta TMD100C
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TMD30A
