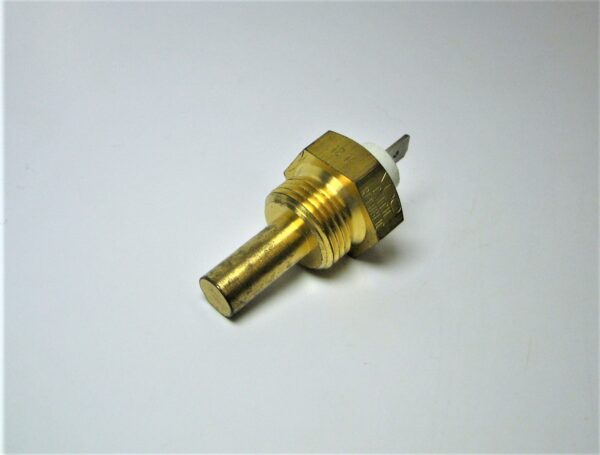

840074 Temperature Sensor | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta temperature sensor from the Instruments group, a one-way sender for double instrument installations reading 40-120°C, weighing 0.045 kg and listed for 72 applications across MD, AD, TAMD, D, TMD and BB series engines.

🚤 Compatibility

• Engine Family: MD, AD, TAMD, D, TMD, BB, HS, MS, AQD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• One-way sender for double instruments
• 40-120°C range
• 0.045 kg
• 72 published applications across six engine series

🔌 Function

Changes resistance with coolant temperature so the instrument shows the engine's running temperature.

⚠️ Common Signs of Failure

• Gauge reading permanently cold, permanently hot or wandering
• Gauge needle jumping with engine vibration
• Coolant weeping around the sender thread
• Terminal corroded or the connection loose
• Reading disagrees with a hand-held check on the same engine

🛠️ Service Notes

• Confirm whether the installation uses a one-way sender for double instruments before ordering, since senders of the same size can differ in the number of terminals
• Sender 840345 is the alternative for the 827151 sender and the 833927 thermoswitch control, so establish which arrangement the engine carries
• Seal the thread and top up coolant after fitting, then compare the gauge against a separate reading

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Recmar REC840074

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AD41P-B, AD41B, AD41D, AD41L-A, AD41P-A, AD41, AD41A, AD41BJ
• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41M-A, TAMD41P-A, TAMD41P, TAMD41A
• Volvo Penta AD31, AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta D41, D41B, D41D, D41L-A
• Volvo Penta TMD31A, TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41A, TMD41B, TMD41D, TMD41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta MD11C, MD11D
• Volvo Penta MD17C, MD17D
• Volvo Penta MD7B, MD7A
• Volvo Penta 740A, 290A
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta AQD2B
• Volvo Penta BB740A
• Volvo Penta HS1A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta MD1B
• Volvo Penta MD2B
• Volvo Penta MD3B
• Volvo Penta MD31A
• Volvo Penta MD6A
• Volvo Penta MS5B
