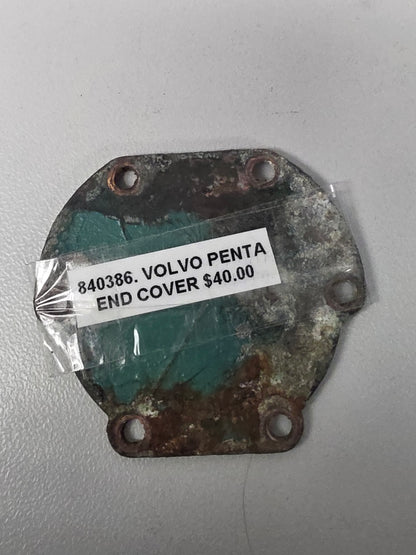

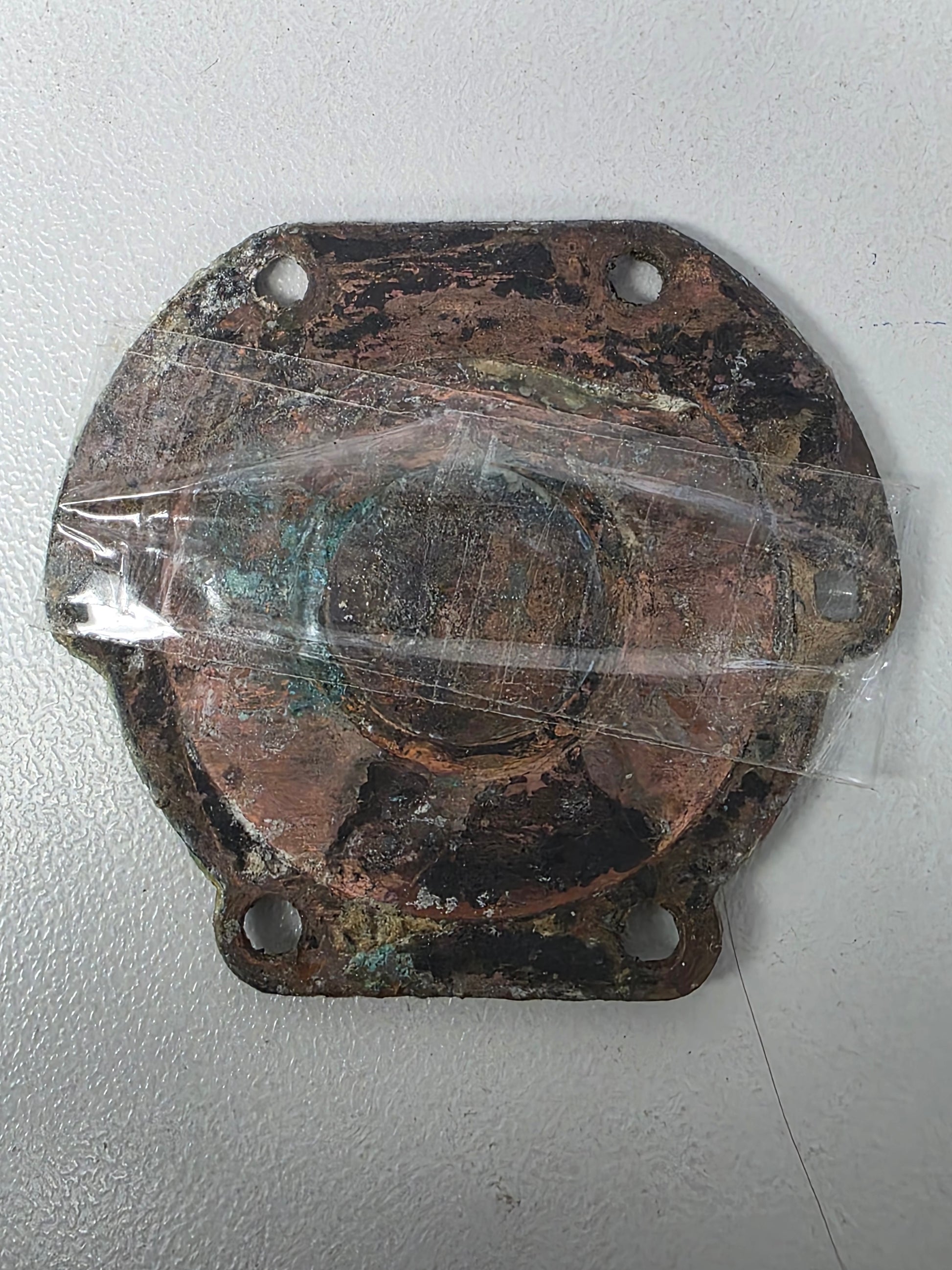

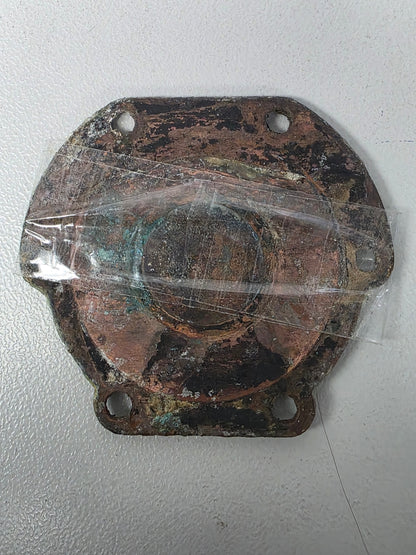

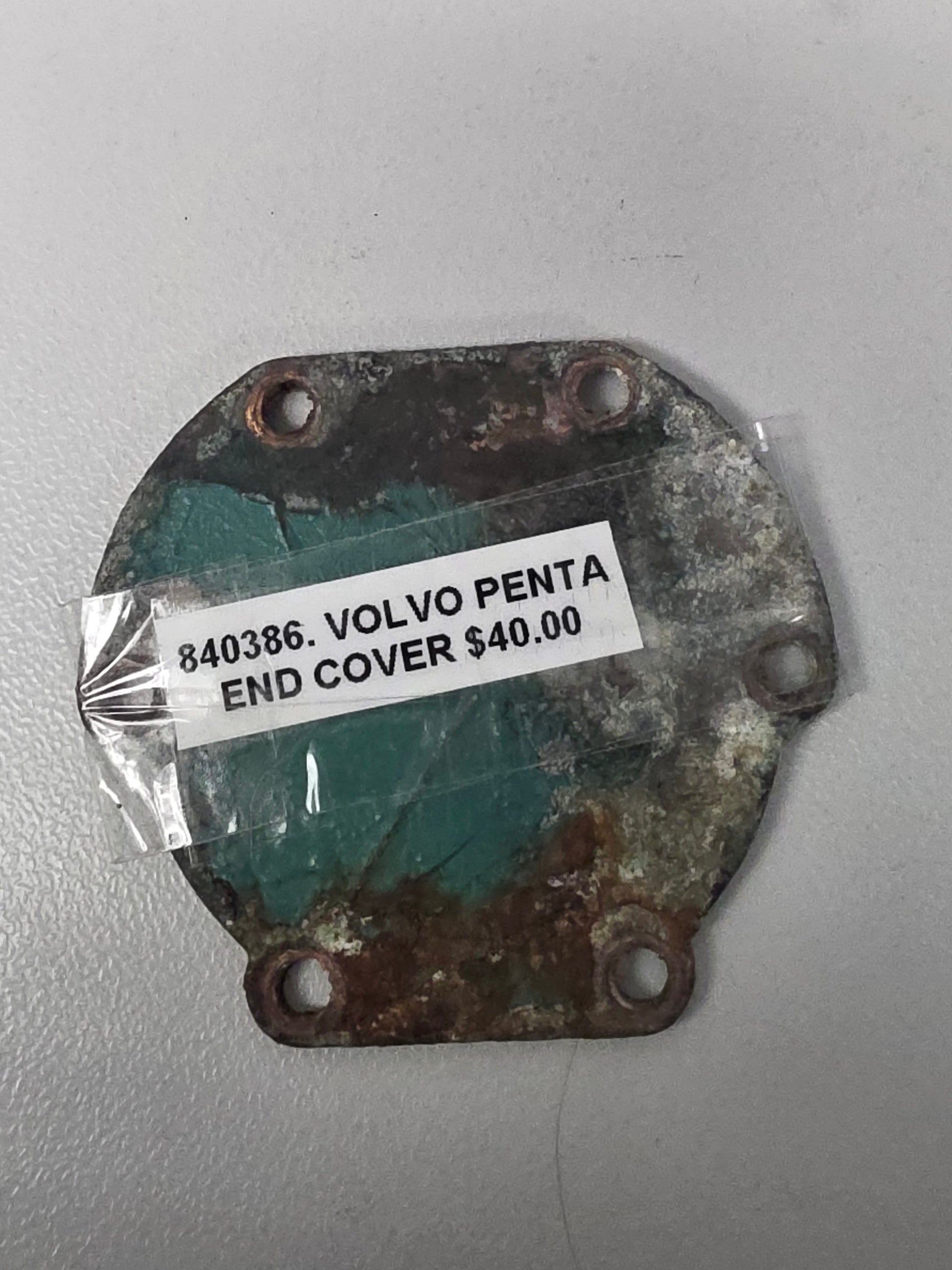

840386 Volvo Penta End Cover | Genuine Used Part

🔧 Product Description

Genuine Volvo Penta Sea Water Pump End Cover - Part Number: 840386

A genuine Volvo Penta end cover for the flexible-impeller sea-water pump fitted to selected MD, D1 and D2 marine diesel engines.

The cover closes the front of the pump chamber and provides the flat running surface against the end of the rubber impeller. A smooth, correctly sealed cover is essential for the pump to prime and produce adequate raw-water flow.

⚙️ Key Features

• Genuine Volvo Penta OEM sea-water pump end cover
• Correct Volvo Penta part number 840386
• Used on selected MD2010, MD2020, MD2030 and MD2040 engines
• Also fitted to selected D1 and D2 marine diesel sea-water pumps
• Replaceable pump-wear surface retained by the original cover screws

🚤 Compatibility

Commonly used on

• Volvo Penta flexible-impeller sea-water pumps
• MD-series, D1-series and D2-series marine diesel cooling systems

Typically suits

• Engine models:
• Volvo Penta MD11C
• Volvo Penta MD11D
• Volvo Penta MD17C
• Volvo Penta MD17D
• Volvo Penta MD2010 / MD2010B / MD2010C / MD2010D
• Volvo Penta MD2020 / MD2020B / MD2020C / MD2020D
• Volvo Penta MD2030 / MD2030B / MD2030C / MD2030D
• Volvo Penta MD2040 / MD2040B / MD2040C / MD2040D
• Volvo Penta D1-13 / D1-13B / D1-13F
• Volvo Penta D1-20 / D1-20B / D1-20F
• Volvo Penta D1-30 / D1-30B / D1-30F
• Volvo Penta D2-40 / D2-40B / D2-40F
• Volvo Penta 120S-D and 120S-E saildrive installations using the corresponding engine-mounted pump
• HP Range: Approximately 10HP - 40HP
• Engine Type: Volvo Penta naturally aspirated marine diesel
• Year Range: Approximately 1970s onward, dependent on pump assembly

🔌 Function

The end cover closes the impeller chamber and forms one of the sealing surfaces required for the flexible impeller to create suction. It helps the pump draw raw water from the seacock and deliver it through the engine cooling system.

⚠️ Common Signs of Failure

• Circular scoring or deep grooves on the inner face
• Reduced cooling-water discharge
• Pump struggles to prime after launching or servicing
• Water leakage around the cover gasket
• Engine overheating despite installation of a new impeller

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 840386 original Volvo Penta sea-water pump cover reference
• Volvo Penta catalogue status replaced by later pump-specific service components where applicable

OEM / Related Numbers

• 840386
• 840385 cover gasket
• 840384 cover screw
• 827009 pump cam
• 3593654 sea-water pump assembly
• 3593655 sea-water pump assembly
• 3593659 flexible impeller
• 833996 pump lip seal
• 3580063 related pump O-ring

Aftermarket / Verified Equivalents

• JMP: COV0048
• Marine Parts System: MPS-840386
• Marinedustrie: 840386 replacement impeller-pump cover

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
