841161 Aftermarket Volvo Penta Fuel Pump | Sawley's Select Marine Parts

🔧 Product Description

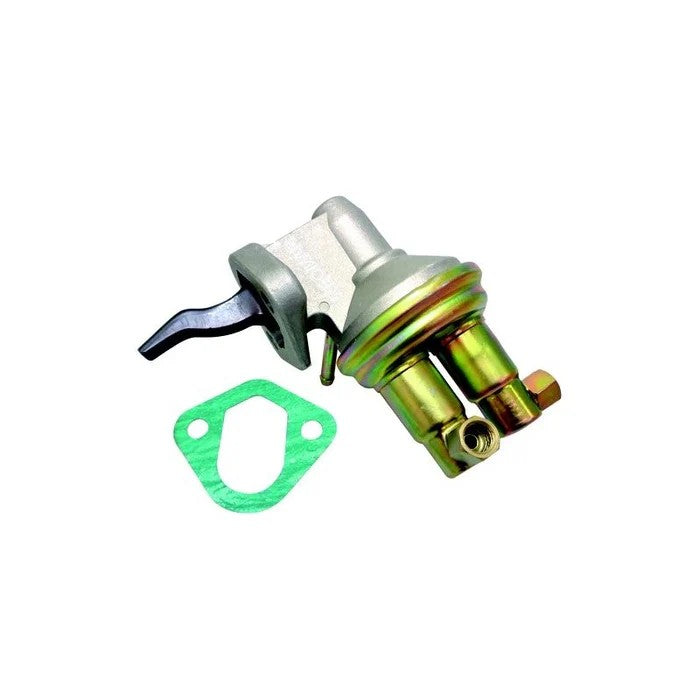

Aftermarket replacement Mechanical Fuel Pump - Replaces Part Number: 841161

New aftermarket mechanical/pulse-operated fuel pump replacing 841161. It is configured for Volvo Penta classic petrol engines whose parts catalogue specifies 841161. The exact engine model, serial range, fuel pressure and connection layout must match the original installation.

⚙️ Key Features

• Direct replacement for the 841161 service family

• Designed for Volvo Penta fuel-system applications

• Pulse- or engine-driven low-pressure fuel delivery

• Marine fuel-resistant diaphragm and valve materials

• Confirm the engine serial, pump pressure and port orientation before installation

🧰 Kit / Assembly Contents

• 1 × Complete mechanical/pulse fuel-pump assembly - Part Number: 841161

• 1 × Integrated diaphragm and check-valve assembly

• 1 × Pump-to-engine mounting gasket - supplied where included by the selected manufacturer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 841161 (Volvo Penta reference)

OEM / Related Numbers:

• 841161

Aftermarket / Verified Equivalents:

• Recmar: REC841161

🚤 Compatibility

Commonly used on:

• Volvo Penta fuel-system applications

Typically suits:

• Engine models:

• Volvo Penta classic petrol engines whose parts catalogue specifies 841161

• HP / Output Range: Engine-model dependent

• Engine / System Type: Volvo Penta fuel-system applications

• Year Range: Model- and serial-dependent

• Serial / Pump Identification: Match P/N 841161 to the model-specific parts diagram and verify pressure, electrical connector, inlet/outlet orientation and mounting before ordering.

🔌 Function

The engine-driven diaphragm pump uses crankcase pulses or a cam-operated lever to draw fuel from the tank and deliver a regulated low-pressure supply to the carburettor, vapour separator or downstream high-pressure pump.

Common signs of failure:

• Hard starting after the engine has been standing

• Fuel starvation, hesitation or loss of power under load

• Failure to fill the carburettor bowls or vapour separator

• Fuel leaking from the pump body or ruptured diaphragm

• Engine-oil dilution or fuel entering the pulse passage on a failed pump

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
