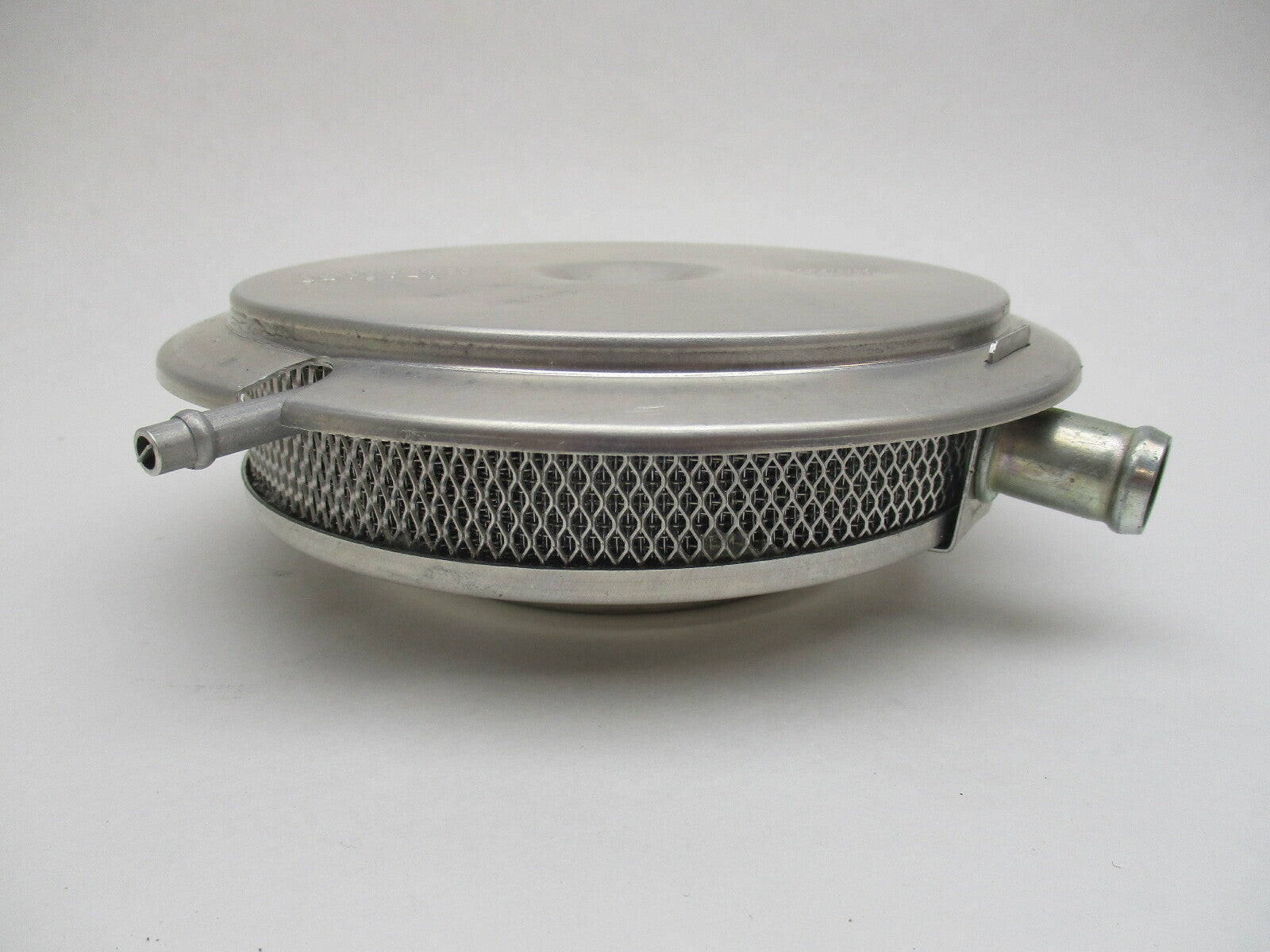

841596 Flame Shield | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta flame shield from the Inlet and Exhaust System group, weighing 0.236 kg and listed for 3 applications on AQ series engines. It supersedes 834719, catalogued earlier as a flame trap. Flame shield 841597 at 0.197 kg is the other size listed here.

🚤 Compatibility

Typically suits:

• Volvo Penta AQ175A
• Volvo Penta AQ200D
• Volvo Penta AQ200F

• Engine Family: AQ

⚙️ Key Features

• 0.236 kg
• 3 applications on AQ series engines
• Supersedes 834719, previously listed as a flame trap
• Alternative size is 841597 at 0.197 kg

🔌 Function

Stops a carburettor backfire from reaching flammable vapour in the engine space, while still passing intake air.

⚠️ Common Signs of Failure

• Backfiring through the intake
• Gauze blocked with oil, dirt or salt
• Mesh torn, collapsed or missing
• Frame distorted so it no longer seals to the carburettor
• Poor running from restricted airflow

🛠️ Service Notes

• This is a flame arrestor and a fire-safety item on a petrol engine - never run the engine without it fitted
• Clean the gauze at every service and renew it if the mesh is damaged
• Flame shield 841597 is the other size in this group - check which your carburettor takes

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 841596 → Supersedes 834719

OEM / Related Numbers

• 834719 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
