843410 Oil Bilge Pump | Genuine Volvo Penta Part

🔧 Product Description

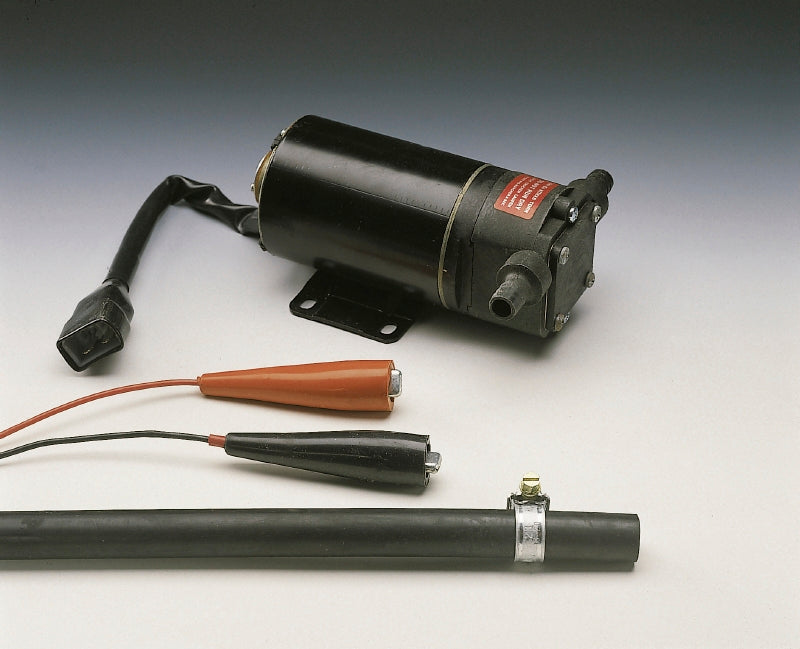

Genuine Volvo Penta electric oil drain pump in the 24 V version, weighing 3.307 kg and listed for 308 applications across D, AQ, AQD, TMD, AD and TAMD series engines. It is self-priming and permanently installed, so the sump can be emptied without manual draining, and it comes with an electrical cable with battery connectors, three metres of rubber hose with a 12 mm internal diameter, and hose clamps. Voltage is what decides the order: 843114 is the 12 V pump at 2.914 kg.

🚤 Compatibility

• Engine Family: D, AQ, AQD, TMD, AD, TAMD, BB, TD, MD, THAMD, MS, B, HS, MB, KAD, KAMD
• HP Range: 13-435 HP

Full model list at the end of this description.

⚙️ Key Features

• 24 V
• 3.307 kg
• Self-priming and permanently installed
• Supplied with battery-connector cable, 3 m of 12 mm bore hose and clamps
• 308 applications across D, AQ, AQD, TMD, AD and TAMD series engines
• Electric oil drain pump, 24 V
• Self priming
• Supplied with electrical cable and battery connectors
• Supplied with 3 m of rubber hose, 12 mm internal diameter, and hose clamps
• Voltage: 24 V
• Hose: 3 m rubber hose, 12 mm internal diameter

📋 Kit Contents

• Pump
• Electrical cable with battery connectors
• Rubber hose, 3 metres, 12 mm internal diameter
• Hose clamps

🔌 Function

Draws used oil out of the sump under electric power so the engine can be drained without a suction gun.

⚠️ Common Signs of Failure

• Motor runs but the pump shifts little or no oil
• Pump slow, labouring or tripping its fuse
• Oil weeping from the pump body or the shaft seal
• Suction hose collapsing or drawing air
• Terminals corroded or the motor failing to start

🛠️ Service Notes

• Confirm the system is 24 V before ordering, as 843114 is the 12 V pump
• It is not intended for mounting in a petrol engine room
• Warm the oil before draining and check the suction hose for air leaks before condemning the pump

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A-A, D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta AD41P-B, AD41B, AD41D, AD41, AD41A, AD41BJ
• Volvo Penta AD31, AD31B, AD31D, AD31D-A, AD31XD
• Volvo Penta TAMD41B, TAMD41D, TAMD41M-A, TAMD41P, TAMD41A
• Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70D
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta 100S, 110S, 740A, 290A
• Volvo Penta TAMD31M, TAMD31A, TAMD31B, TAMD31D
• Volvo Penta TAMD70B, TAMD70E, TAMD70C, TAMD70D
• Volvo Penta AQ170B, AQ170C, AQ170A
• Volvo Penta BB115A, BB115B, BB115C
• Volvo Penta BB170B, BB170C, BB170A
• Volvo Penta D41, D41B, D41D
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta MB20A, MB20B, MB20C
• Volvo Penta MD70B, MD70BK, MD70C
• Volvo Penta TAMD60A, TAMD60B, TAMD60C
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TD60A, TD60B, TD60D
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta TMD31A, TMD31B, TMD31D
• Volvo Penta TMD41A, TMD41B, TMD41D
• Volvo Penta AQ115A, AQ115B
• Volvo Penta D11B2-A MP, D11B1-A MP
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta AQ165A
• Volvo Penta AQD21A
• Volvo Penta B20
• Volvo Penta BB165A
• Volvo Penta BB740A
• Volvo Penta HS1A
• Volvo Penta MD21A
• Volvo Penta MD31A
• Volvo Penta MS2B-A
• Volvo Penta MS5B
• Volvo Penta TAMD103A
• Volvo Penta TAMD120B
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD42B
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD70G
• Volvo Penta TMD100C
• Volvo Penta TMD102A
