845294 Aftermarket Volvo Penta 40A, 40B, 40C Turbocharger 845294 | Sawley's Select Marine Parts

🔧 Product Description

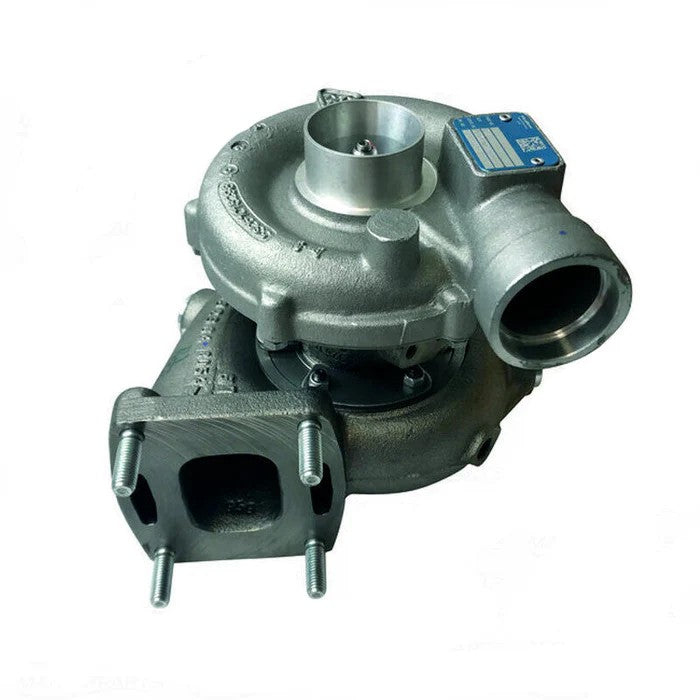

Sawley's Select Marine Parts Aftermarket Volvo Penta 40-Series K26 Turbocharger - Replacement for Part Numbers: 845294 and 3802033

A new aftermarket BorgWarner K26-style turbocharger for selected Volvo Penta MD40, TMD40, TAMD40, AQD40, AQAD40 and AD40 marine diesel engines.

The turbocharger is designed for the 3.48-litre Volvo Penta 40-series engine family and replaces the original unit fitted to early turbocharged inboard and sterndrive installations.

⚙️ Key Features

• New aftermarket Volvo Penta 40-series turbocharger

• Replaces Volvo Penta 845294 and 3802033

• BorgWarner K26-2664 marine turbocharger configuration

• Suitable for selected 40A, 40B and 40C engines

• Direct replacement flange and connection arrangement

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 845294 - Original turbocharger reference

• Volvo Penta 3802033 - Related exchange / remanufactured service reference

OEM / Related Numbers:

• 845294

• 3802033

• BorgWarner: 53269886492

• BorgWarner: 53269706492

• BorgWarner: 5326-988-6492

• BorgWarner: 5326-970-6492

• Turbo Model: K26-2664GA12.71

• Related mounting gasket kit: 22134

Aftermarket / Verified Equivalents:

• Recmar: REC845294

• Aftermarket BorgWarner-style 53269886492 replacement

• Aftermarket K26 turbocharger replacing 845294 / 3802033

🚤 Compatibility

Commonly used on:

• Volvo Penta 3.48L six-cylinder 40-series marine diesel engines

• Inboard shaft-drive installations

• Aquamatic and sterndrive installations

Typically suits:

• Engine models:

• Volvo Penta MD40A

• Volvo Penta TMD40A

• Volvo Penta TMD40B

• Volvo Penta TMD40C

• Volvo Penta TAMD40A

• Volvo Penta TAMD40B

• Volvo Penta AD40B

• Volvo Penta AQD40A

• Volvo Penta AQAD40A

• Volvo Penta AQAD40B

• Engine Displacement: Approximately 3.48 litres

• Engine Type: Six-cylinder turbocharged marine diesel

• Representative Output: Approximately 163HP / 120kW on applicable TAMD40 configurations

• Production Period: Principally 1980s and early 1990s, dependent on engine model

🔌 Function

The turbocharger uses exhaust pressure to compress incoming air, increasing cylinder air charge and allowing the engine to produce its rated torque and power.

Common signs of turbocharger failure:

• Reduced engine power

• Excessive black exhaust smoke

• Blue smoke and oil consumption

• Turbocharger whistle or grinding noise

• Oil visible in the intake piping

• Excessive shaft movement

• Turbine or compressor housing corrosion

• Engine will not reach normal loaded rpm

Installation considerations:

• Check the original turbocharger identification plate

• Replace engine oil and filter

• Inspect the turbo oil-feed and drain lines

• Clean the intake manifold and aftercooler where fitted

• Inspect the exhaust manifold and elbow

• Prime the turbo bearing housing before starting

• Replace the mounting and oil-pipe gaskets

• Check for saltwater or exhaust corrosion around the turbine housing

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in protective packaging

• Mounting gasket kit 22134 not included unless specifically listed
