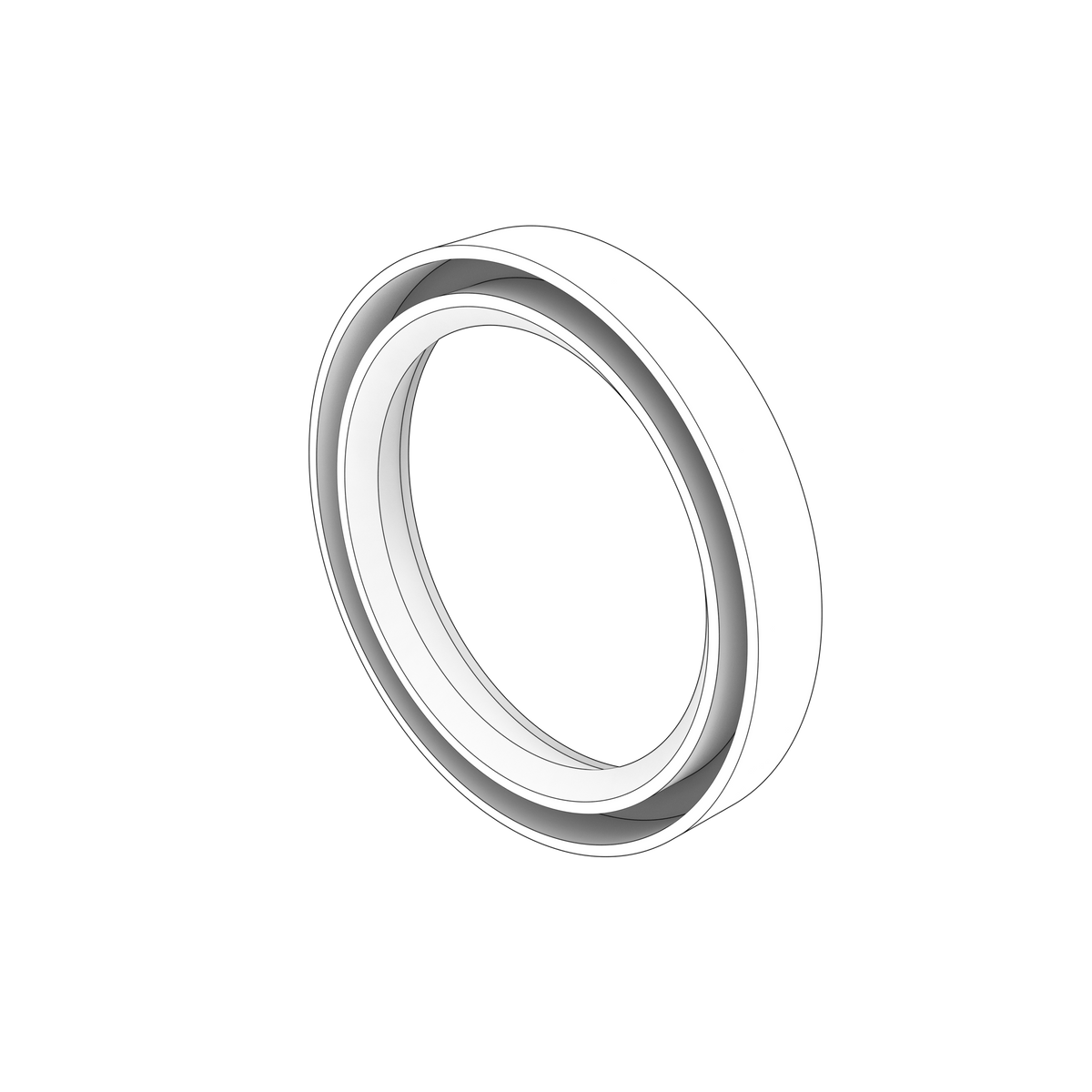

853807 Sealing Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta sealing ring, part of the gearcase seal kit, from the Marine Propulsion group. It is listed for 395 applications across the D, V, FWD, TSK, DPS and SX families and consolidates 853871. Sealing ring 853808 carries the same description, the same kit membership, the same fitment and the same superseded number, so the records do not separate the two - order by part number against your own parts list.

🚤 Compatibility

• Engine Family: D, V, FWD, TSK, DPS, SX, DP
• HP Range: 130-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Part of the gearcase seal kit
• Consolidates 853871
• 395 applications across the D, V, FWD, TSK, DPS and SX families
• Not separable from sealing ring 853808 on the published detail

📋 Kit Contents

• Part of gearcase seal kit

🔌 Function

Seals a shaft or joint in the gearcase, keeping the gear oil in and seawater out.

⚠️ Common Signs of Failure

• Gear oil weeping from the drive, or an oil film on the water at the berth
• Milky or creamy gear oil, which means water has been getting in
• Oil level down at service with no other leak found
• Ring found hardened, flattened or nicked on removal
• Corrosion or scoring on the sealing surface it runs against

🛠️ Service Notes

• Both this and 853808 are listed identically, so order by number from the parts list for your specific gearcase
• Fit the whole gearcase seal kit rather than a single ring where the case is already open - the labour is in the stripping, not the parts
• Check the sealing surface for scoring before assembly, since a scored surface will leak past a new ring

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 853807 → Supersedes 853871 → Supersedes 851406

OEM / Related Numbers

• 853871 earlier number superseded by this part
• 851406 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-MF, 8.1OSi-J, 8.1OSi-JF, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXiC-320-R, 5.7GXiCE-320-R, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiC-300-R, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-225-S, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXiC-270-R, 5.0GXiCE-270-R, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXi-225-R, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 3.0GLP-J, 3.0GLP-N, 3.0GXiC-J, 3.0GXi-J, 4.3Gi-200-S, 4.3GXi-225-S, 4.3GXiE-225-S
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-380-CE-A, V8-380-C-B, V8-380-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-C-A, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta TSK-C-42, TSK-A-AC-52-NPT, TSK-B-AC-42-NPT, TSK-B-AC-52-NPT, TSK B-42, TSK B-42-NPT, TSK B-52, TSK B-52-NPT, TSK B-AC-32, TSK B-AC-42, TSK B-AC-52, TSK B-OX-32, TSK B-OX-42, TSK B-OX-52, TSK SX-A, TSK SX-AAC, TSK SX-AACLT32, TSK SX-AACLT42, TSK SX-ALT32, TSK SX-ALT42, TSK SX-OXI-AACL, TSK SX-OXI-ACC, TSK SX-OXI-ACCL, TSK A-32, TSK A-32-NPT, TSK A-42, TSK A-52, TSK A-52-NPT, TSK A-AC-32, TSK A-AC-42, TSK A-AC-52, TSK A-OX-32, TSK A-OX-42, TSK A-OX-52, TSK B-32, TSK-C-AC-42, TSK-C-OX-42, TSK-C-AC-42-NPT, TSK-C-42-NPT, TSK-C-AC-32, TSK-C-OX-32, TSK-C-32, TSK-C-AC-32-NPT, TSK-C-32-NPT, TSK-C-52-NPT, TSK-C-AC-52-NPT, TSK-C-AC-52, TSK-C-52, TSK-C-OX-52, TSK-A-42-NPT, TSK-A-AC-32-NPT, TSK-A-AC-42-NPT, TSK-C-TCC-32, TSK-C-TCC-42, TSK-E-AC-32, TSK-E-32, TSK-E-42, TSK-E-52, TSK-E-AC-42, TSK-E-AC-52, TSK-E-TCC-32, TSK-E-TCC-42, TSK-E-TCC-52, TSK-F-AC-32, TSK-F-AC-42, TSK-F-AC-52, TSK-F-TCC-32, TSK-F-TCC-42, TSK-F-TCC-52, TSK-F-32, TSK-F-42, TSK-F-52
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC, FWD-G, FWD-G TCC, FWD-G1, FWD-G1 TCC
• Volvo Penta DPS-D1 OX, DPS-D, DPS-D OX, DPS-D1, DPS-A, DPS-A OXI, DPS-B, DPS-B OX, DPS-B1 OX, DPS-B1
• Volvo Penta DP-S, DP-S1
• Volvo Penta SX-D, SX-A
