854760 Muffler | Genuine Volvo Penta Part

🔧 Product Description

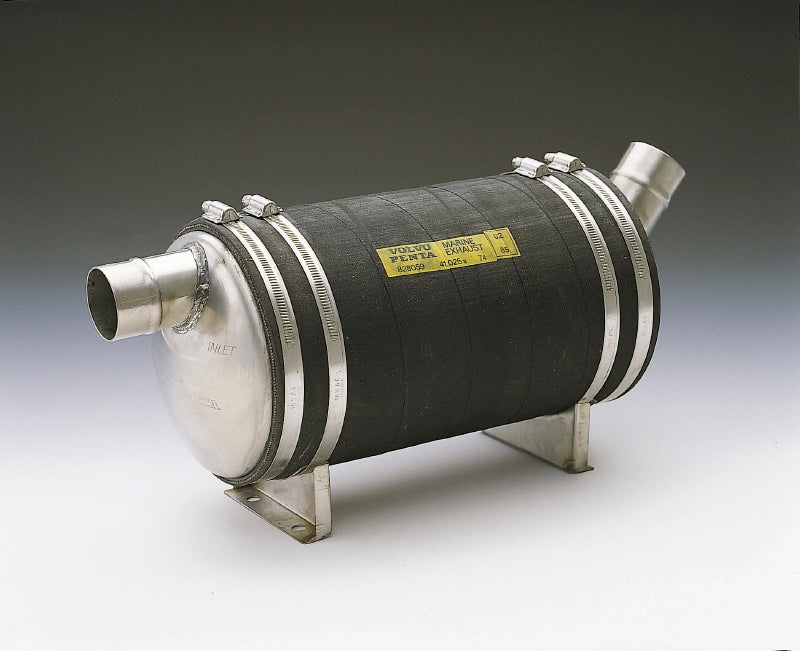

Genuine Volvo Penta silencer for wet exhaust systems for 100 mm hose, with a horizontal exhaust exit suited to installations with limited height - the largest silencer in the range. It weighs 6.146 kg and is listed for 35 applications across the D, TAMD, KAMD and KAD series. The body is reinforced rubber with acid resistant stainless steel end pieces; it quietens the exhaust with a minimum of back pressure and doubles as a water-lock, its large cooling water capacity stopping water siphoning back into the engine once it is shut down. Adjustable mounting brackets make it easy to install.

🚤 Compatibility

• Engine Family: D, TAMD, KAMD, KAD
• HP Range: 145-320 HP

Full model list at the end of this description.

⚙️ Key Features

• 100 mm hose connection - the largest listed
• Horizontal exhaust exit for installations with limited height
• Reinforced rubber with acid resistant stainless steel end pieces
• Doubles as a water-lock with large cooling water capacity
• Adjustable mounting brackets
• 6.146 kg
• 35 applications across D, TAMD, KAMD and KAD series
• Silences exhaust noise with a minimum of back pressure
• Doubles as an effective water-lock
• Horizontal exhaust exit, suitable for installations with limited height
• B1: 90 mm
• B2: 114 mm
• H: 40 mm
• L1: 375 mm
• L2: 450 mm
• L3: 500 mm
• Diameter a: 100 mm
• Diameter d: 218 mm
• Hose diameter: 100 mm
• Material: reinforced rubber with acid resistant stainless steel end pieces
• Fits: Marine wet exhaust systems, 100 mm hose

🔌 Function

Silences the wet exhaust and acts as a water-lock, carrying the gas and cooling water out through a horizontal exit.

⚠️ Common Signs of Failure

• Exhaust noise rising sharply compared with how it used to sound
• Water or soot staining at the seams or the hose connections
• Casing corroded, pitted or split
• Exhaust fumes noticeable in the engine space or accommodation
• Internal baffles broken up, heard as a rattle when the unit is rocked

🛠️ Service Notes

• Renew the exhaust hoses and clamps at the connections while the silencer is out
• A leaking wet exhaust puts exhaust gas into the boat, so check the joints and run the engine before closing up the compartment
• Confirm the 100 mm hose size and the horizontal exit against your installation, since both are fixed by this part number
• The acid resistant stainless steel end pieces are chosen for a wet exhaust duty, where the silencer carries seawater as well as exhaust gas

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-145I-G, D4-175 VG
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta KAD42B
• Volvo Penta KAMD300-A
• Volvo Penta TAMD42B
