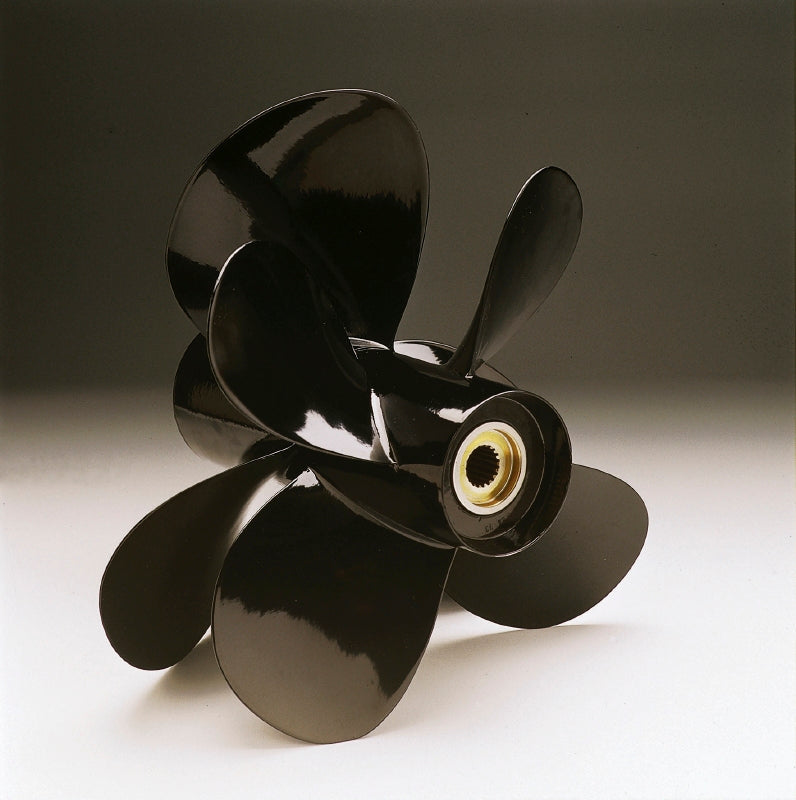

854793 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Type A is an earlier aluminium Duoprop range for the classic Volvo Penta 280, 290 and DP Aquamatic sterndrives. Volvo Penta has replaced the Type A propeller sets with Type J sets, but the Type A front and rear propellers are still sold individually as spare parts. This is the A10 rear propeller; the matching front propeller is 854783 - no complete set number is listed in this dimension. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

• Engine Family: AD, D, TMD, DP, HS, TAMD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• Type A, A10 dimension, rear position
• Three-blade front working ahead of a four-blade rear
• Aluminium Duoprop for diesel engines up to 200 hp
• Supersedes 852273
• 3.243 kg
• Matching front is 854783
• Listed for 21 applications across the AD, D, TMD, TAMD, KAD, KAMD, DP and HS series
• Aluminium Duoprop propeller for the classic 280, 290 and DP drives.
• Sold individually as a spare part - Type A sets have been replaced by Type J sets.
• No complete set number is listed in this dimension.
• Material: aluminium
• Fits: 280, 290, DP
• Type: A10
• Set contains: front 854783

🔌 Function

The trailing propeller of a counter-rotating Duoprop pair, turning the opposite way in the front propeller's wash and recovering the swirl left in it as extra thrust, which is what gives a Duoprop its grip and straight tracking.

⚠️ Common Signs of Failure

• Vibration building as engine speed rises
• Blade tips chipped, bent or curled
• Higher than usual revs for the speed made
• Rope or weed wound behind the hub
• Blade surfaces pitted or eroded

🛠️ Service Notes

• Order by the A10 code marked on the propeller rather than by weight: only 2 grams separate it from the A2 rear 854785
• Check the matching front 854783 for the same damage and keep both propellers at the same dimension
• Do not mix Type A, Type B and Type J propellers on a drive, and use propellers of the same type and size on the drive - or on both drives in a twin installation; Type J is the modern aluminium replacement covering both Type A and Type B sizes, but the sizes do not transfer directly - an A5 is not a J5 - so size an upgrade with your dealer, giving maximum boat speed and engine rpm
• Type J sizes are not equally transferred from Type A sizes - an A5 propeller does not correspond to a J5 propeller. Consult a Volvo Penta dealer for the right size, providing the maximum boat speed and engine rpm if possible.
• Do not mix Type A, B and J propellers. Always use propellers of the same type and size on the drive, or on both drives in twin installations.
• Installation hardware, types A, B, C and J: propeller cone kit M16 872614 or M20 872549, propeller nut 3851334, thrust rings 3858458 and 3858457. The spacer ring for the propeller cone, 853676, is only to be used with Type A propellers.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 854793 → Supersedes 852273

OEM / Related Numbers

• 852273 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta DP-C1, DP-D1, DP-E, DP-G
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta TAMD41D, TAMD41P
• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta HS1A
• Volvo Penta TAMD42B
• Volvo Penta TMD31D
• Volvo Penta TMD41D
