854828 Propeller | Genuine Volvo Penta Part

🔧 Product Description

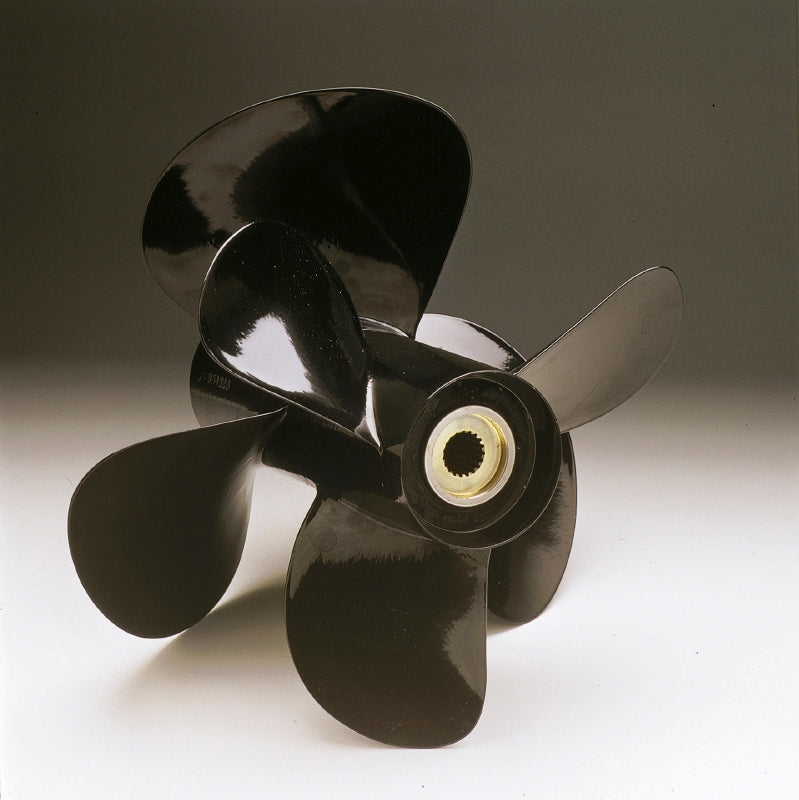

Type B is an earlier aluminium Duoprop range for the classic Volvo Penta 280, 290 and DP Aquamatic sterndrives. Volvo Penta has replaced the Type B propeller sets with Type J sets, but the Type B front and rear propellers are still sold individually as spare parts. This is the B7 front propeller; the matching rear propeller is 854836 - no complete set number is listed in this dimension. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

• Engine Family: AD, D, TMD, DP, HS, TAMD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• Type B, B7 dimension, front position
• Two three-blade propellers with very thin blade profiles
• For petrol engines and diesels up to 230 hp
• Supersedes 853617
• 3.266 kg
• Matching rear is 854836
• Listed for 21 applications across the AD, D, TMD, TAMD, KAD, KAMD, DP and HS series
• Aluminium alloy
• Left-hand rotation
• Aluminium Duoprop propeller for the classic 280, 290 and DP drives.
• Sold individually as a spare part - Type B sets have been replaced by Type J sets.
• No complete set number is listed for the Type B dimensions.
• Material: aluminium
• Fits: 280, 290, DP
• Type: B7
• Set contains: rear 854836

🔌 Function

The leading propeller of a counter-rotating Duoprop pair, taking the first bite of clean water and turning engine torque into thrust, with the rear propeller behind it sharing the load the drive is designed to carry.

⚠️ Common Signs of Failure

• Vibration that comes on with revs
• Chipped, bent or curled blade tips
• Engine over-revving for the boat speed
• Weed or fishing line trapped at the hub
• Erosion or pitting on the blades

🛠️ Service Notes

• Order by the B7 code marked on the propeller rather than by weight: only 23 grams separate it from the B2 front 854823
• Check the matching rear 854836 for the same damage and keep both propellers at the same dimension
• Do not mix Type A, Type B and Type J propellers on a drive, and use propellers of the same type and size on the drive - or on both drives in a twin installation; Type J is the modern aluminium replacement covering both Type A and Type B sizes, but the sizes do not transfer directly - an A5 is not a J5 - so size an upgrade with your dealer, giving maximum boat speed and engine rpm
• Type J is designed to cover both the Type A and the Type B propellers, but the sizes are not equally transferred. Consult a Volvo Penta dealer for the right size, providing the maximum boat speed and engine rpm if possible.
• Do not mix Type A, B and J propellers. Always use propellers of the same type and size on the drive, or on both drives in twin installations.
• Installation hardware, types A, B, C and J: propeller cone kit M16 872614 or M20 872549, propeller nut 3851334, thrust rings 3858458 and 3858457.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 854828 → Supersedes 853617

OEM / Related Numbers

• 853617 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta DP-C1, DP-D1, DP-E, DP-G
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta TAMD41D, TAMD41P
• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta HS1A
• Volvo Penta TAMD42B
• Volvo Penta TMD31D
• Volvo Penta TMD41D
