855714A3 855713A4 Mercury Switch Box | Genuine Used Part

855714A3 855713A4 Mercury Switch Box | Genuine Used Part

$300.00 AUD
$300.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

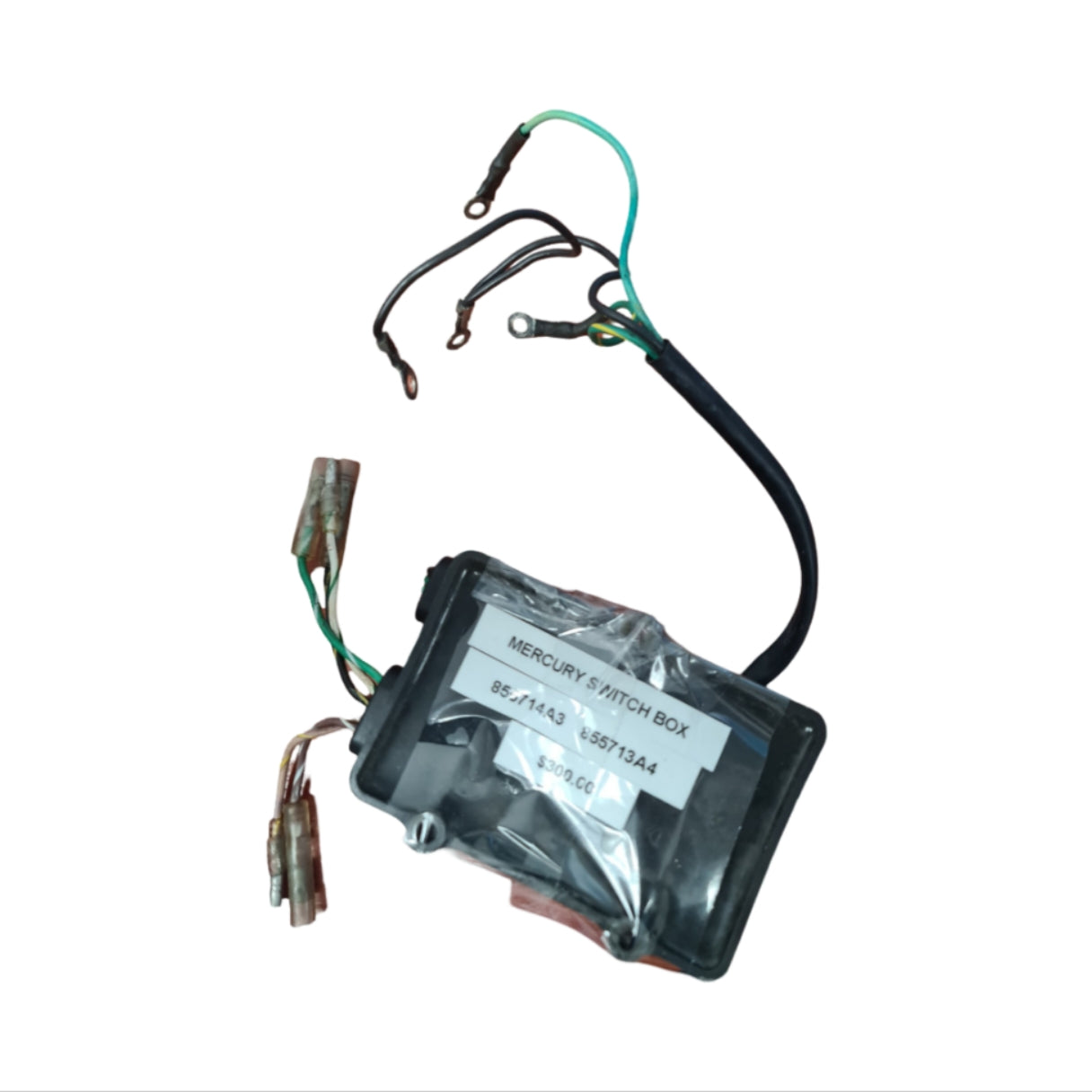

Genuine Mercury Switch Box / Ignition Power Pack - Part Numbers: 855714A3 and 855713A4

A genuine Mercury switch box ignition module used on selected Mercury and Mariner 2-cylinder two-stroke outboards. This switch box controls ignition triggering from the stator and trigger circuits to provide spark output to the ignition coils.

⚙️ Key Features

  • Genuine Mercury switch box / ignition module
  • Listed with Mercury part numbers 855714A3 and 855713A4
  • Used on selected 6HP to 25HP Mercury / Mariner two-stroke outboards
  • Cross-references with CDI Electronics 114-5713 replacement family
  • Must be matched by exact serial number, flywheel type and ignition connector layout

🚤 Compatibility

Commonly used on

  • Mercury / Mariner small two-stroke ignition systems

Typically suits

  • Engine models:
  • Mercury 6HP two-stroke 1999-2006 applications using this switch box family
  • Mercury 8HP two-stroke 1999-2006 applications using this switch box family
  • Mercury 9.9HP two-stroke 1999-2006 applications using this switch box family
  • Mercury 10HP two-stroke applications using this switch box family
  • Mercury 15HP two-stroke applications using this switch box family
  • Mercury 20HP two-stroke 2-cylinder Mercosil block applications using this switch box family
  • Mercury 25HP two-stroke 2-cylinder Mercosil block applications using this switch box family
  • Mariner 6HP two-stroke applications using this switch box family
  • Mariner 8HP two-stroke applications using this switch box family
  • Mariner 9.9HP two-stroke applications using this switch box family
  • Mariner 10HP two-stroke applications using this switch box family
  • Mariner 15HP two-stroke applications using this switch box family
  • Mariner 20HP two-stroke applications using this switch box family
  • Mariner 25HP two-stroke applications using this switch box family
  • HP Range: 6HP - 25HP
  • Engine Type: Mercury / Mariner 2-cylinder two-stroke outboard
  • Year Range: Approximately 1999 - 2006 depending on model
  • Serial Note: Commonly associated with 4-magnet flywheel ignition systems. Confirm exact serial number, ignition type and connector layout before installation.

🔌 Function

The switch box stores ignition energy from the stator and releases it to the ignition coils when triggered, creating spark at the correct timing point.

⚠️ Common Signs of Failure

  • No spark on one or both cylinders
  • Intermittent spark when hot
  • Engine misfire at RPM
  • Hard starting or no-start condition
  • Spark returns when switch box is substituted
  • Stator and trigger test correctly but spark remains absent
  • Water or heat damage to switch box casing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 855713A4 later / replacement switch box reference
  • 855713A3 earlier related switch box reference
  • 855713A2 earlier related switch box reference
  • 855714A3 related switch box family reference

OEM / Related Numbers

  • 855714A3
  • 855713A4
  • 855713A3
  • 855713A2
  • 855713A 2
  • 855713A 3
  • 855713A 4
  • 114-5713
  • 1145713
  • 1445713

Aftermarket / Verified Equivalents

  • CDI Electronics: 114-5713
  • Aftermarket switch box replacement: 114-5713
  • Aftermarket switch box replacement: 1445713
  • Aftermarket direct-fit switch boxes for 855713A3 / 855713A4 applications

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
