857180 Spacer Nut | Genuine Volvo Penta Part

🔧 Product Description

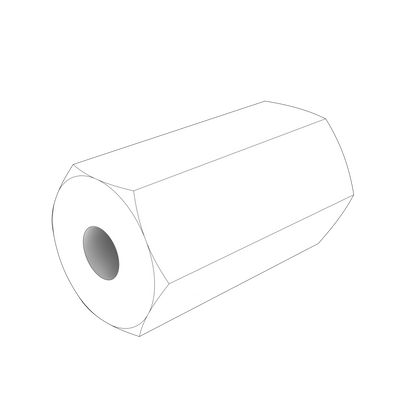

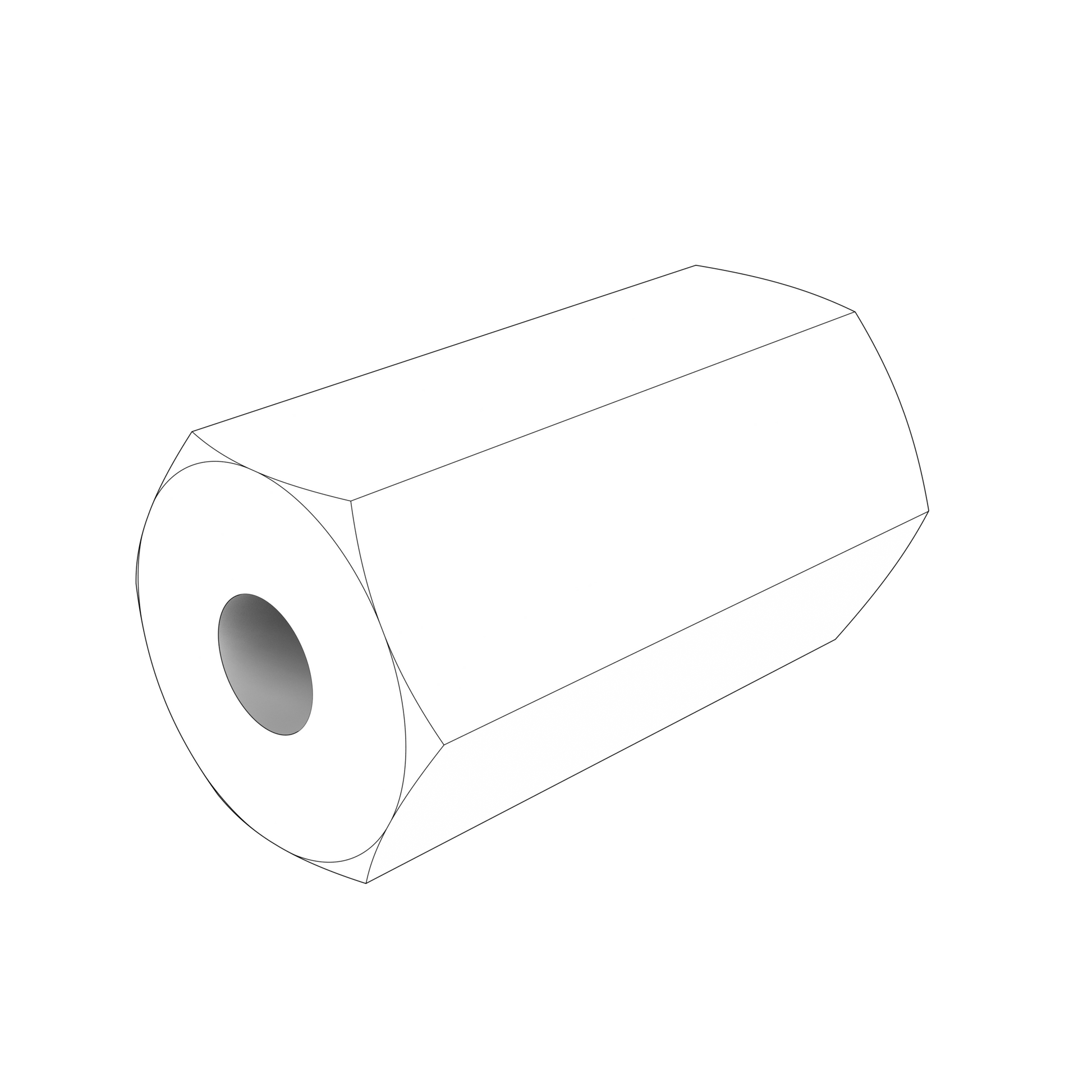

Genuine Volvo Penta spacer nut, M10 x 32 mm, from the Starting System group, weighing 0.045 kg and listed for 202 applications across the TAMD, D, TWD, TID, TD and TAD ranges. It supersedes 855330. The M10 x 32 mm size is the ordering detail and the wide fitment reflects a common starter-terminal fixing.

🚤 Compatibility

• Engine Family: TAMD, D, TWD, TID, TD, TAD, MD
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• M10 x 32 mm
• 0.045 kg
• 202 applications across TAMD, D, TWD, TID, TD and TAD
• Supersedes 855330
• L=32mm / M10x32mm (Volvo assembly listing)

🔌 Function

Spaces and clamps a starter-circuit connection, holding the terminal joint tight at the set standoff.

⚠️ Common Signs of Failure

• Slow or intermittent cranking from a high-resistance joint
• Terminal heat discolouration or a burnt smell at the starter
• Nut working loose so the connection moves
• Thread corroded, pulled or picked up
• Green or white corrosion built up around the terminal

🛠️ Service Notes

• Isolate the battery before working on any starter terminal - the main feed stays live with the key out
• Clean the terminal faces back to bright metal and pull the joint up properly; a high-resistance joint here reads exactly like a failed starter

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 857180 → Supersedes 855330

OEM / Related Numbers

• 855330 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MP, D12D-F MP, D12D-G MP, D12D-H MP
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
• Volvo Penta TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta TAD1241GE, TAD1241VE, TAD1241-42VE
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta MD2010, MD2010B
• Volvo Penta 432A, 434A
• Volvo Penta TAD1242GE, TAD1242VE
• Volvo Penta TAD1250VE, TAD1250-52VE
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta TAD1240GE
• Volvo Penta TAD1251VE
• Volvo Penta TAD1252VE
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD610M
• Volvo Penta TD630ME
• Volvo Penta TD730ME
• Volvo Penta TWD1240VE
• Volvo Penta TWD630ME
• Volvo Penta TWD730ME
